CNC lathe

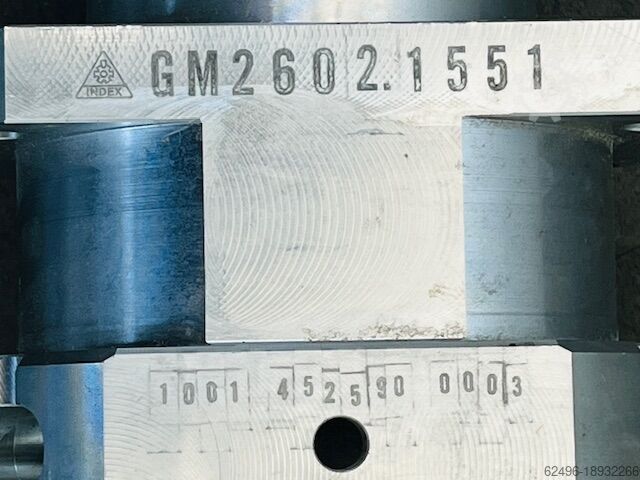

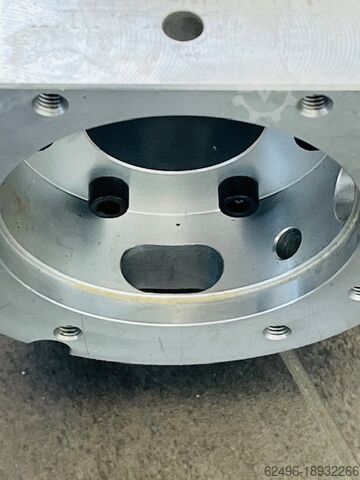

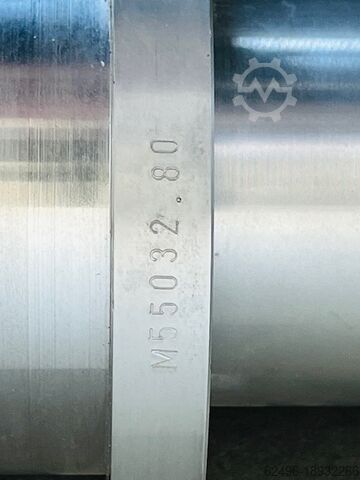

Index MS32 ANTRIEB Z-NC SPK1

Condition: used, Year of construction: 2015, Technical details: number of spindles: 6 spindle passage: 22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. Bedpfoxc Idmex Afcocw The complete energy supply of all 6 main spindles was replaced in April 25. *

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, INDEX MS40-6 CNC Multi-Spindle Year of Manufacture: 2011 Commissioned: 2012 Control: Siemens 840D (Dual NCU) Bar Capacity: 40 mm Slide Units Position 1.1: X / Z NC controlled Position 1.2: X / Z NC controlled Position 2.1: X / Z NC controlled Position 2.2: X / Z NC controlled Position 3.1: X / Y / Z NC controlled (Y ± 21 mm) Position 3.2: X / Z NC controlled Position 4.1: X / Z NC controlled Position 4.2: X / Z NC controlled Position 5.1: X / Z NC controlled Position 5.2: X / Z NC controlled Position 6.1: X / Z NC controlled Position 6.2: X / Z NC controlled Position 6.3: X NC controlled, Z fixed Bar Feed IEMCA SIR MS40/33/P magazine bar loader Workpiece Handling Parts chute at spindle position 6 Workpiece conveyor at spindle position 6 Synchronization unit at spindle position 6.1 Parts ejector Coolant feed preparation through counter spindle Back-Working Attachment at slide position 6.2 Up to 3 fixed toolholders Auxiliary Drive Preparation Electrical preparation for 2 auxiliary drives with electronic shaft (positions 1–3), synchronous with main and counter spindle Electrical preparation for 2 auxiliary drives with electronic shaft (positions 4–6), synchronous with main and counter spindle Compatible with auxiliary drives with incremental encoder (double module) Chip & Coolant System Hinge-belt chip conveyor (cross type), discharge height 1200 mm, front discharge with lift pump for filter unit Bcodpfoxndgzex Afcow Coolant filtration unit (50 Hz): Coolant tank: 800 L Vacuum rotation filter: 650 L capacity Plate heat exchanger for coolant cooling Heat exchanger pump: 80 L/min 7 bar Low-pressure pump: 300 L/min 4 bar High-pressure pump: 55 L/min 40 bar Safety & Environmental Automatic CO₂ fire extinguishing system with optical/thermal detection Preparation for central exhaust system Shut-off flap for central oil mist extraction Control Options & NC Functions 16/16 freely programmable I/O interface Transmit / Tracyl function (milling cylindrical paths on OD and face) Dual transmit function for Y-axis transformation NC option: counter spindle / polygon turning with electronic shaft Process Monitoring Integrated ARTIS monitoring system based on torque, current, or power evaluation Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 1–3 Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 4–6

Condition: good (used), Year of construction: 2006, Number of working spindles: 6 pieces Bjderqzzpjpfx Afcscw Bar spindle diameter capacity: 32 mm Working spindle maximum speed: 6000 rpm Spindle chuck diameter: 40 mm Maximum number of tool carriers: 12 pieces Tool carrier travel distances: X = 72 mm, Z = 100 mm Part catcher receiver available in 6.1 position KNOLL chip conveyor In-machine air intake filtration system available (ventilation) Weight: 7,200 kg Magazine: IEMCA 3300 mm capacity bar feeder

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, number of spindles: 6, bar diameter (max.): 40 mm, Equipment: rotational speed infinitely variable, High pressure 80 bar Bcjdexuikropfx Afcew Y-axis in position 5.1 Polygon turning device Part removal possible with external unit Index MBL 40-6 – bar feeder

Condition: ready for operation (used), Year of construction: 2006, spindle speed (max.): 6,300 rpm, number of axes: 12, This 12s Index MS32C multi-spindle turning machine was manufactured in 2006. It features a maximum bar diameter of 32 mm and a maximum spindle speed of 6,300 rpm. The machine is equipped with a Siemens 840D CNC control and includes a bar loader, coolant tank, and chip conveyor. If you are looking to get high-quality turning capabilities, consider the Index MS32C machine we have for sale. Contact us for further details. • Number of spindles: 6 • Max. bar diameter: 32 mm • Slide units 1.1–6.2: CNC-controlled X and Z axes • Synchronous unit at spindle position 6.1 Bodpfx Aeylk R Asfcscw • Counter spindle • CNC control: Siemens 840D with control panel and 2× NCU Additional equipment • Bar loader: IEMCA SIR MS32 F • Coolant tank: KNOLL, with high-pressure pump • Chip conveyor: KNOLL • Cooling unit (chiller): Riedel WTS 030.02-NE • Unloading system with 2 CNC axes • Fire extinguishing system: KRAFT UND BAUER
