Stainless steel container/tank with double jacket

Inox Behälter GmbH

Condition: new, Factory-new electrically heated stainless steel mixing vessel with insulation and propeller agitator, including operating manual and CE declaration of conformity. Model: EBB250RWP Alternatively available with other agitator types and in different sizes. Capacity: 250L Approx. dimensions: Ø 595mm x cylindrical height 900mm Total height: 1240mm plus agitator motor Material: 1.4301 stainless steel V2A Surface finish: IIIc / 2B Nwedpfx Aoyngxnofcjc Weld seams ground on the inside Max. operating temperature: 110°C Operating pressure vessel: ATM -Upright design on casters -Top: Hinged lid, half bolted, half hinged with removable stainless steel sheet grid as reach-in protection -Bottom: Flat bottom with lateral outlet DN50 DIN11851 and disk valve, EPDM seal -Agitator flange connection on the top cover -2x push handles Propeller agitator: Power: 0.37 kW Speed: 1410 rpm Operating voltage: 3PH 400V

Condition: new, Factory-new electrically heated stainless steel mixing tank, insulated, with propeller agitator, including operating manual and CE declaration of conformity. Model: EBB150RWP Also available with alternative agitator types and in other sizes. Capacity: 152 L Approximate dimensions: Ø 660 mm x cylindrical height 625 mm Total height: 910 mm (+ agitator motor) Material: 1.4301 (V2A) stainless steel Finish: IIIc / 2B Weld seams ground Maximum operating temperature: 110°C Operating pressure (tank): atmospheric -Upright design on castors -Top: Hinged lid, half bolted, half hinged, with removable stainless steel safety grid -Bottom: Flat bottom with lateral outlet DN50 DIN 11851 and disc valve, EPDM gasket -Agitator flange connection on top -2x push handles -1x type plate Agitator: Propeller agitator Power: 0.25 kW Nodpfsym Ucljx Afcjwc Speed: 980 rpm Operating voltage: 3-phase 400 V

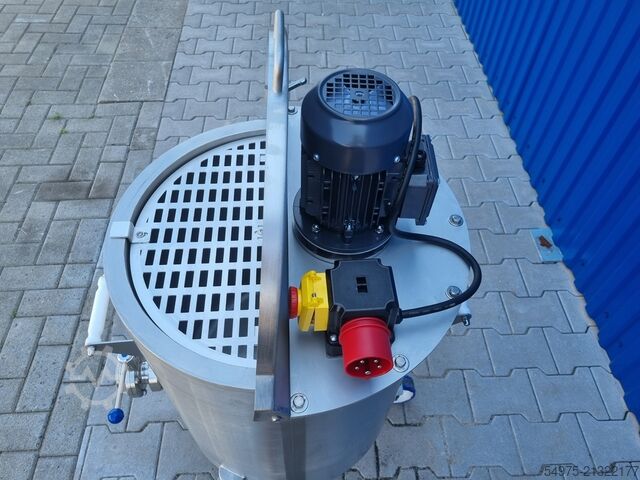

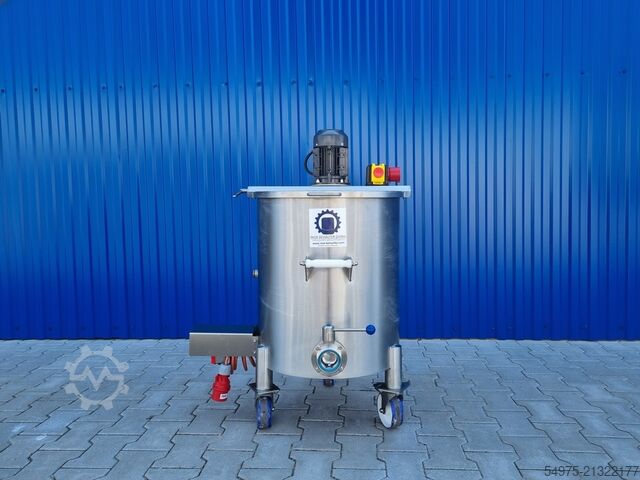

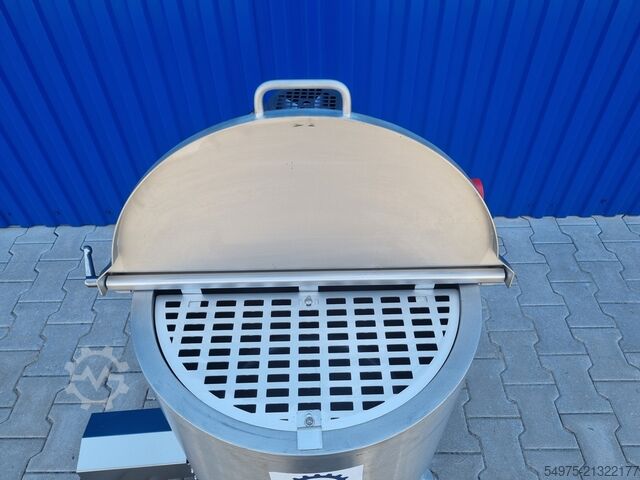

Condition: new, Factory-new electrically heated stainless steel agitator tank EBB90RWP Including operating manual and CE declaration of conformity. The double jacket is filled with thermal oil, which is heated by an electric heating element. Alternatively available with other agitator types and in other sizes. Nwodpfx Asym Arbofcsc Volume: 97L Dimensions approx.: Ø 540mm x cylindrical height 625mm Total height: 910mm (+ agitator motor) Material: 1.4301 stainless steel (V2A) Surface: inside and outside finely ground (matte finish) Weld seams ground smooth Max. operating temperature: 110°C Operating pressure (tank): Atm - Upright design on castors - Top: folding lid, half bolted, half hinged, with removable stainless steel grating for reach-in protection - Bottom: flat base with lateral outlet DN50 DIN11851 and disc valve - Agitator flange on the top cover - 2x push handles - 1x nameplate Propeller agitator Power: 0.25 kW Speed: 980 rpm Operating voltage: 3PH 400V

Year of construction: 2025, condition: new, Brand new stainless steel agitator tank with beam agitator and load cells CILC2000RWS Volume: 2107L Dimensions approx.: Ø 1430mm x cyl. Height 1250mm Total height: approx. 1650mm (plus agitator motor) Material: 1.4301 stainless steel V2A Nwedevtyf Iopfx Afcjc Surface: inside BA (IIId), outside satin finish Welding seams in the container ground -Standing design on three feet -Top: hinged lid, central crossbar with 2 hinged lid halves with locking function (can be locked in 90° open position) -Metal grates below the hinged lid as protection against soap, screwed, removable -Bottom: conical bottom with central outlet DN50 DIN11851 nozzle -Agitator flange on the top -1x reserve nozzle DN50 DIN11851 on the top with blind cap -Type plate -180° spray head - Weighing cells - Speed control Agitator: Bar agitator Make: Schwarzer Rührtechnik GmbH Type: SRTGMK/1.5-149 Power: 1.5KW Speed: 149RPM Operating voltage: 3PH 400V -Gearbox made by Getriebebau NORD -Solid agitator shaft with sleeve coupling attached to the gear motor, removable -Agitator shaft balanced for concentricity in the speed range -2 2-blade bar agitators Ø 500mm, height adjustable on the agitator shaft, attached via side power screws Grilled and passivated -Stainless steel flange with shaft seal and O-ring seal -MFR converter

Condition: excellent (used), Used heatable/coolable agitator tank with anchor agitator Type: CILC3000TPRWA Item number: 10865 Last intended use: Food Volume: Approx. 3150L Type: Upright design on four height-adjustable feet Design: Min. 2mm wall thickness Material (wetted parts): 1.4301 stainless steel Surface: Satin finish on the outside, BA (IIId) on the inside Internal weld seams: Ground Operating pressure: Atmospheric Thermoplate operating pressure: Max. 1.8 bar Operating temperature: Max. +95°C Top plate: Central cross member with two hinged lid halves Bottom plate: Conical bottom with central outlet Tank dimensions: Tank diameter: 1600mm Cylinder height: 1500mm Total height: 2700mm Feet height: 580mm Equipment: -Thermoplate (double jacket) for heating/cooling, H=1000mm, around the cylinder. Part of the tank, inlet/outlet connection 3/4" nipple, max. operating pressure 1.8 bar -Thermoplate (double jacket) for heating/cooling on the bottom of the tank, inlet/outlet connection 3/4" nipple, max. operating pressure 1.8 bar -1x hinged lid, central crossbar with 2 hinged lid halves with locking function (can be locked in a 90° open position) -2x metal grates below the hinged lid as anti-soap protection, screwed, removable -Cross braces welded between the feet -1x agitator flange connection -1x spare connection DN50 DIN11851 on the top plate with blind cap -Outlet DN50 DIN11851 Handle extends to the front, adapter shaft, guide plate -1x nameplate Agitator: Anchor agitator Max. viscosity: 20,000 mPas Manufacturer: Schwarzer Rührtechnik GmbH Type: SRTFGH/1.5-10 Power: 1.5 kW Speed: 0-11 rpm Operating voltage: 3PH 400 V Material in contact with product: 1.4301 stainless steel -Motor and gearbox manufactured by Getriebebau NORD -Gearbox with food-grade oil filling -Solid agitator shaft with double bearings in the gearbox -Agitator shaft balanced for smooth running across the speed range Nwodpfx Afjwfnpqocjc -Anchor agitator made of 60x60 square tube, welded design -Stainless steel flange with EPDM V-ring seal Agitator control: CEE plug-in switch on the tank with on/off switch, phase inverter, zero-voltage release, and emergency stop, pre-wired Continuous speed control of the agitator motor via a compact, external frequency converter, manufactured by Optidrive Operating voltage: 3PH 400V

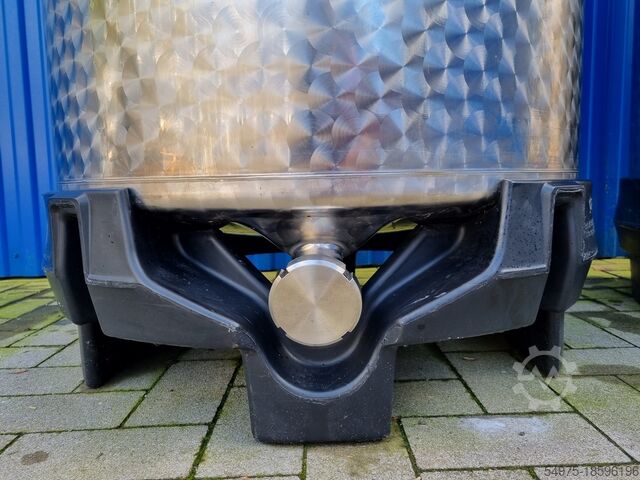

Condition: new, Brand new stainless steel container Article number: 10846 Volume: 550 L Type: Standing on a plastic pallet Material (in contact with the media): Stainless steel V2A / AISI 304 Number of fixings: Plastic pallet Bottom: Dished bottom Max. operating pressure: Atmospheric Nwjdpfov Dunfsx Afcjc Container dimensions: Inner diameter: 815mm Outer diameter: 890mm Total height: 1330mm Cylindrical height: 1070mm Total width: 890mm Materials: Inside: 14301 / AISI 304 Outside parts: 14301 / AISI 304 Facilities: Nameplate: no Outlet diameter: 50mm Distance from drain to floor: 160mm

Condition: like new (used), Equipment: type plate available, Used stainless steel transport container Prepared for agitator Type: SBPA150 Item number: 10796 Volume: 173 liters Type: Upright design on pallet Design: Single-walled, 1.5mm wall thickness Material (wetted parts): 1.4301 stainless steel Surface: Satin-finished outside, IIId inside Internal weld seams: Pickled, passivated and brushed Operating pressure: Atmospheric Top: 1/2 hinged lid Underbody: dished bottom with outlet bead Tank dimensions: Tank diameter: 650mm Total height: 815mm Nedpfx Afsr A Engocjwc Pallet: 675 x 719mm Equipment: 1x 1/2 hinged lid on the top, latching function (lid can be latched in open 90° position) Stainless steel sheet metal grates underneath the hinged lid, screwed, removable DN50 ball valve outlet fitting DIN11851 Galvanized transport pallet Type plate

Condition: good (used), Used stainless steel process vessels Article ID: 10302 Volume: 200 l Type: Standing on wheels Material (media contact): V2A / AISI 304 stainless steel Number the fixations: 4 rolls Floor:-Torispherical head Top shelf:-Torispherical head removable Working pressure according to the nameplate: ATM Dimensions tank: Inside diameter: 670mm Outside diameter: 690 mm Height of feet: 220mm Distance from drain to floor: 1 340 mm 2. 330 mm Nwsdpod H Tvzefx Afcec Total height: 1700 mm Total width: 1020 mm Materials: Inside: V2A / AISI304 Exterior parts: 1.4301 / AISI304 Facilities: Plate: No Outlet: bottom valve Various connectors Top shelf, removable Control box Propeller Rühraorgan available

Condition: like new (used), Equipment: type plate available, Used stainless steel agitator tank on stainless steel pallet with rollers and propeller agitator Type: SBPA1000RWP Nwodpev Ha Uiofx Afcoc Article number: 10862 Volume: 907L Type: Upright design on stainless steel transport pallet with rollers Design: Single-walled, at least 2mm wall thickness Material (in contact with media): 1.4301 stainless steel Surface: Satin finish on the outside, BA (IIId) on the inside Inside weld seams: Pickled, passivated and brushed Operating pressure: Atmospheric Top: Central crossbeam with two hinged lid halves Bottom: Dished bottom with discharge bead Container dimensions: Container diameter: 1080mm Total height: 1915mm Total width: 1200 x 1150mm Distance from drain to floor: 400mm Height of feet: 240mm Equipment: 1x hinged lid, central crossbar with two hinged lid halves, stainless steel sheet metal grates below the hinged lid as protection against intrusion (removable), locking function (lids can be locked open) 1x reserve nozzle DN50 DIN11851 on the top floor 1x DN50 DIN32676-A Tri-Clamp ball valve as outlet fitting, PTFE seal 1x stainless steel transport pallet 4x swivel castors, 2x with brake 1x nameplate Agitator: Propeller agitator Suitable for viscosities up to 500mPas Make: Schwarzer Rührtechnik GmbH Type: SRT8-1500 Power: 0.75KW Speed: 1410 UPM Operating voltage: 3PH 400V -Solid agitator shaft attached to the agitator motor, not removable -Agitator shaft balanced for concentricity in Speed range -1 mixing propeller Ø 150mm screwed into the end of the agitator shaft. Mixing propeller made of cast stainless steel, highly polished -4x neoprene rubber metal buffers, motor mounted in a swinging manner, hardness grade 70 according to Shore, neoprene resistant up to 100°C Agitator control: CEE plug switch on the container, on/off switch, emergency stop, zero voltage release and phase inverter Continuous speed control of the agitator motor using a compact, external frequency converter, Optidrive brand. With digital display of the frequency or speed. Incl. potentiometer, on/off switch. Pre-programmed for agitator operation. Operating voltage 3PH 400V Mounted on the container on a stainless steel holder.

Condition: like new (used), Used heatable/coolable stainless steel container Type: STOC3300TPRW Item number: 10844 Volume: Approx. 3300 liters Type: Upright design on three height-adjustable feet Design: Single-walled with thermoplate Material (wetted parts): 1.4301 stainless steel (AISI304) Surface: Satin-finished outside, BA (IIId) inside Internal weld seams: Pickled, passivated and brushed Max. Operating pressure: Atmospheric Max. Operating pressure thermoplate: 1.8 bar Max. Operating temperature: 95°C Top plate: 15° conical bottom Bottom: conical bottom 15° with central outlet DN50 DIN11851 Tank dimensions: Tank diameter: 1600mm Cylinder height: 1500mm Total height: 2430mm Equipment: 1x Ø 500mm manhole cover with swivel bracket on the top, EPDM seal 1x ladder bracket 1x thermoplate on cylinder H=900mm on cylinder 1x agitator flange connection IEC250 3x spherical caps / height-adjustable feet with foot plates 1x vent valve DN50 stainless steel unpressurized on the top plate 1x DN50 DIN11851 spigot outlet in the center of the underbody 1x DN50 DIN11851 spigot on the top shelf with blind cap Nwsdpfeuy Ribsx Afcjc 1x DN65 DIN11851 spigot on the top shelf with blind cap 1x type plate
