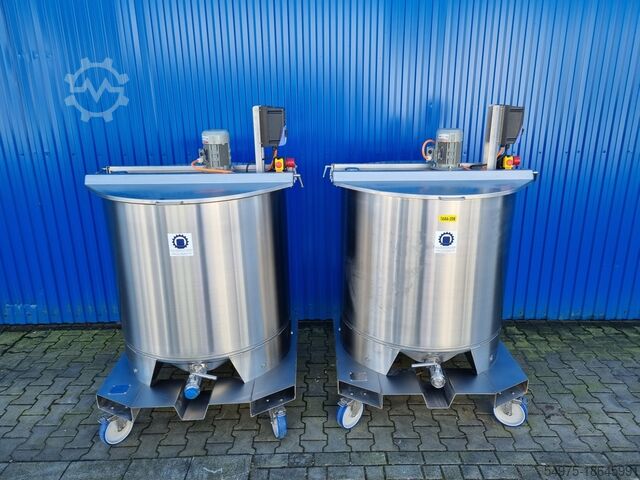

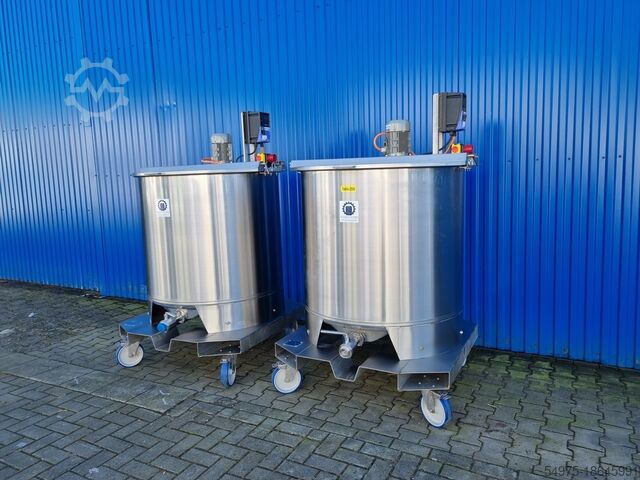

Stainless steel agitator tank TankInox Behälter GmbH
SPBA1000RWP
Machine data
- Machine type:
- Stainless steel agitator tank Tank
- Manufacturer:
- Inox Behälter GmbH
- Model:
- SPBA1000RWP
- Condition:
- like new (used)
Price & Location
- Location:
- Steller StraĂe 65, 27755 Delmenhorst, DE
Technical details
- Equipment:
- type plate available
Details about the offer
- Listing ID:
- A186-45991
- Reference number:
- 10862
- Update:
- 05.03.2025
Description
Type: SBPA1000RWP
Article number: 10862
Volume: 907L
Type: Upright design on stainless steel transport pallet with rollers
Design: Single-walled, at least 2mm wall thickness
Material (in contact with media): 1.4301 stainless steel
Surface: Satin finish on the outside, BA (IIId) on the inside
Inside weld seams: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top: Central crossbeam with two hinged lid halves
Bottom: Dished bottom with discharge bead
Container dimensions:
Container diameter: 1080mm
Total height: 1915mm
Total width: 1200 x 1150mm
Distance from drain to floor: 400mm
Height of feet: 240mm
Equipment:

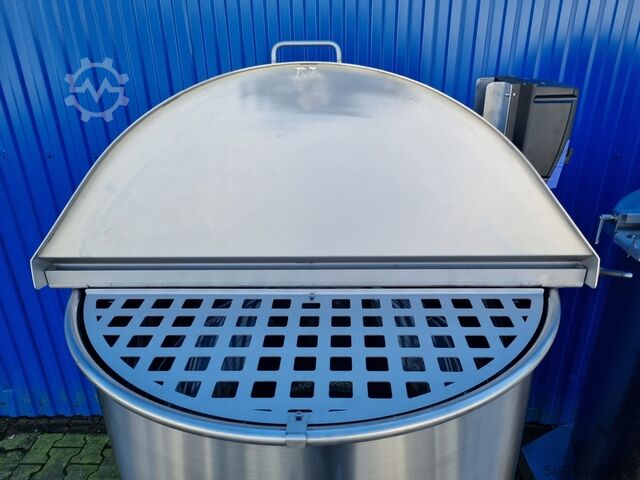

1x hinged lid, central crossbar with two hinged lid halves, stainless steel sheet metal grates below the hinged lid as protection against intrusion (removable), locking function (lids can be locked open)
1x reserve nozzle DN50 DIN11851 on the top floor
1x DN50 DIN32676-A Tri-Clamp ball valve as outlet fitting, PTFE seal
1x stainless steel transport pallet
4x swivel castors, 2x with brake

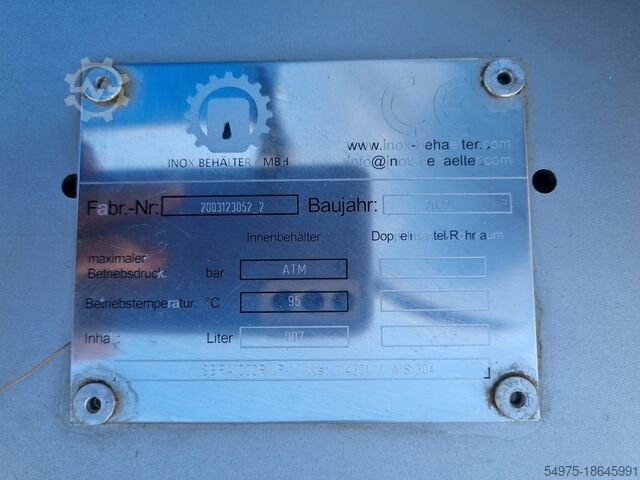

1x nameplate
Agitator:
Gksdpfsv Ha Uiex Afpsc
Propeller agitator
Suitable for viscosities up to 500mPas

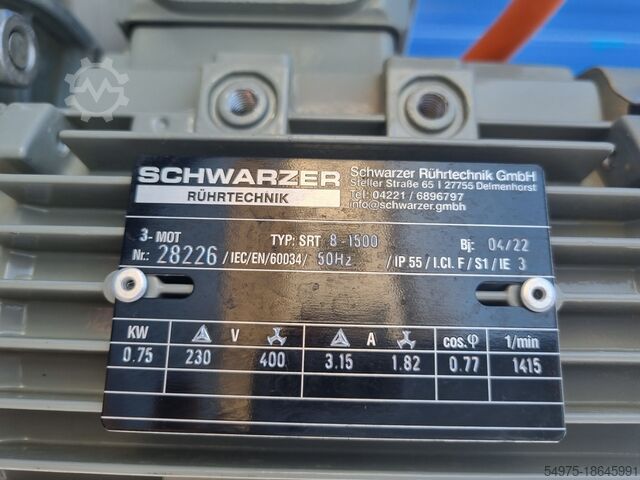

Make: Schwarzer RĂźhrtechnik GmbH
Type: SRT8-1500
Power: 0.75KW
Speed: 1410 UPM
Operating voltage: 3PH 400V
-Solid agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in Speed range
-1 mixing propeller Ă 150mm screwed into the end of the agitator shaft. Mixing propeller made of cast stainless steel, highly polished
-4x neoprene rubber metal buffers, motor mounted in a swinging manner, hardness grade 70 according to Shore, neoprene resistant up to 100°C
Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, zero voltage release and phase inverter
Continuous speed control
of the agitator motor using a compact, external frequency converter, Optidrive brand. With digital display of the frequency or speed.
Incl. potentiometer, on/off switch.
Pre-programmed for agitator operation.
Operating voltage 3PH 400V
Mounted on the container on a stainless steel holder.
The listing was translated automatically. Translation errors are possible.
