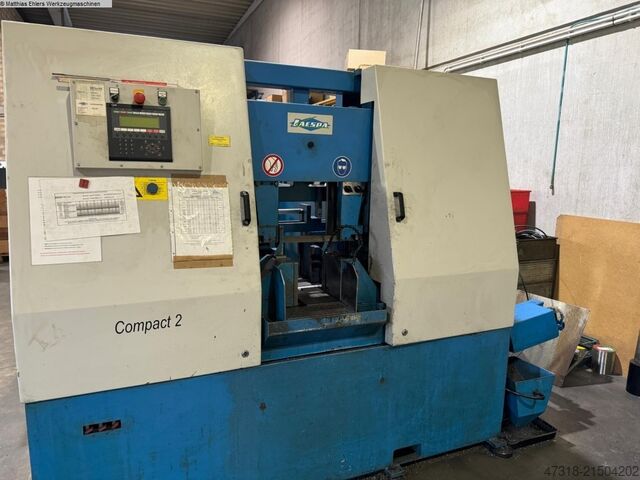

Band Saw - Automatic

JAESPA COMPACT 2

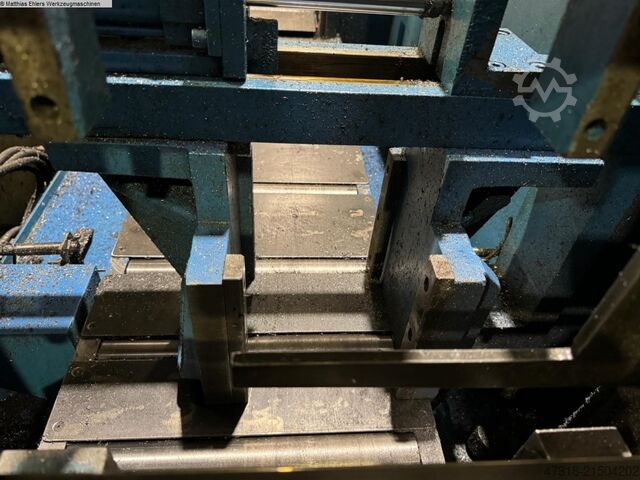

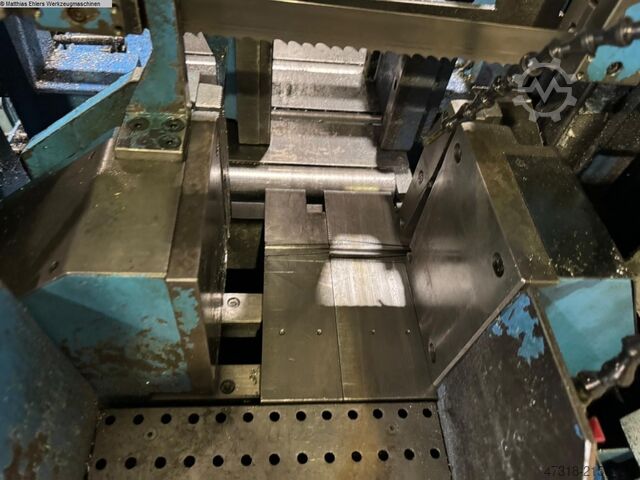

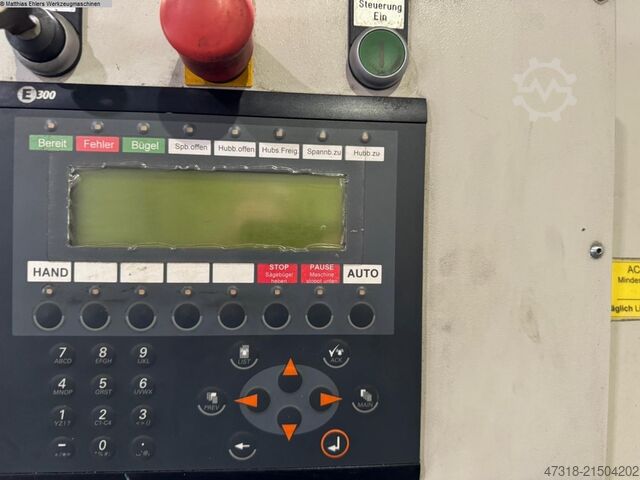

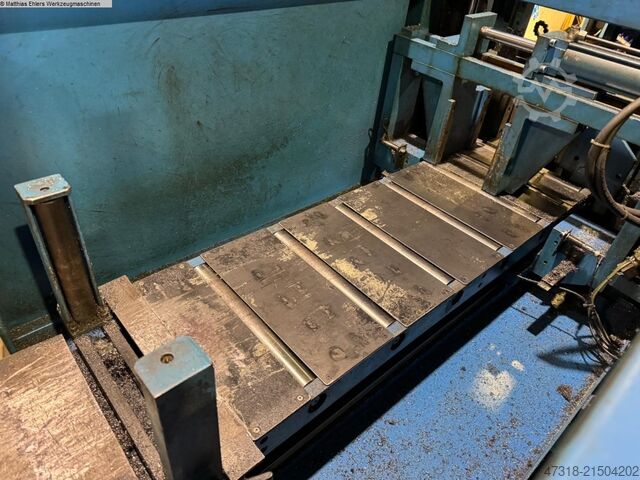

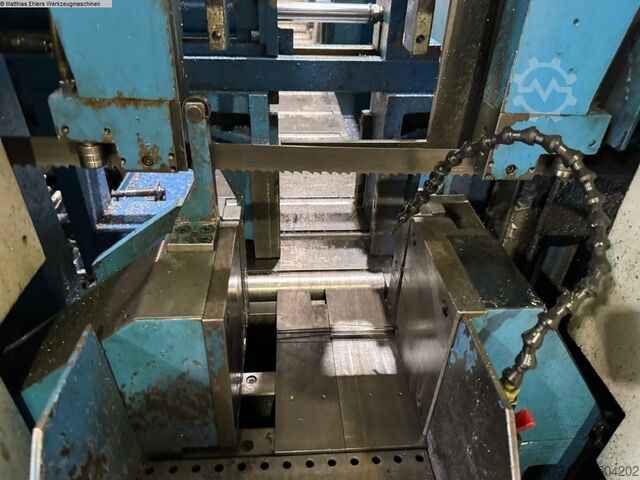

Condition: good (used), Year of construction: 2002, Bandsaw Automatic Jaespa Compact 2 Year of manufacture: 2002 - High-performance automatic bandsaw, heavy-duty, hydraulic production band saw - Parallel saw feed system in profile guide rails Gbodpfx Aaoylwawefji - Mitsubishi NC program control E1032 for the preselection of 90 setups, each with a specific quantity and a corresponding cut length - Mitsubishi PLC control - With Siko incremental encoder - Material feed with 950 mm ball screw per stroke, any section length from 3 mm to 9999 mm - Hydraulic material clamping with long-stroke cylinder, opening on both sides - Material clamping with double vice before and after the saw band - Remainder piece length in automatic operation: 90 mm - Maximum cut length in automatic mode: unlimited - Material support height: 850 mm - Including 6-meter roller conveyor - Coolant tank 50 l

Condition: used, Year of construction: 2018, Horizontal bandsawing machine Make: JAESPA Model: Compact 2.8 Year of construction: 2018 TECHNICAL DETAILS: Automatic band saw - horizontal Cutting diameter 280 mm Saw blade length 5080 x 34 x 1.1 mm Cutting area flat 330 x 280 mm Cutting width 330 mm NC control Feed 460 mm Cut-off lengths 9999.9 mm Speed 15 - 120 m/min Machine weight approx. 2.3 t Dimensions approx. 3250 x 1580 x 2050 mm Column design for heavy-duty, industrial use o Intuitive NC control of the machine via PLC WAGO and 7" color touchscreen. Frequency-controlled, infinitely variable belt drive Saw arm with highly sensitive feed movement via servo motor and ball screw ball screw Gbjdpfjudb Sfox Aafji Backlash-free linear guides in both columns Hydraulic material clamping with long-stroke cylinder in front of and behind the saw blade saw band Clamping vice and lifting jaws open on both sides with infinitely adjustable clamping pressure clamping pressure Material feed via servo motor and ball screw drive in chain dimension the repeating operation is clocked. Unlimited material feed length Fully hydraulic saw blade tensioning Automatic saw blade guide arm adjustment Fully equipped with chip conveyor

Condition: used, Year of construction: 2008, cutting diameter / mm saw band length / mm cutting width / mm including roller conveyor 4000 x 500 x 850 mm Sawing diameter (round): 260 mm Sawing diameter (square): 260 mm Sawing diameter (rectangular): 300 x 260 mm Saw blade dimensions: 4200 x 34 x 1.1 mm High-performance band saw automatic machine, heavy-duty hydraulic production band saw Parallel sawing feed system in profile guide rails Mitsubishi NC program control E1032 for preselection of 90 sets, each with a specific quantity and corresponding cut length PLC control Mitsubishi With Siko incremental encoder Material feed with ball screw spindle 950 mm in one stroke, any desired cut length from 3 mm – 9999 mm Hydraulic material clamping with long-stroke cylinder, opening on both sides Material clamping with double vice in front of and behind the saw blade Remaining piece length in automatic mode: 90 mm Max. cutting length in automatic mode: unlimited Gjdswm Rqtjpfx Aafjbi Material support height: 850 mm Net weight: 2300 kg Dimensions W x H x D mm: 2580 x 2000 x 2000

Condition: ready for operation (used), Year of construction: 2002, machine/vehicle number: 22512.08, functionality: fully functional, controller model: Mitsubishi E1032, remaining piece length: 90 mm, saw band length: 4,240 mm, saw band speed: 1,767 mm/s, TECHNICAL DETAILS Gbedpfx Ajx Hz Hrjafei Round material: 260 mm Square material: 260 x 260 mm Rectangular material: 300 x 260 mm Saw cut length: 3 mm - 9,999 mm Cutting length in automatic operation: unlimited Remnant length in automatic mode: 90 mm Material feed per stroke: 950 mm Material support height: 850 mm Saw blade dimensions: 4,240 x 34 x 1.1 mm Blade speed: 17 – 106 m/min MACHINE DETAILS NC program control: Mitsubishi E1032 PLC control: Mitsubishi Coolant tank: 50 l Dimensions & Weight Dimensions (L x W x H): 2000 x 2580 x 2000 mm Net weight: 2,300 kg Gross pallet weight: 2,350 kg Power Supply Connection: 400 V Frequency: 50 Hz Main fuse protection: 20 A Drives Saw motor: 4.0 kW Hydraulic motor: 1.1 kW Coolant pump: 0.09 kW Electrical Power Installed total electrical load: 4.19 kW Control transformer: approx. 250 VA EQUIPMENT High-performance automatic bandsaw Heavy-duty hydraulic production bandsaw Parallel feed system in profile guide rails Siko incremental encoder Material feed with ball screw spindle Hydraulic material clamping with long stroke cylinder Material clamping with double vice before and after the saw blade Roller conveyor 6 m
