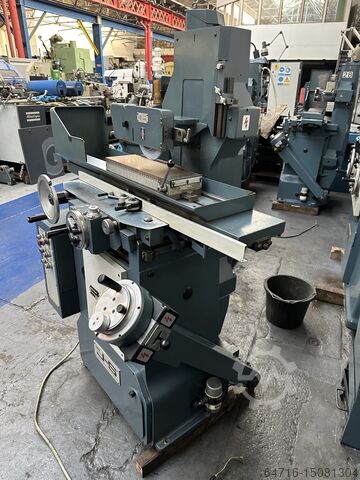

Surface grinding machine

Jones & Shipman 540

Condition: used, Year of construction: 1996, Surface Grinding Machine JONES & SHIPMAN 540 P Travel X: 483 mm Travel Y: 168 mm Maxi grinding height: Wheel chuck 190 mm / without chuck 240 mm Spindle rotation: 3200 RPM Year of construction: 1996 Magnetic chuck dimensions: 450 x 150 mm Grinding wheel: Ø 200 mm x thickness 25 mm Auto stepover X - Y Manual Z-axis rise Voltage: 380 V Equipped with: 1 Manual Magnetic Chuck BRAILLON PFF Equipped with: 1 Lubricant tank DARENTH type 1004/01 Dodpfxexqqgte Agdswd Tank dimensions: L 650 mm x Depth 700 mm x H 900 mm Dimensions (L x W x H): 1500 x 1100 x 1800 mm Weight: approx 1 T

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 1761-1700, 457 x 152mm capacity. Equipped with magnetic chuck, power rise and fall to wheel head, table guard, coolant system, and dust extraction. SPECIFICATION Jones & Shipman Model 540P Working Surface of table 457 x 152mm Longitudinal traverse of table, hand and hydraulic 483mm Total cross traverse of table, hand and hydraulic 168mm Floor to table height 1035mm Table traverse speed range per min 1.5 – 18m Cross feed range per stroke at each reversal 0.178 – 1.78mm Micrometer cross feed graduated in Vertical feed adjustment in increments of 0.002mm Vertical movement of wheelhead (max) 280mm Wheel spindle center to table (min) 50mm Size of grinding wheel 180 x 13 x 31.75mm bore Speed of wheel 2880rpm Wheelhead motor 1.5kW Dwodpjnxi Uuefx Agdod Hydraulic pump motor 0.55kW Machine in Imperial execution MACHINE EQUIPPED WITH Magnetic chuck Power rise and fall to wheel head Table guard Wheel guard Coolant System Dust extraction

Condition: excellent (used), Year of construction: 1984, functionality: fully functional, machine/vehicle number: BO 94392, A familair machine in any toolroom, this Jones and Shipman 540P is equipped with a 6″ x 18″ magnetic chuck, power rise and fall, coolant system and dust extraction. A toolroom institution: USED Jones & Shipman Model 540P Horizontal Spindle Surface Grinding Machine Specification Working Surface of the table 457 x 152mm Longitudinal traverse of table, hand and hydraulic 483mm Total cross traverse of table, hand and hydraulic 168mm Floor-to-table height 1035mm Table traverse speed range per min 1.5 – 18m Cross-feed range per stroke at each reversal 0.178 – 1.78mm Micrometer cross feed graduated in Vertical feed adjustment in increments of 0.002mm Vertical movement of wheelhead (max) 280mm Wheel spindle centre to table (min) 50mm Size of grinding wheel 180 x 13 x 31.75mm bore Speed of wheel 3000rpm Wheelhead motor 1.5kW Hydraulic pump motor 0.55kW Machine in Imperial execution Dwjdpfx Asnxi R Usgded Machine equipped with Magnetic chuck Power rise and fall to wheel head Table guard Wheel guard Coolant System Dust extraction Lighting
