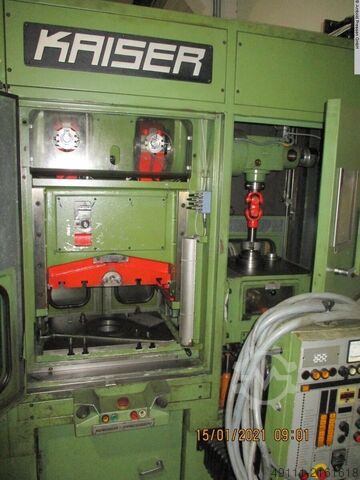

Eccentric Press - Double Column

KAISER V 40 W/680

Condition: used, Year of construction: 1988, machine/vehicle number: 724306, pressure:63 t no. of strokes:400 Hub/min sheet width:180 mm stroke:10 - 80 mm feed length:150 mm band width:180 mm Nwodpjcxxt Tofx Agrsl control:KAISER voltage:380 V dimensions of the machine ca.:1,85 x 2,70 x 3,00 m double-column machine with double connecting rods with adjustable stroke, electric rpm control, electric tappet adjustment, pneumatic tappet compensation, Imco individual pressure force monitoring device (split right / left), Unidor tool monitoring system, blower device, original Kaiser gripper feeder type ZR 18D, emergency cut-off, electric 2-hand operation, free-standing control panel

Year of construction: 1995, condition: used, pressure 125 t stroke 10-80 mm no. of strokes 240 Hub/min ram - range of adjustment 80 mm table surface area 850x600 mm ram surface 760x550 mm hole in the table 850x130 verstellbar mm Nwedpfjlp U Nqjx Agrjl table height 1100 mm tool hole in ram Ø 50 mm total power requirement kW weight of the machine ca. 13 t dimensions of the machine ca. BxTxH: 3000x2000x3300 mm

Year of construction: 1981, condition: used, pressure 63 t stroke 6-60 mm no. of strokes 90-550 Hub/min 300 mm Nwodjlp U R Iopfx Agrol table surface area 780x600 mm ram surface 807x460 mm tool hole in ram Ø 40 mm ram - range of adjustment 80 mm total power requirement 15 kW weight of the machine ca. 8 t dimensions of the machine ca. BxTxH 2900x2000x3000 m

Condition: good (used), Gillardon GSB 20 pillar drilling machine Drilling capacity in steel (diameter) 20 mm Nwodpfx Asm Sg S Negrol throat 260 mm Drilling stroke 115 mm

Condition: used, Year of construction: 1981, machine/vehicle number: 104680, Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Nwedpfx Agjuqcwdorsl Weight of machine approx.: 6,2 ton

Condition: used, Year of construction: 1985, Technical details: Punching capacity: 40 kN air pressure - required: 8 bar ram stroke - adjustable min/max: 6 - 50 mm ram adjustment: 50 mm no. of strokes: 70 - 400 Hub/min Table dimensions: LxB: 480 x 445 mm hole in table: LxB: 250 x 112 mm slowing-down time: 80 ms bei 450 U/min. clamping surface ram: LxB: 420 x 345 mm ram hole: Ø 40 x 230 mm Nwodpfx Aju Icwgjgrjl voltage: 380 V control voltage: 220 V frequency: 50 Hz total power requirement: ca. 19 kVA (ca. 7,5 KW) weight of switch cabinet: 0,3 t machine weight ab.: 4000 kg 40t punching press without roll feed/conveyor belt system Operation via control panel / two-hand operation Operation: manual / automatic *

Condition: used, Year of construction: 1980, machine/vehicle number: 130861, Press capacity: 50 ton Ram stroke: 54 mm Slide adjustment: 80 mm Shut height (stroke down, adjustment up): 303 mm Table surface area : 810 x 550 mm Number of strokes: 65 - 400 s.p.m. Weight of machine approx.: 7,5 ton Main Motor: 11 kW Nwjdpfx Asuqc Hlegrol Extended machine accessories IMCO Press force measurement Automation Grip Feeder, Type ZR18ZT1Max. Sheet width 180 mmFeeding length 150 mm
