Cold circular saw Light metal circular saw

Kaltenbach SKL

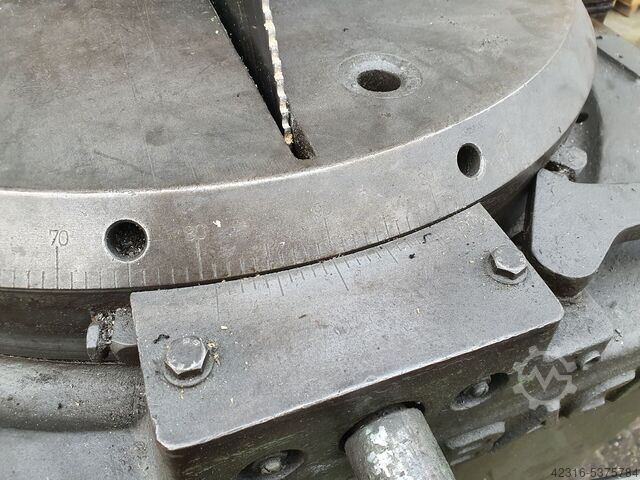

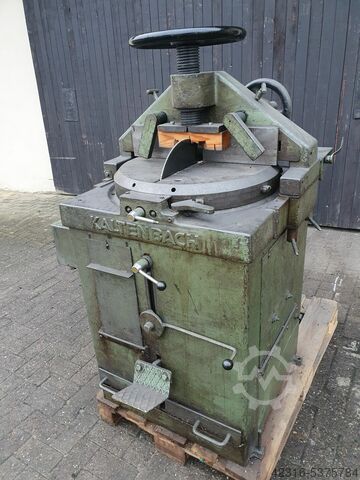

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, machine/vehicle number: 117004, saw blade diameter: 400 mm, cutting range round steel at 45°: 130 mm, cutting range round steel at 90°: 130 mm, overall weight: 2,500 kg, cutting range square steel at 90°: 120 mm, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates you to collect the machine within the period of November 16, 2026, and November 26, 2026! The machine has been completely overhauled and repainted! TECHNICAL DETAILS Round material at 90°/45°: 130 mm Lodpfx Asz Il Hyemzsah Square material at 90°: 120 mm Profiles at 90°: 300 × 45 mm Profiles lying at 45°: 220 × 60 mm Profiles standing at 45°: 80 × 120 mm Saw blade: 400 × 4 × 50 mm Saw blade mount: 50/4 × 14/80 mm Saw motor: 3.7/4.5 kW Cutting speed: 1,750/3,500 m/min Saw blade feed: 0–3,700 mm/min Rapid return of saw blade: 4,500 mm/min Short-stroke clamping device stroke: 8 mm MACHINE DETAILS Operating voltage: 400 V Frequency: 50 Hz Rated current: 20 A Dimensions & Weight Dimensions (L x W x H): 7,500 x 1,200 x 2,000 mm Weight: 2,500 kg EQUIPMENT Workpiece clamping with short-stroke clamping device Hand crank for pre-setting Horizontal clamping cylinder at the front Minimum lubrication instead of a coolant mist spray system Feed roller track T3 Rollers of the feed roller track: 60 × 289 mm Starting section of the roller track, length 2,000 mm, with 5 rollers Stand for roller track Mounting bracket Extension of the roller track, length 2,000 mm, with 4 rollers Stop roller, adjustable as a guide for material bars Length measuring device Discharge roller track T3 External Reference: Steinbach & Holler - Lot 39

Condition: good (used), Year of construction: 1989, Saw blade diameter: 400 mm Cutting diameter: 130 mm Cutting range at 90°: flat – 260 x 60 mm Cutting range at 90°: square – 105 mm Cutting range at 45°: flat – 200 x 45 mm Cutting range at 45°: square – 90 mm Speed range, 2 steps: 1400 / 2800 rpm Drive power, pole-changing: 2 / 4 kW Laedpfx Amjx Rvb Sezjh Machine dimensions (L x W x H): approx. 1100 x 1100 x 1700 mm Weight: approx. 850 kg Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: used, Year of construction: 1972, 1 used, well-maintained, hydro-pneumatic, semi-automatic cold circular saw for cutting aluminum, non-ferrous metals, wood, and plastic Technical data: max. saw blade diameter 370 mm cutting diameter 120 mm cutting range at 90 degrees: flat 260 x 60 mm cutting range at 90 degrees: square 105 mm cutting range at 45 degrees: flat 200 x 45 mm cutting range at 45 degrees: square 90 mm 0° cut – longitudinal cut: yes 2 speed settings 1500 / 3000 m/min drive power 1.7 / 2.6 kW machine dimensions L x W x H 1000 x 1000 x 1700 mm Lasdpfx Aebwl Emjmzjh machine weight 700 kg Accessories / Special features: • Semi-automatic operation: After starting, the workpiece is automatically clamped by the upper clamping cylinder. Once the set feed end is reached, the saw blade automatically moves down and the clamping jaw is released. • Stepless feed • Reversible motor • 1 saw blade • Double miter cut • Longitudinal cut 0° • Spray coolant system Optional accessories: - 1 roller guide right with heavy stop 3500 mm and scale - 1 roller guide left, approx. 3500 mm Price of optional accessories: 1,500.00 € plus VAT. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: 316792, total length: 2,700 mm, total width: 1,450 mm, total height: 1,900 mm, type of input current: three-phase, overall weight: 1,500 kg, Equipment: documentation/manual, Kaltenbach SKL452 NA including ESTA DUSTOMAT – Year of manufacture 2023 We are offering our Kaltenbach SKL452 NA including ESTA DUSTOMAT for sale. We purchased the machine directly from Kaltenbach as a new machine in 2023 and have since used it in the metalworking department of our WfbM (workshop for people with disabilities). Lajdpfx Amsz H Sgdezsh The machine was used exclusively for cutting aluminum profiles. It was operated in a single-shift system with a maximum of approximately 6 hours of machine runtime per day. The machine can be inspected on-site after prior arrangement. Collection / Transport The machine is offered for sale exclusively at our location. Dismantling, loading, and transport must be organized and carried out by the buyer. If you are interested or would like to arrange a viewing appointment, please contact us.

Condition: ready for operation (used), Year of construction: 2007, controller manufacturer: SIEMENS, controller model: n/a, This KALTENBACH SKL 450 NA Circular Metal Saw was manufactured in 2007. It features a vertical saw principle with a rotating table for mitre and longitudinal cuts up to 180 degrees. The saw unit is mounted beneath the table, ensuring optimal cutting range utilization. It includes a hydro-pneumatic saw blade feed and a large viewing window for enhanced work area visibility. Ideal for sawing aluminum and non-ferrous metals. Contact us for more information about this machine. Machine Benefits Qualitative Machine Benefits • No defects; the system was refurbished in 2024 and is in like-new condition. / scope of delivery: machine without extraction system, including technical documentation (2 copies in binders) Technical Machine Benefits • Sawing of solid material made of aluminum and aluminum alloys / sawing of profiles, tubes, and flat material / right-angled and mitre cuts up to ±45 degrees / in combination with a length stop, up to ±90 degrees / slot cutting • Rotating table for mitre and longitudinal cuts, with a rotation range of 180 degrees / rotary table adjustment: manually continuously adjustable ±90 degrees • Comes with 450 mm carbide-tipped saw blade, standard tooling, and coolant system / saw blade diameter (standard): 450 mm / kerf width (max. ): 4 mm / saw blade types: carbide-tipped saw blade (hm) / high-speed steel saw blade (hss) / saw blade mounting: mounting hole according to din 8576 Laedpfx Amozzcwxszsh • Cutting speed (with 400 mm blade diameter): two-step with v-belt: 1950 / 3900 m/min / feed speed: continuously adjustable: 0–3500 mm/min /rapid return speed: 4500 mm/min • Electrical connection power (two-step with v-belt): 3. 7 / 4. 7 kw (optional: 4. 7 / 6. 3 kw) / compressed air supply: 6–8 bar • Weight: 1480 kg / dimensions (l × w × h): 2700 × 1450 × 1900 mm • Electrically adjustable stroke limit for the saw feed / hydro-pneumatic saw blade feed, infinitely adjustable / rapid return stroke for short cycle times / large cabinet-style door for easy saw blade change, electrically interlocked / protective machine hood with large viewing windows, electrically secured / automatic minimum quantity lubrication (mql system)

Condition: used, saw blade diameter 400 mm cutting diameter 135 mm capacity 90 degrees: flat 280 x 70 mm capacity 90 degrees: square 120 x 120 mm capacity 45 degrees: flat 210 x 55 mm capacity 45 degrees: square 105 x 105 mm turning speeds max. 3000 U/min saw-blade dia. 400 x 3,2 x 40 mm motor 400 Volt total power requirement 4,0 kW weight 650 kg range L-W-H 910 x 1200 x 1700 mm Furnishing: - Miter circular saw for light metal & plastic profiles Lsdpfx Aexabg Asmzeah - Precise and accident-free work by cutting from below - Quick setting for miter cuts - Workpiece clamping with adjustable vice and pressure piece - pneumatic tool clamping - Operation manual

Condition: ready for operation (used), Saw blade diameter: 450mm, cutting width: 4mm, saw blade type: HM/HSS, mounting hole: 50mm, fastening screws: 4, pitch circle fastening screws: 80mm, screw diameter: M12. Saw blade feed speed: 3.5m/min, rapid return: 4.5m/min, feed speed: 10m/min/20m/min, cut-off length single stroke: 10mm/1000mm, double stroke: 2000mm, turntable tilt: +/-90°. Machine dimensions X/Y/Z: approx. 2700mm/1450mm/1900mm, weight: approx. 1500kg. Documentation available. On-site inspection is possible. Ljdpfev Hgkqjx Amzsah

Year of construction: 2007, condition: ready for operation (used), Saw blade diameter: 450mm, cutting range 90° round/ square/ profiles: 160/ 145/ 320x50mm, cutting range 45° round/ square/ profiles: 160/ 130/ 250x40mm, cutting speed: 1950/ 3900m/min, feed speed: 0-3000mm/min, mitre range: 0° to 90°, swivel range: 180°, weight: approx. 1.5t. On-site inspection is possible. Lasdpfxowa Tils Amzeh

Year of construction: 1986, condition: good (used), machine/vehicle number: 106157, Offer 21035 Technical data: - Saw blade diameter up to 400 mm - Cutting range with a saw blade diameter of 400 mm - at 90° round 130 mm - square 120 mm Ljdpsg A Rgfjfx Amzjah - flat up to 260 x 60 mm - Miter adjustment left + right 0 - 90° - Cutting speed 1750 / 3500 m/min - Feed speed of the saw blade 0 - 3 m/min - Rapid return 3000 mm/min - Saw drive 400 V / 3.7 / 4.4 kW - 2 pneumatic material clamping devices with adjustable clamping pressure - Space requirement approx. W 1200 x H 1900 x D 1200 mm - Weight approx. 600 kg

Condition: good (used), Year of construction: 1984, machine/vehicle number: 102335, Offer 23172 Technical data: - Saw blade diameter up to 400 mm - Cutting range with saw blade diameter 400 mm - at 90° round 130 mm - square 120 mm - flat up to 260 x 60 mm - Mitre adjustment left + right 0 - 90 ° - Cutting speed 1750 / 3500 m/min Lsdpfermkl Aox Amzoah - Feed speed of the saw blade 0 - 3 m/min - Rapid return 3000 mm/min - Saw drive 400 V / 3.7 / 4.4 kW - Pneum. Material vice with adjustable clamping pressure - Space requirement approx. W 1200 x H 1900 x D 1200 mm - Weight approx. 600 kg - Outfeed roller conveyor 3000 mm - Infeed roller conveyor 3000 mm
