Stacking device Ka-Ma, KR-1300-2, vacuum, max. panels

Kama OYBM

NEW

Automatic loading and unloading table for wood, MDF, solid wood, drywall, cement fiberboard, and boards.
Examples: Doors, boards, MDF panels, cabinet fronts, drywall, and facade panels.
Adaptations to other products are possible. The machine operates at a constant speed and
with a set loading and unloading capacity. This allows you to easily automate
your loading and unloading processes and increase process reliability.

The system operates with a 2-circuit vacuum system.
Siemens control panel
Technical specifications:
- Working width 1.300 mm.
- Includes belt conveyor, length 3,400 mm
- Working height 930 ± 20 mm
- PLC control, operated via a touch panel, Siemens S7-1200
- 2-circuit vacuum system
Lasdpfx Ajy Iv N Remmjc
- Loading and unloading of parts via vacuum suction cups
- Special suction cups with position adjustment
- 4 additional suction cups to lift the panels 15 mm
on one side before vertical movement.
- Automatic signal upon completion of the loading process
- Max. horizontal speed: 0.5 m/s
- Horizontal working stroke: 1,300 mm
- Max. vertical speed: 0.5 m/s
- Stack height approx. 1,000 mm (including pallet under the plate stack)
- Loading side on the left in the direction of travel
- Vertical working stroke: approx. 1,200 mm
- Max. lifting capacity: approx. 100 kg, continuous operation 85 kg
- Max. component width: 1,300 mm
- Max. component length: approx. 3,050 mm
- Max. conveyor belt speed: infinitely variable up to max. 10 m/min.

- Electric motor power: 1.5 kW
- Electronic components: Schneider Electronics and Siemens
- Weight: 1,500 kg

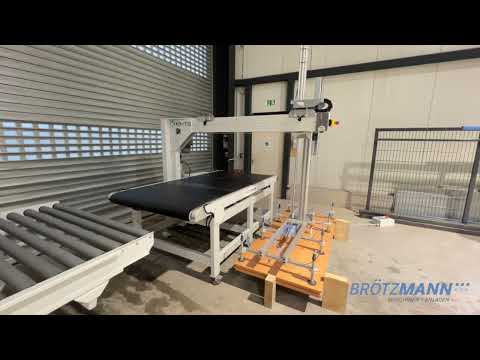

YouTube link:
