Cylindrical grinding machine

Karstens K11 1000

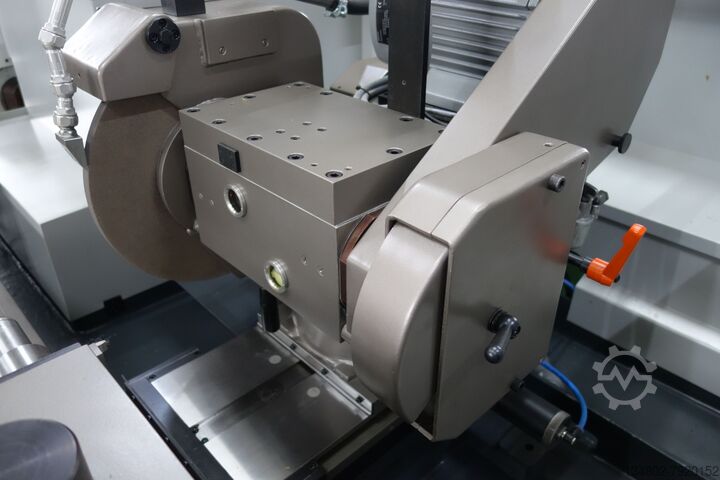

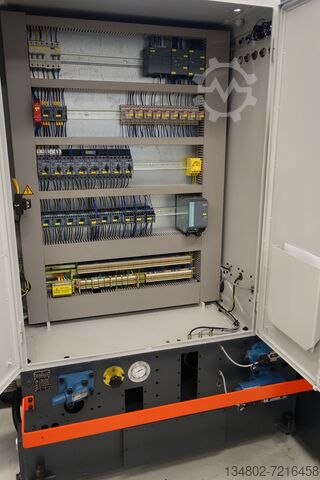

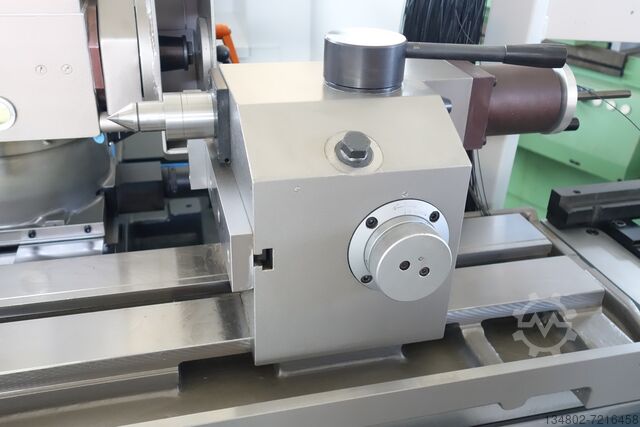

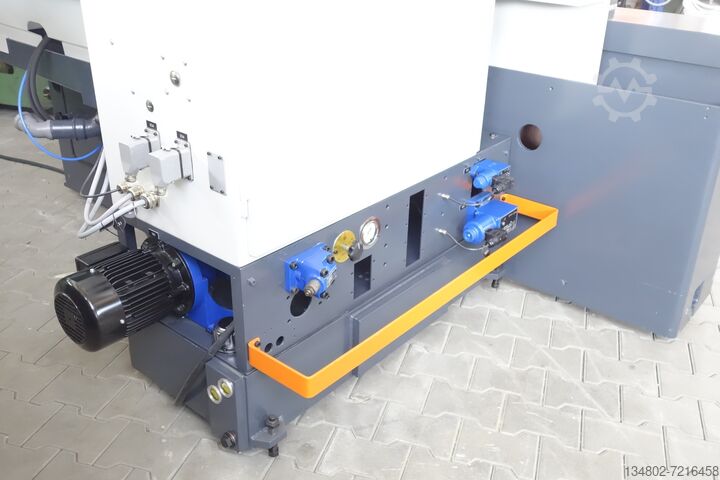

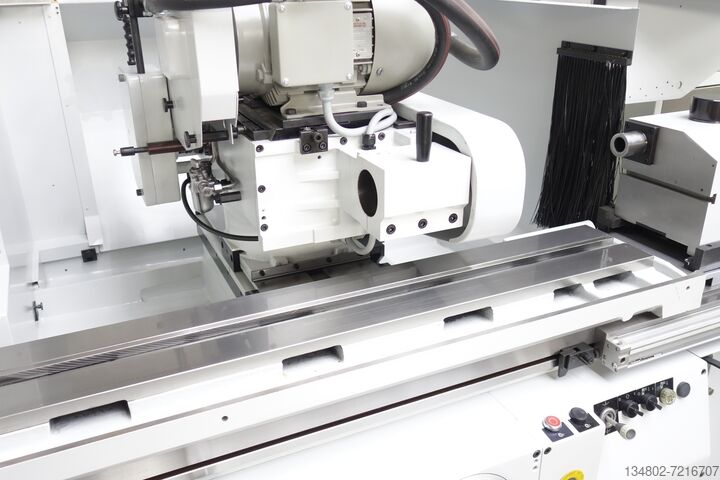

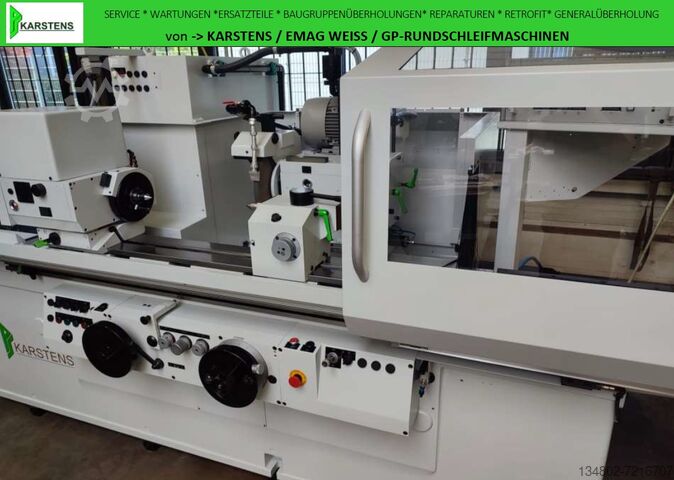

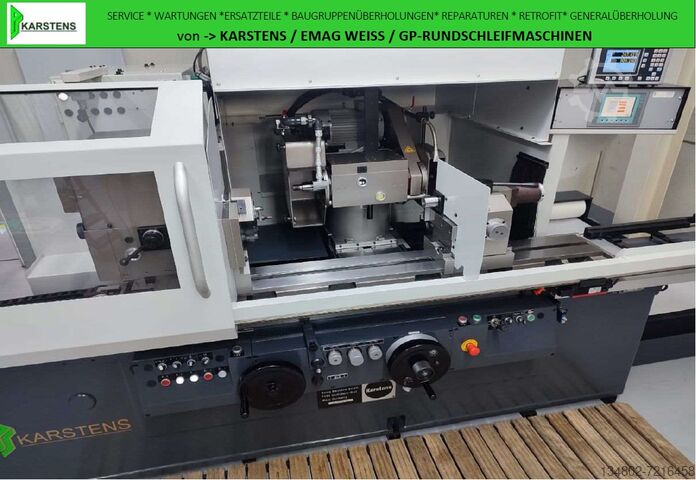

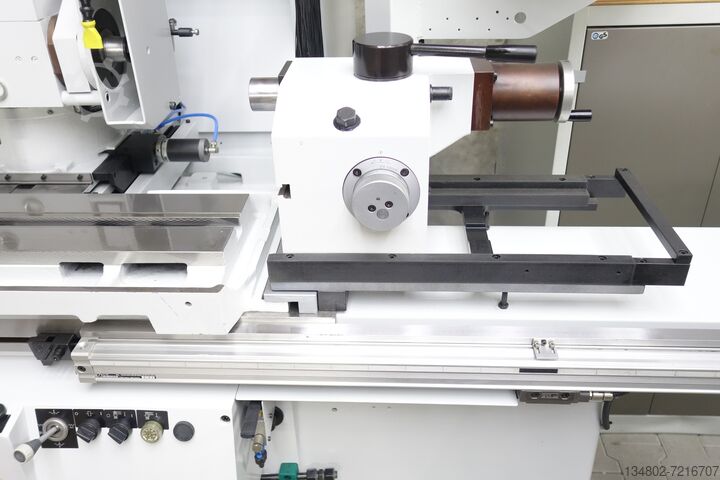

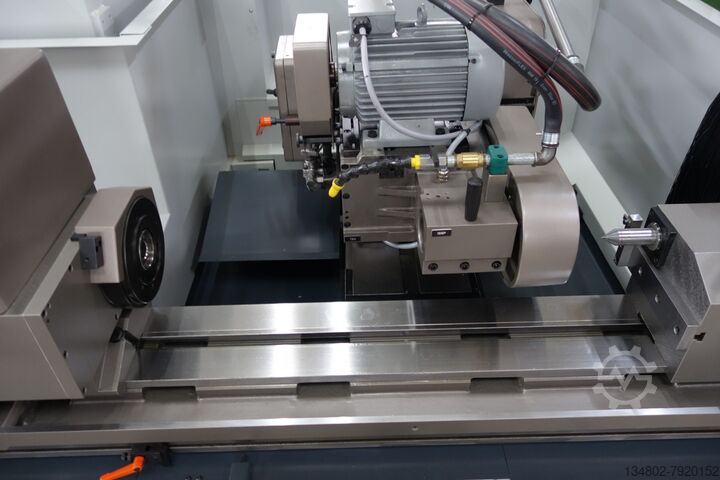

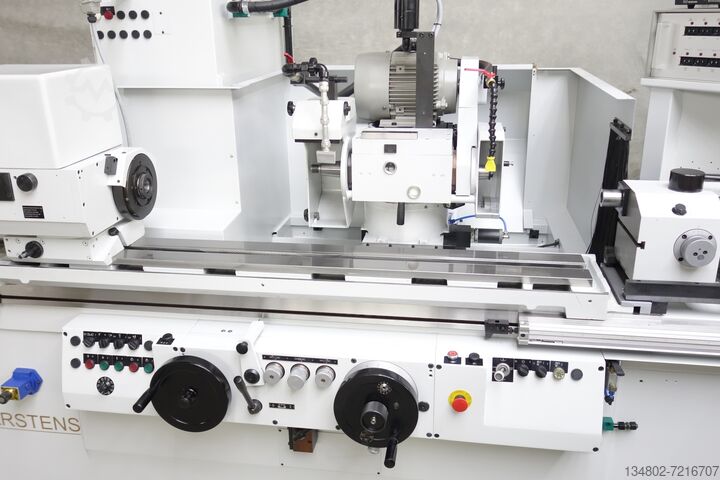

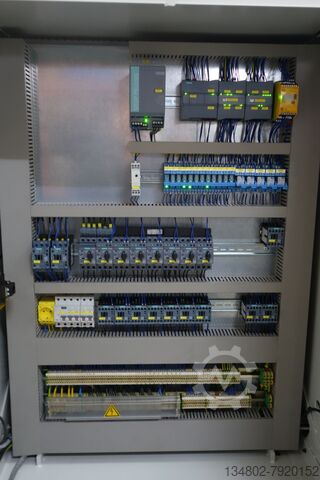

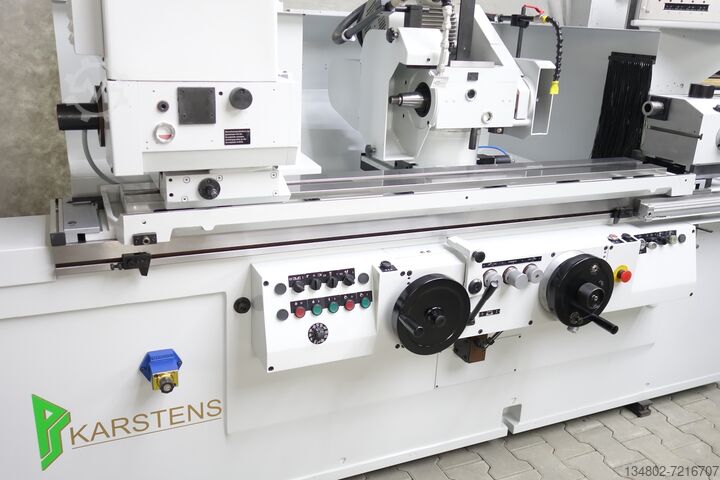

Condition: as good as new (ex-display), Year of construction: 2026, Karstens K11 1000 Premium Retrofit Cylindrical Grinding Machine Manufacturer: Karstens Technical specifications: Centre distance: 1100 mm Centre height: 180 mm (250 mm optional) Workpiece weight: 100 kg between centres (unsupported), 300 kg between centres Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MT 4, infinitely variable speed control 30–450 rpm, swivelling range 0–90° Tailstock: MT4, quill stroke 45 mm Quill force: 200–600 N manually, (up to 2500 N adjustable, option) Table swivel: 10° Cross slide travel: 80 mm Rapid traverse: 50 mm Coarse adjustment (air cushion): 280 mm External grinding spindle motor: 4 kW (5.5 kW optional) Infinitely variable grinding wheel speed adjustment via potentiometer Ihodpoiv Au Ejfx Ahuet Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 1.1 kW Hydraulic motor: 1.5 kW Lubrication motor: 0.1 kW Hydraulic tank: 80 litres Net machine weight: 3,800 kg Infeed drive via DC motor Air cushion-supported rapid adjustment of the grinding spindle head for fast and safe positioning to the grinding position. Separate drive for the spindles for external and internal grinding. Fully automatic operation, infeed movements controlled via rotary selector switch: rapid advance, rapid return, grinding mode, infeed stop, micrometre infeed. Automatic longitudinal grinding cycle Central coolant supply to all grinding points Workpiece headstock with infinitely variable drive for rotating and lockable spindle. New digital infeed control with Siemens panel and Siemens PLC for traverse and plunge grinding; input for retraction, infeed amounts, feed rates, spark-out times, idle strokes; compatible with the original Karstens infeed control; with coloured Siemens touchscreen; HEIDENHAIN scales in X and Z axes. Comparable to Weiss/EMAG/GP cylindrical grinding machines/Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat /Bahmüller/Fortuna

Condition: ready for operation (used), Year of construction: 1989, grinding length: 1,500 mm, grinding width: 900 mm, grinding wheel diameter: 500 mm, table length: 1,500 mm, table width: 740 mm, grinding wheel width: 100 mm, CNC Surface Grinding Machine Machine type: Elb Schliff SWDE 012 NPC-K Year of manufacture: 1989 TECHNICAL DATA: Max. grinding length: 1,500 mm Max. grinding width: 900 mm Max. working height with new grinding wheel: 800 mm Max. working height with worn grinding wheel: 880 mm Max. workpiece weight: 1,000 kg static Max. table load: 1,500 kg/m dynamic Iedpfx Aewzlkqshujht Grinding wheel diameter: 500 mm Grinding wheel width: 100 mm Table size: 1,500 x 740 mm Features: Paper band filter Wet grinding unit Electronic dressing device Cross clamping Grinding spindle mounting: Taper 75 Magnetic chuck: 1,500 x 900 No rotary table

Year of construction: 2014, condition: ready for operation (used), A Karstens cylindrical grinding machine from 1992, which was completely overhauled and modernized in 2014, is available. Center width: 1000mm, center height: 180mm, grinding diameter: 360mm, max. workpiece weight center/flying: 250kg/70kg, grinding wheel diameter: 400mm. Spindle holder: MK4, speed: 450rpm, swivel range: 90°, quill holder: MK4, quill stroke: 45mm, quill force: 600N. Table swivel: 10°, infeed spindle: 80mm, rapid traverse: 50mm, coarse adjustment: 280mm, weight: approx. 3800kg. Including 3x centering points and grinding wheels as good as new. Documentation available. On-site inspection is possible. Ihsdpfx Asv Suftehujt

Condition: as good as new (ex-display), Year of construction: 2026, Karstens K11 1000 Premium Retrofit Cylindrical Grinding Machine Manufacturer: Karstens Technical Data: Centre distance: 1100 mm Centre height: 180 mm / (250 mm optional) Workpiece weight: 100 kg between centres, 300 kg with support Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Iedpfx Aoh Rimmehujht Workpiece spindle: MT 4, infinitely variable speed from 30-450 rpm, swivel range 0 - 90° Tailstock: MT4, quill stroke 45 mm Quill force: 200-600 N manual, (up to 2500 N adjustable = optional) Table swivel: 10 degrees Infeed spindle travel: 80 mm Rapid traverse: 50 mm Coarse adjustment with air cushion: 280 mm External grinding spindle motor: 4 kW / (5.5 kW = option) Infinitely variable speed adjustment of grinding wheel via potentiometer Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 1.1 kW Hydraulic motor: 1.5 kW Lubrication motor: 0.1 kW Hydraulic tank: 80 litres Net machine weight: 3800 kg Infeed drive via DC motor Air cushion-supported rapid adjustable grinding spindle stock for fast and safe positioning to grinding location. Separate drive for spindles for external and internal grinding. Fully automatic operating sequence, infeed movement via rotary dial switch: Rapid approach, rapid return, grinding operation, infeed stop, mym-infeed. Automatic longitudinal grinding cycle Central coolant supply for all grinding zones Workpiece headstock with infinitely variable drive for both live and lockable spindle operation. New digital infeed control with Siemens panel and Siemens PLC for longitudinal grinding and plunge grinding, inputs for retraction, infeed amounts, feed rates, spark-out times, dwell strokes; compatible with the old Karstens infeed control; with colour Siemens touch panel. Similar to Weiss/ EMAG/ GP cylindrical grinders/ Studer/ Kellenberger/ Schaudt/ Tschudin/ Tacchella/ Dannobat/ Bahmüller / Fortuna
