CNC Turning and Milling Machine

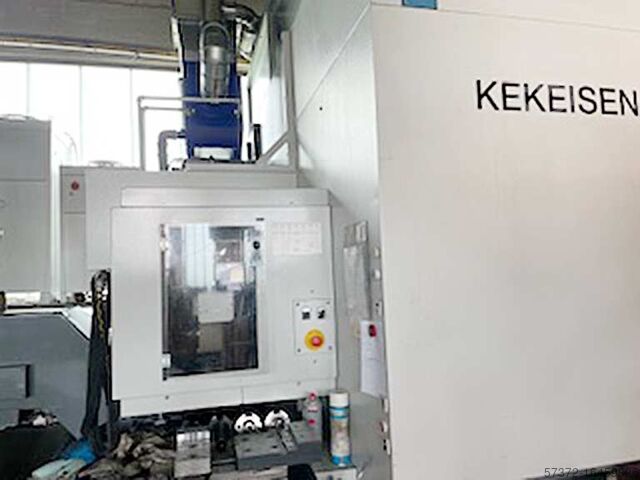

Kekeisen VFB 2000

Year of construction: 2005, condition: ready for operation (used), X-axis: 2000mm, y-axis: 750mm, z-axis: 800mm, max. workpiece weight: 2.5t, spindle hours: 12000h, connected load: 60kVA, length: 4000mm, width: 3100mm, height: 3200mm, weight: 22t, with documentation and tools, has been regularly serviced, on-site inspection is possible, the machine will be available from July 2024. Nsdpfx Aepvk Ahsgrelg

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 750 mm, table width: 1,500 mm, table length: 850 mm, rotational speed (max.): 2,500 rpm, quill stroke: 120 mm, SHW UF 5 Travels - X-axis (rotary table): 1,500 mm - Y-axis (vertical headstock): 1,000 mm - Z-axis (horizontal headstock): 750 mm Control system Nsdpfxjvfm I To Agrelg - CNC control: Heidenhain TNC 355 Automatic swivel head (change between horizontal and vertical machining) Quill 120mm Milling spindle holder SK 50 Speed 2500 rpm Partial overhaul 2014 - Year of construction 1990 - Inspection/repair 2025 Table assembly - Travel distance: X = 1,500 mm - Clamping surface: 1,500 x 800 mm Chip conveyor Splash guard cabin We have ALL spare parts for this series (SHW UF 5) in stock! About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is in the field of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control modernization _____ Used machine - used milling machine - used bed type milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - milling machine used - milling machine used - CNC milling machine used - drilling milling machine used - milling machine metal used - metal milling machine used - metal milling machine used metal milling machine used - used cnc milling machine - cnc milling machines - cnc milling machines - milling machine - large part machining - large part machining - large part machining - cnc large part machining - milling - shw - uf5 - uf 5 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 5 - UFZ 5 - UFZ5L - UFZ 5 L - MBM Milling Machine - MBM Machine

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,400 mm, travel distance Z-axis: 1,500 mm, table length: 6,000 mm, table width: 3,000 mm, spindle speed (min.): 3,000 rpm, A CNC portal milling machine FKD-Feichter with double column is available. Travel range X/Y/Z/W: 6000mm/4800mm/1500mm/1300mm, table dimensions X/Y/Z: 6000mm/3000mm, max. workpiece weight: 115,000kg, max. table load: 6,400kg/m², total machine bed length: 14,500mm, portal dimensions X/Y: 3,000mm/4,400mm, C-axis: 360°, A-axis: +/-120°, ram section: 700mm/700mm, feed rate: 10m/min. Total system dimensions X/Y/Z: approx. 15,100mm/6,100mm/7,000mm, total system weight: approx. 115,000kg, control system: Heidenhain. Includes chip guard, coolant system, and hydraulic unit. The machine was built at the site in 2022. The ram and spindle have been freshly overhauled. Documentation is available. On-site inspection is possible. Immediately available. Njdpfxexp Rgko Agrelg Three heads: Fork milling head with A-axis, 90-degree angular head, spindle extension – straight head, tool holder SK 50.

Condition: reconditioned (used), functionality: fully functional, machine/vehicle number: F39033, KEKEISEN Universal Bed Milling Machine UBF 2000/13, machine no. F39033; well maintained, very good condition, mechanically partly overhauled in 2025 2-axis universal head automatically swivelling, with locking in Hirth coupling Intermediate positions adjustable in 1° steps by jog mode SK50 tool holder according to DIN 69871/872 Longitudinal travel of the table (X-axis) 2000 mm Transverse travel of the headstock (Y-axis) 1000 mm Vertical travel of the headstock (Z-axis) 1300 mm Njdpfxjykuxhe Agrelg Machine table size 2200 x 960 mm, with T-slots 22 mm, spacing 140 mm Rotary table rotation 360° (stepless, with clamping) Rotary table load 5000 kg Spindle power 30 kW (100%ED), max. torque 1180 Nm Spindle speed 20 - 3800 rpm (infinitely variable in 2 ranges), with oil cooling Axis speeds 4 m/min or 10 m/min rapid traverse CNC control Heidenhain TNC 426 CA with electric handwheel HR 330 Drive system make Baumüller Coolant system with inner cooling up to 16 bar. Air/water changeover Purolator double-switching filter with 200 litre collecting tank Tool changer for 30 tools Work area panelling all round, open at the top, with longitudinal chip conveyor Connection data 400 V; 50 Hz; approx. 55 kVA without installation elements (fixators),

Year of construction: 2021, condition: ready for operation (used), - USED - TRAVELLING COLUMN MILLING MACHINE LONGITUDINAL TRAVEL: 4500 mm TRANSVERSAL TRAVEL: 1300 mm VERTICAL TRAVEL: 1800 mm RAPID FEEDS L-T-V: 35 m/min TABLE SIZE: 6000 x 1100 mm TABLE HEIGHT FROM FLOOR LEVEL: 850 mm SPINDLE: 20-4000 rpm; 37-43 kW; 900-1045 Nm; ISO 50 HEAD: MILLING AND BORING AXIAL HEAD TOOL MAGAZINE: CHAIN-TYPE ; 60 POS CONTROL UNIT: HEIDENHAIN TNC 640 WEIGHT: 24800 Kg OVERALL DIMENSIONS: 6970 x 4310 x 4150 mm ACCESSORIES: SWARF CONVEYOR ; Nodpfx Agsx Dfkgjrslg LINEAR SCALES ; TOUCH PROBE NOTE: OPERATOR'S PLATFORM

Condition: used, TECHNICAL DETAILS TRAVELS - Travels on X/Y/Z axes : 600x400x310 [mm] - Travels on U/V axes : [mm] - Max. taper : [°/mm] PART - Max. part dimensions : 1050x820x300 [mm] - Max. part weight : 1000 [kg] WIRE GUIDE - Wire diameter : 0.1-0.3 [mm] - Coil weight : 16 [kg] Njdpfx Agjyxhmijrjlg POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 13 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2650x3050 [mm] - Machine height : 2070 [mm] - Machine weight : 3600 [kg] MACHINE HOURS - Spark erosion hours : 2000 [h] EQUIPMENT - CNC : Fanuc 31iw-model B - Cooling unit - Filtration unit

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,250 mm, table load: 2,500 kg, rotational speed (max.): 3,000 rpm, overall weight: 10,000 kg, CNC Heidenhain TNC 530 Maximum spindle speed: 3000 RPM SA 50 tool holder Power: 22 kW Tool changer Nljdpfxsy Nnunj Agrsg Travel: 2000 x 1000 x 1250 mm Chip conveyor Machine weight: 12500 kg

Condition: used, machine/vehicle number: 109369/109370, Technical Data Nljdedbi Nlspfx Agrog Manufacturer: ZEISS Serial No. 109369/109370 The plate is divided in the middle. Measuring Plate Length = 6000 mm Width = 3000 mm Height = 350 mm The machine can be modernized with new software according to customer requirements. Price: upon request! Installation and commissioning possible! We would be happy to prepare a detailed offer for you! Note: Our offer is exclusively aimed at specialist customers! (Changes and errors in the technical data, information, and prices, as well as prior sale, are subject to change!)

Condition: used, Year of construction: 2004, operating hours: 31,350 h, Bed milling machine Make: ANAYAK Model: VH Plus 4000 Year of manufacture: 2004 Spindle hours: approx. 31,500 hours Control: Heidenhain 530 Table size: 4200 x 1100 Travel: x: 4000, y: 1200, z: 1500 mm Max. spindle speed: 5000 rpm Max. feed rate: 10000 mm/min Pick-up location: Bremen The machine is in daily use, so operating hours will continue to increase. An inspection can be arranged at any time. Disassembly, loading, etc. are the responsibility of the buyer. A 2-ton forklift and a 5-ton overhead crane are available for "small parts." _____ Subject to prior sale and errors in the technical specifications. The technical specifications have been compiled to the best of our knowledge, but do not constitute guaranteed characteristics. Nedpey Uy Ecefx Agrslg Our general terms and conditions apply; in addition, the seller is not liable for typing or data transmission errors. The appearance of the offered items corresponds to their age and the images shown. The technology and wear of the offered items are consistent with their age. Used machines are sold exclusively to commercial enterprises and without warranty.

Year of construction: 2003, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE WITH ROTATING TABLE LONGITUDINAL TRAVEL: 2700 mm TRANSVERSAL TRAVEL: 1100 mm VERTICAL TRAVEL: 1400 mm Nodpfxewmxnmo Agrjlg RAPID FEEDS L-T-V: 24 m/min TABLE SIZE: 1800 x 1800 mm MAX ADMITTED LOAD: 15000 Kg SPINDLE: 240-24000 rpm; 34 kW HEAD: CONTINUOUS A/B AXIS AUTOMATIC ; A-axis -110°+95° C-axis ±200° TOOL MAGAZINE: CHAIN-TYPE ; 42 POS CONTROL UNIT: FIDIA C20 DISTANCE SPINDLE NOSE-TABLE: 1600 mm WEIGHT: 21500 Kg OVERALL DIMENSIONS: 5950 x 5430 x 5220 mm ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL
