CYLINDRICAL GRINDING MACHINE

Kellenberger 600-U

Condition: used, total width: 1,500 mm, total length: 2,300 mm, total height: 1,700 mm, Empty weight: 1.500 kg - Documentation available: No - CE certificate present: No - Serial number: 516 - Drive system: Conventional - Power [kW]: 3.5 - Distance between centres [mm]: 600 - Centre height [mm]: 125 - Transport dimensions: 2300mm x 1500mm x 1700mm (l x w x h) Cedpfox Ryu Aox Ah Sept - Transport weight [kg]: 1500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a External cylindrical grinding machine EMAG Weiss WPG 7 - external cylindrical grinding at the highest level and on the smallest footprint. Footprint of the WPG 7 is only 1,800 x 2,400 mm. The machine is perfect for machining small shafts or pinions. The WPG 7 can be loaded manually as well as by automated solutions (such as chain conveyors and linear gantry). CONTROL Fanuc 0i TECHNICAL DATA Workpiece length: max. 250 mm grinding Ø: max. 80 mm Center height: 100 mm Center length: 380 mm Workpiece weight: max. 30kg Grinding wheel Ø: max. 500x 80 mm Cpedpfotlrkbjx Ah Sot Price, delivery time and equipment of the machine according to agreement.

Condition: used, 3 flanges for type 600 U – available for sale individually or as a set Cpsdpfx Ahex N Ryte Sot

Condition: excellent (used), Description to follow! Cpjdpox Hartjfx Ah Set

Condition: good (used), Year of construction: 2008, Gear grinding machines Reishauer RZ303 Cpodpfjxz E S Eex Ah Sot

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1315/451, Completely overhauled: Mechanics, geometry, hydraulics, and electrical parts (checked and/or replaced) Wheelhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, bearings replaced, belts replaced, spindle disassembled, seals and O-rings replaced, adjustments made. Newly painted. Workhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, belts replaced. New spindle bearings. Newly painted. Tailstock: Disassembled, inspected, overhauled. Hydraulics: Disassembled, motor checked, hoses replaced, defective and worn parts replaced. Hydraulic block checked. X-axis: Disassembled, all worn parts such as O-rings, seals, segments, etc. replaced, hydraulic piston overhauled, table ground. Z-axis: Disassembled, table ground, worn or defective parts replaced, hydraulic piston overhauled, newly painted. Electrical cabinet: Completely checked, various relays replaced. Paintwork: Colors: White RAL 9003 and Grey RAL 7011 Geometry according to manufacturer's protocol. Various accessories checked and cleaned. Origin: CH Voltage: 380 / 50 / 3 Net weight: approx. 2,200 kg Customs tariff number: 8460.2920 TECHNICAL SPECIFICATIONS Nominal distance between centers: 600 mm Max. distance between centers (with extended headstock): 750 mm Center height, standard: 125 mm Center height with interchangeable pads for heads: 175–250 mm Max. workpiece diameter (125 mm center height): 250 mm Max. workpiece diameter with interchangeable pads: 350–500 mm Swiveling range of table in each direction: 10° Max. grinding length for flat surfaces (max. width = 200 mm): 900 mm Continuously variable hydraulic table speed: up to approx. 6 m/min Table reversal delay: 0–5 sec Grinding wheel for external grinding, diameter - width - bore: 400x50x127 mm Grinding wheel for flat surface grinding: 250x13x76 mm Wheelhead spindle speed: 1,500/1,700/2,200/3,600 rpm Wheelhead swiveling range: 270°, with indexing every 90° Vertical travel of wheelhead, center height: 125–350 mm Transverse travel of wheelhead: 285 mm Hydraulic rapid traverse stroke: 40 mm Intermittent infeed of wheel by table reversal: 0.001–0.03 mm/dia Continuous infeed for plunge grinding: 0–0.9 mm/dia Micrometric infeed stop, by division: 0.001 mm/dia Codpfjw U Ry Nsx Ah Sopt Workhead swiveling range: 360° Workhead spindle speed, stepless: normal/special: 20–400 / 10–400 rpm Internal taper of workhead/tailstock: Morse 5/3 Wheelhead motor: approx. 4 HP All technical specifications are given without obligation and subject to errors or omissions.

Condition: used, TECHNICAL DETAILS - distance between centers : 600 [mm] - center's height : 175 [mm] - table orientation : 11 [°] UNIVERSAL GRINDING WHEEL HOLDER HEADSTOCK - left grinding wheel dimension : 400 x 50 x 127 [mm] - right grinding wheel dimension : 225 x 20 x 76,2 [mm] Cpodpfx Ajuhbyweh Sst - motor power : 3 [kW] - spindle speed : 1500 / 1700 / 2200 - grinding-wheel holder headstock orientation : 270 [°] PART HOLDER HEADSTOCK - part-holder headstock orientation : 360 [°] - spindle speeds : 20 - 400 [Rpm] - internal taper : Morse 5 - motor power : 0,9 [kW] TAIL STOCK - internal taper : CM4 - quill stroke : 30 [mm] DIMENSIONS - floor surface : 2580 x 1680 [mm] - height : 1670 [mm] - weight : 2200 [kg] EQUIPMENT - FISCHER internal spindle: 14,000 [rpm]

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 100 kg, wheel width: 400 mm, grinding wheel diameter: 400 mm, helix angle: 45 °, table diameter: 180 mm, table load: 100 kg, wheel diameter: 400 mm, overall weight: 10,000 kg, travel distance Z-axis: 660 mm, Equipment: documentation/manual, CNC Gear Grinding Machine HOFLER HELIX 400KK Diameter-Ø max: 400mm Dimeter-Ø min: 10mm Number of teeth variable Profilhöhe max: 35mm Modul: 1-10 Grinding head inclinaison: 45° Spindle speed max: 5400 1/min Counter height max: 745mm Table weight: 100 kg Total weight ca. 10000 kg Werkzeugdaten: Grinding wheel-Ø max: 300mm Grinding wheel-Ø min: 80mm Width max.: 30mm bore-Ø: 160mm Siemens 840 D Alle Achsen CNC gesteuert Ölnebelabsaugung Filtration unit Cedpfxox Nfwas Ah Sopt Hydraulic clamping Dittel balancing unit Accessories with machine available : Various grinding wheel available 1 Diamnod disc Tailstock rotative and fixed( fest und mitlaufend )

Condition: reconditioned (used), functionality: fully functional, Machine characteristics : Centre height : 125 mm ( 175 mm with the heights ) Distance between centres : 600 mm Grinding wheel: Diameter 400 mm Width 50 mm Bore 127.0 mm Angular displacement : 270 ° Work piece spindle head: from 20 rpm up to 400 rpm Spindle taper: 5 MT Taper in tailstock: 3 MT Table angular displacement : 10 ° Cpodpexyw Ehsfx Ah Sot Table speed: stepless up to 6.0 m/min External Grinding wheel motor : 4.0 Kw Workhead spindle motor : 2.2 Kw Machine's weight about : 2700 kg Overall dimensions machine: Length : 2580 mm Width : 1680 mm Height : 1670 mm The machine is fully retrofitted and it includes: - New electric cabinet and new electric diagram - New motor and frequency variator for the workhead - 2 axis DRO - Cooling tank - Geometry made according to the Kellenberger protocol - Lot of accessories

Condition: reconditioned (used), KELLENBERGER 600 U 175 is a cylindrical grinder of high precision, offering accuracy and reliability. Capacities: centre height 175 mm, between centres 600 mm; wheel Ø350×50 mm, bore 127 mm; wheelhead 270°. Specs: wheel speeds 1500–3600 t/min (4 steps); work spindle 20–400 t/min (stepless); table tilt 10°, up to 6 m/min; supply 3×380 V 50 Hz; wheel motor 4 CV; weight ≈2200 kg; dims 3000×1750×1600 mm. Accessories: digital readout (2 axes), tailstock fine adjust, internal grinding attachment, wheel guard, safety device, sliding door. Suited to tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors. Cpedpfxexx U H Ts Ah Set

Condition: used, Year of construction: 2005, Reishauer RZ150 gear grinding machine Cpjdpfx Aoxz E Srsh Sjt

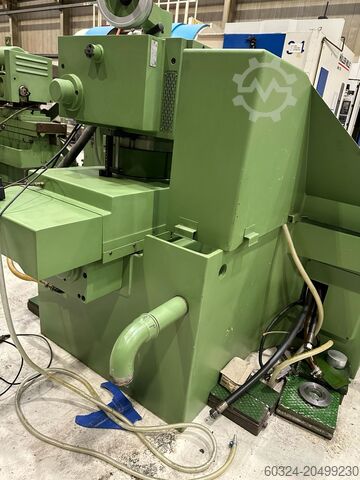

Condition: good (used), Year of construction: 1988, Ref. -No.: 10396 Manufacturer: KELLENBERGER Type: 600 U - Nr. 40 Year of construction: 1988 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Switzerland Distance between center: 600 mm Cpodpfexvw E Tox Ah Sst Center height (standard): 125 mm Height of centers by lifting work blocks head and tailstock: 175 - 250 mm Swing diameter with lifting blocks max.: 350 - 500 mm Table swivel / each side: 10 ° Dwell time of the table reversal: 0 - 5 Sec Diameter / width / hole: 250 x 13 x 76 mm Speeds of the grinding wheel spindle: 1500/1700/2200/3600 Swiveling grinding wheel head: 360 ° Cross movement of the grinding wheel head: 285 mm Quickly pulling the wheel head back and forth: 40 mm Intermittent injection for each reversal of the table: 0,001 - 0,03 mm / dia Micro-corrector of the feed, 1 division of the dial: 0,001 mm / Ø Working speeds continuously adjustable (normal / special): 20-400/10-400 Max. Grinding length: 900 mm

Condition: used, Year of construction: 1986, grinding diameter 350 mm grinding length 600 mm Cpedov Tqqnepfx Ah Set centre height 175 mm Very well maintained machine. The machine comes from a precision grinding shop from the Black Forest. Can still be viewed under power for a short time at the seller's premises. In 2022, the machine was partially overhauled and serviced in-house with production of the geometry according to the manufacturer's protocol. Equipment: -2-axis digital readout FAGOR -sine bar -tailstock with fine adjustment -Hydraulic tailstock -Surface grinding device -Internal grinding device -Fischer UJ70 internal grinding spindle -Paper belt filter -automatic sequence: roughing-finishing-firing-retur Translated with (free version)

Condition: used, functionality: fully functional, 2 double-flank rolling testers / 2 devices Measuring device for gears for the inspection of gear teeth (for simple and fast inspection of gears) Double-flank rolling device for measuring gears, Cpsdpfx Ahjhaqume Set used special test equipment for final inspection. 2 double-flank testers for final inspection, for fast and easy detection of runout or damaged areas (knockers) on the tested workpiece. Electromotive drive, partially with clamping device Double-flank inspection "Price / details on request" All technical data subject to change/errors. We sell exclusively to countries of the European Community.

Condition: used, internal diameter 340/440 mm grinding depth 99999 mm grinding diameter 250,350,450 mm grinding length 600 mm centre height 125,175,225 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±10 ° longitudinal feed of the table 900 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,2 t dimensions of the machine ca. 3,1 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not Cedpfx Aed Ih Dxsh Sjpt only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your metrical overhauled and repainted with: -Neuem CE konformem Schaltschrank. -Neuem Werkstückspindelmotor und Regler in Drehstromtechnik. -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.
