Cylindrical Grinding Machine

KELLENBERGER KEL-VARIA

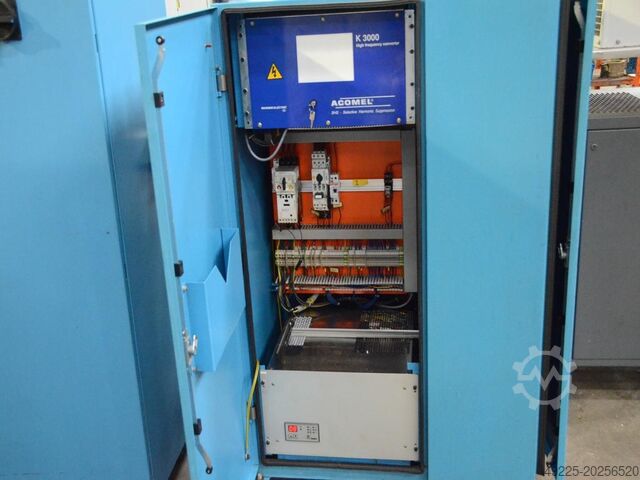

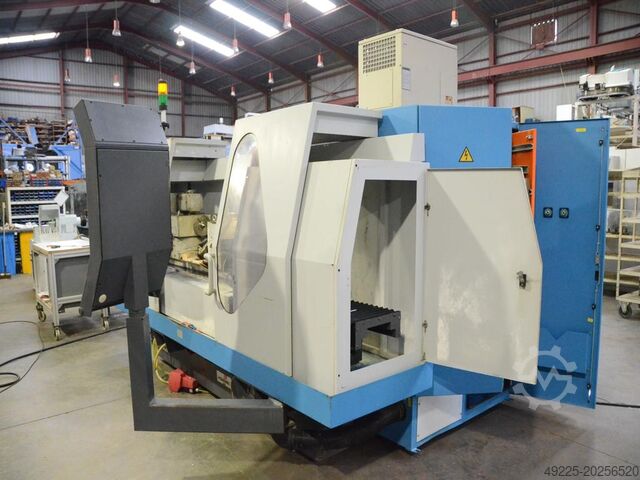

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Fpsdpfxew T Tb He Agmjb Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 Fpjdpfx Agju D I Tlsmsb total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: used, Year of construction: 1995, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm Teilüberholte Maschine mit Messprotokoll nach Neumaschinentoleranz KEL-ASSIST für Kelco 90 numerisch gesteuerte B-Achse Innnschleifrinrichtung Dia 80mm Schleifscheibe links Durchmesser 400mm Fsdpox Hpz Djfx Agmspb Schleifscheibe rechts Durchmesser 300mm Innenschleifspindel HJN 828 hydraulischer Reitstock Mikroverstellung KEL SET Messsystem KEL-POS Marposs

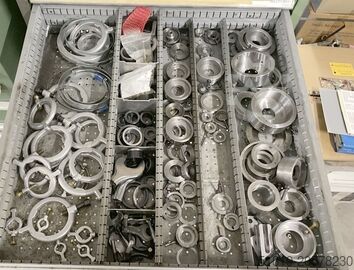

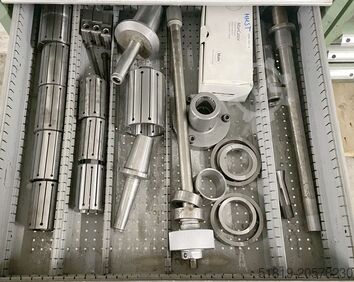

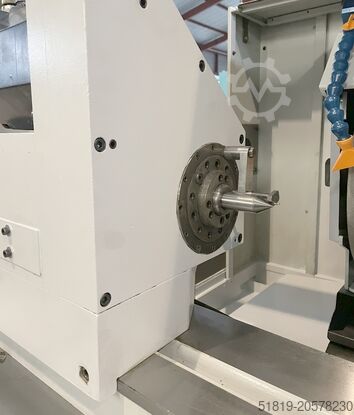

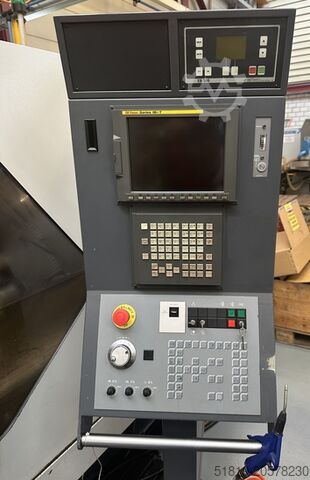

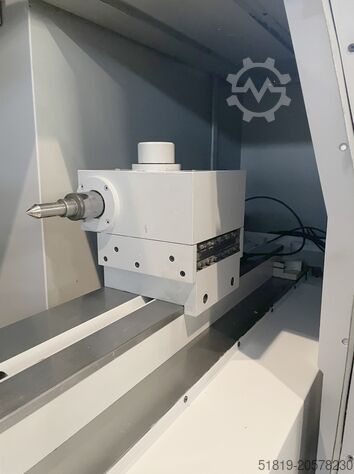

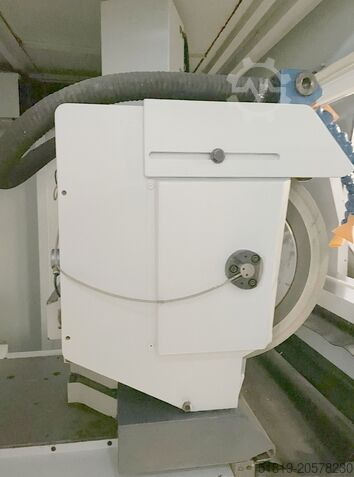

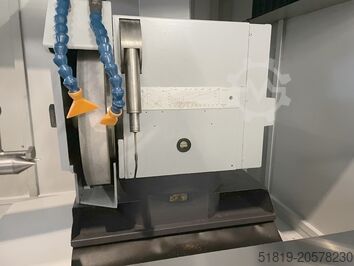

Condition: used, KELLENBERGER KEL-VARIA R175 x 1500 is a CNC cylindrical grinder engineered for high precision, top accuracy and reliable production. Capacities: centre height 175 mm, distance between centres 1500 mm, Z-axis 1650 mm, workpiece weight on centres max. 150 kg; grinding wheel Ø500×80 mm (bore 203 mm) or Ø400×63 mm (bore 127 mm); max wheel travel 320 mm. Key specs: wheel speeds stepless 1000–2150 rpm (peripheral speed 45 m/s); feed 7500 mm/min; work spindle swivels -10/+100° with 8–800 rpm; permitted load 160 Nm; grinding spindle motor 7.5 kW; work spindle motor 2 kW; 3×400 V 50 Hz; rapid 15 m/min; approx. weight 6000 kg; dimensions 4700×2300×2000 mm; air 6 bar. Accessories: coolant system, paper filtration, MARPOSS touch probe, set of grinding wheels, rotary centre, set of centers, set of workpiece drivers, set of throat gauges, lamp, 2 tool cabinets, tailstock with fine adjustment, oil mist extractor, spindle nose for collets. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tool Fjdpfx Asxx U S Asgmjpb

Condition: excellent (used), Year of construction: 2015, CNC tool grinding machine Walter Helitronic Power FH, with pallet loader (cylindrical), 8-position disc changer, electrostatic fume extractor, fire extinguishing system, oil supply pump, software Walter-Window-Mode and Toolstudio. Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard. Equipped with hydraulic interface (preparation for steady rest - Lynette). Fpsdpfxox E Dfbj Agmsb The grinding spindle (single spindle) is direct-drive and features an oil cooler. The hollow-shaft motor for the A-axis has a speed range of 0–750 rpm. Axes C, X, Z, and A were overhauled in 2022.

Condition: used, Distance between centres: 1000 mm Centre height: 250 mm B-axis: Accuracy 0.1" CNC brand: Kelco CNC model: 90 Left grinding wheel dimensions (OD x ID x width): Ø400 x Ø127 x 63 mm Right grinding wheel dimensions (OD x ID x width): Ø400 x Ø127 x 50 mm Workhead swivel: -30º to +120º Workhead taper: MK 5 Max. workpiece weight between centres: 150 kg Tailstock taper: MK 4 Tailstock quill travel: 50 mm Maximum peripheral speed: 32 m/s High-frequency internal grinding spindle: Ø120 mm High-frequency internal grinding spindle brand: WARNER model K 3.000 Main motor power: 7.5 kW Total power: 26.5 kW Max. Z-axis travel: 1,150 mm Max. Z-axis feed speed: 15 m/min Fedsxmg Ekjpfx Agmjpb Worktable rotation: 0º to 9º Max. X-axis travel: 320 mm Max. X-axis feed speed: 7.5 m/min Length: 3,600 mm Width: 2,000 mm Approx. weight: 5,000 kg

Condition: used, Year of construction: 2000, grinding diameter 450 mm grinding length 1000 mm centre height 225 mm Photo of machine already delivered in similar scope: -major maintenance -New table geometry -partial painting of the interior grinding wheel equipment LEFT 400x63x127mm (standard) grinding wheel equipment RIGHT 300x40x127mm Internal grinding unit Ø120mm for HF spindles CNC control KELCO 120 C-axis for non-circular grinding. Kel-Poly B-AXIS: CNC-controlled B-axis KELCO 120: v constant 35m/s or 45m/s High-frequency internal grinding spindle Operating unit for MFV and MFZ spindles Fpjdpfx Agoxzk Niomsb Hydraulic quill retraction for the tailstock NO micro-adjustment on the tailstock Spring-loaded quill insert Top table cooling Standard workpiece headstock MK 5 DIN 55026 size 5" Micro-adjustment for the standard workhead Dressing device on the lower table Active longitudinal positioning KELPOS, MARPOSS, mounted on the grinding head Tool measuring system KELSET, MARPOSS MARPOSS gate sensor Measuring control MARPOSS Minialsar prepared Paper belt filter

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Fpodpowl Uvksfx Agmsb Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Automation Interfaces: Standard interfaces for loaders and peripherals Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

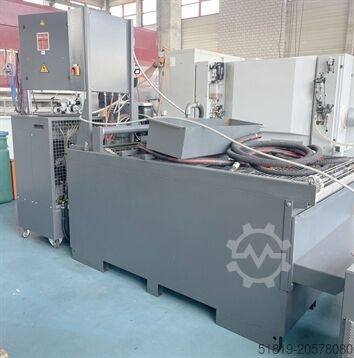

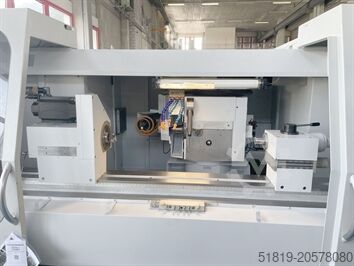

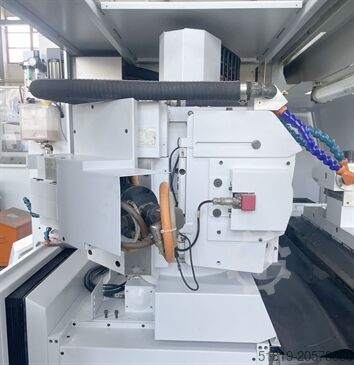

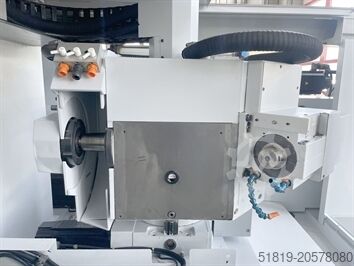

Condition: used, KELLENBERGER KEL-VARIA 2RU 225/1500 is a CNC cylindrical grinder engineered for precision, high accuracy and reliability. Capacities: centre height 225 mm, distance 1500 mm, max grinding Ø 432 mm, workpiece weight 150 kg; wheels L 400×63×127, R 500×80×127. Wheel speeds 1000–2150 rpm (45 m/s); work spindle 8–800 rpm, taper 5 CM, permitted load 160 Nm. Tailstock taper 4 CM, stroke 50 mm, pressure 200–700 N; supply 3×400 V 50 Hz. Options: KEL‑ASSIST 100, MOVOMATIC, KEL‑SET, MOVOMATIC C25, KEL‑BALANCE, coolant through spindle, paper filtration, 400 mm magnetic chuck, dressing, swivel diamond holder. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical. Fjdpfsxx U Haox Agmepb

Condition: used, Year of construction: 2003, grinding diameter 450 mm grinding length 1500 mm Fedpfx Asxflcrogmspb centre height 225 mm

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE Fsdpfouhampjx Agmopb - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend Fpjdpfx Ajuwv H Togmeb -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt Fpodpfx Ageuwv H Hjmjb -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 Fpodjt Uw Avopfx Agmsb grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: used, Year of construction: 2002, grinding diameter 450 mm grinding length 1500 mm centre height 225 mm Control FAGOR EQUIPEMENT - T1: grinding wheel diameter 500 mm - T2: grinding wheel diameter 400 mm - T6: HF Fischer spindle MFV or MFZ 1224/1242/1260 - T7: HF Fischer spindle MFV or MFZ 1224/1242/1260 - Marposs tool measurement - active longitudinal positioning - Elaso GAP-control on T1 and T2 contactless integrated in the control surface - Elaso GAP internal grinding with fluid sensor for T6 and T7 - semi-automatic balancing by Elaso integrated in the control surface for T1/T2 - tailstock hydraulic with fine adjustment +/- 150 microns - dresser on workpiece spindle side table mounted - dresser on tailstock side table mounted - dresser on upper table - new service- and userfriendly housing SPECIAL EQUPEMENT: Workhead with direct drive - strongly recommended for Fsdpfxsuxfu Nj Agmepb non-circular grinding - workpiece weight flying max. 75kg - workpiece weight between centres 150kg - water-cooled B-axis with direct drive - center height 225 mm - extremely torsionally stiff - highly accurate positioning - resolution ° - water-cooled Hydrostatic ball screw - x-axis - wear-free, as there is no contact during operation - no loss of precision, even during long-term use at full load and maximum speed - no friction at low speeds - no friction force backlash when the direction of rotation changes - translates even the smallest rotational movements - no stick-slip effect even at low speeds - no fluctuations in frictional torque due to ball circulation - higher axial stiffness compared to ball screws - significant improvement in damping, resulting in better workpiece surface finish and tool life - no oscillations due to ball circulation - also suitable for high speeds and accelerations - cost-effective alternative to the linear motor with greater precision and significantly lower heat generation - significantly less power dissipation and, as a result, no problems with swarf on permanent magnets New hydraulic unit - optimized temperature control (chiller) - Energy-saving Only one pump controlled by VFD - Pressure monitoring - monitoring of the hydrostatic oil for water content. (Damage to the bellows is recognised and detected prematurely) -fine adjustment +/- 150 microns Paper belt filter 375l – alternative 480l Grinding mist extraction system – emulsion MECHANICAL OVERHAUL -complete machine according to Kellenberger protocoll -new painting ELECTRICAL OVERHAUL - new modern Fagor CNC with BEMA HMI - new electric cabinet - new digital drive technology - replacement of all electrical cables, switches etc. - new absolute external scales in x- and z-axis - new absolute encoder (B-axis) Grinding software BEMA-Standard: - workpiece zeroing - grinding wheel zeroing - dressing diamond measuring - corrections - external and internal surface grinding - external and internal angle grinding (turning of the b-axis, dressing with straight wheel) - external and internal radius grinding (radius dressed on wheel) - semi-automatic traverse grinding - workpiece zeroing - 2 dressing diamonds - 1 dressing blade - dressing roll - 3 flat dresser - corrections - Z-position measurement - GAP control Optional grinding cycles at no extra charge: Profile plunge grinding: - external and internal profile plunge grinding with profile wheel Pr...
