CNC cylindrical grinder

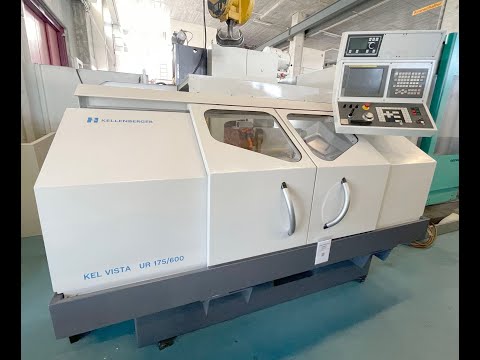

KELLENBERGER KEL-VISTA UR 175X600

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Cpodpfx Ast Uw Aveh Iew Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: used, Year of construction: 2017, Technical details: grinding diameter: 280/320 mm Cjdsttxg Sspfx Ah Ijpw grinding length: 750 mm centre height: 170 mm weight of the machine ca.: 22,5 t dimensions of the machine ca.: 4,7 x 3,65 x 3,0 m

Condition: used, Year of construction: 1998, centre height 125 mm centre distance 400 mm Control FANUC 21i Capstan diameter max. 406 mm wheel dimensions 406 x 127 x 40 mm workpiece weight 30 kg Cpjdpoxwdwfofx Ah Isw longitudinal slide -travel 483 mm cross slide - travel 254 mm total power requirement max. 20 kVA weight of the machine ca. 4,0 t dimensions of the machine ca. 3,0 x 2,0 x 2,1 m including 2 Pcs. internal grinding spindle incl. B axis 1° Hirt, controlled incl. C-axis incl. Quick-Set Probe including Sensitron including Magnetic Jaw including hydraulically foldable dresser including other small accessories including documentation without a coolant system, as it was previously connected to a central unit Power On hours approx. 71,000 h Spindle hours approx. 25,900 h

Condition: used, STUDER CT 960 is an Internal grinding machine delivering precision, high accuracy and reliable performance. Working capacities: centre height 150 mm, grinding length 150 mm, X/Z travels 400 mm, wheel diameter 250 mm, spindle hole 35 mm; B-axis +61/-91°, rotatable head -5/+275°, turret with 4 spindles. Main specs: spindle speeds 6000 / 45000 / 60000 / 90000 rpm; X/Z feeds 12 m/min; air 6–10 bar; 3x 400 V 50 Hz; total power 34 kVA; weight ~4050 kg; dimensions L 3218 × W 2256 × H 2300 mm. Equipment: coolant system, measuring probe, diamond redresser, spindle cooling, flanges for internal grinding, tool holders, 3-jaw chucks Ø100/125/160, magnetic chuck Ø125/300, tool cabinet, lamp, fire system, electronic handwheel, external grinding spindle 6000 rpm, calibration accessories. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors. Codjxx U Auspfx Ah Iepw

Condition: good (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 004-040.0004, CNC Cylindrical Grinding Machine Manufacturer: STUDER Model: S22 CNC Year of manufacture: 2009 Machine / Workpiece Data Distance between centers: approx. 650 mm Center height: 175 mm Maximum workpiece weight: 150 kg Maximum grinding length: approx. 800 mm Linear Axes / Guides Cedpfx Aoxtpnzjh Iopw X-axis (cross slide): Maximum travel approx. 310 mm X-axis feed rate up to approx. 15,000 mm/min (depending on configuration) Z-axis (longitudinal slide): Maximum travel approx. 850 mm Z-axis feed rate up to approx. 30,000 mm/min Grinding Spindle / Grinding Wheel Main spindle power, e.g. 12.5 kW in the standard version Standard grinding wheel diameter e.g. Ø 500 × 80 × 203 mm, circumferential speed up to approx. 50 m/s Optional high-speed grinding (HSG): e.g. grinding wheel Ø 400 x 40 x 127 mm, circumferential speed up to approx. 140 m/s Control / Software / Equipment Control, standard: e.g. FANUC 31i-A (PC integrated) with StuderWIN operator interface Guideways: Machine bed made from Granitan® S103 (mineral cast) for thermal stability and damping Dimensions / Electrical Data Machine weight approx. 8,500 kg Power supply, typically 400 V / 50 Hz (country-specific)

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Cjdpfsth Sc Hox Ah Iepw Sale only within Europe, including Turkey. ----- For technical data, see handout. Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations.

Condition: used, TECHNICAL DETAILS - Grinding length : 120 [mm] - center height : 102 [mm] Cpjdpjxylwfsfx Ah Ijw - Max. part length : 230 [mm] - X/Z stroke : 450 / 200 [mm] - Rapid traverses rates (X/Z) : 12000 [mm/min] SPINDLE SUPPORT - Number of spindles : 1 - Spindle speeds : 42.000 [rpm] - Power : 3 [kW] PART-HOLDER HEADSTOCK - Speed : 1500 [rpm] - Power : 1.4 [kW] - Spindle passage : 28.6 [mm] - Type of cone : A2.4/CM5 - B axis adjustment angle (manual) : +/- 2 [°] - C axis indexing precision : 0.0001 [°] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 34 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3600 x 2800 [mm] - Machine weight : 2600 [kg] MACHINE HOURS - Number of hours under power : 1022 [h] EQUIPMENT - CNC : Fanuc 0i-TFP - Software StuderSIM - Coolant tank - Coolant through spindle - Oil mist extractor - Diamond grinding device - Workpiece probe

Condition: used, KELLENBERGER KEL-VARIA R175 x 1500 is a CNC cylindrical grinder engineered for high precision, top accuracy and reliable production. Capacities: centre height 175 mm, distance between centres 1500 mm, Z-axis 1650 mm, workpiece weight on centres max. 150 kg; grinding wheel Ø500×80 mm (bore 203 mm) or Ø400×63 mm (bore 127 mm); max wheel travel 320 mm. Key specs: wheel speeds stepless 1000–2150 rpm (peripheral speed 45 m/s); feed 7500 mm/min; work spindle swivels -10/+100° with 8–800 rpm; permitted load 160 Nm; grinding spindle motor 7.5 kW; work spindle motor 2 kW; 3×400 V 50 Hz; rapid 15 m/min; approx. weight 6000 kg; dimensions 4700×2300×2000 mm; air 6 bar. Accessories: coolant system, paper filtration, MARPOSS touch probe, set of grinding wheels, rotary centre, set of centers, set of workpiece drivers, set of throat gauges, lamp, 2 tool cabinets, tailstock with fine adjustment, oil mist extractor, spindle nose for collets. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tool Cjdpfxexx U S Ae Ah Iepw

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Codewmwwyspfx Ah Iopw Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: used, O F F E R We can offer you ex stock, subject to prior sale and errors: TSCHUDIN (CH) Centerless cylindrical grinding machine Model TC-300 Year of manufacture 2001 Grinding range – Ø 0.5 – 25 mm (30) Max. workpiece length for plunge grinding 125 mm (140) Max. workpiece length for through-feed grinding 300 mm Grinding wheel dimensions: Ø x width Ø 300 x 125 mm (140) Regulating wheel dimensions: Ø x width Ø 225 x 125 mm (140) Grinding wheel peripheral speed 35 m/sec Grinding wheel infeed 3 mm Regulating wheel speeds, steplessly adjustable 0 – 444 rpm Regulating wheel inclination Degrees Grinding wheel drive approx. 7.5 kW Total connected load approx. 13 kW – 380 V – 50 Hz Weight 2,500 kg Accessories / Special equipment: • The machine operates with a fixed workpiece position, allowing both the grinding spindle and the regulating spindle units to be adjustable. This simplifies machine setup as well as automatic workpiece loading and unloading. • SIEMENS PLC control for automatic operation with SIEMENS touchscreen. Complete electrics and PLC control renewed in 2016! • Electromechanical profile dressing device for the regulating wheel • Regulating and grinding wheel speeds are steplessly adjustable. • Adjustable plunge guide bridge with mounted plunge workpiece rest • Electromechanically controlled workpiece pusher & automatic pneumatic workpiece ejector Cpsdpewftt Usfx Ah Iow • Additional outfeed cylinder for automatic tilting of workpieces after plunge grinding (adjustable 4–30 mm) • Machine is prepared for use with a HELP-TEC bar loader MSHL08/400P, which is currently not present. • Complete enclosure of working area with monitoring technology • Separate control cabinet, operating and electrical manuals for the retrofit Condition: Very good! Fitted with new electronics in 2016! Click here for a video of the machine: Delivery: ex stock, immediately available, FCA Metzingen Payment: strictly net – after receipt of invoice Always a large selection of grinding machines in stock – please inquire for your requirements!
