CNC cylindrical grinding machine

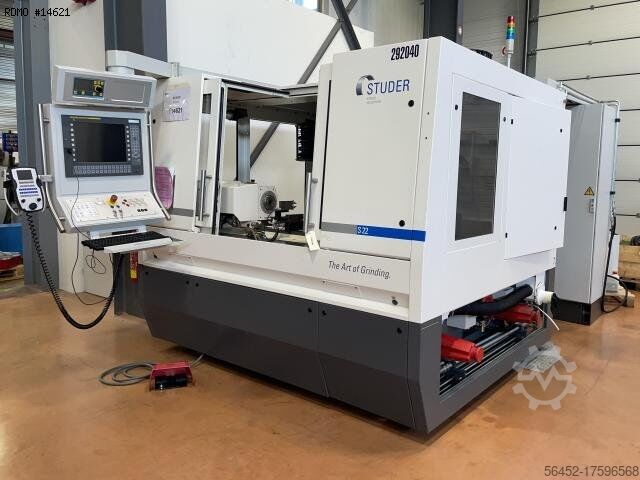

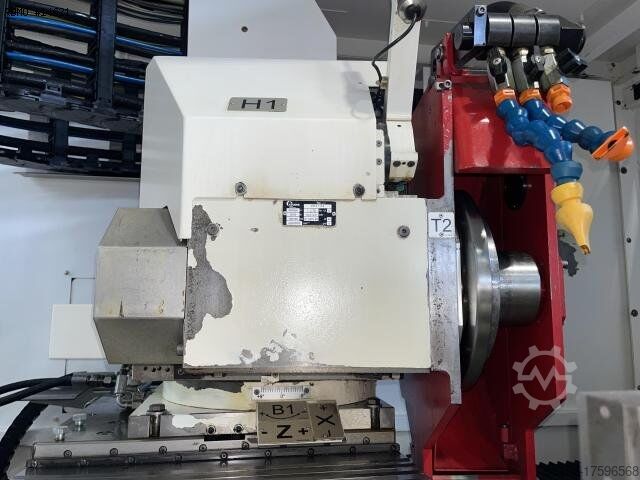

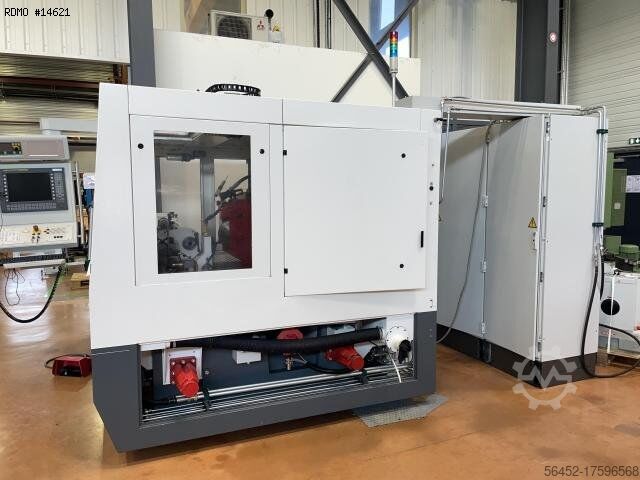

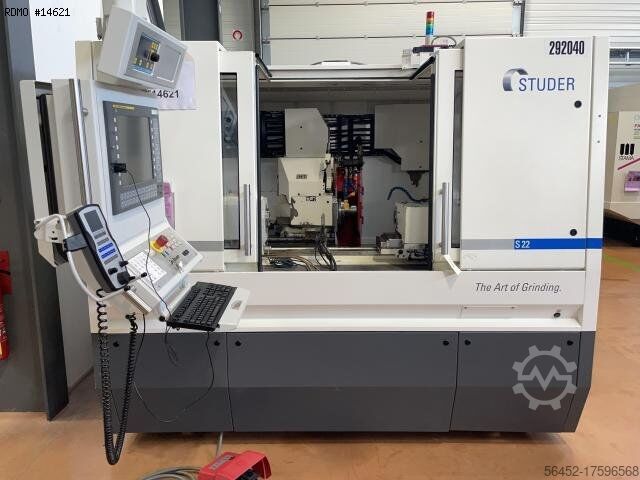

Studer S22

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Automation Interfaces: Standard interfaces for loaders and peripherals Dodpfxswl Uvke Ah Sjkg Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

Condition: used, TECHNICAL DETAILS - Distance between centers : 1000 [mm] - center height : 175 [mm] - X/Z stroke : 285/1150 [mm] - Axis X programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Axis Z programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] Dkjdpfx Aext U Rhjh Sjg GRINDING WHEEL HOLDER HEADSTOCK - Orientation : 0/30 [°] * Grinding wheel dimensions : 500x63 [mm] PART-HOLDER HEADSTOCK - Type of cone : ISO50 - TAILSTOCK POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of hours under power : 28230 [h] EQUIPMENT - CNC : FANUC Oi-TD - Electronic handwheel - Automatic diamond device - Coolant tank * with paper filtering unit

Year of construction: 2014, condition: good (used), SYSTEM 2 - 2014 Serial number: 1006-0055 Model: S12 · Serial 1006-0055 - Year 2014 – Working hours 58366 · Chuck type ISO50/110 · 1st grinding wheel axis 7,5/12,5kW right-handed Ø73mm external grinding · 2nd grinding wheel axis Ø100 60000-1/min M16/17 7,5kW internal grinding Serial number: 1040-0134 Model: S22 Dksdpjppv Rxjfx Ah Sog · Serial 1040-0134 - Year 2014 - Working hours 58810 · Chuck type CM4/70, · Grinding wheel axis 7,5/12,5kW right-handed Ø73mm external grinding

Condition: used, TECHNICAL DETAILS - Axes number : 6 - Centers height : 175 [mm] - Distance between centers : 650[mm] LINEAR AXES - Grinding length : 800 mm - Strokes X x Z: 310 X 850 [mm] GRINDING WHEEL HOLDERS HEADSTOCK - Taper type : - Continuous orientation ( B axe) : +/- 9 [°] - C Axis indexing precision ( High speed machining): 0.001 [°] - External grinding wheel dimensions : 500 x 80 x 20 [mm] - Grinding wheel holder headstock power : 12.5.5 [kW] - Rotation speed : 1400-3200 [Rpm] PART HOLDER HEADSTOCK - Taper type : ISO50 Dodpfxju Haf Ej Ah Sskg - Axis C indexing precision : 0.001 [°] - Power : 4[kW] - Rotation speed : 1-1000 [Rpm] SYNCHRONIZED COUNTER SPINDLE - Taper type : CM4 - Quill stroke (w axe) : 90 [mm] - Quill diameter : 50 [mm] - Power :1.6[kW] - Max. part weight between centers :50 [Kg] ELECTRICAL SUPPLY - Supply tension : 400 [V] 50[Hz] MACHINE HOURS - Number of working hours : 36000 EQUIPMENT - CNC FANUC 31i-A control - Sofwares * StuderWIN * Pictogramming * StuderThread only cycles * StuderTechnilogy - Remote control with electronic handle - Measuring rules on axes X and Z - Automatic length probe arm MOVOMATIC C25 - In-process external diameter probe arm MOVOMATIC DM205 - Coolant tank 375 liters - Paper filter - Oil mist aspiration - Grinding wheel loading arm - Dressing wheel diamond device ( Dia 100mm) - SENSITRON - Automotic dynamic balancing DittelM6000 - Grinding wheel holder flanges - Interface for AROBOTECH steady - Interface B3 PROFIBUS for automatic loading

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm Dkjdpfx Aju D I Tloh Ssg workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: excellent (used), Year of construction: 2015, CNC tool grinding machine Walter Helitronic Power FH, with pallet loader (cylindrical), 8-position disc changer, electrostatic fume extractor, fire extinguishing system, oil supply pump, software Walter-Window-Mode and Toolstudio. Dsdpfx Ajx E Dfbsh Sekg Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard. Equipped with hydraulic interface (preparation for steady rest - Lynette). The grinding spindle (single spindle) is direct-drive and features an oil cooler. The hollow-shaft motor for the A-axis has a speed range of 0–750 rpm. Axes C, X, Z, and A were overhauled in 2022.

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE Dedsuhampjpfx Ah Sekg - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock Djdpfx Aeuwv H Tjh Sskg -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, Year of construction: 2014, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 500 mm max. width of grinding wheel: 500 mm weight of the machine ca.: 16 t. dimensions of the machine ca.: 12 x 10 x 8 m. grinding wheel diam. min/max.: 420-610 grinding wheel diameter - width-internal grin: 304,8 x 500 mm Regulatin wheel diameter min/max.: 300-350 mm Dodpfot Uw Avsx Ah Sokg The machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: used, Year of construction: 2017, Technical details: grinding diameter: 280/320 mm Dkjdpottxg Sjfx Ah Ssg grinding length: 750 mm centre height: 170 mm weight of the machine ca.: 22,5 t dimensions of the machine ca.: 4,7 x 3,65 x 3,0 m
