Cylindrical Grinding Machine

Kellenberger R 175x1000

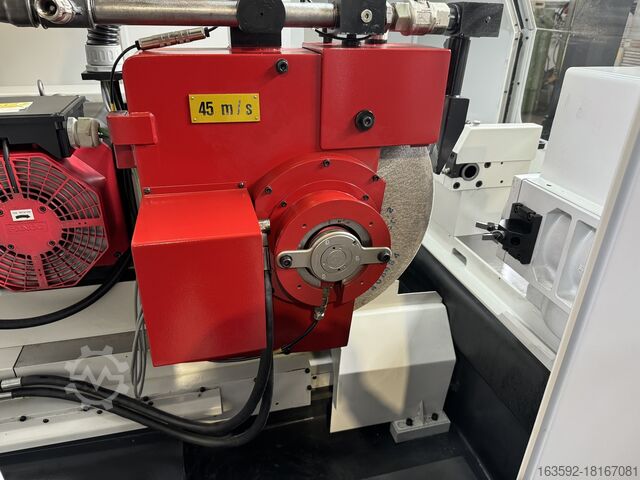

Condition: excellent (used), machine/vehicle number: 31.207.011, Manufacturing origin Swiss Voltage 380/50/3 Netweight 3150 kg Dimensions 400x185x175cm Custom position 8460 TECHNICAL DATA Distance between centres 1000 mm Centres height 175 mm Wheelhead Wheel : diameter/width/bore 500 / 80 (100) / 203.0 mm Max width of wheel 80(100) mm Spindle speeds 1220,1360,1530 min-1 Iisdoiwtm Sjpfx Ad Dsi Table maximal travel 1100 mm Table, speed (variator, progressively adjustable) 0.02 to 6.0 m/min Workpiece headstock Swivel 360° speed (variator,progressive adjust) 20 min-1 to 400 min-1 Wheelhead motor 6 HP Total power 7 HP Max diameter of workpiece 249 mm Tailstock internal taper Morse 3 errors and omissions excepted-data given without obligation

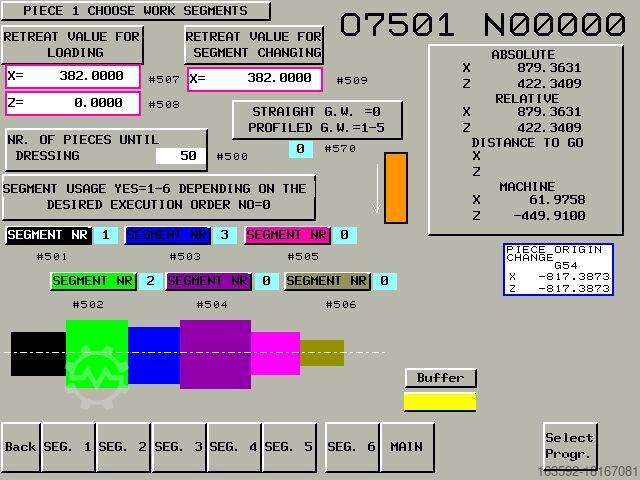

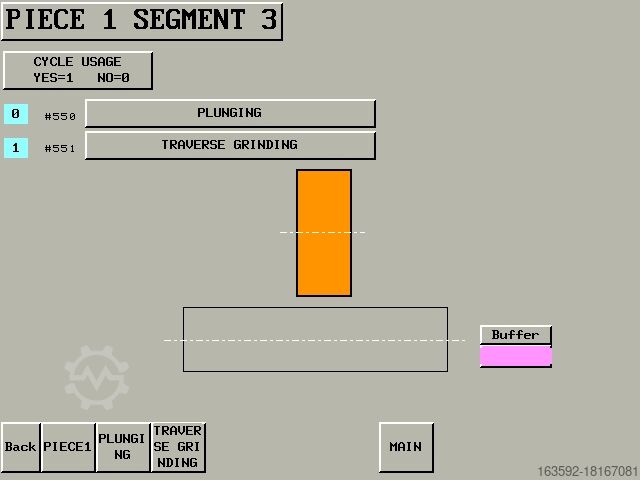

Condition: refurbished (used), functionality: fully functional, center height: 175 mm, grinding length: 1,000 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 400 rpm, controller manufacturer: Fanuc, controller model: 0i-TF Plus, Completely overhauled cylindrical grinding machine Kellenberger R175x1000 CNC - unused since then! The machine was completely refitted in collaboration with Fanuc and includes: - New control cabinet and new circuit diagram - New CNC control Fanuc 0i-TF Plus Iiedpfxjvmqlls Ad Dji - New servo motors and servo drives Fanuc - New balancing system Elaso with GAP - Grinding wheel loader  - Cooling tank with paper filtering - Geometry according to the Kellenberger protocol TECHNICAL DETAILS Control: Fanuc 0i-TF Plus Centre height: 175 mm  Centre distance: 1000 mm Speed: Workpiece spindle head: 20 - 400 rpm C-axis: available Programming: Programs can be created with G-codes or via the user-friendly interface Table angle shift: 8° (for long parts) Headstock inclination: 90° (for short parts that do not require a tailstock) Table speed: max. 10.0 m/min (infinitely variable) External grinding: possible Internal grinding: not possible Tip grinding: up to 6 different diameters on the same piece Taper grinding: the machine has a table that can be tilted up to 8 degrees for long parts, and for short parts that do not require a tailstock, the headstock can be tilted up to 90 degrees.
