PET filling line for nonreturnable bottles

KHS

Condition: used, Year of construction: 2004, Overview  This cold glue labelling machine was manufactured in 2004 by German company KHS. The machine was running until January 2025 and is now stored in the company. The labeller has a camera system for the orientation of the labels in the neck area for swing-top glass bottles. Technical data  Pgodpfx Apswhwwve Esr - Capacity: Up to 26,000 bottles per hour - Working direction: anticlockwise - Formats: - 330 ml Longneck glass bottles - 330 ml Steinie glass bottles - 330 ml Swing-top glass bottles - 500 ml NRW glass bottles - Label positions: - Front (up to 2 labels) - Back (up to 1 label) - With a Siemens S7 control - New HMI touch panel in 2019

Condition: used, Year of construction: 1996, Overview This KHS Innopas P II SG 30-200 is a tunnel pasteurizer for bottled beverages in glass bottles, built in 1996 by KHS (Klöckner Holstein Seitz, Germany). With a treatment area of 113.5 m² across 8 treatment zones (3 of them recuperative), it pasteurizes at approx. 24,000 - 25,000 bottles per hour depending on bottle format, at a maximum pasteurization temperature of 75 °C. For 0.7 l glass bottles the total treatment time is approx. 48.6 minutes (21.2 min heating, 12.3 min pasteurization, 15.0 min cooling) at approx. 5 pasteurization units. The main control is a Siemens SIMATIC S5 PLC; the pasteurization unit setting (temperature diagram) was later upgraded to a Siemens S7 with touch panel. Danfoss frequency drives are fitted. The machine ran at a German mineral water bottling plant until mid-2024 and is now completely dismantled and professionally stored, with the conveyor belt sections and components palletized - ready for immediate collection. Technical data - Manufacturer: KHS (Klöckner Holstein Seitz) - Model: Innopas P II SG 30-200 - Year of manufacture: 1996 - Machine type: tunnel pasteurizer - Capacity: approx. 24,000 - 25,000 bottles/hour (depending on bottle format) - Treatment area: 113.5 m² - Treatment zones: 8 (H1-H3, S, P, C1-C3 plus cooling tower zone), 3 recuperative - Max. pasteurization temperature: 75.0 °C (0.7 l) / 72.5 °C (0.33 l) - Inlet temperature: 15.0 °C; outlet temperature: approx. 32 - 38 °C depending on format - Total treatment time: approx. 48.6 min (0.7 l) / 77.1 min (0.33 l) - Pasteurization units: approx. 5 PE - Machine water content: approx. 14.4 m³ - Water consumption at nominal capacity: approx. 1.5 m³/h - Heat consumption at nominal capacity (0.7 l): approx. 3,672 MJ/h - Installed power: approx. 66.2 kW - Electrical connection: 400 V, 50 Hz - Dimensions (L x W x H): approx. 21,000 x 4,210 x 2,750 mm - Required entry opening: approx. 2.7 x 3.0 m - Net weight: approx. 27,500 kg - Noise level: ≤ 85 dB(A) according to ISO 3744 Equipment - Siemens SIMATIC S5 PLC (main control) - Pasteurization unit setting (temperature diagram) upgraded to Siemens S7 with touch panel - Danfoss frequency drives - Modular plastic conveyor belt with drainage openings, belt sections palletized - External pump assemblies and inspection windows - Electrical cabinets with main disconnect switch - Original KHS documentation (datasheets and drawings) Condition Used. The machine is completely dismantled and stored; belt sections, piping and components are palletized for transport. The machine can be visited on request. Availability Pgsdpfxozwxu Sj Ap Eor Immediately. Location: Germany. Loading by the seller is possible.

Condition: used, Year of construction: 2013, Overview This KHS Innopro KZE 72 is a flash pasteurizer (short-time heating system) for beer, cider and other carbonated beverages, built in 2013 by KHS GmbH (Dortmund, Germany). Working with a plate heat exchanger, it gently pasteurizes at a nominal capacity of 72 hl/h and is designed for a product flow between 24 and 72 hl/h with a maximum CO₂ content of 6.5 g/l. The system comes complete with its 50.8 hl buffer tank and the control cabinet with touchscreen HMI. The unit comes out of a large brewery, is still installed and can be visited on request. Technical data Pgjdpfozvfbcjx Ap Eer - Manufacturer: KHS GmbH (Dortmund, Germany) - Model: Innopro KZE 72/T4-72-12/PT45A - Year of manufacture: 2013 - Machine type: flash pasteurizer with plate heat exchanger - Nominal capacity: 72 hl/h - Minimum adjustable capacity: 24 hl/h - Capacity during CIP cleaning: 85 hl/h - Maximum CO₂ content in the product: 6.5 g/l - Pasteurization temperature: 72 °C (beer) / 85 °C (cider) - Holding time: 30 s - Product inlet temperature: 4 °C; product outlet temperature: max. 4 °C - Supply pressures: product 3.5 bar(g), steam 3 - 6 bar(g), coolant 1.5 - 2 bar(g), CIP 4 bar(g) - Electrical connection: 400 V, 50 Hz, 3-phase - Dimensions pasteurizer skid: approx. 4,600 x 3,500 x H 2,900 mm - Weight pasteurizer skid: approx. 3,100 kg (frame incl. plate heat exchanger) Equipment - Pasteurizer skid with plate heat exchanger type PT45A, pumps and valve manifold - Buffer tank: 50.8 hl gross / 45.5 hl working volume, inner Ø 1,600 mm, H 3,420 mm, approx. 1,120 kg, operating pressure up to 5 bar(g), CO₂ and sterile air connections 6 - 8 bar(g) - Control cabinet with touchscreen HMI - OEM technical documentation (operating manual) Condition Used - good working condition. The system was in production in a large brewery until recently, is still installed and can be inspected. Availability Immediately. Location: Netherlands. Dismantling and loading by arrangement.

Condition: good (used), Year of construction: 2006, production capacity: 18 unit/h, For sale: KHS mixer, capacity 18 m³/h, manufactured in 2006, model KHS INNOPRO CMX-18. Attached are photos of the mixer and its nameplate, as well as a schematic diagram of the pumps and valves. The machine will be available starting in October 2026. It is in good technical condition and currently operates without any problems. Pedjzu Ni Iopfx Ap Ejgr Net price (ex-works Gorzanów): 60,000 EUR.

Year of construction: 1992, condition: ready for operation (used), A two-component mixing/carbonation system by KHS for the production of still and/or carbonated beverages is available. Throughput capacity: approx. 12000l-25000l/h, tank volume degassing/buffer: 2m³/2m³, mixing accuracy: +/-0.05°Brix, CO2 dosing accuracy: +/-0.1g/l, CIP cycle rinsing time: 20min. Machine dimensions X/Y/Z: approx. 3000mm/2200mm/2400mm, weight: approx. 3000kg. Documentation available. On-site inspection is possible. Pgedpfjxqgxxox Ap Eor

Condition: ready for operation (used), Year of construction: 2009, A fully automatic rotary labeling machine Anker (KHS Group) is available. Labeling method: wet glue labels, bottle formats: 250ml/500ml/750ml, label dimensions 1 X/Y: 33mm/119mm, label dimensions 2 X/Y: 36mm/150mm, label dimensions 3 X/Y: 48mm/158mm, labeling capacity: 20000bottles/h. Including formats for wet glue and VE+RE. Documentation available. An on-site inspection is possible. Pjdpfxeyv H Iyo Ap Eegr

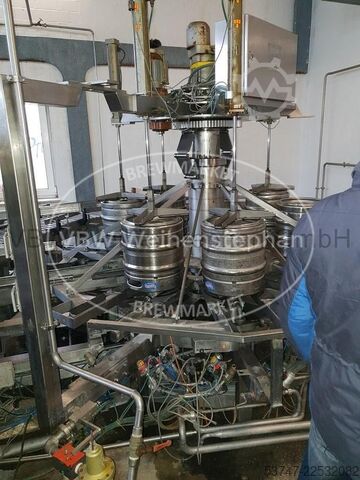

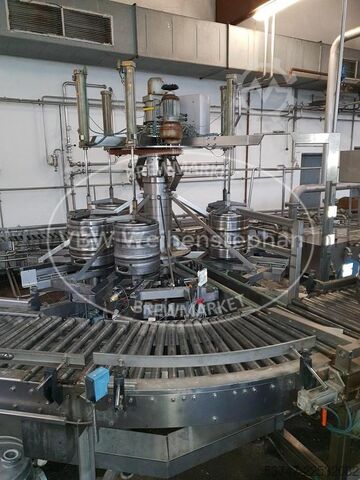

Condition: used, Year of construction: 1984, A carousel system for cleaning the inside of and filling kegs. Additional title: cleaning and filling Capacity: 60 Keg/h each 50 l Formats: 20 l-, 30 l- and 50 l-keg-barrels (DIN and Euro) Pgsdpfx Apsztyyze Eer Base construction: rotary Features: 4 cleaning heads, 1 filling head

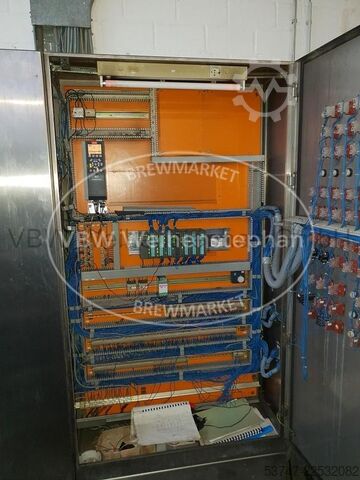

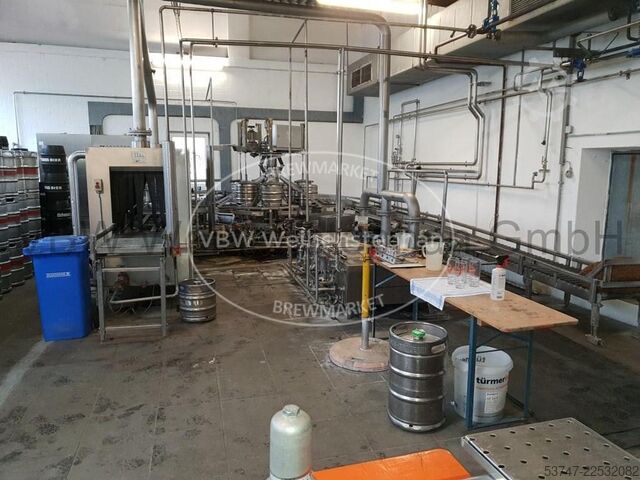

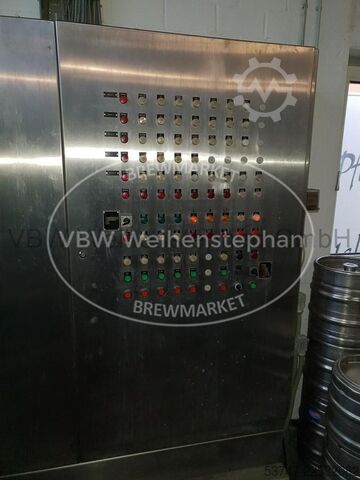

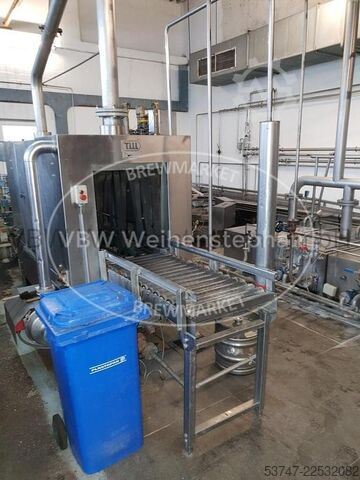

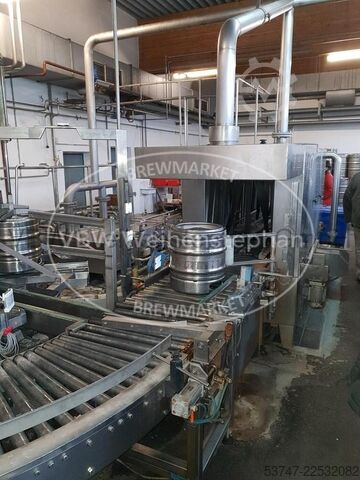

Condition: used, Year of construction: 1984, Keg cleaning and filling system, comprising a keg conveyor, an external washer and a rotary system for internal cleaning and filling. Additional title: cleaning and filling Capacity: 60 Keg/h each 50 l Pgsdpfjztx Uwsx Ap Eor Operation / Control: Siemens S7-300 Features: rotary filler (cleaner and filler), keg transport, 3 CIP containers, control cabinet

Condition: used, Year of construction: 1992, Overview This complete automatic can filling line has a nominal output of approx. 20,000 cans/hour for 330 ml cans (can type 211/202), packed 24 cans per foil-shrunk tray. The core is an O+H / KHS Hansacan filler with 30 filling valves, mechanically blocked to a Ferrum F 505 G seamer with 5 seaming heads. Empty cans are supplied by a TMG Impianti Vega 120/B depalletizer and rinsed on a Hysek Rinsstar 20000 rinser before filling. A date/coding printer is not included. Technical data - Line type: Complete automatic can filling line - Nominal output: approx. 20,000 cans/hour (330 ml), product- and temperature-dependent - Container: 330 ml can, can type 211/202; 24 cans per foil-shrunk tray Pedpfx Apezlqu Te Eogr - Controls: PLC Siemens S7, Siemens SIMATIC HMI - Warmer and drying station reconditioned; fill-height control and packaging machine new Equipment - Can Depalletizer | TMG Impianti | Vega 120/B | tier-sheet removal, can table, pallet magazine | 2014 - Can Rinser | Hysek | Rinsstar 20000 | filtered-water rinse | 2001 - Can Filler | O+H / KHS | Hansacan | 30 filling valves, fixed for can type 211/202, will be general overhauled | 1992 - Can Seamer | Ferrum | F 505 G | 5 seaming heads, blocked with the filler | 2010 - Can Warmer | SMB | stainless-steel tunnel | warms cans to approx. 25 °C before packaging | reconditioned - Fill-Height Control | Heuft | incl. pushing/reject station | new - Can Drying Station | Gesete | air-dries cans before coding | reconditioned - Packaging Machine | Termo Pack | UMT-1500 | tray erector, packer and foil shrink | new - 2x can turning stations (330 ml can) - Can conveyor system incl. electrical control panel (PLC Siemens S7) - Tray conveyor system incl. drive station Condition Used line delivered in reconditioned or new condition. The filler and Ferrum seamer are reconditioned and blocked as one unit with a new electrical panel (PLC Siemens S7), new pneumatic panel and renewed pneumatic valves; the can warmer and can drying station are reconditioned; the fill-height control and packaging machine are supplied new. This work is carried out as part of the order, so the line is supplied component by component and is not yet assembled or tested as one running unit. The can depalletizer is the exception - it is already fully reconditioned and in stock. Filler and seamer are delivered with CE declaration and full documentation. Components can be inspected on request. Availability On request; delivery time as per agreement. Reconditioned and new-build components are supplied with a lead time after order. Location and inspection on request.

Condition: used, Year of construction: 1992, Overview This O+H / KHS Hansacan can filler, blocked with a Ferrum can seamer, is a rotary can filling and seaming monoblock for beverage cans. Filler and seamer are joined as a single unit, so cans run from filling straight through to seaming in one continuous flow. The block is set up for standard 330 ml cans (can type 211 / 202) and reaches a rated output of approximately 20,000 cans per hour, depending on product and filling temperature. Psdpfszlqu Hsx Ap Eegr The block was previously in production in a commercial brewery filling 330 ml cans and is currently at the workshop undergoing a complete reconditioning before delivery. Filling parameters and production data are managed via a Siemens SIMATIC touch HMI, with machine control on a Siemens S7 PLC. Technical data - Manufacturer: O+H / KHS - Model: Hansacan can filler - Seamer: Ferrum can seamer, F 505 G - Year of manufacture: filler 1992, seamer 2010 - Machine type: rotary can filler and seamer monoblock - Filling valves: approx. 30 (type Hansacan) - Seaming heads: 5 - Capacity: approx. 20,000 cph at 0.33 L (product- and temperature-dependent) - Can format: 330 ml standard cans, can type 211 / 202 - Products: beer, carbonated beverages - Control: Siemens S7 PLC with Siemens SIMATIC touch HMI Equipment - Filler and seamer supplied as one blocked unit - New electrical panel with Siemens S7 PLC and SIMATIC touch HMI (reconditioning scope) - New pneumatic panel with renewed pneumatic valves (reconditioning scope) - Beer regulating valve ahead of the beer inlet, CIP tulips and CO₂ injection before seaming - Set up for can type 211 / 202, 330 ml - Manuals, spare-part list and electrical documentation for filler and seamer (provided with the machine) - CE declaration to be issued on completion of reconditioning Condition Used - currently undergoing a complete reconditioning at the workshop and to be delivered fully overhauled, supplied as a blocked filler and seamer unit. The reconditioning scope and the CE declaration are committed as part of the sale and are not yet complete. The block was previously in production in a commercial brewery filling 330 ml cans. Availability On request, after completion of the reconditioning. Location and firm delivery date on request.
