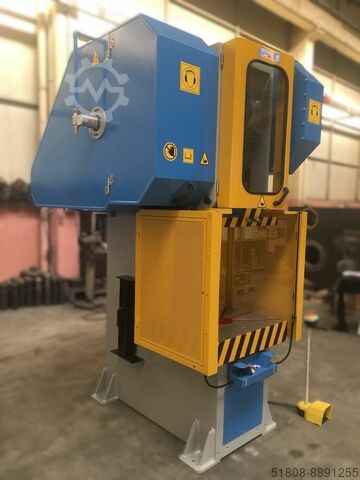

C frame eccentric press

KK Kletzer Exzenterpresse KK 125 to mit SPS Siemens S7 -12200

Year of construction: 2003, condition: used, pressure 100 t stroke 10-130 mm no. of strokes 30-90 Hub/min throat 330 mm ram - range of adjustment 100 mm table surface area 950x660 mm ram surface 540x440 mm hole in the table Ø 230 mm table height 1000 mm tool hole in ram Ø 50 mm total power requirement 7,5 kW weight of the machine ca. 7 t Cgjdpfsra Rr Ejx Afper

Year of construction: 1978, condition: used, pressure 100 t throat 380 mm stroke 400 mm power capacity 22 kW dayligth 600 mm ram surface 600x500 mm Csdpfx Aolp U Dpofpjgr table surface area 720x600 mm weight of the machine ca. 9 t

Year of construction: 1982, condition: used, pressure 150 t throat 350 mm stroke 20-120 mm no. of strokes 40-60 Hub/min ram - range of adjustment 85 mm table surface area 1050x690 mm ram surface 650x320 mm Cgjdpfx Afelp U Iwsper hole in the table 325x200 mm table height 850 mm tool hole in ram Ø 50 mm weight of the machine ca. 8,6 t dimensions of the machine ca. 2500x2500x2900 mm

Condition: used, Single-Column Eccentric Press WEINGARTEN Type EV 63 Machine No. 738 / 61 Year of manufacture: 1962 Pressing force: 63 tons Throat depth: 260 mm Table size: 630 x 530 mm Table opening: Ø 210 mm Ram area: 315 x 260 mm Adjustable ram stroke: 8–100 mm Ram adjustment: 63 mm Ram shank bore: Ø 40 mm, with clamping piece Installation height: max. 450 mm Strokes per minute: 115 spm Csdpok S Htxefx Afpogr Air requirement: min. 4.5 bar Motor power: 4 kW Electrical connection: 380 Volt, 50 Hz Table height above floor: approx. 750 to 900 mm - Electric stroke release via foot switch or two-hand control - Overload protection by shear plate - Clutch-brake combination via WEINGARTEN friction-threaded clutch with TDC safety - Front crankshaft support bearing - Press table height adjustable via 2 threaded spindles - Manual central lubrication system - Free-standing electrical cabinet - UVV (accident prevention regulations) for manual loading operations Space requirements (L x W x H): 1750 x 1600 x 2430 mm Weight: 4.5 tons In good condition

Condition: used, Year of construction: 1991, Pressing force 1,500 kN Adjustable stroke 20 - 132 mm Ram adjustment max. 90 mm Stroke rate 50 / 75 strokes/min. Further data and images available upon request Cgodpfxjrm Nqms Afpor Used, the press was completely disassembled Not operational and requires mechanical and electrical overhaul Press is currently mechanically reassembled

Year of construction: 1978, condition: used, pressure 80 t throat 280 mm stroke 8-112 mm no. of strokes 55 / 82 Hub/min ram - range of adjustment 80 mm Codpfx Ajlp U Ddsfpsgr table surface area 800x570 mm ram surface 560x355 mm hole in the table Ø 280 mm table height 800 mm tool hole in ram Ø 50 mm total power requirement 7,5 kW weight of the machine ca. 6 t dimensions of the machine ca. BxTxH 1600x2200x3000 mm

Year of construction: 1966, condition: used, pressure 100 t throat 410 mm stroke 8-112 mm no. of strokes doubel-strokes per min. 55 / 82 ram - range of adjustment 80 mm table surface area 950 x 700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 850 mm Cgsdpfx Afolp U D Ejpor tool hole in ram Ø 50 mm weight of the machine ca. 7,0 t dimensions of the machine ca. 1400x2200x2800 mm

Year of construction: 1977, condition: used, pressure 100 t throat 410 mm stroke 8-112 mm no. of strokes 55/82 Hub/min ram - range of adjustment 80 mm table surface area 950x700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 800 mm total power requirement 11 kW weight of the machine ca. 7,5 t dimensions of the machine ca. BxTxH 1600x2200x3000 m Cgedpfslp U Dasx Afpjr

Year of construction: 1970, condition: used, pressure 100 t throat 415 mm stroke 8-140 mm no. of strokes 48 Hub/min Cgodpjlp U Spsfx Afpor ram - range of adjustment 80 mm table surface area 920x670 mm ram surface 700x450 mm table height 800 mm tool hole in ram Ø 50 mm weight of the machine ca. 8 t dimensions of the machine ca. BxTxH 1500x2000x2800 mm

Condition: new, Year of construction: 2026, functionality: fully functional, Eccentric press 160t / 1600kN Siemens 1200 PLC Adjustable stroke 16–160mm Ram adjustment 100mm Ram plate 740 x 420mm Ram plate thickness 100mm Csdpfx Afswir U Espogr Table plate 1250 x 700mm Table plate thickness 180mm Motor 15kW Weight 16,000 kg For new machines, delivery time approx. 4–5 months.
