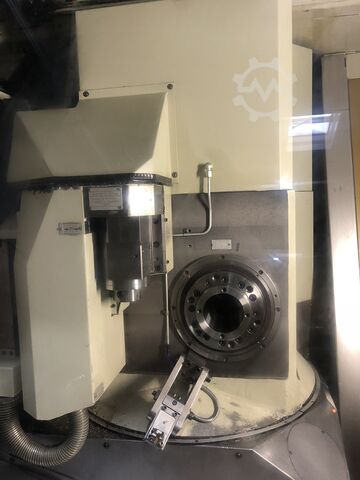

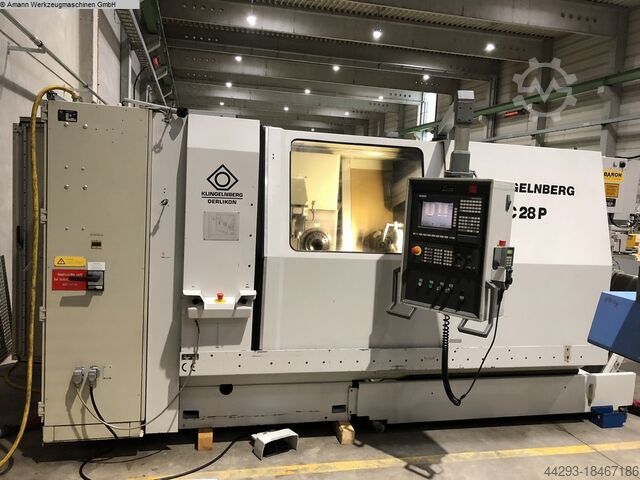

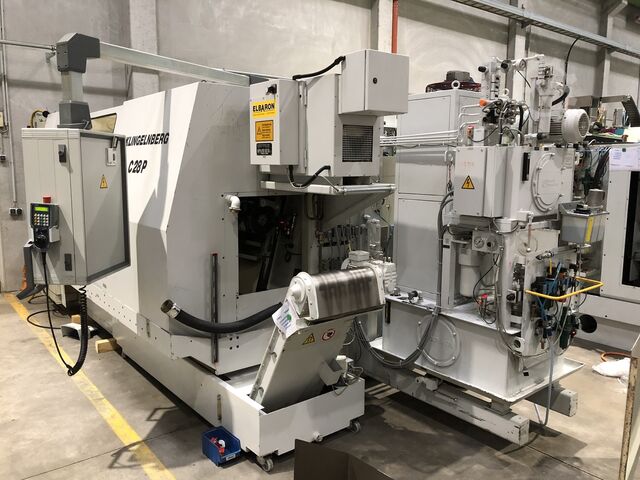

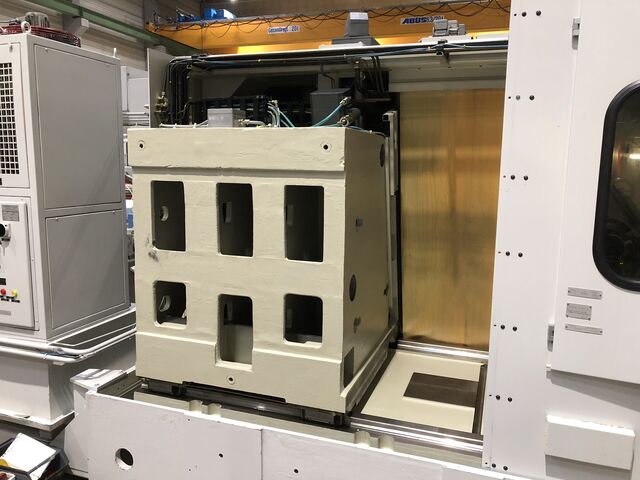

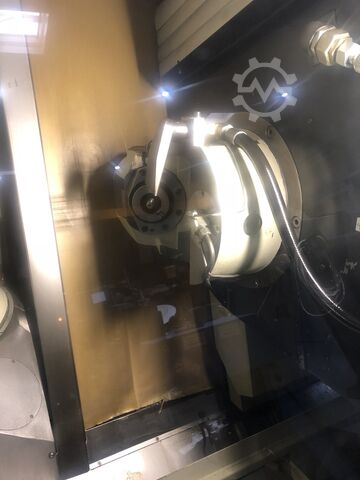

Spiral Bevel Gear Cutting Machine

KLINGELNBERG C 28 P

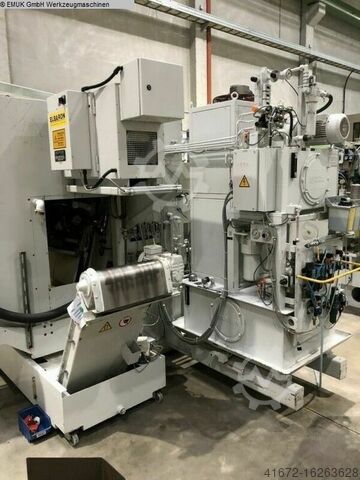

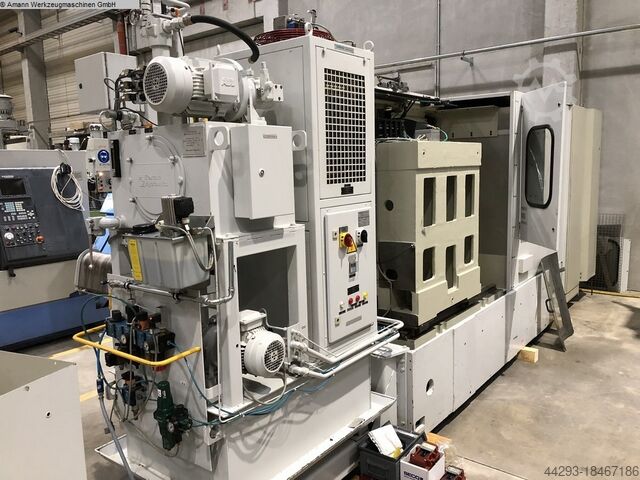

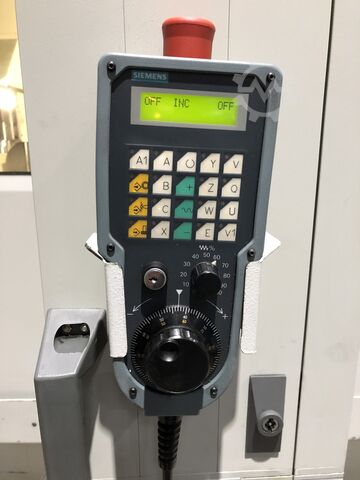

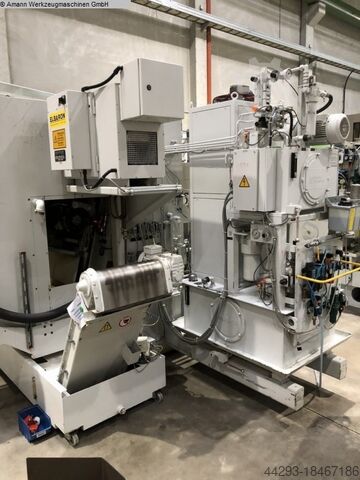

Condition: used, Year of construction: 2002, max. wheel diameter 275 mm max. module 6 min. module 1,5 Control SINUMERIK 840 C tooth width 5,5 mm spiral angle min. 0 / max. 60 ° max. number of teeth 120 min. number of teeth 5 ratio of transmission 1:10 min. ratio of transmission 1:1 work piece spindle speed max. 110 U/min blade head turning speeds 20 - 110 U/min total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,20 x 2,30 x 2,40 m Internal deburring device U axis / Q spindle chip conveyor coolant device Lrjdpfxovxwnwe Agret Electrostatic air purifier ELBARON no tools No workpiece clamping device

Condition: used, Year of construction: 2006, Technical details: Lodpfx Agoyz Sd Rorort max. wheel diameter: 300 mm max. module: 7 weight of the machine ca.: 15 t table turning speeds: 100 U/min table diameter: 180 mm hob turning speeds: 750 U/min max. hob diameter: 300 cutter length max.: 230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion *

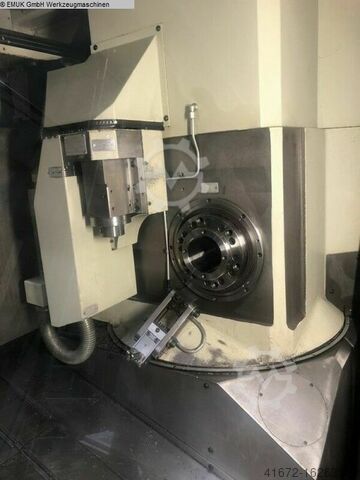

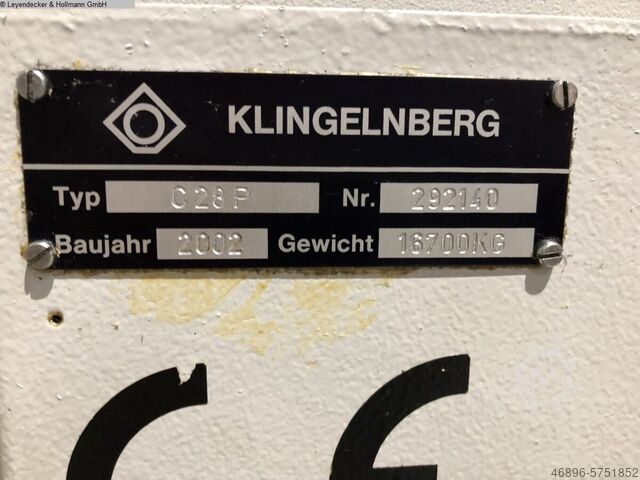

Year of construction: 2002, condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1,5 control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 transmission ratio min. 1:1 Lrodpfx Agjgtvbpsrjt spindle speeds max. 110 mm blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

Condition: used, Year of construction: 2009, faceplate diameter 3000 mm swing diameter 3500 mm turning height 3200 mm Control Fanuc type Series 320i Model A slide adjustment 1750 mm ram head dimension 300x300 mm x-axis 2700 mm Table load 30000 kg main drive motor 100 kW Tool changer 16 weight of the machine ca. 89 t dimensions of the machine ca. 8,5x6x8 m No. 1104 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Lredpoyqu Rwsfx Agrst We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1995, faceplate diameter 4000 mm swing diameter 4300 mm turning height 1750 mm slide adjustment 1000 mm table load 18 t turning speeds 1-92 U/min Control Siemens type 840 D mm Rest 2 ram head dimension 250x250 mm Feed 1-4000 mm/min main gear-box motor 55 kW total power requirement 85 KVA weight of the machine ca. 64 t dimensions of the machine ca. 8x5,8x8 m Ljdpoyquyfofx Agrjrt The machine was overhauled in 2007. The machine is currently designed to machine rings, but can be converted again for machining large parts. Additional information Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: not inspected (used), Faceplate: 2500 mm Swinging diameter: 3200 mm Max. turning height under tool: 2500 mm Lredpfx Agjzdk A Usrot Max. workpiece height under support: 2780 mm Max. workpiece weight: 25 tons Cross slide: 2000 mm Ram travel, vertical: 1600 mm Ram travel, horizontal: 1800 mm Ram cross-section: 250 x 300 mm Smallest distance between two rams: 1150 mm Faceplate drive: 71 kW Faceplate speed: 125 rpm Milling drive motor: 18 kW Milling drive speed: 1600 rpm Milling drive torque: 710 Nm

Condition: good (used), Year of construction: 2002, Control: Siemens Sinumerik 840D Center distance max.: 5000 mm Swing diameter over bed max.: 890 mm Turning diameter max.: 820 mm Spindle bore: 122 mm Lrjdpfx Agszv Hw Serot Spindle diameter in front bearing: 240 mm Spindle nose: A15 / DIN 55026 Main drive power: 80 kW (100% ED) / 105 kW (40% ED) Number of axes: 4 (X, Y, Z, C)C-axis: yes, max. torque 5000 Nm Tool system: Vert./Hor. head, Capto C8 (Sandvik) Milling spindle: 28 kW / 267 Nm (100% ED) Tool magazine: 100 positions, max. tool length 650 mm Travel X: -10 / +490 mm Travel Y: -130 / +300 mm Travel Z: +180 / +5038 mm Rapid traverse X / Z: 15 m/min, Y: 10 m/min Tailstock: yes, quill diameter 160 mm, taper MK 6 2 steady rests (one of them programmable) Chip conveyor and paper belt filter system Dimensions approx. (L x W x H): 16000 x 4900 x 3300 mm Weight approx.: 35.000 kg

Condition: used, Year of construction: 2008, operating hours: 134,157 h, functionality: fully functional, travel distance X-axis: 7,500 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,300 mm, feed rate X-axis: 55,000 m/min, feed rate Y-axis: 55,000 m/min, feed rate Z-axis: 55,000 m/min, total length: 12,200 mm, table width: 2,050 mm, total width: 8,000 mm, total height: 7,800 mm, rapid traverse X-axis: 55 m/min, rapid traverse Y-axis: 55 m/min, rapid traverse Z-axis: 55 m/min, position of the milling head: vertikal, torque: 32 Nm, tool weight: 6,000 g, control cabinet length: 600 mm, control cabinet height: 2,200 mm, control cabinet width: 3,600 mm, tool diameter: 100 mm, As a manufacturer, we are pleased to offer you this portal milling machine from FOOKE GmbH. This machine combines dynamics and precision in a perfect way, making it the ideal choice for machining large components. X = 7,500 mm x Y = 3,500 mm x Z = 2,300 mm Swivel milling head 5 with CNC-controlled A and C axes Ledpsz Da Tmjfx Agrert Compressed air supply to the milling head High-frequency milling spindle (HSK63A, 24,000 rpm, 32 kW) CNC control HEIDENHAIN iTNC 530 (refurbished in 2015) Linear motor drives in the X, Y, and Z axes Exclusive machine table Machine dimensions: Width approx. 8.00 m Depth approx. 12.20 m Height approx. 7.80 m Weight approx. 120 tons Machine operating hours: 134,157 Spindle operating hours: 36,706 Contact: Do you have any questions or need further information on a customized retrofit? Then please send us a message via the platform or call us. As a manufacturer, we look forward to assisting you!

Year of construction: 2006, condition: ready for operation (used), travel distance X-axis: 10,000 mm, travel distance Y-axis: 4,200 mm, travel distance Z-axis: 1,100 mm, overall weight: 80,000 kg, spindle motor power: 40,000 W, spindle speed (max.): 3,000 rpm, table load: 30,000 kg, number of axes: 5, This 5-axis Zayer FP-10000 Bed Type Milling Machine was manufactured in 2006. It features an impressive X-axis travel of 10,000 mm, Y-axis travel of 4,200 mm, and Z-axis travel of 1,100 mm. The machine includes a robust table size of 10,000 × 3,000 mm and a maximum table load of 30,000 kg. If you are looking to get high-quality milling capabilities, consider the Zayer FP-10000 machine we have for sale. Contact us for further details. • Table size: 10,000 × 3,000 mm • Distance between columns: 3,500 mm • Table-to-direct-output-head nose distance: 2,000 mm • Table-to-45° head nose distance: 1,298 mm • Rapid traverse X/Y/Z: 10,000 mm/min • Working feed X/Y/Z: 6,000 mm/min • Universal 45° head speed: 3,000 rpm • Direct-output head speed: 3,000 rpm • Automatic TWIST head speed: 3,000 rpm • Speed ranges: 2 • Number of heads: 3 • Hydraulic tool clamping: Included • Manual head change: Included • Portable handwheel: HR-410 • Motors: Siemens • Machine condition: Excellent Additional equipment • Universal 45° head, 3,000 rpm • Automatic spherical head • Continuous rotation in both bodies • Manual retractable support on the right side Ledpfxjz D Az Ts Agrert Technical Specification Taper Size ISO 50
