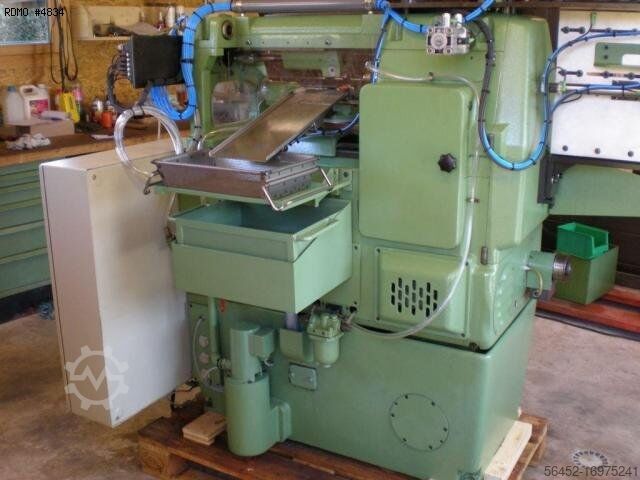

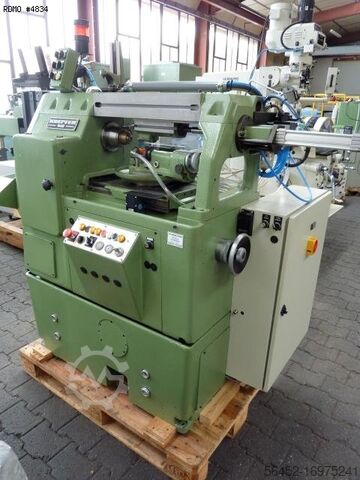

Gear hobber

KOEPFER 140 H

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 250 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: FANUC, workpiece diameter (max.): 32 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 30,000 rpm, overall weight: 1,700 kg, spindle nose: HSK-E40, number of slots in tool magazine: 48, tool length: 95 mm, tool diameter: 63 mm, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, WILLEMIN MACODEL W408 MT TECHNICAL CHARACTERISTICS : Year : 2007 CNC control : FANUC 16i-MB Number of axes : 5 Stroke X axis : 250 [mm] Stroke Y axis : 200 [mm] Stroke Z axis : 300 [mm] Traversing feeds X, Y and Z axes : 30000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 6000 [rpm] Main spindle max. power : 3.7 [kW] Angular C axis stroke : 360 [°] B axis swivelling stroke : 115 [°] Spindle type : HSK-E40 Min. spindle speed : 500 [rpm] Max. spindle speed : 30000 [rpm] Spindle power : 10 [kW] Tool changer magazin number of stations : 48 Max. tool lenght : 95 [mm] Max. tool diameter : 63 [mm] Lubrication tank capacity : 80 [l] Collant pump flow rate : 40 [l/min] Rated current : 25 [A] Supply voltage : 400 [V] Weight : 1700 [Kg] EQUIPMENT INCLUDED : x1 0-90° pivoting backworking unit (6th side machining) x1 backworking vice x1 RENISHAW TS27R tool probe x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection x68 type F35 turning collets x9 HSK-40E milling/turning attachments x1 IEMCA BOSS 332 E bar feeder x1 spindle chiller x1 cutting fluid chiller x1 ELBARON mist extractor x1 3-colour status lamp x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body) x1 set of technical manuals Ledpowu Ruhsfx Ac Heak Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. HERMLE , DMU , monoblock , variaxis , chiron

Condition: used, Year of construction: 2023, controller manufacturer: Siemens, controller model: 828D - ShopMill, _____ Description: Year of manuf. : 2023 Control : Siemens 828D - ShopMill Speed : 10000 rpm Movement X/Y/Z : 350/250/300 mm Spindle: Technology:Directdrive Speed:10.000 rpm Power (max.):7 kW Torque (max.):41 Nm Taper:SK30 Workingtable: Clampingsurface:520 x 300 mm Tabeloading (max.):100 kg Lajdoxthpwepfx Ac Hek In general: Toolmagazine:20 Stations Rapid travers in X/Y/Z:24 m/min Equipment/Accessory: Positionsensor:Direct Scales in X/Y Chipmanagement:Chip conveyor Coolingmanagement:Coolant pump with 8 bar Workpiecemeasurement:Touch probe, Marposs WRP 45 Toolmeasurement:Probe, Marposs TS30 4.-Axis:Walter TANI 100 NEG with 3-Jaw chuck and Tailstock Oilmistseparation:Mechanical extraction, Reven Setup operations:Electronic Handwheel Further Equipment:Rinsing pistol Further Accessory:Misc. used Toolholders

Condition: good (used), Year of construction: 2008, travel distance X-axis: 450 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 380 mm, controller manufacturer: Siemens, controller model: Shopmill, total height: 22,000 mm, total length: 24,500 mm, total width: 15,500 mm, table width: 700 mm, table length: 320 mm, rotational speed (max.): 10,000 rpm, overall weight: 2,000 kg, number of slots in tool magazine: 12, power: 8.5 kW (11.56 HP), X-axis: 450 mm Y-axis: 350 mm Z-axis: 380 mm Table size: 700 x 320 mm Spindle speeds: 10.000 rpm Spindle nose: ISO40 Toolchanger: 12 pockets Controller: Siemens Shopmill Featured with: - Cooling unit - ISO40 tools - Milling vice Country of origin: Taiwan Ljdpjtrhahofx Ac Hoak Motor power: 8,5 kW Machine LxWxH: 2450 x 1550 x 2200 mm Machine weight: 2000 kg

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 1 MAIN SPINDLE - Max. bar diameter : 23 [mm] - C axis indexing precision : 0.001 [°] TURNING-MILLING SPINDLE - X/Z stroke : 250/300 [mm] - Y stroke : 200 [mm] - B Axis stroke : -15/+100 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK E40 - Spindle speeds : 30000 [rpm] - Spindle power : 10 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine weight : 1700 [kg] EQUIPMENT Ledpevh I Ugefx Ac Heak - CNC : NUM 1050 - Coolant tank * Coolant through spindle - Oil mist extractor : Elbaron RON/A 60 - Cooling unit : MARKSA CSW100 - Unit for 6th face machining - Bar loader : Willemin - Collet chuck

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO25 - Spindle power : 0.27 [kVA] - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 250/200/300 [mm] TOOL CHANGER - Tool magazine capacity : 50 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X1860 [mm] - Machine height : 2100 [mm] - Machine weight : 1900 [kg] EQUIPMENT - CNC : Num 1050 - 3 colors status lamp - Coolant tank Lajdpfouhbrmox Ac Hjk - Spindle cooling unit - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: new, Year of construction: 2026, travel distance X-axis: 280 mm, travel distance Y-axis: 280 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 20 m/min, feed length X-axis: 280 mm, feed length Y-axis: 280 mm, feed length Z-axis: 400 mm, feed rate X-axis: 2 m/min, feed rate Y-axis: 2 m/min, feed rate Z-axis: 2 m/min, nominal power (apparent): 6 kVA, torque: 57 Nm, controller manufacturer: Siemens, controller model: S828 D, workpiece length (max.): 150 mm, workpiece width (max.): 80 mm, workpiece height (max.): 180 mm, workpiece diameter (max.): 80 mm, workpiece weight (max.): 3 kg, Equipment: rotational speed infinitely variable, DANE CHARACTERISTIC table Working surface of the table 750 x 270 mm Number of T-slots in the table 3 Width of the T-slots in the table 14 mm Distance between the T-slots in the table 100 mm Maximum load of the table 100 kg Maximum travel Longitudinal axis "X" 280 mm Transverse axis "Y" 280 mm Vertical axis "Z" 400 mm Rapid traverse Longitudinal "X" 30 m/min Transverse "Y" 30 m/min Vertical "Z" 20 m/min Spindle Tool holder BT40 or SK40* Tool clamping force 8 kN Servo axis motors In longitudinal axis "X" 3.5/6 Nm In transverse axis "Y" 3.5/6 Nm In vertical axis "Z" 3.5/6 Nm Positioning accuracy of the linear axes +/- 0.005 mm Main drive motor Power S1/S6 (Siemens) 4.3/6.4 kW Maximum torque on spindle S1/S6 38/57 Nm Maximum spindle speed 8000 rpm Tool magazine Number of tools/option* 8/16* Maximum tool diameter 80 mm Maximum tool length 150 mm Maximum tool weight 3 kg Overall dimensions Length ~1360 mm Width ~2200 mm Height /maximum travel of the Z-axis/ ~2550 mm Coolant tank volume 130 l Weight ~1500 kg Standard accessories: SIEMENS CNC control system ✓ Interpolation in 3 axes ✓ Ball screw spindles, lubricated with solid lubricant ✓ Water-cooled tool cooling system ✓ 8-station tool magazine, swivel arm BT40 or SK40 ✓ Electric handwheel ✓ Telescopic guide covers ✓ Cabin to protect the work area ✓ Lighting system with lamp ✓ Graphic programming support - predefined processing cycles ✓ LCD display 8" (S808) - 10.4" (S828) ✓ Thread cutting without compensation holder (fixed) ✓ Air nozzles at the end of the spindle ✓ Spindle cooling system ✓ TRIM MicroSol 515 cooling lubricant concentrate ✓ Safety system to prevent opening: front doors of the machining area / doors of the control cabinet ✓ Air pressure sensor for detecting low pressure ✓ Electrical installation for mains supply 3x400V, 50Hz ✓ USB port on the front panel of the machine ✓ Standard paint color similar to RAL 5000 / machine base; RAL 7035 ✓ Machine status display ✓ Operating and programming instructions ✓ Laodpfeu Sklaox Ac Hek Special equipment and special design..: - Second 8-station tool magazine Swivel arm ISO40/BT40 - Spindle cooling 6-9 bar - RENISHAW TS 27R tool measuring unit - RENISHAW OMP40 workpiece measuring unit with cycles - Separate spindle cooling unit for machining colored materials and plastics - Handwheel on the bar (pilot) - Tool trolley - Precision clamping device - Automatically opening doors - Additional Ethernet output on the control cabinet for transferring programs between the computer and the machine - Siemens - SinuTrain software

Condition: used, Year of construction: 2003, Technical details: Laodew Udyiepfx Ac Hek x-travel: 250 mm y-travel: 200 mm z-travel: 300 mm weight of the machine ca.: 1500 t dimensions of the machine ca.: 2,7 x 1,95 x 2,2 m B-axis (table): 180 mm rotary table diameter: 180 mm indexing device - swivable: 360 °

Condition: good (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 60 m/min, controller manufacturer: Fanuc, controller model: 21m 3x / 2x 21iM, workpiece diameter (max.): 63 mm, workpiece weight (max.): 1 kg, rotational speed (max.): 10,000 rpm, coolant supply: 1 bar, number of spindles: 1, number of slots in tool magazine: 12, Equipment: documentation/manual, rotational speed infinitely variable, 7 units CHIRON FZ08S with 4th axis Peiseler AWU P100 Laodpfx Asvx Ugwsc Hek 3 machines were overhauled by Chiron CMS in 2016 and 4 machines in 2018, unit price approx. €30,000 each.

Condition: excellent (used), Year of construction: 2017, operating hours: 2,600 h, functionality: fully functional, Description WE OFFER AN BEAUTIFUL AS NEW CONDITION 5 AXIS MACHINE ONLY 2600 WORKING HOURS BROTHER Speedio M140X2 D140 spindle 22 TOOLS ATC COOLING TROUGH SPINDLE Lsdpfx Aevkykfec Hoak Main Drive Spindle speed range Maximum 6000 Tool taper 7/24 taper No. 30 Tools Slots in storage 22 Max weight 3 Max tool diameter 80 Max tool length 200
