Machining center

CHIRON FZ08S

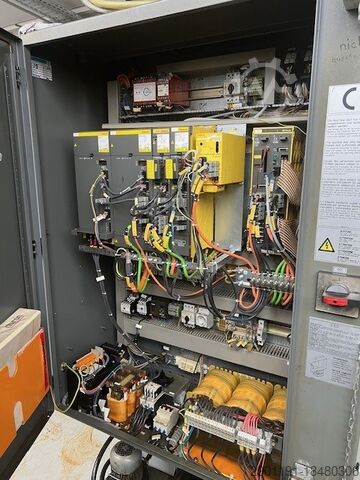

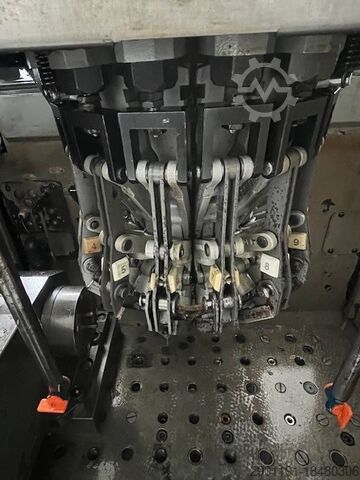

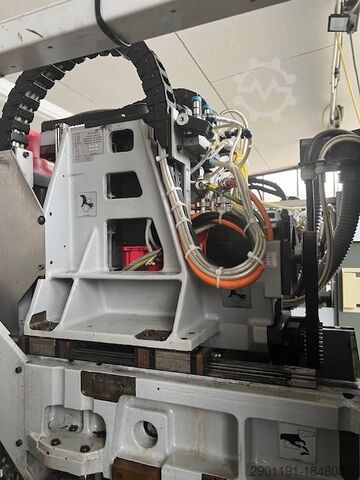

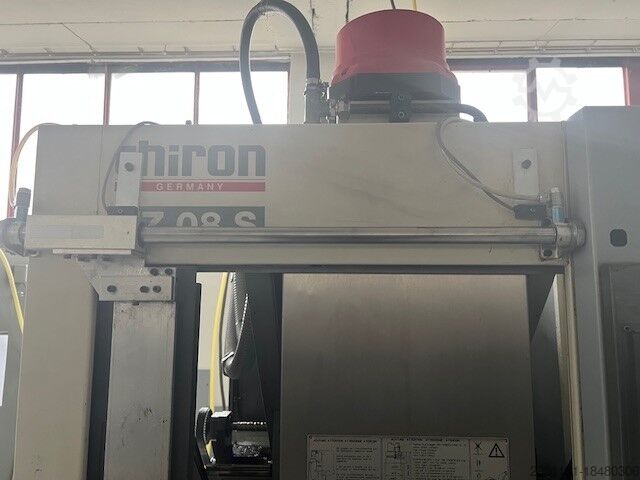

Condition: used, Year of construction: 2000, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, controller manufacturer: Fanuc, spindle nose: HSK 32, number of slots in tool magazine: 12, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, We are offering this used CHIRON FZ 08 S vertical machining center, manufactured in the year 2000. The machine was used for single-shift operation. As it is our only Fanuc machine, we are now selling it. Bljdjzqfynopfx Amzek The machine has a memory expansion and was refurbished by Chiron in 2013. Unfortunately, no documents about this are available anymore after more than 10 years. If you have any questions or require further information, please feel free to send us a message or call us.

Condition: used, TECHNICAL DETAILS - maxi module to be cut : 1.5 [mm] - maxi diameter to be cut: 70 [mm] - maxi length to be cut: 100 [mm] - part maxi length: 200 [mm] - number of tooth mini to be cut: 3 Bjdpfx Ameuhbplezslk - number of endless screw threads (special accessories): 1 - helix angle: 0-90[°] - milling tool maxi diameter: 50 [mm] - 11 milling tool normal speeds - speed normal machine: 226 – 2100 [rpm] - power: 1.5 [kW] - net weight: 1035 [kg]. EQUIPMENT - with part loader

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, CNC Machining Centre CHIRON FZ 08K S Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Bjdpfxoyq Nyye Amzelk Year of manufacturing: 2007 CNC control: FANUC 18i-MB5 Number of axes: 7 Stroke X axis: 450 [mm] Stroke Y axis: 270 [mm] Stroke Z axis: 310 [mm] Traversing feeds X, Y and Z axes: 75000 [mm/min] Max. bar diameter in turning spindle: 32 [mm] Angular A axis stroke: 360 [°] A axis indexing precision: 0.001 [°] B axis swivelling stroke: -20° / +115 [°] B axis indexing precision: 0.001 [°] Spindle type: HSK40 Max. spindle speed: 30000 [rpm] Tool changer magazin number of stations: 40 Total power required: 17 [kVA] Supply voltage: 400 [V] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] INCLUDED EQUIPMENT: x1 RENISHAW tool probe, type TS27R x1 spindle cooling unit x1 coolant tank x1 unit for 6th-face machining x1 SCHUNK clamping vice x84 tool holders - type HSK40 x14 collets - type F35 x1 electrical cabinet air conditioning unit x1 DONALDSON mist extraction unit - type Torit DCE x1 washing gun x1 three-color status light x1 MACHINING INSTRUCTIONS manual x1 operator manual x1 programming manual Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Mikron, Hermle, DMG MORI, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall, as well as CNC milling, drilling, and tapping machines, and CNC grinding machines

Condition: good (used), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, Equipment: documentation/manual, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Bsdpfxox Iiw Ij Amzelk Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

Condition: good (used), Year of construction: 2010, Machining Centre Sugino Xion-II-5AX-CE Manufacturer: Sugino Machine Limited Japan Model: Xion II 5AX CE Year of manufacture: 2010 Number of axes: 5 Travel distance X axis: 300 mm Travel distance Y axis: 300 mm Travel distance Z axis: 200 mm A axis swiveling range: -90° to +90° C axis rotation: 360° Maximum tool diameter: 40 mm Maximum tool weight: 15 kg Spindle speed: 40,000 rpm Tool holder: HSK-E32 Positioning accuracy X, Y, and Z axes: 0.002 mm Repeatability X, Y, and Z axes: ±0.001 mm Machine weight: 2,800 kg Bledpfxsx Hqwgs Amzsk No guarantee is given for the correctness, completeness, or currentness of the information provided.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 22,500 h, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 15,000 rpm, number of axes: 5, This 5-axis CHIRON FZ 08K S Magnum SK was manufactured in 2007. It features a Siemens 840D control unit, with impressive travels of 450 mm in the X-axis, 270 mm in the Y-axis, and 310 mm in the Z-axis. The machine includes a 40-position tool changer and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08K S Magnum SK vertical machining centre we have for sale. Contact us for further details. • Overhaul: Factory overhauled and technically updated by Chiron (CMS) in 2017 • Last Spindle Replacement: September 2025 • Last Maintenance: Major annual service (4,000 h) performed in October 2025 • NC Swivel Head Range: −20° / +115° Bsdpfjypb Tpox Amzslk • Rapid Feed X/Y/Z: 75 m/min • Acceleration X/Y/Z: 1g / 1.5g / 2g • Tool Changer: 40 positions, HSK-A40 • Chip-to-Chip Time: 2.6 s (vertical) • Rotary Table: AWU 160 with D105 mm positioning axis • Operating Hours: Approximately 22,500 h Additional equipment • Clamping: Hainbuch Spanntop D100 collet chuck • Bar Loader: IRCO SiMag 100.1-3000 for round and profile material • High Pressure Coolant: 70 bar with Vario valve • Coolant Filtration: Knoll VRF, 400-liter vacuum rotation filter • Chip Conveyor: Scraper belt, 1,050 mm discharge height • Measurement/Monitoring: Renishaw TS27R 3D touch probe; tool life monitoring; tool breakage control • Collision Monitoring: Brankamp Marposs CMS 100 • Guide Channel Sets: Breuning IRCO sets included (by arrangement) • Collets: Hainbuch collets included (by arrangement) • Tool Holders: Approximately 500 pieces HSK-A40 • Spare Parts: Included for this machine type • Operating Materials: Specific operating fluids/materials included

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450/270/310 [mm] Bledeuhbr Tjpfx Amzok - Rapid traverses rates (X/Y/Z) : 75 [m/min] B ROTARY AXIS - Travel : -20/+90 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 40 TURNING SPINDLE - Spindle speeds : 8000 [rpm] - Max. bar diameter : 32 [mm] - C axis indexing precision : 0.001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X2600 [mm] - Machine height : 2300 [mm] - Machine weight : 2850 [kg] MACHINE HOURS EQUIPMENT - CNC : Siemens 840 D - 3 colors status lamp

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 1 MAIN SPINDLE - Max. bar diameter : 23 [mm] - C axis indexing precision : 0.001 [°] TURNING-MILLING SPINDLE - X/Z stroke : 250/300 [mm] - Y stroke : 200 [mm] - B Axis stroke : -15/+100 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK E40 - Spindle speeds : 30000 [rpm] - Spindle power : 10 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 Bodpfx Aevh I Ugsmzslk POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine weight : 1700 [kg] EQUIPMENT - CNC : NUM 1050 - Coolant tank * Coolant through spindle - Oil mist extractor : Elbaron RON/A 60 - Cooling unit : MARKSA CSW100 - Unit for 6th face machining - Bar loader : Willemin - Collet chuck

Condition: used, Year of construction: 2021, functionality: fully functional, travel distance X-axis: 270 mm, travel distance Y-axis: 310 mm, travel distance Z-axis: 450 mm, controller manufacturer: Siemens, controller model: 840DSL, spindle speed (max.): 36,000 rpm, Spindle Speed: 36,000 rpm Power: 2.3 kW Tool interface: HSK-E Tool changer: 24 stations Working area Travel in X: 270 mm Travel in Y: 310 mm Travel in Z: 450 mm Rapid traverse (X/Y/Z): 75 m/min Bjdpfx Amszgckijzolk C-axis Type: NC rotary table Diameter of rotary table: 245 mm Robot Type: Variocell UNO Equipment 5-axis milling package Lasercontrol 40NT Measuring probe Automatic loading and unloading system Variocell UNO

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, General: Spindle speed: 15,000 rpm Power: 7.3 kW Tool interface: HSK-A 40 Tool changer: 40 stations Control system: Siemens 840 DsL Working area Travel in X: 450 mm Travel in Y: 270 mm Travel in Z: 310 mm Rapid traverse (X/Y/Z): 75 m/min A-axis Swivel angle: +/- 120° System accuracy: +/- 5" Bsdpfezf Admjx Amzolk Drive: Torque motor Spindle speed: 100 rpm C-axis Diameter of rotary table: 198 mm System accuracy: +/- 5" Drive: Torque motor Spindle speed: 200 rpm Equipment Rotary union: 6-pole, integrated in A and C axes Chip conveyor: Drag chain, discharge height 490 mm, rear

Condition: good (used), Year of construction: 2006, travel distance X-axis: 700 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, Manufacturer: Flott Bjdpfx Aet H Rv Tomzelk Type: BC 40 Super Year of manufacture: 2006 Tool holder: BT 40 Motor: 7.5/5.5 kW Spindle speed: 50-8000 rpm X-axis travel: 700 mm Y-axis travel: 400 mm Z-axis travel: 400 mm

Condition: used, Year of construction: 2001, x-travel 300 mm Blsdpfjwth Sbjx Amzek y-travel 250 mm z-travel 251 mm Control Fanuc 16iMB max. turning speeds 15.000 min/-1 tool taper HSK-A 32 number of tool places 12 Pos. In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2002, functionality: fully functional, machine/vehicle number: 213-65, Verfahrweg X-Achse: 300 mm Verfahrweg Y-Achse: 250 mm Verfahrweg Z-Achse: 250 mm Werkstückgewicht (max.):1 kg Anzahl der Werkzeugplätze：12 Pos Steuerungshersteller:Fanuc Steuerungsmodell: 21m 3x / 2x 21iM Kühlmittelzufuhr:1 bar Anzahl der Spindeln:1 Eilgang Z-Achse: 60 m/min Eilgang X-Achse: 40 m/min Eilgang Y-Achse: 40 m/min Drehzahl (max.): 10.000 U/min Werkstückdurchmesser (max.): 63 mm 4.Achse Peiseler AWU P100 die Maschinen wurden 2016 durch Chiron CMS überholt Ausstattung: Dokumentation/Handbuch, Drehzahl stufenlos einstellbar Bljdpfeywmziox Amzok Die Maschine befindet sich unserer Einschätzung nach in einem guten gebrauchten Zustand und kann nach Terminvereinbarung unter Strom besichtigt werden.

Condition: ready for operation (used), Year of construction: 2007, A CNC machining center Chiron factory-overhauled by the manufacturer in 2017 is available. Travel path X/Y/Z: 450mm/270mm/310mm, NC head swivel: -20°/115°, tool positions: 40, tool holder: HSK-A40, speed: 15000rpm, control: Siemens 840D, operating hours: approx. 22500h. Including rotary table package AWU 160 with D105, collet chuck, handling, bar feeder Irco SiMag 100.1-3000, through-coolant preparation, scraper belt conveyor (1050mm), duplex filter Mahle, vacuum rotary filter Knoll VRF 400, approx. 500 tool holders HSK-A40 and various spare parts. Documentation vorhanden. An inspection on site is possible. Bodpfxeyn Nz Es Amzolk
