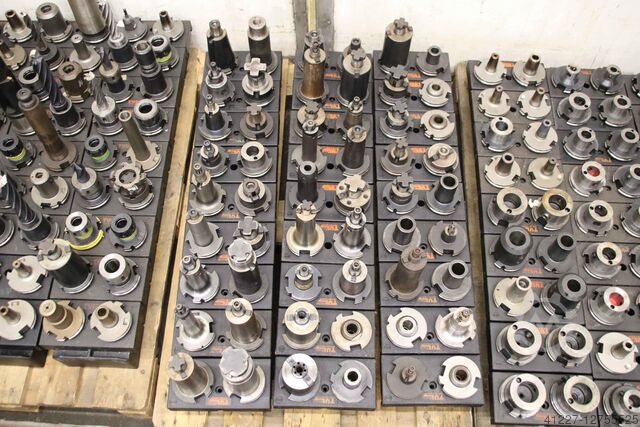

Milling holders 515 pieces

KOMET SK50

Condition: good (used), Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool Dkjdpfsb A Rllox Af Noi -Recording: SK50 -Adjustment range: 20 mm -Tool shaft: Ø 30 mm -Weight: 10 kg

Condition: good (used), Year of construction: 1992, Favretto MB 130 – Technical Specifications Machine type: tangential (horizontal) surface grinding machine Year of manufacture: 1992 Table size: 1700 × 400 mm Magnetic chuck size: approximately 1300 × 400 mm Magnetic plate height: 40 mm Longitudinal travel (X-axis): 1380 mm Cross travel (Y-axis): 450 mm Vertical travel (Z-axis): 550 mm Distance between spindle center and table surface: 203 mm (min) to 753 mm (max) Grinding wheel dimensions: 400 mm diameter × 152 mm width × 100 mm bore Spindle speed: approximately 1400 rpm Longitudinal feed rate: 2000 to 40000 mm/min Cross feed rate: 50 to 3000 mm/min Vertical feed rate: 700 mm/min Grinding head motor power: approximately 15 kW Dedpfxst Rwvzo Af Njki Total installed power: approximately 25 kW Maximum table load without magnetic chuck: approximately 1500 kg Maximum table load with magnetic chuck: approximately 1205 kg Overall grinding capacity (L × W × H): approximately 1500 × 600 × 550 mm Machine weight: approximately 7100 kg

Year of construction: 2002, condition: excellent (used), machine/vehicle number: Reg Nr. 976, Machine Name: Paddle dryer Used Manufacturer: AVA / Holland Merten GmbH Type: HTK 200 Construction year: 2002 Speed: 107 U/min Material: Stainless steel Driving force: 5,5 KW Model: EExdellCT4 Total content: 235 Liter Parts in contact with product: Stainless steel 1.4571 Gear box: Stirnradgetriebemotor Dsdeitcvuopfx Af Njki Equipment: Double jacket, mechanical seal, shaft heater Dimensions: L 3400 x W 1100 x H 1500 mm Empty weight: approx. 1600 kg Message: Operating temperature 130°C Design temperature 200°C Internal pressure mixer -1/+3 bar Pressure double jacket +6 bar Accessories: Base frame, Maier head HWR 225 Condition: Used very good Price: on request

Year of construction: 2002, condition: excellent (used), Parts in contact with the product are made of stainless steel 1.4571, the rest of the dryer is made of 1.4301. Machine Name: Continuous Horizontal Vacuum Paddler Dryer used Manufacturer: AVA / Holland Merten GmbH Type: HTK 200 Construction year: 2002 Speed: 107 rpm Material: 1.4301 Driving force: 5,5 kW Model: EExdellCT4 Total content: 235 Liter Parts in contact with product: 1.4571 Equipment: Double jacket, mechanical seal Dkedpfsitcu Eex Af Nji Dimensions: L 3400 x W 1100 x H 1500 mm Empty weight: approx. 1600 kg Technical documentation: Yes Message: Operating temperature 130°C Design temperature 200°C Internal pressure mixer -1/+3 bar Pressure double jacket +6 bar Accessories: Base frame Condition: Used

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm Dksdpfx Afsuwv H Hs Nei dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: good (used), Year of construction: 2001, Manufacturer: KASTO Dkedou R R Acepfx Af Noi Type: KASTOtec A3 Year of construction: 2001 Specifications: Metric Metric US Standard Sawing capacity round 90 330 Sawing capacity flat 90° 330 x 330 mm Max. Sawing speed 12 - 120 Saw blade dimensions 6830 x 41 x 1.3 mm Saw power 7.5 kW Dimensions (estimate) length 4600 mm width 2150 mm height 2310 mm weight 4300 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: good (used), Year of construction: 2002, overall weight: 9,500 kg, pressing force: 100 t, Model: PREN-100 Year: 2002 Weight: 9.500 Kg Rated force: 100Tn Type: Pneumatic clutch eccentric Stop position: 580mm Dedsuif Tkopfx Af Njki Closing height: 450mm Maximum flywheel RPM: 500mm Travel: 13-130mm Max. carriage adjustment: 80mm Motor: 11 Kw 380 V 50 Hz Min. air pressure : 3,5 - 6 bars Stopping time: 285ms Safety distance: 486 mm

Condition: good (used), Year of construction: 1974, pressing force: 100 t, Model: OB1 Pressing force: 100Tm Torque: 3500kg Dedpfx Aoudwr Uof Nski Plate thickness: 10mm Pusher slider: 5-159mm Distance between table and spindle/pusher: 530mm Max. spindle/pusher travel: 130mm Strokes per minute: 53

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Dkjdpfx Afovk E Nmj Nei Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Description WE SELL AN STUNNING NICE CONDITION CNC BIGLIA WITH TOOLS AND ACCESSORIESS CONDITION IS AS ALMOST NEW. VERY LITLLE USED. FANUC SERIES 18-T Maximum turning diameter: 520 mm Maximum turning length: 500 mm Bar turning diameter: 80mm X axis travel: 210 + 5 Z axis travel: 500 + 10 Spindle speed: 4000 rpm Spindle motor: 11-15 Kw (50%) Spindle connection: ASA 6 Spindle hole: 80 mm Self-centering diameter: 250 mm Turret: number 12 stations Tailstock: CM 4 Dimensions: 3500 x 1670 x 1650 mm Weight: 4600 Kg Dkedpfxovk Ezce Af Nsi HOLE TROUGH SPINDLE: 82 m YEAR:1997
