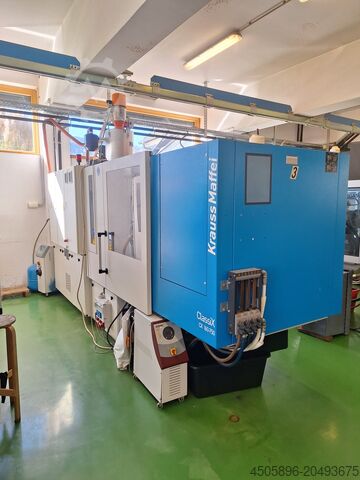

Injection Moulding Machine

KraussMaffei 160-750 CX

Condition: excellent (used), Year of construction: 2006, Krauss Maffei KM 160–750 CX Injection Moulding Machine Year of manufacture: 2006 Fully hydraulic clamping system. MC5 control system with color monitor, integrated operator panel, and built-in USB ports. Plasticizing Unit 1 complete HPS-UN plasticizing unit for thermoplastics: Screw diameter: 50 mm Check valve, open nozzle Nozzle radius: 10 mm Nozzle opening: 4 mm Technical Data Clamping Unit Clamping force: 1,600 kN Mold opening force: 86.4 kN Movable platen force: - opening: 44.8 kN - closing: 37.8 kN Platen dimensions (H × V): 820 × 845 mm Tie bar spacing (H × V): 520 × 520 mm Mold opening stroke: 650 mm Mold height (min.): 300 mm Platen opening stroke: 950 mm Ejector stroke: 150 mm Ejector force: 22.6 / 9.9 kN Injection Unit Screw diameter: 50 mm Injection pressure: 1,892 bar Shot volume: 393 cm³ Shot weight (PS): 357 g Screw speed (standard/option): 390 / 490 rpm Electrical and Hydraulic Equipment Pump motor rated power: 22 kW Installed heater capacity: 10.97 kW Number of barrel heating zones: 5 Dry cycle rate (Euromap): 1,600 1/h Oil tank capacity: 489 l Dimensions and Weight Net weight with control cabinet: 6.0 t Machine dimensions (L × W × H): 4.6 × 1.6 × 2.1 m Hfjdpfx Ahjx Thzpjueb

Condition: used, Year of construction: 2008, clamping force: 160 kN, displacement volume: 251 cm³, injection pressure: 2,500 bar, overall weight: 8,200 kg, load hours: 37,200 h, screw conveyor diameter: 40 mm, terms of delivery: FCA Pegnitz delivery time: on request terms of payment: 100% prior to delivery Hfedpfx Aewd Udlehuob

Condition: excellent (used), Year of construction: 2007, operating hours: 25,215 h, functionality: fully functional, clamping force: 1,600 kN, screw diameter: 45 mm, clearance between the columns: 520 mm, displacement volume: 318 cm³, ejector force: 22,000 N, ejector stroke: 150 mm, plate length: 845 mm, plate width: 820 mm, installation height: 2,100 mm, total length: 5,100 mm, total width: 1,600 mm, total height: 2,100 mm, overall weight: 6,600 kg, type of input current: three-phase, input frequency: 50 Hz, input voltage: 400 V, clear span: 950 mm, Equipment: documentation/manual, warehouse no.: 503472 manufacturer: KRAUSS MAFFEI type: KM 160-750 CX controller: MC5 year of construction: 2007 operation hours: 25215 h clamping force: 1600 kN distance between tie-bars h x v: 520 x 520 mm size of mould plates h x v: 820 x 845 mm min. mould height: 300 mm max. open daylight: 950 mm opening stroke: 650 mm screw diameter: 45 mm swept volume: 318 ccm injection pressure: 2336 bar equipment included Hfedpfx Ajx Icw Ujhujb screen text german screen text english CEE-socket 16A core pulling hydraulically 2x machine incl. belt conveyor machine incl. Handling machine incl. safety fencing machine with material hopper Anti vibration mounts interface EUROMAP 67 wear-resistant injection unit mould heating 6x measures of machine l x w x h: 5.1m x 1.6m x 2.1m total weight: 6600KG technical data robot-system handling type: Linear manufacture: Krauss Maffei controller: LRX S100-1321 year of construction: 2008 X axis: 550 mm Y axis: 1200 mm Z axis: 2500 mm total weight: 280 kg

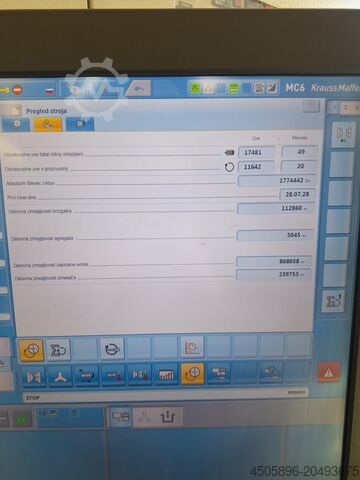

Condition: used, Year of construction: 2017, operating hours: 17,481 h, functionality: fully functional, screw diameter: 50 mm, clearance between the columns: 520 mm, displacement volume: 393 cm³, injection pressure: 1,892 bar, injection weight: 375 g, mold height (min.): 300 mm, ejector force: 33 N, ejector stroke: 150 mm, total length: 5,000 mm, total width: 1,600 mm, total height: 2,000 mm, overall weight: 8,200 kg, heating capacity: 15.5 kW (21.07 HP), pump power: 2,200 W, type of input current: three-phase, Equipment: documentation/manual, The machine has been regularly maintained, test possible. Hjdpfoxvqnnjx Ahujfb

Condition: excellent (used), Year of construction: 2007, Krauss Maffei Injection Moulding Machine KM 110–750 CX Year of manufacture: 2007 Fully hydraulic clamping system. MC5 control system with color monitor, integrated control panel, and 3 USB ports. Plasticizing Unit Complete plasticizing unit for thermoplastics Version with abrasion protection Screw diameter: 40 mm Non-return valve Open nozzle TECHNICAL DATA Clamping Unit Clamping force: 1,100 kN Mold opening force: 70 kN Moving platen force: - Opening: 35.4 kN - Closing: 31.4 kN Platen dimensions (H × V): 745 × 770 mm Tie bar spacing (H × V): 470 × 470 mm Mold opening stroke: 600 mm Mold height (installation): 300 mm Platen opening travel: 900 mm Ejector stroke: 150 mm Ejector force: 22.6 / 9.9 kN Injection Unit Screw diameter: 40 mm Injection pressure: 2,500 bar Injection volume: 251 cm³ Shot weight (PS): 228.41 g Screw speed (standard/option): 295 / 355 rpm Electrical and Hydraulic Equipment Hedpfxex Avhye Ahuofb Pump motor rated power: 22 kW Installed heater power: 15.62 kW Number of cylinder heating zones: 5 Dry cycle rate (Euromap): 2,000 cycles/h Oil tank capacity: 489 l Dimensions and Weight Net weight with control cabinet: 6.2 t Machine dimensions (L × W × H): 4.9 × 1.6 × 2.1 m

Condition: new, Year of construction: 2025, Injection Moulding Machine – Krauss Maffei KM 160-750 CX Year of manufacture: 2025 Fully hydraulic clamping system. MC 6 control system based on an industrial computer with real-time Ethernet technology, equipped with an integrated 21.5" operator panel with colour touchscreen display. Plasticising Unit Complete plasticising unit for thermoplastics, screw diameter 50 mm, with check valve and open nozzle Nozzle radius: 10 mm Nozzle orifice: 4 mm Technical data (standard version) Clamping Unit Clamping force: 1,600 kN Opening force: 86 kN Platen dimensions (H x V): 820 x 845 mm Tie bar spacing (H x V): 520 x 520 mm Opening stroke: 650 mm Minimum mould height: 300 mm Maximum daylight: 950 mm Ejector stroke: 150 mm Ejector force front/rear: 23 / 10 kN Injection Unit Screw diameter: 50 mm L/D ratio: 20.2 Injection pressure: 1,892 bar Shot volume: 393 cm³ Hedoxdd N Uopfx Ahujfb Shot weight (PS): 357 g Injection speed: 90 mm/s Injection rate (standard): 177 cm³/s Screw speed (standard): 265 rpm Electro-hydraulic System Pump motor power: 22 kW Installed heater power: 15.5 kW Dry cycle time according to Euromap 6: 2.1 s Oil tank capacity: 400 l Linear Robot – Krauss-Maffei LRX 100 Payload < 10 kg (gripper + drives + parts) Part removal on operator-offside Axes: X-axis (from mould): 620 mm, servomotor Y-axis (vertical, with brake): 1,200 mm, servomotor Z-axis (crosswise): 1,500 mm, servomotor Dimensions and Weight Net weight (with control cabinet): 6.10 t Machine dimensions (L x W x H): 4.93 x 1.62 x 2.04 m
