Injection unit

KraussMaffei 700

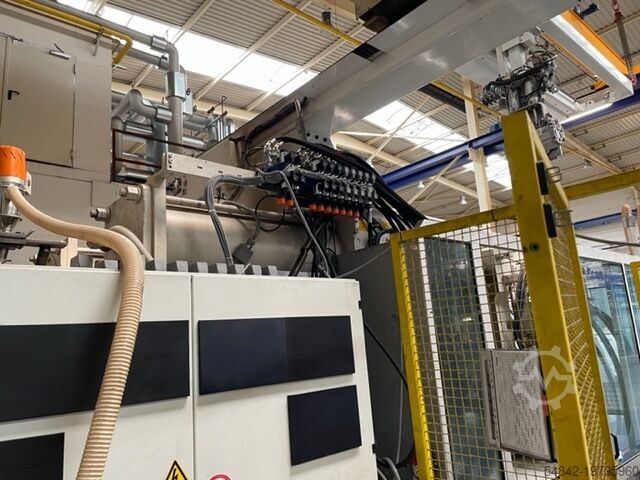

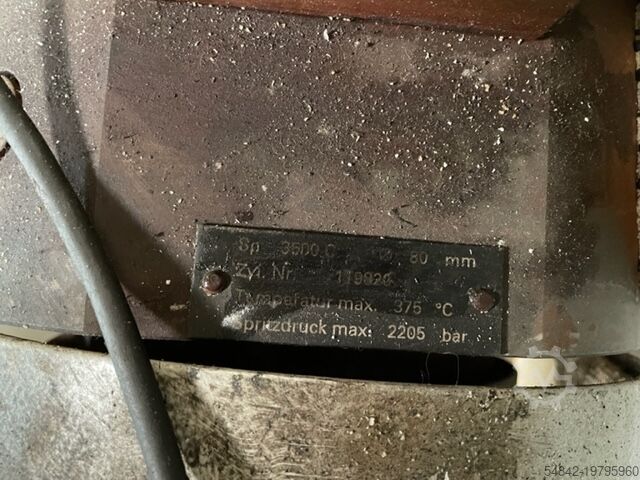

Condition: excellent (used), Year of construction: 2007, Manufacturer: Krauss Maffei Type: KM 650-3500-700 CZ Year of manufacture: 2007 Control system: MC 4 Clamping Unit: Clamping force: 650 t Opening stroke: 1,150 mm Minimum mold installation height: 600 mm Maximum platen daylight: 1,750 mm Tie bar spacing (h x v): 1,100 x 900 mm Platen dimensions (h x v): 1,510 x 1,370 mm Centering (nozzle-ejector plate): 200 / 200 mm Gusdpozgwbcefx Ahzed 1st Injection Unit: Screw diameter: 80 mm Maximum shot weight in PS: 1,400 g Shot volume: 1,543 cm³ Injection pressure: 2,205 bar 2nd Injection Unit: Screw diameter: 45 mm Shot weight in polystyrene: 278 g Shot volume: 305 cm³ Injection pressure: 2,336 bar Accessories: 2 x air valves 16-fold cascade 3 x core pullers on moving platen 3 x core pullers on fixed platen 20 x hot runner controllers Robot interface: Euromap 67 Dimensions: Total weight: 34,500 kg Overall size (L x W x H): 7.8 x 2.5 x 2.5 m Operating hours: 45,400 h Machine can also be operated as a single-component machine (1K).

Condition: ready for operation (used), Year of construction: 2004, operating hours: 21,000 h, functionality: fully functional, clamping force: 1,250 kN, screw diameter: 40 mm, displacement volume: 217 cm³, injection pressure: 2,377 bar, ejector stroke: 150 mm, opening stroke: 600 mm, total length: 4,480 mm, total width: 1,510 mm, total height: 2,190 mm, overall weight: 6,000 kg, power: 18.5 kW (25.15 HP), Equipment: documentation/manual, In perfect shape. Gsdpfxewlhb Tj Ahzsud

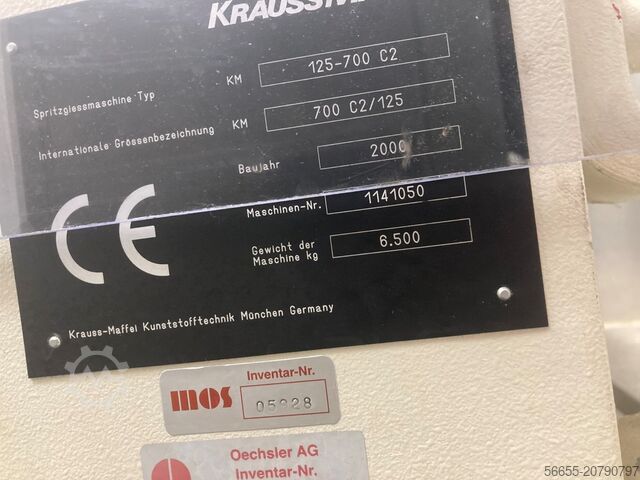

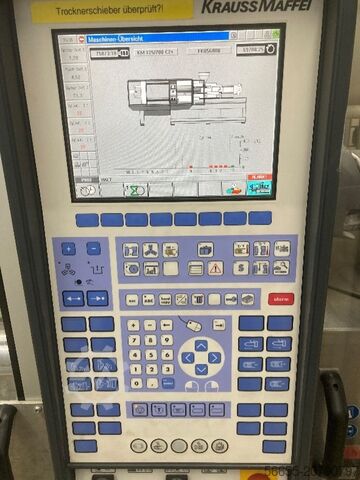

Condition: good (used), Year of construction: 2000, operating hours: 69,000 h, functionality: fully functional, clamping force: 1,250 kN, screw diameter: 45 mm, For sale: injection moulding machine by KraussMaffei, model KM 125-700C2. The machine is fully functional and was in production until recently. Technical specifications: Year of manufacture: 2000 Operating hours: 69,000 h Clamping force: 125 t Screw diameter: 45 mm Needle shut-off: Pneumatic Gjdpfxex Ituqe Ahzsud Core pull: 2*Hydraulic Internal pressure sensor

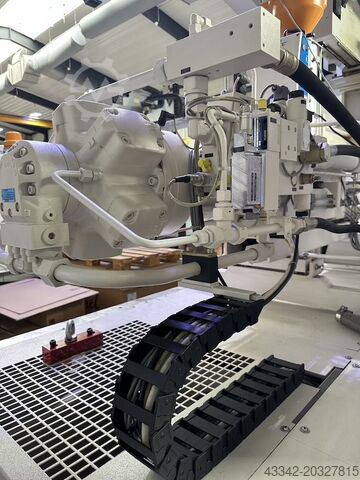

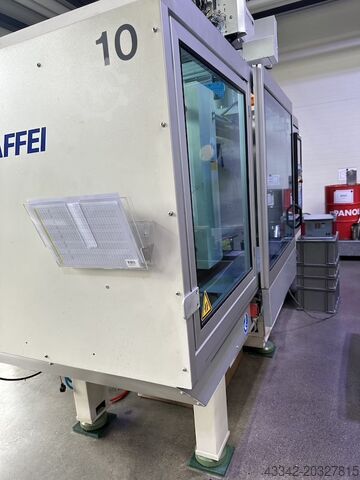

Condition: good (used), Year of construction: 1999, clamping force: 2,000 kN, Manufacturer: KraussMaffei Kunststofftechnik München Model: KM 200-700 C2 Machine No.: 174406 International size designation: 700 C2 / 200 Guedpfxoytiqwe Ahzsd Year of manufacture: 1999 Clamping force: 2000 kN Clamping force: 200 t Injection unit size: 700 Machine weight: 8,800 kg Location: Freiburg

Year of construction: 1998, condition: ready for operation (used), Clamping force: 1500kN, screw diameter: 50mm, tie bar spacing: 500mm, platen dimensions X/Y: 780mm/790mm, opening stroke: 600mm, daylight: 900mm, ejector stroke: 150mm, shot volume: 305cm³, injection weight: 278g, injection pressure: 2336bar. Machine dimensions X/Y/Z: approx. 4700mm/1550mm/2200mm, weight: approx. 7000kg, control: MC4. Includes Sepro handling system. Documentation available. An on-site inspection is possible. Godpsw Hthzsfx Ahzjud

Condition: used, Year of construction: 2003, clamping force: 1,500 kN, Equipment: documentation/manual, Injection Moulding Machine KM 150-700/C2 Clamping Unit 1. Clamping force: 1500 kN 2. Platen size (h × v): 780 × 790 mm 3. Tool opening stroke: 600 mm 4. Clearance between tie bars (h × v): 500 × 500 mm 5. Minimum mould installation height: 300 mm 6. Ejector stroke: 150 mm 7. Hot runner – number of zones used: 12 8. Control of pneumatic valve pins: 1 pc Gujdjyfm Ahepfx Ahzod Injection Unit 1. Screw diameter: 45 mm 2. Injection pressure: 2336 bar 3. Maximum shot volume: 305 cm³ 4. Maximum shot weight (PS): 278 g 5. Cores: 2× hydraulic circuit (BAP) 6. Screw L/D ratio: 22
