Spritzgiessmaschine

KraussMaffei KM 160/380 CX

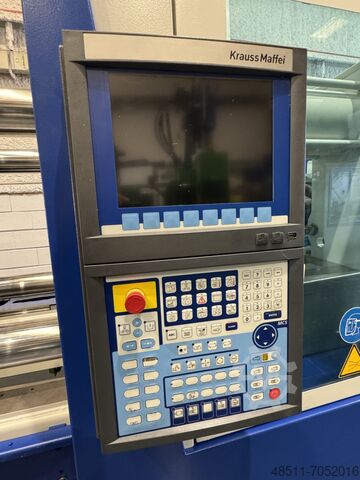

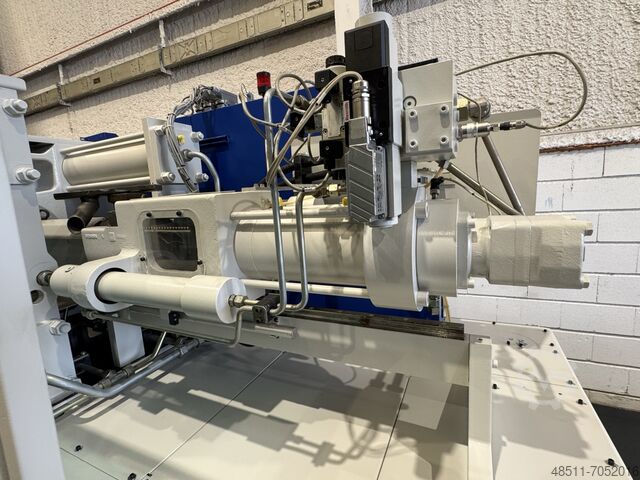

Condition: excellent (used), Year of construction: 2005, Krauss Maffei KM 160-380 CX injection molding machine Year of production - 2005 Number of operating hours - 34,200 Fully hydraulic closing system. MC5 control system with color monitor, integrated control panel and 3 built-in USB ports. Plasticizing system A complete plasticizing system for thermoplastics in the version with abrasion protection, with a screw diameter of 40 mm, with a non-return lock and an open nozzle TECHNICAL DATA OF THE MACHINE IN STANDARD VERSION Closing unit - Mold closing force: kN 1600 - Mold opening force: kN 86.4 - Dimensions of the mounting plate (h x v): mm 820 x 845 - Clearance between columns (h x v): mm 520 x 520 - Mold opening path: mm 650 - Mold installation height: mm 300 - Plate opening stroke: mm 950 - Ejector stroke: mm 150 - Ejector force: kN 22.6/9.9 Injection unit - Screw diameter: mm 40 - Pressure injection: bar 1860 - Injection volume: cm3 201 - Injection weight for PS: g 183 - Number of screw revolutions, standard, option: rpm 390/490 Electric-hydraulic equipment - Nominal power of the pump motor: kW 22 - Installed power of heaters: kW 10.97 - Number of cylinder heating zones: - 5 Gjdowa Svkspfx Aqgouh - Number of dry cycles according to Euromap: 1/h 1600 - Oil tank capacity: l 489 Dimensions and weight - Net weight with control cabinet: t 6.0 - Machine dimensions (length x width x height): m 4.6 x 1.6 x 2.1

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036946, clamping force: 800 kN, screw diameter: 40 mm, displacement volume: 201 cm³, injection pressure: 1,860 bar, injection weight: 183 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,850 mm, overall weight: 5,600 kg, heating capacity: 11.5 kW (15.64 HP), drive type: Vollelektrisch, clear span: 735 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 80 / 380 PA G01 (order 38670023) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 120  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 610 x 560  Tool installation height min. - max. mm 150 - 400  Opening width mm 750  Mold opening stroke max. mm 350  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 22 / 22  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 600 SPRING UNIT  Screw diameter / type mm 40 / standard  Effective Ls/D ratio 20.0  Injection pressure bar 1860  Stroke volume cm³ 201  Shot weight at max. stroke for PS g 183  Injection speed mm/s 200  Injection flow rate cm³/s 251  Screw drive/speed 1/min 334  Plasticizing flow (standard) g/s 24.7  Nozzle contact force kN 34 Gsdpfx Aqoud H Dmjgouh ELECTRICAL PARAMETERS  Connected load kW 20.6  Installed heat output kW 11.5  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 5.6  Length x width x height m 4.75 x 1.67 x 1.85 ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface cascade 4-fold  Euromap interface handling E18, E63  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Automatic central lubrication  Adaptive Process Control (APC)  Spray embossing circuit  Graphic analysis package The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: like new (used), Year of construction: 2008, operating hours: 6,200 h, functionality: fully functional, clamping force: 4,200 kN, screw diameter: 75 mm, Krauss-Maffei KM 420-2000 CX Krauss-Maffei injection molding machine, 420 tons of clamping force. Only 6,000 hours of automatic operation. Year of manufacture 2008. MC5 control. Screw diameter 75 mm. Extras: 8 hot runner zones. 2 cores on fixed platen, 2 cores on moving platen. 1 pneumatic valve on moving platen. The injection molding machine is delivered reconditioned by UK Transitus' expert technical team. We can offer commissioning at our clients' facilities, ensuring operation upon completion of the installation. Technical Details 75mm screw Injection pressure: 1635 bar Shot volume: 1237 cm3 Shot weight: 1126 g Maximum distance between plates: 1400 mm Guodpfxewq D Efe Aqgjh Minimum mold thickness: 380 mm Opening stroke: 1020 mm Distance between columns: 900 x 800 mm Plate dimensions: 1270 x 1230 mm 75mm screw Clamping force: 4200 kN Year of manufacture: 2008 Working hours: 6282

Condition: excellent (used), Year of construction: 2018, Injection Moulding Machine KRAUSS MAFFEI KM 420-2000 CX Basic Data Manufacturer: Krauss Maffei Model: KM 420-2000 CX Machine Number: 61030600 Year of Manufacture: 2018 Control System: MC6 Control Panel: Colour monitor integrated with operator console The machine is equipped with a fully hydraulic clamping system and the advanced MC6 control system. Plasticizing Unit Complete plasticizing unit designed for thermoplastics processing. High-performance screw: HPS-UN Screw diameter: 60 mm Non-return valve: Yes Nozzle type: Open Nozzle radius: 15 mm Nozzle orifice: 6 mm Injection unit: SP 2000 Clamping Unit Clamping force: 4200 kN Mould opening force: 250 kN Platen size (H x V): 1270 × 1230 mm Tie bar clearance (H x V): 800 × 800 mm Max mould opening stroke: 1020 mm Min mould height: 580 mm Max platen opening stroke: 1600 mm Ejector stroke: 250 mm Ejector force (forward/backward): 95 / 49 kN Injection Unit Screw diameter: 60 mm L/D ratio: 23.3 Injection pressure: 2420 bar Injection volume: 792 cm³ Shot weight (PS): 720 g Injection speed: 130 mm/s Injection flow rate: 368 cm³/s Screw rotation speed: 285 rpm Plasticizing rate: 72.2 g/s Nozzle contact force: 82 kN Electrical & Hydraulic Equipment Nominal pump motor power: 75 kW Installed heater capacity: 29 kW Number of cylinder heating zones: 6 (+1 extended nozzle) Dry cycle time (EUROMAP 6): 3.0 s / 560 mm Gjdpfxsyugkwo Aqgjuh Required hydraulic oil volume: 1000 l Dimensions & Weight Net weight (incl. control cabinet): 21.5 t Machine dimensions (L × W × H): 6.90 × 2.49 × 2.38 m Max mould weight: 6700 kg Optional Energy Saving System ESS (Energy Saving Systems) The machine can be equipped with an ESS servo drive system, which increases the energy efficiency of hydraulic injection moulding machines. The system controls the operation of the hydraulic pump motor via a frequency converter, adjusting the motor speed to the actual demand during the production cycle. Key Benefits: - Reduction of electricity consumption by up to 30% - Servo drive technology for the hydraulic pump - World-class, proven industrial technology - Reduction of energy losses during idle runs - Lower heating of hydraulic system - Extended life of hydraulic components - Can be retrofitted to existing hydraulic injection moulding machines

Condition: excellent (used), Year of construction: 2004, Krauss Maffei KM 350–2700 C2+ injection molding machine Year of manufacture: 2004 Control system: MC4 Technical data Clamping unit * Clamping force: 3500 kN (350 tons) * Platen dimensions: 1060 × 1095 mm * Tie bar spacing: 710 × 710 mm * Opening stroke: 920 mm * Maximum opening: 1300 mm * Minimum mold height: 380 mm * Ejector stroke: 250 mm * Ejector force: 95 / 48 kN Injection unit * Screw diameter: 80 mm * Injection pressure: 1829 bar * Injection volume: 1433 cm³ * Injection shot weight (PS): 1304 g * Screw speed: 218 / 284 rpm * Maximum injection capacity: 1508 cm³/s Plasticizing system * Version for thermoplastic materials * Abrasion protection * Check valve * Open nozzle Drive system * Pump motor power: 75 kW * Heater power: 36 kW * Number of heating zones: 7 * Oil tank capacity: 720 l * Dry cycle time (Euromap): 1550 cycles/h Dimensions and weight * Dimensions (L × W × H): 6910 × 2040 × 2410 mm * Machine weight: 16.7 t Additional information * MC4 control system with color monitor Gjdpfx Aqozkadbegeuh * Machine prepared for modernization with the ESS system (energy saving of 30–60%)

Condition: excellent (used), Year of construction: 2008, Krauss Maffei Injection Moulding Machine KM 300-1000 CX Year of manufacture: 2008 Manufacturer: Krauss Maffei Control system: MC 5 with colour monitor, integrated control panel, and disk drive station Clamping system: fully hydraulic Plasticising unit SP 1000 Screw diameter: 50 mm Non-return valve, open nozzle Nozzle radius: 15 mm, bore: 3 mm Clamping unit Clamping force: 3000 kN Opening force: 169 kN Platen dimensions (H × V): 995 × 1050 mm Tie bar spacing: 630 × 630 mm Mould opening stroke: 820 mm Minimum mould height: 330 mm Maximum daylight (max. mould open width): 1150 mm Ejector stroke: 200 mm Ejector force (forward/backward): 58 / 28 kN Injection unit Screw diameter: 50 mm L/D ratio: 22.0 Injection pressure: 2304 bar Injection volume: 432 cm³ Shot weight (PS): 393 g Injection speed: 170 mm/s Injection flow rate: 334 cm³/s Screw speed (standard): 370 rpm Plasticising rate (at standard screw speed): 54.3 g/s Gujdpfx Aqjw U Rcdegeh Electro-hydraulic equipment Pump motor power: 45 kW Heater capacity: 18.7 kW Number of heating zones: 5 Dry cycle time / stroke per Euromap 6: 2.8 s / 441 mm Oil tank capacity: 720 l Dimensions and weight Net weight (including control cabinet): 12.5 t Dimensions (L × W × H): 6.11 × 2.17 × 2.25 m

Condition: ready for operation (used), Year of construction: 2006, operating hours: 30,949 h, clamping force: 800 kN, overall weight: 3,900 kg, This 3-axis Krauss Maffei KM 80-180 CX hydraulic injection moulding machine was manufactured in 2006. It has a machine weight of 3,900 kg and has completed over 4.6 million shots. The machine has been serviced annually by KraussMaffei and is decommissioned, making it immediately available. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei KM 80-180 CX machine we have for sale. Contact us for further details. Gjdpfx Aez Rxpbsqgeuh • Standard fully hydraulic 2-platen clamping and injection unit configuration • Maintenance: Serviced annually by KraussMaffei
