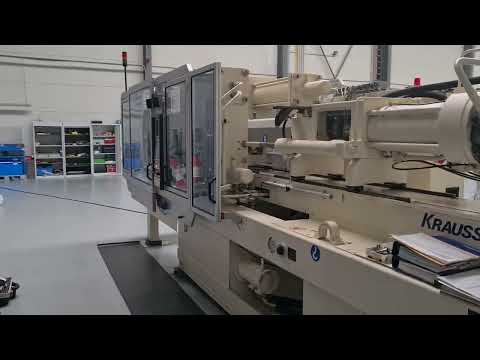

Used Injection Molding machineKraussMaffei
KM 300 - 1400 C2
Machine data
- Machine type:
- Used Injection Molding machine
- Manufacturer:
- KraussMaffei
- Model:
- KM 300 - 1400 C2
- Year of construction:
- 2005
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
- Operating hours:
- 58,350 h
Price & Location
- Location:
- Hermann - Hollerith Str. 9, 52249 Eschweiler, Deutschland
Technical details
- Clamping force:
- 3,000 kN
- Screw diameter:
- 60 mm
Details about the offer
- Listing ID:
- A197-22791
- Reference number:
- 14290
- Update:
- 06.08.2025
Description
Clamping force 3000 kN
Mould opening force, max. 160 kN
Travel force movable platen opening 86 kN
Travel force movable platen closing 68 kN
Size of mould platens (h x v) 995 x 1050 mm
Distance between tie bars (h x v) 630 x 630 mm
Mould opening stroke 820 mm
Mould height min 330 mm
Max. daylight 1150 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58 kN
Injection unit:
Screw diameter 60 mm
Ls/D ratio 21
Injection pressure 2000 bar
Stroke volume 679 ccm
Shot weight (PS) 618 gr.
Injection rate 325 ccm/s
Screw speed 259 1/min
Plasticising rate max. 58 g/s
Nozzle pressure 110 kN
Electric and Hydraulic Equipment:
Nominal capacity of pump motor 45 kW
Installed heating capacity 23 kW
Adjustable barrel heating zones 6
Reservoir capacity 720 ltr.
Dimensions and weights:
Dimensions of the machine ca. 6,20 x 2,20 x 2,40 m
Total machine weight 14370 kg
Prsdpjw H Rviofx Agqsd
Max. mould weight 3430 kg
Accessories:
- Anti vibration pads
- 8-fold water flow
Additional Options:
- 1 x Air valve
- 2 x Core pulls
- 8 x hotrunner controllers
- Robot interface according to Euromap 12
