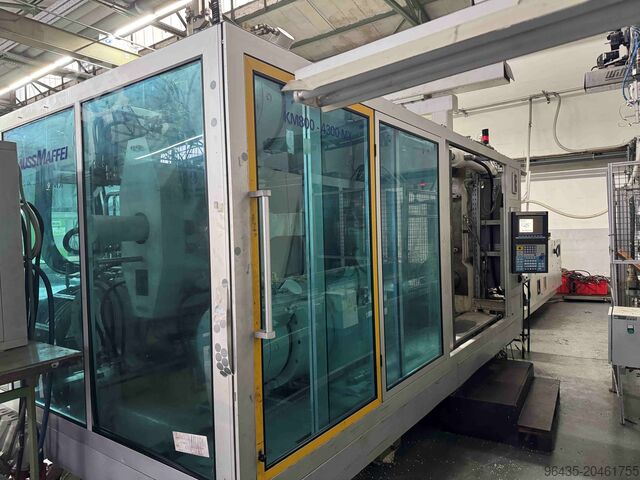

Injection molding machine

KraussMaffei KM 800-4300 MX

Condition: used, Year of construction: 2006, Injection moulding machine Krauss Maffei KM 800-4300 MX, year 2006 The machine is equipped as follows: Fpjdpfxsxurg Nj Advjc - 5 hydraulic cascade controls - Injection unit with a 90 - MT5 control system - Krauss Maffei handling system - 2 conveyor belts

Condition: excellent (used), Year of construction: 2008, Demag System 800/1120–9500 Injection Moulding Machine Year of manufacture: 2008 Additional equipment: Injection moulding machine equipped with robot Clamping unit Parameter Value Clamping force 8,000 kN Platen dimensions (W × H) 1,620 × 1,500 mm Tie bar spacing (W × H) 1,120 × 1,000 mm Min. / Max. mould height 500 – 1,050 mm Maximum distance between platens 2,080 mm Fpsdowy U E Uopfx Advec Mould opening stroke 1,030 mm Ejector stroke 350 mm Ejector force 139 kN Maximum mould weight 7,200 kg Injection unit Parameter Value Screw diameter 130 mm Injection volume 7,300 cm³ Shot weight (for PS) 6,640 g Injection pressure 1,300 bar L/D ratio (screw length/diameter) 20 Electrical-hydraulic equipment Parameter Value Pump motor power 110 kW Heater power 79 kW Oil tank capacity 1,300 litres Dimensions and weight Parameter Value Machine dimensions (L × W × H) 12.3 m × 2.7 m × 2.7 m Total weight 33,500 kg (main unit) / 9,700 kg (auxiliary equipment)

Condition: like new (used), Year of construction: 2008, operating hours: 6,200 h, functionality: fully functional, clamping force: 4,200 kN, screw diameter: 75 mm, Krauss-Maffei KM 420-2000 CX Krauss-Maffei injection molding machine, 420 tons of clamping force. Only 6,000 hours of automatic operation. Year of manufacture 2008. MC5 control. Screw diameter 75 mm. Extras: 8 hot runner zones. 2 cores on fixed platen, 2 cores on moving platen. 1 pneumatic valve on moving platen. The injection molding machine is delivered reconditioned by UK Transitus' expert technical team. We can offer commissioning at our clients' facilities, ensuring operation upon completion of the installation. Technical Details 75mm screw Injection pressure: 1635 bar Shot volume: 1237 cm3 Shot weight: 1126 g Fjdpfowq D Efjx Advspc Maximum distance between plates: 1400 mm Minimum mold thickness: 380 mm Opening stroke: 1020 mm Distance between columns: 900 x 800 mm Plate dimensions: 1270 x 1230 mm 75mm screw Clamping force: 4200 kN Year of manufacture: 2008 Working hours: 6282

Condition: excellent (used), Year of construction: 2004, Engel INSERT 330H/90 Controll: CC100 Condition: funtional Vertical machine with Horizontal injection Rotary table diameter: 1100mm Clamping force: 90 ton Opening max. : 570 Opening min. : 270 Platen size: 590x340 Screw: 40 mm Screw length: 160 mm Injection volume: 201 cm3 Injection pressure: 1230 bar Motor: 15 kw Fjdpeu Dbkdjfx Advspc Weight: 5600 kg Height 2800 mm

Condition: ready for operation (used), Year of construction: 2006, operating hours: 77,000 h, functionality: fully functional, clamping force: 5,000 kN, screw diameter: 100 mm, Clamping force 5000 kN Mould opening force, max. 280 kN Travel force movable platen opening 137 kN Travel force movable platen closing 136 kN Size of mould platens (h x v) 1270 x 1200 mm Distance between tie bars (h x v) 900 x 800 mm Mould opening stroke 1170 mm Mould height min 480 mm Max. daylight 1650 mm Hydraulic ejector - stroke 250 mm Ejector force 95/48 kN Injection unit: Screw diameter 100 mm Ls/D ratio 18 Injection pressure 1411 bar Stroke volume 2411 ccm Shot weight (PS) 2194 gr. Injection rate 801 ccm/s Screw speed 189 1/min Plasticising rate max. 161 g/s Nozzle pressure 173 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 90 kW Installed heating capacity 44 kW Adjustable barrel heating zones 7 Oil Reservoir capacity 1075 ltr. Dimensions and weights: Dimensions of the machine ca. 7,50 x 2,50 x 2,50 m Fpodpfxewgni Hj Advsc Total machine weight 27090 kg Max. mould weight 7900 kg Accessories: - Anti vibration pads - 2 x 8 fold water flow regulator Additional Options: - 2 x hydr. core pull on movable plate - 2 x hydr. core pull on fix plate - Robot interface according to Euromap 12 - 16 x hotrunner controller - 1 x air valve on movable plate

Condition: excellent (used), Year of construction: 2015, Krauss Maffei KM 900 – 8100 GX Injection Moulding Machine Year of manufacture: 2015 General description: Hydro-mechanical, two-platen clamping system with 4 pressure pads on the fixed platen and 4 adjustment units on the moving platen. The machine is equipped with a PV-type proportional valve injection unit adjustment system. Control is handled by the modern MC6 control system, based on an industrial PC with real-time Ethernet technology. The control panel features an integrated 19-inch touchscreen with a color display, LED backlighting, and visualization of all processes using ProcessDesigner. Plasticising unit: Complete unit for thermoplastics processing Wear-protected (abrasion-resistant) version Screw diameter: 105 mm Check valve and open nozzle Technical data: Clamping unit: Clamping force: 9,000 kN Mould opening force (pressure pads): 630 kN Platen size (W x H): 1,660 x 1,530 mm Tie bar spacing: 1,180 x 1,000 mm Max. mould opening stroke: 1,600 mm Mould height (min – max): 500 – 1,100 mm Maximum opening stroke: 2,100 mm Ejector stroke: 300 mm Ejector force (forward / return): 140 / 70 kN Injection unit: Screw diameter: 105 mm L/D ratio: 23.0 Injection pressure: 1,778 bar Injection volume: 4,546 cm³ Shot weight (PS): 3,228 g Injection rate: 805 cm³/s Screw speed (standard): 150 rpm Nozzle contact force: 166 kN Electrical and hydraulic equipment: Pump motor rating: 120 kW Heater rating: 59 kW Number of barrel heating zones: 7 Fpodpfewyxbgjx Advjc Dry cycle time / stroke (Euromap 6): 3.3 s / 826 mm Dry cycle time / stroke (KM standard): 2.9 s / 590 mm Oil tank capacity: 1,450 l Dimensions and weight: Net weight (with control cabinet): 40 t Machine dimensions (L x W x H): 10.72 x 3.03 x 2.51 m

Condition: excellent (used), Year of construction: 2011, Krauss Maffei KM 850-12000 MX injection molding machine Year of production - 2011 LRX 500 robot Z axis 4000 mm X axis 1500 mm Y axis 1250/1250 mm Hydraulic-mechanical two-plate closing system with 4 pressure cushions and 4 locking units on the moving plate. PV - injection unit regulation. MC 5 control system with color monitor, integrated control panel and USB data carrier. Plasticizing system Complete plasticizing system for thermoplastics with screw diameter 135 mm, with check valve and open nozzle Nozzle radius 25 mm, nozzle opening 9 mm Fpjdpjwqdyisfx Advsc TECHNICAL DATA Closing unit - mold closing force: kN 8500 - mold opening force: kN 560 - dimensions of the mounting plate (h x v): mm 1600 x 1600 - clearance between columns (h x v): mm 1140 x 1140 - mold opening path: mm 1600 - mold height (min-max.): mm 500 - 1100 - opening width: mm 2100 - ejector stroke: mm 300 - ejector force: kN 200/ 100 Injection unit - screw diameter: mm 135 - pressure injection: bar 1389 - injection volume: cm3 8588 - injection weight for PS: g 6098 - injection efficiency: cm3/s 1414 Electro-hydraulic equipment - rated power of the pump motor: kW 132 - dry cycle time according to Euromap 6: 1/h 965 - oil tank capacity: l 2440 Weight and dimensions - net weight with control cabinet: t 49 - dimensions of the place for installation (length x width x height): m 11.72 x 2.92 x 2.71

Condition: excellent (used), Year of construction: 2001, Injection moulding machine: Krauss Maffei KM 800-5000 MC Fpodpfsxqh I Isx Advjc Year of manufacture: 2001 Operating hours: 70,000 h Configuration: Machine with robot, safety cage and conveyor belt Availability: Two identical machines available Clamping unit: Clamping force: 8,000 kN Maximum mould opening force: 356 kN Moving platen opening force: 98 kN Moving platen closing force: 92 kN Mould platen dimensions (H x W): 1,610 mm x 1,530 mm Distance between tie bars (H x W): 1,120 mm x 1,000 mm Mould opening stroke: 1,400 mm Minimum mould height: 600 mm Maximum mould opening: 2,000 mm Hydraulic ejector stroke: 250 mm Injection unit: Screw diameter: 90 mm L/D ratio: 23 Injection pressure: 1,742 bar Injection volume: 2,863 cm³ Shot weight (PS): 2,605 g Dimensions and weight: Machine dimensions (LxWxH): 10.5 x 2.86 x 2.89 m Weight: 43 tonnes

Condition: ready for operation (used), Year of construction: 2007, operating hours: 70,000 h, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 95 mm, displacement volume: 3,367 cm³, Clamping force 6500 kN Mould opening force, max. 346 kN Travel force movable platen opening 169 kN Travel force movable platen closing 144 kN Size of mould platens (h x v) 1520 x 1470 mm Distance between tie bars (h x v) 1000 x 930 mm Mould opening stroke 1150 mm Mould height min 600 mm Max. daylight 1750 mm Hydraulic ejector - stroke 250 mm Ejector force 95 kN Injection unit: Screw diameter 96 mm Ls/D ratio 23 Injection pressure 1795 bar Stroke volume 3367 ccm Shot weight (PS) 3064 gr. Injection rate 690 ccm/s Screw speed 153 1/min Plasticising rate max. 104 g/s Nozzle pressure 166 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 90 kW Installed heating capacity 50 kW Adjustable barrel heating zones 7 Dimensions and weights: Dimensions of the machine ca. 9,83 x 2,90 x 2,80 m Total machine weight 43170 kg Accessories: - Anti vibration pads - Krauss Maffei Robot LR300 X: 1200 mm, servo Y: 1000/1000 mm, servo Z: 3500 mm, servo C: 0 - 90° - Conveyor - saftey guard Additional options: - 1 x air valve Fsdpfx Ajx Hzzcjdvspc - 6 x pneumatic sequentional valves - 12 hotrunner controller - 2 x hydr. core pulls on movable plate - 2 x hydr. core pulls on fix plate

Condition: good (used), Year of construction: 2005, Krauss Maffei 500-2700 C1 (2005) MC4 controll Clamping force: 500 t Screw diameter: 80 mm Type: Horizontal Drive: Hydraulic Clamping unit: Clamping force: 500 t Opening stroke: 1260 mm Tie bar spacing (H×V): 900×800 mm Platen size (H×V): 1270×1200 mm Injection unit: Screw Ø: 80 mm Max. inj. press.: 1829 bar Inj. vol.: 1433 cm³ Shot weight (PS): 1304 g Electrical equipment: Voltage: 400 V / 50 Hz Sepro Linear robot available Accumulator English, French, Czech language available. Fedpox H Au Rofx Advspc Hours: 61000
