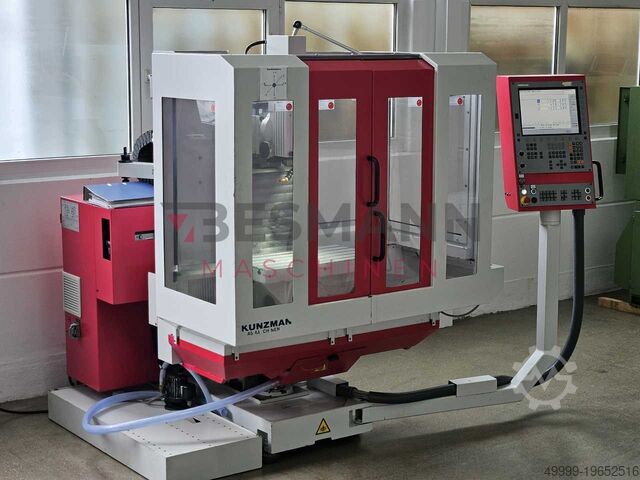

Milling machine TNC 320

Kunzmann WF 4/3

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 300 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1 rpm, quill stroke: 60 mm, total height: 2,100 mm, total width: 2,100 mm, total length: 2,300 mm, table width: 450 mm, table length: 750 mm, rotational speed (max.): 4,500 rpm, rotational speed (min.): 1 rpm, overall weight: 1,900 kg, workpiece weight (max.): 500 kg, Travel X/Y/Z 400/350/300 mm, spindle spped 1 - 4500 rpm, motor 4,5 KW, spindle ISO 40, control Heidenhain TNC 320, table size 750x450 mm, hydraulic tool clamping, coolant device, spash guard, tool holders, manual Credpjwb Erzefx Agmjh

Condition: repair required (used), Year of construction: 1996, functionality: not functional, machine/vehicle number: 340547, travel distance X-axis: 400 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 400 mm, quill stroke: 60 mm, overall weight: 1,300 kg, table length: 650 mm, workpiece weight (max.): 250 kg, table width: 350 mm, power: 10 kW (13.60 HP), controller model: TNC 124, Equipment: rotational speed infinitely variable, The milling machine advertised is being sold as defective. The reported error: Gross positioning error on the Z-axis. The machine is otherwise in good condition and was used exclusively for training purposes. The following parts were newly installed by the service department: -Supply module -Z-axis assembly with brake -Z-axis position measuring system - Wipers on all axes - Filter mats -Synchronous belts -X-axis position measuring system - Signal converter for the measuring system Crodpfxjwlqtfo Agmoh The total cost for maintenance and repairs was €15,000. The error is still present. Due to the age of the machine and the modernization of the workshop, repairs have been discontinued. You are welcome to inspect the machine. All information is provided without any warranty.

Condition: used, Year of construction: 2005, Control TNC 310 range L-W-H 2000 x 2000 x 2000 mm weight of the machine ca. 2,0 t Kunzmann universal milling and drilling machine WF 4/3 Milling machine - equipped with a Heidenhain TNC 310 control system The milling and drilling machine allows a variety of machining options, e.g. milling, drilling. The materials to be used are preferably those commonly used in mechanical engineering, such as steel, cast iron and aluminium. Materials such as paper, graphite, minerals or magnesium cannot be machined or can only be machined with the appropriate protective equipment. --> Technical data Milling table: --> Clamping surface: 650 x 350 mm --> Clamping grooves: 5 --> Slot width: 14 mm --> groove spacing: 63 mm --> max. load: 250 kg --> Working area --> X-axis: 400 mm --> Y-axis: 350 mm Codpfx Aswwl Inogmorh --> Z-axis: 400 mm --> Maximum distances --> Top edge of table to horizontal spindle centre: 540 mm --> max. table top edge to vertical head bottom edge: 430 mm --> Milling spindle --> Tool holder: SK 40 --> Horizontal speeds: 5 -4500 min/-1 --> Vertical speeds: 5 -4500 min/-1 --> Vertical quill stroke: 60 mm --> Vertical head can be swivelled on both sides: 90° --> Feed (potentiometer 100 %) longitudinal and transverse: 0 - 2000 mm/min. --> rapid traverse lengthwise and crosswise: 5000 mm/min. --> Vertical feed: 0 - 2000 mm/min. --> Vertical rapid traverse: 4000 mm/min. --> Drive power --> Power at 100 % ED: 8.0 KW --> Power at 44 % ED (cycle time 5 min): 9.3 KW

Condition: used, Year of construction: 1996, x-travel 400 mm y-travel 350 mm z-travel 400 mm tool taper SK 40 spindle turning speed range 1,0 - 4.000 U/min Codpfx Ajw U U Siogmerh feeds 0 - 2000 mm/min quill stroke 60,0 mm table-size 650 x 350 mm T-slots 14 H7 Control TNC 124 engine output 5,5 kW weight 1800 kg dimensions of the machine ca. 2000 x 1000 x 2100 mm New price ~ 55.000 euros (!!) Furnishing : - Universal tool milling machine - HEIDENHAIN pattern control TNC 124 - The control panel can be swiveled to the right of the machine - hydraulic tool changer (DIN 69872) - Vertical milling head - SK 40 - X-axis feed .. 0 - 2000 mm / min - Y-axis feed .. 0 - 2000 mm / min - Feed Z-axis .. 0 - 2000 mm / min - Central lubrication, electrical - coolant device - Chip tray - Operating instructions for machine + control Special accessories included: - hydraulic machine vice - many tool holders - HEIDENHAIN HR 410 electronic handwheel

Condition: used, Year of construction: 2000, Used Kunzmann WF 4/3 universal milling and drilling machine Csdpfow U D Sxex Agmjrh with Heidenhain TNC 124 linear control X/Y/Z travel = 400/350/400 mm Speed 1-4000 rpm Vertical head with 60 mm quill Fixed angle table 650 x 350 mm SK40 spindle with hydraulic tool clamping Accessories: - Electronic handwheel Heidenhain HR 410 - Chip protection cabinet - Machine light - Coolant system - Machine feet The machine is located at our location in 71334 Waiblingen-Beinstein, is immediately available, and can also be inspected. Please register in advance.

Condition: excellent (used), Year of construction: 2002, Kunzmann WF4/3 Kunzmann WF4/3 Tool Milling Machine with Heidenhain TNC 124 Control, Year of Manufacture 2002 – Excellent CONDITION CE-compliant!! Technical Data: • Year of manufacture: 2002 • Fixed angle table • Spindle speed: infinitely variable up to 4000 rpm • Feed rates, infinitely variable in 3 axes: 0 to 2000 mm/min • Travel X/Y/Z: 400/350/400 mm • Rapid traverse X/Y/Z: 5 / 5 / 4 m/min • Table size: 650 x 350 mm • Table load: 250 kg • Vertical quill travel: 60 mm • Vertical and horizontal quill – SK40 • Hydraulic clamping system • Approx. weight: 1700 kg • Space requirements: approx. 2.3 x 2 x 2 m • Drive power: 12 KVA Accessories & Equipment: • Heidenhain TNC 124 Control • Hydraulic clamping vertical and horizontal • Automatic central lubrication • Spindle brake • Technical documentation, spare parts diagrams, control manual, and programming examples • Handwheels • Coolant system About the Machine: Offered is a Kunzmann WF4/3 tool milling machine equipped with a Heidenhain TNC 124 control unit. This universal milling machine is in excellent original condition. It comes from a facility where it was used only occasionally for training purposes. The control system is very user-friendly. Additionally, the machine features hydraulic clamping for both vertical and horizontal operations. Switching from vertical to horizontal operation is very simple, thanks to the fold-away vertical head. The guides are regularly lubricated via the central lubrication system. The Kunzmann has been mechanically and electrically tested in our facility. Take the opportunity to view and test the Kunzmann under power at our location. Cjdow U Exyjpfx Agmerh You can find more milling machines from renowned manufacturers on our website.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Tool Milling Machine Kunzmann WF4/3 with Heidenhain TNC 124 Control, Year of Manufacture 2010, Excellent Condition with Tooling, CE-Compliant!! Technical Data: >> Year of manufacture: 2010 >> Fixed angular table >> Infinitely variable spindle speed up to 4000 rpm >> Infinitely variable feed on 3 axes from 0 to 2000 mm/min >> Travel (X/Y/Z): 400/350/400 mm >> Rapid traverse (X/Y/Z): 5 / 5 / 4 m/min >> Table surface: 650 x 350 mm >> Table load capacity: 250 kg >> Vertical quill stroke: 60 mm >> Vertical and horizontal quill - SK40 taper >> Hydraulic drawbar system >> Weight approx. 1700 kg >> Floor space required: approx. 2.3 x 2 x 2 m >> Drive power: 12 KVA Accessories and Equipment: >> Heidenhain TNC 124 control system Csdew Id Dzspfx Agmorh >> Hydraulic clamping vertical and horizontal >> Automatic central lubrication >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual for the control system and programming examples >> Handwheels >> Coolant system >> Tool holders, hydraulic vise, clamping tools About the Machine: Offered here is a Kunzmann WF4/3 tool milling machine equipped with a Heidenhain TNC 124 control system. This universal milling machine is in very good original condition. It comes from a facility where it was only used occasionally for training purposes. The control system is very easy to operate. Furthermore, the machine features hydraulic clamping both vertically and horizontally. Conversion from vertical to horizontal is very simple, thanks to the swiveling vertical head. All guides are regularly lubricated via the central lubrication system. The Kunzmann has been mechanically and electrically inspected by us. Take the opportunity to view and test the Kunzmann under power at our facility.

Condition: used, Univ. NC tool milling machine KUNZMANN type WF 3/4 Machine. No. 341020 Year of construction 1998 Travel X: 400 mm Y: 320 mm Z: 400 mm Table size 650 x 350 mm Spindle holder SK 40 Spindle speed 40 - 2500 rpm. Feed rates X, Y and Z-axis 0 - 1000 mm/min. infinitely variable Rapid traverse X, Y-axis 4000 mm/min. Rapid traverse Z-axis 3000 mm/min. Vertical pinol adjustment 60 mm Drive power spindle motor 3 KW Mains connection 400 Volt, 50 Hz - CNC line control Heidenhain TNC 124 - Spindle speed via 2 gear stages and infinitely variable via electronically controlled variator gearbox - Vertical milling head can be tilted +/- 90 - Hydraulic tool clamping - Fixed angled table - Control cabinet fixed to the machine Crsdpelvyrbjfx Agmsh - Coolant tank with pump adjacent - central lubrication - central lighting Space requirement L x W x H 1800 x 1800 x 1900 mm Weight 1300 kg Good condition

Year of construction: 2001, condition: ready for operation (used), X-axis: 400mm, Y-axis: 350mm, Z-axis: 400mm, table dimensions: 650mm/350mm, tool holder: SK 40, spindle speed: 1-4000/min, quill stroke: 60mm, max. feed: 2000mm/min, control: Heidenhain TNC 124, connected load: 5.5kW, dimensions: 2000mm/1000mm/2100mm, weight: 1.8t. The machine is not functional, errors occur repeatedly: Problems with the movement monitoring of the Z and Y axes, gross positioning error on the Z axis, faults when moving the control housing. The operational readiness controller is missing and appears continuously when switching on. A reference run is possible after several attempts. The spindle gear is worn out. On-site inspection is possible. Credpfx Asuqacwjgmjh

Condition: used, Year of construction: 2001, functionality: limited functionality, travel distance X-axis: 400 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, feed rate Z-axis: 2,000 m/min, quill stroke: 60 mm, rapid traverse X-axis: 5,000 m/min, rapid traverse Y-axis: 5,000 m/min, rapid traverse Z-axis: 4,000 m/min, total height: 2,000 mm, total width: 2,000 mm, total length: 2,000 mm, table width: 650 mm, table length: 350 mm, rotational speed (max.): 4,000 rpm, rotational speed (min.): 1 rpm, table load: 250 kg, overall weight: 2,000 kg, Equipment: documentation/manual, Machine condition: The machine is currently still in operation and is in working condition. Key features: Simple operation via TNC124 control Low-maintenance, robust machine design Manual drilling possible (linear machining only) Csdpfx Agew Icwmemerh Limitations: Limited machine geometry (somewhat imprecise) Relatively high oil consumption Additional information: Complete machine documentation available. 5 kW motor, SK 40 spindle, Heidenhain TNC124 control, vertical spindle and horizontal spindle - SK40, central lubrication, handwheels, coolant system.
