Milling machine

Kunzmann WF 7/3

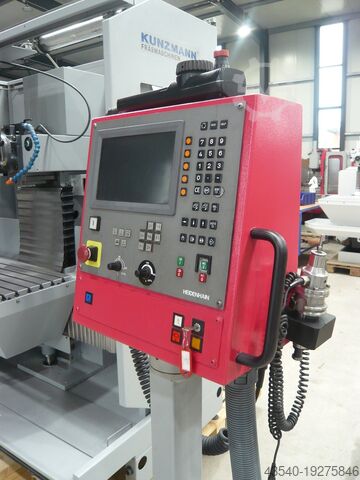

Condition: good (used), Year of construction: 2001, Heidenhain TNC 310 cnc control electronical hand wheel coolant device Crodpfxsit Tr Tj Abwjh Technische Daten: Längsweg (X-Achse) / X-travel longitudinal 600 mm Querweg (Y-Achse) / Y-travel cross 400 mm Senkrechtweg (Z-Achse) / Z-travel vertical 400 mm Werkzeugaufnahme / spindle taper SK 40 Drehzahlbereich / spindle speed range 60-5000 UpM Vorschub / feed 0-2000 mm/min. Eilgang längs + quer / rapid feed x/y 5 m/min. Eilgang senkrecht / rapid feed z 4 m/min. Antriebsleistung gesamt / drice capacity 7 kW Gewicht ca. / weight ca. 2000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 1997, Universal milling and drilling machine Manufactured by KUNZMANN. WF 7/3 Year of manufacture: 1997 Technical specifications Make: Kunzmann Type: WF 7/3 Year of manufacture: 1997 X-axis: 600 mm Y-axis: 400 mm Z-axis: 400 mm Clamping surface: 800 x 425 mm Clamping slots: 6 Slot spacing: 63 mm Max. load: 250 kg Tool holder: SK 40 Quill stroke: 60 mm (vertical) Head can be swiveled 90° to both sides Drive power: 4 kW Dimensions: approx. L 2.0 x W 2.0 x H 2.0 m Weight: approx. 2.0 t (including control cabinet and swivel panel) Equipment - Heidenhain TNC 124 control - Operating instructions - Enclosure Codpfx Aewhm Sisbworh - Coolant system - Hydraulic tool clamping All information is subject to change without notice. A demonstration is available at any time in our showroom.

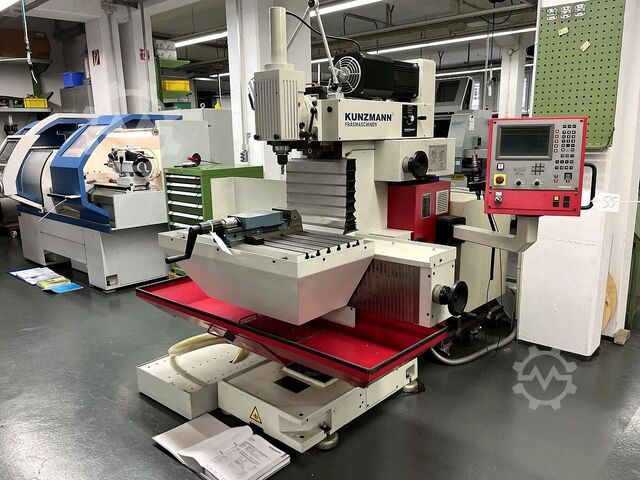

Condition: used, Year of construction: 1996, functionality: fully functional, Universal Milling Machine Kunzmann WF7/3 CNC with Heidenhain TNC 124 Control – Excellent Condition!! Technical Data: • Year of manufacture: 1996, Machine No. 370173 • Rigid angle table Crodpfxew Rx Tio Abwsh • Infinitely variable spindle speed up to 3,700 rpm • Feeds on 3 axes, continuously variable from 0 to 1,000 mm/min • Travel distances X/Y/Z: 600/400/400 mm • Rapid traverse X/Y/Z: 5 / 5 / 4 m/min • Table surface: 650 x 350 mm • Table load capacity: 300 kg • Vertical quill stroke: 60 mm • Vertical and horizontal quill – SK40 • Hydraulic tool clamping system • Weight: approx. 1,800 kg • Space requirement: approx. 2.3 x 2 x 2 m • Main drive motor: 4 kW • Total power consumption: approx. 7 kVA Features and Equipment: • Heidenhain TNC 124 CNC control • Hydraulic clamping for vertical and horizontal operations • Automatic central lubrication • Spindle brake • Technical documentation, spare parts lists, control manual, and programming examples • Full safety enclosure • Coolant system • Electronic handwheel About the machine: For sale is a Kunzmann WF7/3 universal milling machine equipped with a Heidenhain TNC 124 CNC control. This universal milling machine is in outstanding condition. It comes from an automotive manufacturer where it was used only sparingly for training purposes. The control unit is very user-friendly. Additionally, the machine features hydraulic clamping for both vertical and horizontal modes. Switching from vertical to horizontal operation is easy, achieved by simply swiveling the vertical head aside. The guideways are automatically lubricated by the central lubrication system. The Kunzmann has been mechanically and electrically inspected at our facility. Take the opportunity to view and test the Kunzmann under power at our location.

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1 rpm, quill stroke: 60 mm, total height: 2,000 mm, total width: 2,000 mm, total length: 2,000 mm, table width: 425 mm, table length: 800 mm, overall weight: 2,000 kg, workpiece weight (max.): 250 kg, Travel X/Y/Z 600/400/400 mm, spindle speed 1 - 4500 rpm, motor 7,5 KW, spindle ISO 40, control Heidenhain TNC 124 or manual, table size 800x425 mm, hydraulic tool clamping, tilting head, coolant device, electric handwheel, tool holders, manual Cedpfew Ay N Dex Abwerh

Condition: not inspected (used), Year of construction: 2009, functionality: unexamined, machine/vehicle number: 370791, feed length X-axis: 800 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, spindle speed (max.): 4,500 rpm, table width: 420 mm, table length: 800 mm, No minimum price – guaranteed sale to the highest bidder! Csdpfx Abswvi T Eoworh Placing a bid obligates you to collect the item on time between 28.07.2025 and 31.07.2025. TECHNICAL DETAILS X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm X-axis feed rate: 2,000 mm/min Y-axis feed rate: 2,000 mm/min Z-axis feed rate: 2,000 mm/min X-axis rapid traverse: 5,000 mm/min Y-axis rapid traverse: 5,000 mm/min Z-axis rapid traverse: 4,000 mm/min SPINDLE Spindle speed: 1 - 4,500 rpm Tool holder: 40 mm Speed range 1: 1 - 1,125 rpm Speed range 2: 1,125 - 4,500 rpm TABLE Table width: 420 mm Table length: 800 mm MACHINE DETAILS Total height: 2,000 mm Total width: 1,750 mm Total length: 1,750 mm Total weight: 1,800 kg Machine weight: 2,025 kg Input frequency: 50 Hz Operating voltage: 400 V Power consumption: 13 kVA EQUIPMENT - The machine vice visible on the table surface is not included in the scope of delivery.

Condition: good (used), Year of construction: 2001, feed length X-axis: 600 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, CNC milling machine KUNZMANN - WF7/3 X-Axis: 600mm Y-Axis: 400mm Z-Axis: 400mm Table Length:650mm Cedowq Ndgepfx Abworh Table Width: 400mm Table load: 250 Stroke pinole:40mm Length: 2800mm Width: 2400mm Height: 2100mm Weight: 2000kg
