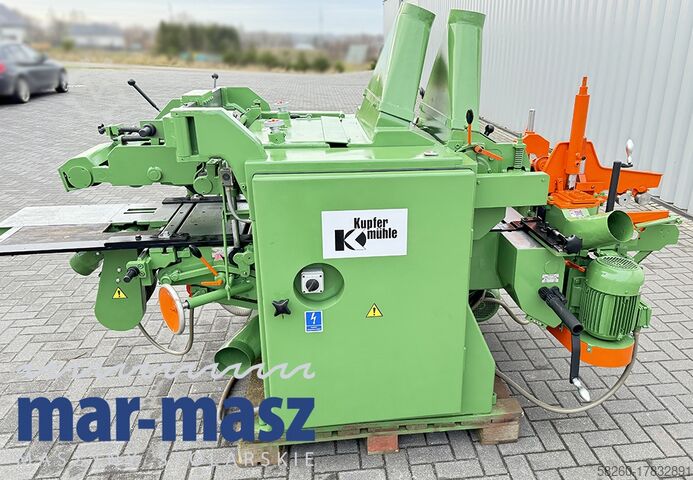

Wide four-sided planer

KUPFERMUHLE 60 na 6 głowic do mokrego drewna

CATALOG NUMBER 7503

TECHNICAL DATA:
- max planing width 610mm
- max planing height on both sides 200mm
- max planing height on four sides 100mm
from above:
- 2 rubber pulling rollers
- 2 toothed pulling rollers
- metal pulling roller
- pulling input shaft, toothed
- pawls
- pressure
- pulling shaft, toothed 2pcs
- pressure
- planing shaft 610mm, 4-knife 7.5kW
- pressure
- pulling roller, smooth, metal
- pressure
- profiling shaft 7.5kW
- pressure
- rubber pulling roller
from below:
- planing shaft axis 35mm, axis length 130mm 2.2kW
- guide strip 2pcs
- feeder table
- smooth pulling shaft
- planing shaft 610mm, 4-knife (2 knives installed) 7.5kW
- 2 pulling shafts, smooth
- sliding roller, metal, divided
- side pressure
at the back:
- side spindles + pressures 2
- 1) vertical right 95mm 4kW
- 2) vertical left 95mm 4kW
- spindle diameter 35mm
- adjustable spindles up/down, right/left
- adjustable rollers in the lower table
- electric setting of planing thickness
- 6 types of feed speed 7/9/11.5/14/18/23m/min
- feed motor 3.1kW
- diameters of the extraction nozzle 3×120, 3x160mm
- dimensions length/width/height 3150x1900x1600mm
- weight about 3500kg

ADVANTAGES:
- the best wide planing machine for wet and dry wood
- ideal for processing logs, flooring, etc.
- additional profiling shaft and planing shaft (undercutter)
- 4 horizontal planing shafts + 2 vertical spindles
- manufactured by the German brand KUPFERMUHLE
- used planer, very good condition

Crodpfxovah S Nj Agmeh
Net price: PLN 66,900
Net price: EUR 15,740 depending on the price of EUR 4.25
(Prices may change with higher fluctuations)

The listing was translated automatically. Translation errors are possible.
