Fusion 1 circular table sawLaguna
Fusion 1
Machine data
- Machine type:
- Fusion 1 circular table saw
- Manufacturer:
- Laguna
- Model:
- Fusion 1
- Year of construction:
- 2023
- Condition:
- new
- Functionality:
- fully functional
Price & Location
- Location:
- F.-O.-Schimmel-Str. 3, 09120 Chemnitz, DE
Technical details
- Cutting height (max.):
- 79 mm
- Saw blade diameter:
- 250 mm
- Cutting width at rip fence:
- 769 mm
- Total height:
- 7,900 mm
- Total length:
- 14,050 mm
- Total width:
- 15,500 mm
- Table width:
- 792 mm
- Table length:
- 508 mm
- Input voltage:
- 230 V
- Extraction connection diameter:
- 100 mm
- Overall weight:
- 120 kg
- Rotational speed (max.):
- 3,800 rpm
- Hole diameter of the disc:
- 30 mm
- Power:
- 1.45 kW (1.97 HP)
Details about the offer
- Listing ID:
- A162-69775
- Update:
- 22.10.2024
Description
- Polished cast iron table.
- Robust cast iron motor suspension.
- Can be used with DADO circular saw blade set.
- Two T-slot rails on both sides of the circular saw blade.
- Quick and easy control and tilting of the cutting height.

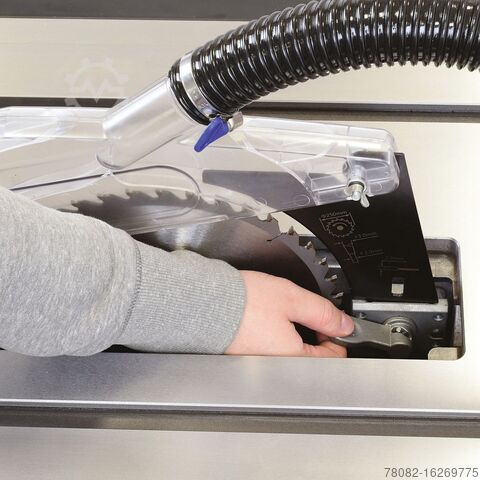

- Lever for quick exchange of circular blade.
- Positionable main switch.
- Quick attachment of the riving knife.
- Additional rear table included in the price.
- Sufficient power for longitudinal and cross cuts up to 79 mm in height.
- Storage space for tools and rulers that are always to hand.
- Type: Fusion 1
- Recommended area of application: Craftsman
- Power (230 V): 1450 W
Fgodpfx Ajtuurtsfpsh
- Recommended fuse switch: 13 A
- Disc x clamping: 250 × 30 mm
- Rotations: 3800 rotations/min.
- Tilting of the disk: 0-45°
- Max. Max. cutting height at 45°: 50 mm
- Max. Cutting height at 90°: 79 mm
- Max. Cutting width: 769 mm
- Extraction: 100 mm
- Cast iron table size: 508 mm × 792 mm
- Overall table size: 1118 mm × 792 mm
- T-slot rail dimensions: W × H 24.3 mm (19 mm), × 4.2 (10.7)
- Dimensions: 1550 mm × 1405 mm × 1100 mm
- Weight: 110 kg
- Packaging size:
- Cardboard box on its own pallet 1330 mm × 700 mm × 790 mm
- Weight incl. packaging: 120 kg
Scope of delivery
- elongated ruler
- Angled ruler
- Gripper for small parts
- Upper suction hood
- Rear table extension
- Carbide circular saw blade for universal use (diameter 250/30 mm, Z40
- Hose for suction
The machine is delivered partially disassembled in a transport box. The set-up time is estimated at approx. 1 hour.
The listing was translated automatically. Translation errors are possible.
