Mandrel tube bending machineLang Maschinenbau
EL-HY168F CNC
Machine data
- Machine type:
- Mandrel tube bending machine
- Manufacturer:
- Lang Maschinenbau
- Model:
- EL-HY168F CNC
- Year of construction:
- 1994
- Condition:
- good (used)
Price & Location
- Location:
- Walther-Rathenau-Straße 24, 04838 Eilenburg, DE
Technical details
- Control type:
- CNC control
- Controller manufacturer:
- Siemens
- Controller model:
- 840 D
- Pipe diameter:
- 168 mm
- Bending angle:
- 190 °
- Bending radius (min.):
- 80 mm
- Bending radius:
- 700 mm
- Overall weight:
- 32,000 kg
- Total width:
- 2,700 mm
- Total height:
- 2,450 mm
Details about the offer
- Listing ID:
- A201-00315
- Reference number:
- 2084-1062
- Update:
- 30.09.2025
Description
Tube insertion length: 6000 mm
Max. bending radius: 700 mm
Control system: Siemens 840 D
Min. bending radius: 80 mm
Max. bending angle +/-: 190°
Dimensions (L/W/H): 11.9 x 2.7 x 2.45 m
Machine weight approx.: 33 t
- CNC control: CNC MMI Multicontrol 2000
- Control system: NCU
- PLC: Siemens Simatic S7
- Electrical connection: 400V / 50 Hz / 85 A
The machine is fully automatic and equipped with a tool changer.

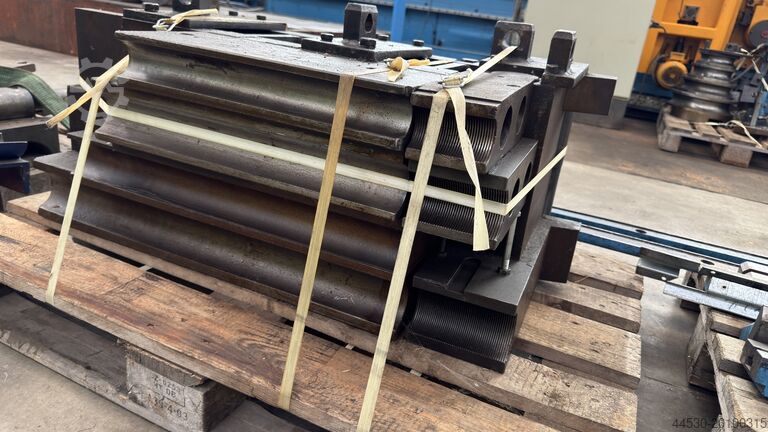

The following tools are available:
Tube Ø 48.3 mm; radius 105 mm
Tube Ø 60.3 mm; radius 120 mm
Tube Ø 63.5 mm; radius 150 mm
Tube Ø 76.1 mm; radius 190 mm
Tube Ø 88.9 mm; radius 222 mm
Tube Ø 114.3 mm; radius 285 mm
Tube Ø 139.7 mm; radius 350 mm
Tube Ø 141.3 mm; radius 700 mm
Tube Ø 168.3 mm; radius 420 mm
Csdpfx Asxgqh Nobwehc
There were a few mandrels with direct engravings indicating their specifications:
88.9 x 8 mm; 88.9 x 4.5 mm; 114.3 x 8.8 mm;
139.7 x 8.8 mm; 168.3 x 12.5 mm; 168.3 x 8.8 mm
The following mandrel outer diameters were measured:
23.2 mm; 32.3 mm; 37.1 mm; 41.5 mm; 59.3 mm; 70.3 mm;
77.7 mm; 80.9 mm; 88.7 mm; 93.2 mm; 94.7 mm; 103.0 mm;
112.8 mm; 118.8 mm; 128.9 mm; 138.5 mm; 147.2 mm; 153.6 mm
The accessory package has an estimated value of approx. €150,000.
The listing was translated automatically. Translation errors are possible.
