Finger joint line semi-automatic

Lesspoj Linija za dolzinsko spajanje

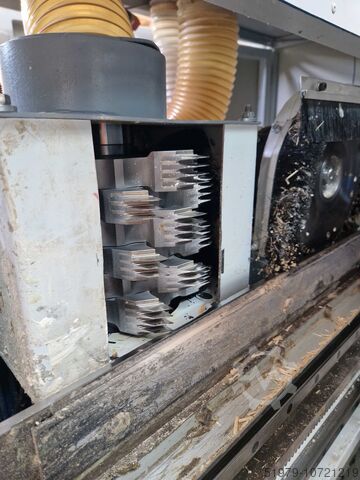

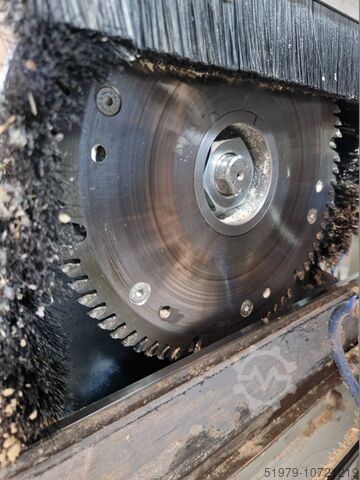

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, feed length X-axis: 13,000 mm, feed length Y-axis: 240 mm, feed length Z-axis: 100 mm, feed rate X-axis: 25 m/min, pressing force: 40 t, input voltage: 400 V, total height: 1,120 mm, working height: 1,120 mm, milling spindle length: 330 mm, control voltage: 400 V, workpiece height (max.): 100 mm, tool diameter: 240 mm, rotational speed (max.): 6,000 rpm, air pressure: 7 bar, total length of planing tables: 13,000 mm, We offer a fully automated production line for the manufacture of KVH structural timber. The line is fully certified with CE marking and by the Wood Technology Institute in Poznań. Compliant with ENPN 14.081 and 14.081 standards 1. Angled discharge conveyor 2. Infeed table for visual wood grading 3. Buffer before defect cutting saw Gsdpfxoxfzyyj Aa Ieil 4. Automatic defect cutting saw with camera for fluorescent chalk 5. Buffer before finger jointing machine 6. Finger jointing machine with glue applicator and cross-cut saw for lengths up to 13 m 7. Chain conveyor storage from finger jointing machine to four-side planer 8. Automatic infeed for four-side planer 9. Four-side planer Winter 6-33 10. Outfeed roller conveyor from four-side planer 11. Automatic packaging machine for planed timber 12. Chain conveyor 13. Strength tester for laminated timber

Year of construction: 2010, condition: ready for operation (used), Fully automatic finger jointing line: type double pack Machine is dismantled Machine is checked with functional guarantee Specification: Wood input length: min. 150 mm max. 1000 mm average 400 mm wood cross-section: min. 20 x 40 mm max. 80 x 180 Wood output length: 6030 mm Max. Wood cross section at 10 mm tine size: hardwood 120 cm² softwood 150 cm² Tine design vertical and horizontal Glue type. PVAC white glue, 2-sided glue application Electric power: Supply voltage: 400 V Control voltage: 24 V 50 Hz System completely wired up to the control cabinet. Tine length / possibly wood cross-section and glue type can still be adapted capacity: 6 milling tables/ min working height: 960mm table width: 600 mm Glue application: double-sided application With endless packaging Technical parameters: Input material: Input length of parts (min. - max.): 150-1000mm Part width (min. - max.): 40-155 Part thickness (min. - max.): 20-80mm Godoncd Utspfx Aa Isil Working height : 960mm Bundle width: 600mm Glue application: double-sided application (on both sides of the
