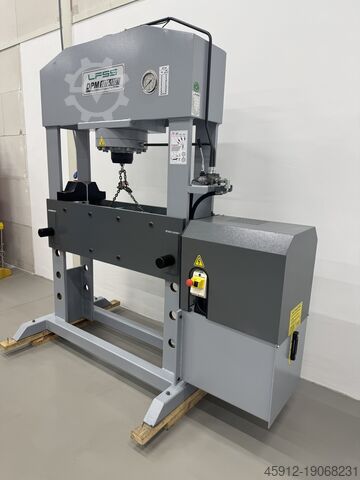

Workshop Press

LFSS DPM 1070/100

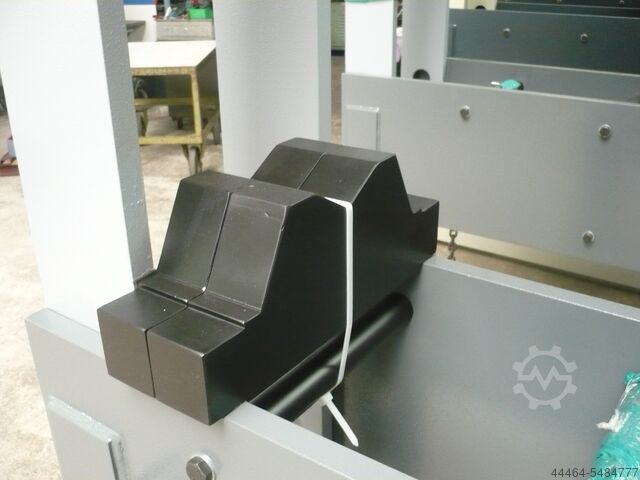

Condition: new, Year of construction: 2025, pressing force: 100 t, stroke length: 300 mm, – Capacity 100 tons Bsdpfx Ahowg Smiepoli – Cylinder stroke 300 mm – Working width 1070 mm – 2 speeds – With V-blocks/pressure plates – Pressure gauge – Emergency stop – Documentation – 400 V

Condition: new, Hydraulic workshop press, LFSS, type DPM-K 1570/150 Hydraulic workshop press with adjustable cylinder Technical specifications: Pressure: 150 t Bjdjgx Uvaspfx Ahpsli Stroke: 300 mm Table area: 1570 x 260 mm Distance between the guides: 1570 mm Approach speed: 9.0 mm/sec Working speed: 5.0 mm/sec Retraction speed: 10.0 mm/sec Motor power: 11 kW Machine weight: approx. 2100 kg Space requirement: approx. 2630 x 1000 x 2480 mm Equipment: Hydraulic workshop press with adjustable cylinder Table height adjustment V-block tool insert Pressure gauge

Condition: new, neu ca. 12 Wochen ab Auftrags Türkei 7400 € 142.82 € 100 to fix 300 mm 1070 mm 220x160 mm 5 mm/s 10 mm/s Bledpfx Ajypbtpohpoi 2050 mm 1000 mm 2200 mm 1500 kg steel welded frame stop at any position pressure manometer safety valve against overloading 2 V-blocks table height adjustable table up-down movement attachment control by operating lever according to CE regulations user manual in GERMAN and ENGLISH

Condition: new, neu ca. 10 Wochen ab Auftrags Türkei 8300 € 160.19 € 1 100 to horizontal verschiebbar 300 mm 1070 mm 5 mm/s 10 mm/s 2110 mm 1000 mm 2430 mm 1500 kg demo machine / mint condition net price (price for new machine € 9.000,00) horizontally displaceable cylinder with clamping lever steel welded frame stop at any position pressure manometer safety valve against overloading 2 V-blocks table height adjustable table up-down movement attachment Bodpfxswirtzs Ahpeli control by operating lever according to CE regulations user manual in GERMAN and ENGLISH

Condition: new, Hydraulic workshop press LFSS, type DPM 1070/150 Technical specifications: Pressure: 150 t Stroke: 300 mm Table area: 1070 x 290 mm Distance between column guides: 1070 mm Approach speed: 8.0 mm/sec Working speed: 5.0 mm/sec Retraction speed: 10.0 mm/sec Bledpfxjgiphne Ahpji Motor power: 11 kW Machine weight: approx. 1900 kg Space required: approx. 2110 x 1000 x 2340 mm Equipment: Hydraulic workshop press Table height adjustment V-block tool insert Pressure gauge

Condition: as good as new (ex-display), Year of construction: 2023, pressure 80.0 t stroke 250 mm table surface area 1040 x 260 mm column travel between the guideways 1040 mm ajustment speed 8.0 mm/sec working feed 5.0 mm/sec return speed 10.0 mm/sec engine output 5.5 kW weight of the machine ca. 835 kg. dimensions of the machine ca. 1810 x 700 x 2100 mm Exhibition machine from 2023 with only approx. 2x operating hours condition like NEW special price on request Equipment: - robust electro-hydraulic workshop press, with fixed cylinder - Ideal for aligning axles, shafts etc., but also for pressing in and pressing out bolts, bearings, bushes etc. - Robust welded steel construction for heavy-duty use - Table height adjustment via piston rod * Including round steel chain and 2x locking bolts * Piston rod with metric mount Bjdew U U Svepfx Ahpoli - 1x set of V-block prism support - Pressure gauge for pressure display - Simple manual operation with : * 1x feed speed * 1x working speed * 1x retraction speed - piston can be stopped in any position - Hydraulic tank permanently mounted on the side - operating instructions
