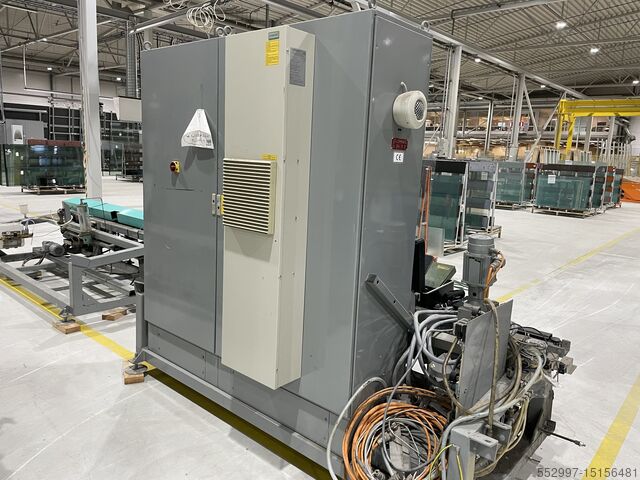

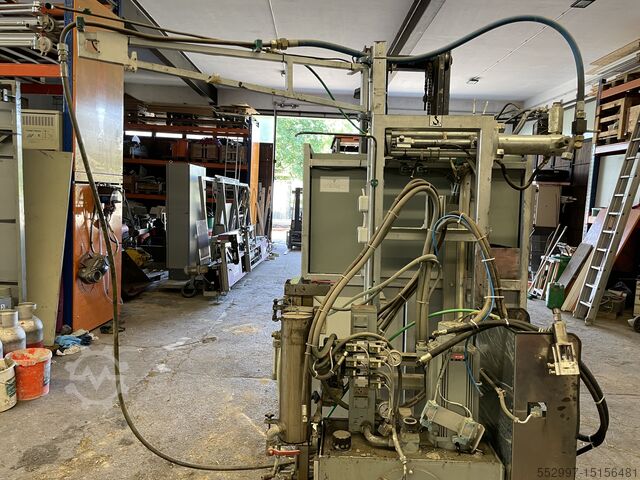

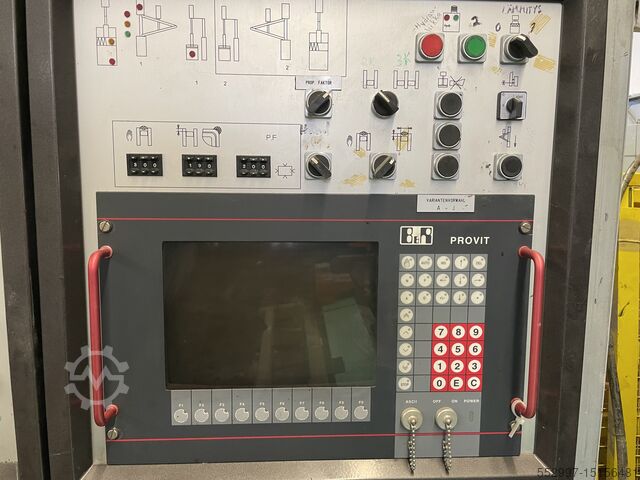

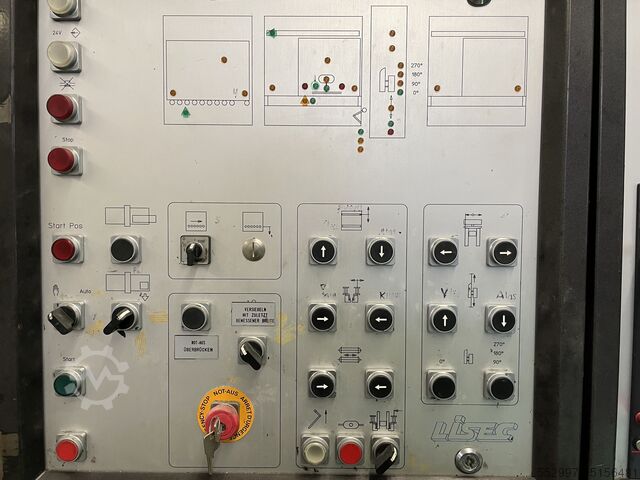

Insulating glass making machine

Lisec VL-1/25-2

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Fedpfx Afstu U Ebeuogh

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS Fgsdpouhaycofx Afueh - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Fsdjh T Dzqopfx Afuegh Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE. Fgedpfxjhknbrs Afuoh

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Fodpsqmi Irsfx Afuogh Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Fgedpfx Ajrz Irrofueh Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data

Condition: excellent (used), ELOPAK SHIKOKU ASEPTIC FILLING LINE Model S-PS80HA YOM 2008 Working hours - 9,000 hours. Line capacity for 3 streams - 8100 pcs./h, for two 7100 pcs./h for one 6000 pcs./h Carton format: 500ml, 750ml, 1000ml The line includes: - Elopak filler S-PS80HA for Pure Pak classic packaging material - 3 units of PURE-PACK PLA-S30 cap applicators for Pure-Twist 2U cap - WA-Flex-30 packer - Conveyor system. - Conveyor lubrication station. - Spare parts a total of 4,000 dollars. Fedpfx Asxdbwijfuegh

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, WORKING DIMENSIONS 450x260 mm SURFACE PLANER kW 11 THICKNESS PLANER kW 15 SPINDLE MOULDER RIGHT kW 9.2 SPINDLE MOULDER LEFT kW 11 FEED kW 5.5 TERSA CUTTERBLOCKS Fjdpfx Aew E Ev Iefusgh SOUNDPROOF CABIN CE

Condition: used, Year of construction: 2012, Control POWER CONTROL PC 20+ Panel height (mm) 60 PVC-ABS edge thickness (mm) 3 Solid edge thickness (mm) 12 Feed speed mt/min 20 Upper motorized rubberized belt Manual infeed guide Anti-adhesive group Rightening group Gluing with EVA glue Edge holder plate End trimming group with automatic inclination adjustment Staggered trimming and cornering group with two motors Linear 2-motor rounding group Edge scraper group Glue scraper group Brush group Fedpfx Aswwk Dusfusgh

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 3467, Country of manufacture: Switzerland Net weight: 3000 kg Customs tariff number: 8458.11 20 Dimensions: 215 x 150 x 215 cm TECHNICAL SPECIFICATIONS (standard) Headstock (Z1 axis) (+C optional) Maximum bar capacity: dia. 20 mm Maximum part length depending on type of guide bush: 200 mm Programmable spindle speed: 0–12,000 rpm Spindle positioning and indexing increment: 0.1 degree Maximum spindle power: 3.7 (5.5) kW Tool holder (X1/Y1) (X2/Y2) Number of tools on turret (2 slides; 2 x 2 axes): 2 x 5 Tool section: 16 x 16 mm Number of cross drilling/milling stations on turret: 4 Programmable rotational speed: 0–8,000 rpm End working attachment (X3/Y3) Maximum number of end working tools: 4 Programmable rotational speed: 0–8,000 rpm Sub-spindle and secondary operation (X4/Z4) (+C optional) Maximum clamping diameter: 20 mm Programmable spindle speed: 0–12,000 rpm Spindle positioning and indexing increment: 0.1 degree Maximum number of secondary operations: 7 Number of fixed or rotating spindles: 7 Maximum spindle speed: 8,000 rpm Tornos-Bechler/Fanuc dedicated CNC Processor type: 486 DX2 Number of simultaneous axes: all All technical data are provided without guarantee and subject to change and error. Fgodpfjw Uczxsx Afuoh
