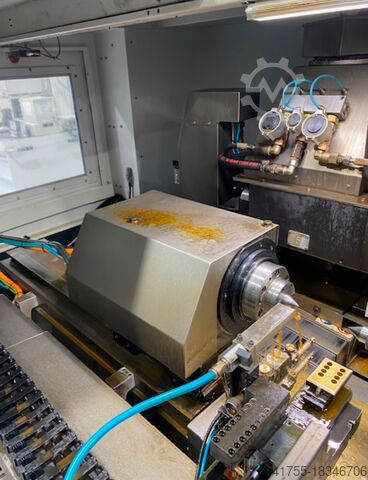

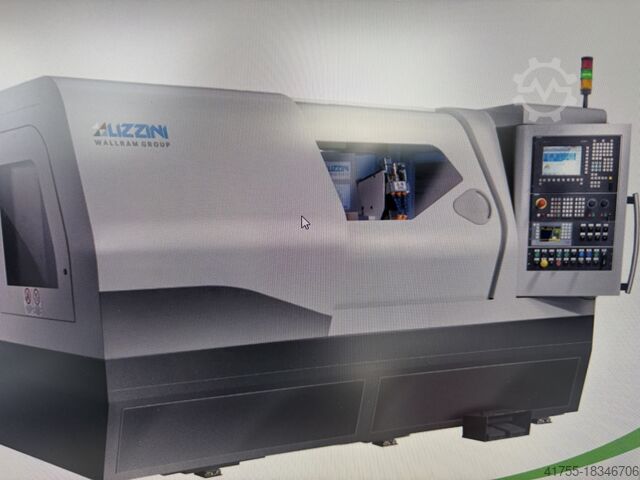

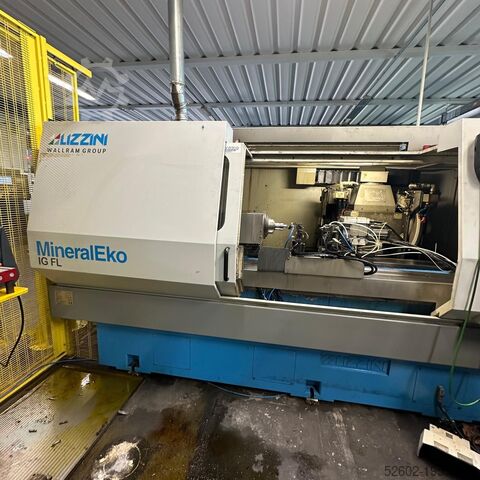

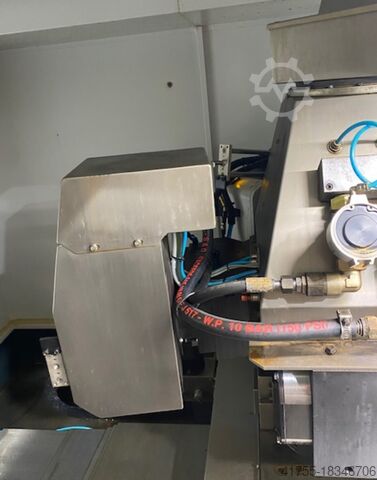

CNC cylindrical grinding machine

Lizzini IG-FL

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, center height: 200 mm, workpiece weight (max.): 140 kg, grinding length: 1,000 mm, distance between centers: 1,000 mm, Equipped with B-axis and a wheelhead featuring two grinding wheels mounted on the same spindle (Right/Left configuration). Accessories and Features: Gap control, External Wheel Profiling Unit , Multiple External Grinding Cycles, Dressing Cycles with Automatic Wheel Wear Compensation, Marposs Axial Touch Probe, Marposs In-Process Diameter Gauging on Both Wheels, Magnetic Separator with Settling Tank and Paper Filter. TECHNICAL DATA: Centre Height Over Table: 200 mm Maximum Workpiece Length: 1000 mm Maximum Workpiece Weight Between Centres: 140 kg LONGITUDINAL AXIS – Z (Table) Longitudinal Stroke: 1200 mm Maximum Traverse Speed: 12,000 mm/min Minimum Feed Resolution: 0.0001 mm CROSS AXIS – X (Wheelhead) Cross Stroke: 300 mm Maximum Traverse Speed: 10,000 mm/min Minimum Feed Resolution: 0.00005 mm Grinding Wheels Dimensions: Right and Left Wheel Dimensions (DX and SX1): 610 x 120 x 203.2 mm Maximum Wheel Speed: 50 m/s Maximum Spindle Power: 24 kW Compressed Air Supply: Bjdpowybgxefx Af Hjlr Required Pressure: 5.5 bar WORKHEAD: Variable Spindle Speed Range: 10 – 800 rpm Morse/ASA Taper: 4 / 5 TAILSTOCK: Maximum Quill Stroke: 40 mm Micrometric Adjustment: ± 0.07 mm Morse Taper: 4 Total Machine Weight: 7500 kg

Year of construction: 1995, condition: excellent (used), Technical data Manufacturer: brown & sharp Type: DEA Mistral Year of construction: 1995 Measuring range X = 1500 mm Blodef Dvzcjpfx Af Her Y = 1000 mm Z = 900 mm Equipment Renishaw PH10M probe TP200 touch probe + probe changing bench 6 garages Software PC-DMIS Version 4.2 Status 2008 PC (WIN XP), monitor, inkjet printer, computer table The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m Bedpfxeu D I Tls Af Holr

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. Bodpsul Efmjfx Af Hslr The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: excellent (used), Year of construction: 2000, The machine can be inspected and tested in our warehouse after prior appointment. Blodpfjwl Uq Isx Af Her

Year of construction: 2006, condition: ready for operation (used), FASTEMS Type: MLS-XHD Load max pr. pallet 6.000 kg Machine capacity 5 pcs Pallet capacity 25 pcs Available pallets 19 pcs Loading stations 2 pcs X 2650 mm max Y 2300 mm max Robot with grinding function 1 pcs Layout dimensions 15 x 54 meter Build year 2006 Bsdpfeguk E Tox Af Holr

Year of construction: 2020, condition: ready for operation (used), A CNC profile and surface grinding machine Stöckel is available. Travel X/Y/Z: 850mm/680mm/475mm, guide X/Y/Z: sliding guide/linear guide/linear guide, table dimensions X/Y: 800mm/500mm, table feed: 30m/min, drive X/Y/Z: Toothed belt/ball screw/ball screw, feed: Y/Z: 2000mm/min, fine adjustment X/Y/Z: from 0.001mm, speed: 4000rpm, spindle taper: 60mm, spindle power: 11kW, grinding wheel dimensions X/Y/Z: 400mm/50mm/127mm. Machine dimensions X/Y/Z: approx. 3500mm/2700mm/2300mm, weight: approx. 4300kg, operating hours: 16156h, control: NC-T. Documentation available. On-site inspection is possible. Bedeuii R Hopfx Af Hslr

Condition: excellent (used), Manual control box for Dea or Brown&Sharpe machines Blodpofhqxdsfx Af Hor

Condition: good (used), Working wheel dimensions (od x id x width) Ø610x80xØ304.8 mm Brand CNC FANUC Model CNC 21 Oi TB Maximum length between points 1060 mm Max. travel Z axis 750 mm Max. length to be ground 600 mm Point height 225 mm Ø min/max to be ground 10 - 300 mm Max. weight of the piece 125 Kg Max. travel X axis 325 mm Grinding wheel speed 45 m/s Main motor power 11 Kw Working head speed 30 to 1000 rpm Working head cone MORSE 5 Working head motor power 12 Nm Tailstock cone MORSE 4 Tailstock quill travel 70 mm Blsdpfotrgugox Af Hjr Tailstock hydraulic movement 150 mm Total power 22 Kw Length 2300 mm Height 1900 mm Width 2634 mm Weight 7750 Kg Accessories Cooling equipment with paper filter; MARPOSS meter, positioner and balancer;

Condition: used, Year of construction: 1975, max. bore diameter to be ground 6 bis 100 mm stroke - stepless adjustable 550 mm grinding depth ca. 250 mm workpiece weight 150 kg total power requirement 15 kW weight of the machine ca. 4.300 kg Bledoucgwkepfx Af Hjr dimensions of the machine ca. 2,7 x2,4 x 2,2 m
