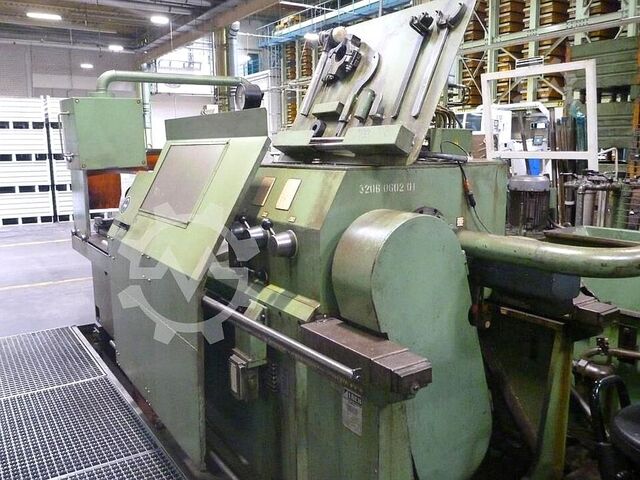

Deephole Boring Machine

LOCH TB 8-30-600

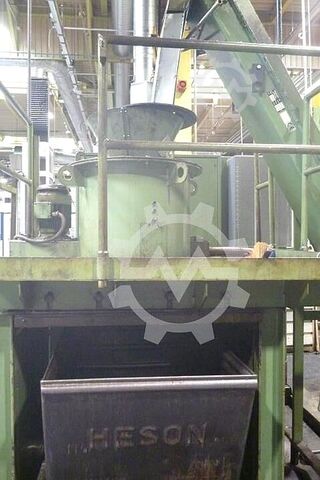

Condition: ready for operation (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 308-600-1716, drilling depth: 600 mm, spindle speed (min.): 1,423 rpm, drill diameter: 65 mm, center height: 299 mm, TECHNICAL DETAILS Boring Unit Boring system: BTA + Ejector Speed steps: 8 or 16 with gear change Feed range: 0 – 500 mm/min Rapid traverse forwards/backwards: 5,000 mm/min Spindle taper: DIN 55022, size 6 Main Drive Three-phase motor: 37 kW, 1,500 rpm Frequency control: available Spindle Speeds Range I: 16/180 – 200/230 – 290/330 – 370/430 rpm Range II: 550/620 – 740/800 – 990/1,120 – 1,280/1,450 rpm Feed Drive Servo motor: 10 Nm, 3,000 rpm Ball screw: MH 50 × 10 × 14 Coolant System Total power requirement: 73 kW Coolant pump: MSDA 40-R38, SMDA 80-R46 Magnetic filter candles: MFK 400 R Liquid cooler: DKL 7 Gap tube filter: 54 572 71 104 Immersion pump: TB 405/390 Centrifuge: Polar U6 MACHINE DETAILS Dimensions and Weight Machine weight: approx. 6,000 kg Paintwork Color: RAL 6011 Nljdpfx Aewx E N Iokuob EQUIPMENT Clamping fixture with movable drill bushing Clamping fixture with drill bushing carrier Clamping fixture with clamping table Clamping fixture with centering tailstock Clamping fixture with centering clamp ZS2 (HICO) Force measuring system KIMISIT 0 – 30 Hydraulic unit HS04-C807-6-0 Chip conveyor SEW RF 430T71D4 Centrifuge Hanning ZG 52x6K.137 Fans Dietz DR 80a 69 Lubrication pump Vogel DM7 Control unit for main and feed drives

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 130 mm gear width: 170 mm max. module: 3 min. module: 0,5 total power requirement: 48 kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed * Nedjwdyx Uspfx Akuslb

Condition: used, Year of construction: 1981, National 2-3 Hot Former induction heater, feeder, straightener Nodpfx Akjwl Iw Ujuolb

Condition: excellent (used), Year of construction: 2012, operating hours: 79,000 h, functionality: fully functional, machine/vehicle number: 106648-11, Please provide your offer price. Sales only within Europe, including Turkey. Price excluding packaging; delivery condition: FCA (machine location). Available machines: 5 units, identical process. Year of manufacture: 2001 - 2012 ===== For technical data, please refer to the handout. All warranty rights are excluded. Nsdpfx Ajxzgraekuelb We do not guarantee the accuracy of the technical data and year of manufacture, the completeness of accessories and tooling, or compliance with all safety and environmental protection requirements specified in accident prevention regulations. No sale to private individuals.

Year of construction: 1984, condition: ready for operation (used), A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible. Nlsdpewkih Ejfx Akujb

Condition: ready for operation (used), Year of construction: 1984, Romanian Hot Former AMP 20, AMP 30, AMP 50 lines Press Capacity: 220 tons, 230 and 400 Forming stations: 3, 3 and 4 Forming load: 900 kN, 2500 kN and 8000 kN Bar Diameter: 14 to 28 mm, 18-40, 28-55 mm Max. part outer diameter: 35 mm Cut-off length: 15 to 40, 20-72, 50-150 mm Nodpfxstaui Ue Akuslb Ram stroke: 110 mm Ejector stroke: 55 mm Die center distance: 110 mm Production per minute: 12 to 180 Weight: approx. 11, 36 and 90 tonnes Technical documentation: yes Video under power available

Condition: used, Year of construction: 1997, Technical details: max. wheel diameter: 300 mm gear width: 110 mm max. module: 6 weight of the machine ca.: 10,5 t Nedpfx Akoxz Aw Esuolb *

Condition: used, Year of construction: 1988, max. wheel diameter 150 mm gear width . mm max. module 5 Nlsdpfx Akswhq Easusb min. module 0,5 Control . total power requirement . kW weight of the machine ca. 10.000 t dimensions of the machine ca. 6500 × 2700× 3600 m

Condition: used, Year of construction: 1996, core drilling diameter max. 25 mm bore depth 1000 mm swing diameter mm total power requirement 25 kW weight of the machine ca. 12,5 t dimensions of the machine ca. m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling " Centre " Model BWP 250 Year 1996, but reconditioned mechanically and electrically in 2006 _____ Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed motors 27 Nm / 1.000 daN Spindle drive steplessly adjustable 7 kW Total electrical load, approx. 30 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Nlsdjt Hw Ayopfx Akueb Accessories / Special Features: " Ideal machine for the complete processing of large workpieces like tool a. dies (cooling holes) mould- and dieplates, hydraulicparts etc. by means of deep hole drilling up to 25 x 1.000 mm, face milling up to Ø 60 mm, spiral twist drilling, counterboring and threading up to M 24 x 3 mm. " SIEMENS Continuous Path Control in 4 axes Model 840 D, with process monitoring for coolant pressure, operation data control function, toollife, feed force,Error diagnostics and easy dialogueprogramming directly on the panel, etc. " High Frequency Spindle Make GAMFIOR with stepless speeds " Hydraulically movable drill bush carrier, swivels 90° for holding gun drills (ELB) or picking up regular tools from the tool changer like twist drills, milling tools, taps, etc. " With automatic tool changer made by MIKSCH, Model CTM 40, using a 12-position tool changer, which is mounted on the r.h.side of machine housing, in fixed position, only moving forward and backward for tool changing operation. " Built-on indexing table as B-Axis made by FIBRO Model RTN 400 = 420 x 420 mm, " Extra Rotary Table made by FIBRO with Ø 1.000mm, for indexing 3-144 positions " Built-in coolant device with chip conveyor and various filters. " 2 steady rests. " Completely covered working area with access at the front and at the side. Condition : Very good condition. This is a rare and valuable machine. Under Power Delivery : immediately ex our Stock Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: M08L/8030, Offer Number: M08L/8030 Machinetype: 5 die - 5 blow transfer header Info: bushing cut-off , PKO , IFO , Slug feeding possible Make: SAKAMURA Type: BPF560S Constr. year: 1986/08/20 Nledpfx Akjwi Ucloujb diameter range: 16-34 mm number of dies: 5 number of stations: 6 cutting length: 210 mm shaft length under head: 180 mm output - pieces/min: 55-80 press power: 450 t Location: In our warehouse
