5 die - 5 blow transfer header

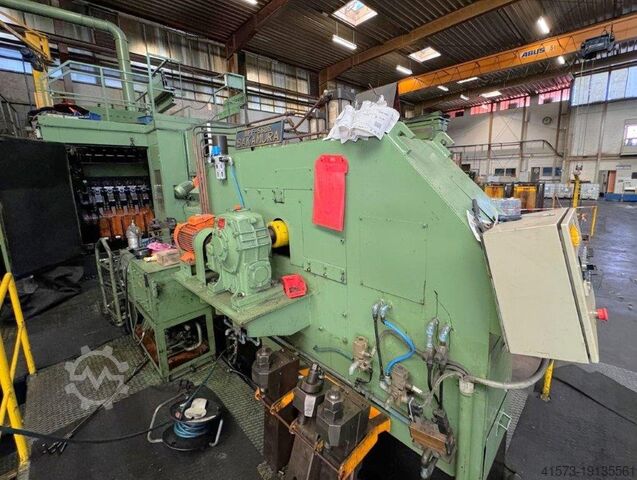

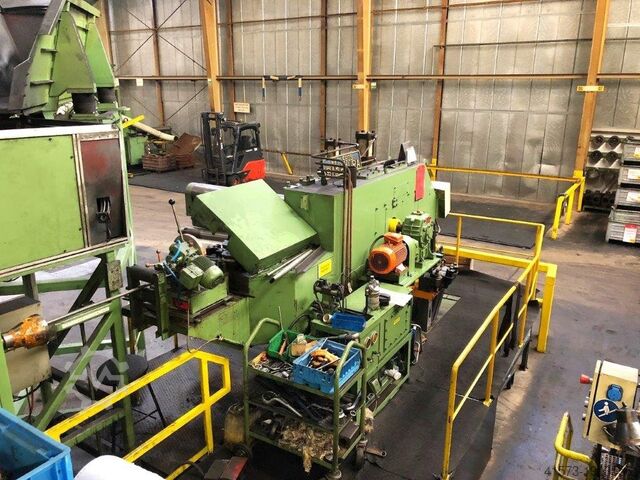

SAKAMURA BPF560S

Condition: ready for operation (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 817, Complete Cold Heading Line (includes 3 machines) Itjdpfxjtqu U Tj Akwel One Die Two Blow Header Max. Wire Cut-Off Diameter: 25 mm Cut-off length: 300 mm Shaft Length Under head: 260 mm Extrusion machine Trimming machine

Condition: used, Year of construction: 1981, National 2-3 Hot Former Itodpfx Aewl Iw Ujkwjl induction heater, feeder, straightener

Year of construction: 1984, condition: ready for operation (used), A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible. Itsdewkih Ejpfx Akwsl

Condition: used, Year of construction: 1996, core drilling diameter max. 25 mm bore depth 1000 mm swing diameter mm total power requirement 25 kW weight of the machine ca. 12,5 t dimensions of the machine ca. m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling " Centre " Model BWP 250 Iedpfx Aot Hw Ayjkwetl Year 1996, but reconditioned mechanically and electrically in 2006 _____ Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed motors 27 Nm / 1.000 daN Spindle drive steplessly adjustable 7 kW Total electrical load, approx. 30 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: " Ideal machine for the complete processing of large workpieces like tool a. dies (cooling holes) mould- and dieplates, hydraulicparts etc. by means of deep hole drilling up to 25 x 1.000 mm, face milling up to Ø 60 mm, spiral twist drilling, counterboring and threading up to M 24 x 3 mm. " SIEMENS Continuous Path Control in 4 axes Model 840 D, with process monitoring for coolant pressure, operation data control function, toollife, feed force,Error diagnostics and easy dialogueprogramming directly on the panel, etc. " High Frequency Spindle Make GAMFIOR with stepless speeds " Hydraulically movable drill bush carrier, swivels 90° for holding gun drills (ELB) or picking up regular tools from the tool changer like twist drills, milling tools, taps, etc. " With automatic tool changer made by MIKSCH, Model CTM 40, using a 12-position tool changer, which is mounted on the r.h.side of machine housing, in fixed position, only moving forward and backward for tool changing operation. " Built-on indexing table as B-Axis made by FIBRO Model RTN 400 = 420 x 420 mm, " Extra Rotary Table made by FIBRO with Ø 1.000mm, for indexing 3-144 positions " Built-in coolant device with chip conveyor and various filters. " 2 steady rests. " Completely covered working area with access at the front and at the side. Condition : Very good condition. This is a rare and valuable machine. Under Power Delivery : immediately ex our Stock Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1995, functionality: fully functional, machine/vehicle number: M08I/8958, Offer Number: M08I/8958 Machinetype: 5 die - 5 blow transfer header Info: bushing cut-off , PKO , Forma packs Make: NATIONAL FORMAX Type: FX35CF Constr. year: 1995 diameter range: 11,8 mm number of dies: 5 number of stations: 6 cutting length: 3 - 45 mm Itodpfx Akowm Rufewsl shaft length under head: 50 mm output - pieces/min: 85 - 255 press power: 50 to Location: Germany

Condition: ready for operation (used), Year of construction: 1984, Romanian Hot Former AMP 20, AMP 30, AMP 50 lines Press Capacity: 220 tons, 230 and 400 Forming stations: 3, 3 and 4 Forming load: 900 kN, 2500 kN and 8000 kN Iedpstaui Uofx Akwstl Bar Diameter: 14 to 28 mm, 18-40, 28-55 mm Max. part outer diameter: 35 mm Cut-off length: 15 to 40, 20-72, 50-150 mm Ram stroke: 110 mm Ejector stroke: 55 mm Die center distance: 110 mm Production per minute: 12 to 180 Weight: approx. 11, 36 and 90 tonnes Technical documentation: yes Video under power available

Condition: excellent (used), Year of construction: 2008, operating hours: 39,000 h, functionality: fully functional, drilling depth: 1,800 mm, drill diameter: 30 mm, Manufacturer: SFT Model: TBM 3-1500 Machine type: Deep hole drilling machine with BTA system Drilling diameter: 15 – 30 mm Drilling depth: 1800 mm Chip conveyor: included Control: SFT / PS 100 incl. control cabinet Frequency inverter: included Oil sump: included Coolant tank: 2,500 liters oil Coolant pumps: 3 units, each adjustable to 40 liters, 100 bar Signal beacon: included Tailstock: rotating and adjustable according to drilling length Clamping: hydraulic clamping operation Drill spindle: speed regulation available Paintwork: light grey / blue Loading station: automatic door Machine footprint: 7,000 x 1,200 mm Filter footprint: 3,000 x 800 x 1,250 mm Commissioned: late 2007 Recurring maintenance according to manufacturer’s specifications Itodpfxoynui Is Akwsl Available: end of March 2026 Operation: 2/3-shift operation

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, Transfer Header Cold forming SACMA SP250 4 Dies - Revised as new - Fully functional, operational. Revised on 2025. The machine runs without any problems. Available for any tests c/o HBR srl. Machinery fully revised in 2025. Square Wedges. Available with soundproof cabin, conveyor belt and control process Brankamp. Informazioni tecniche: Number of dies: 4 Heading tonnage: 650 KN Maximum cutoff diam 500N/mm²: 10,5 mm. Max. cutoff length: 85 mm. Kickout stroke die max.: 65 mm. Kickout stroke punch max.: 20 mm. Speed pcs. per minute: 275 Power of main motor: 30 KW Diam. die: 54 mm. Length die: 90 mm. Diam. punche fixed: 45 mm. Length. punche fixed: 100 mm. Net weight: 11.000 kg. Gross weight: 12.600 kg. Ijdpfxswq Dy Ae Akwetl Vi aspettiamo in HBR srl a Calolziocorte (LC)

Condition: used, machine/vehicle number: 20023-1, Bolt Former Chun Zu 4 Dies Model: CBF-64S Forging load: 40 tons Max cut-off diameter: 8 mm Max cut-off lenght: 95 mm Itjdpfjzg Nmqsx Akwel Max lenght under head (KO): 80 mm Max. Output: 240 parts/min Year: 2001

Year of construction: 1986, condition: used, Technical details: core drilling diameter max.: 16-65 mm Itedpfx Akjw Dz Taswel bore depth: 600 mm total power requirement: 73 kW weight of the machine ca.: 6 t
