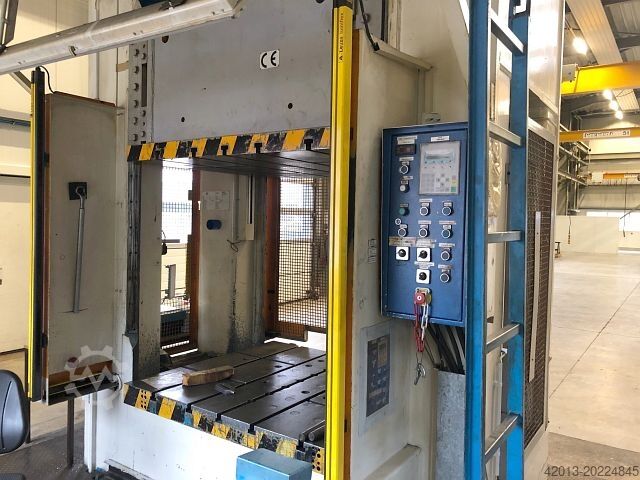

Try-Out Press -hydraulic-LOIRE SAFE
EDIM 350-150/16-14/14-12
Machine data
- Machine type:
- Try-Out Press -hydraulic-
- Manufacturer:
- LOIRE SAFE
- Model:
- EDIM 350-150/16-14/14-12
- Year of construction:
- 1999
- Condition:
- used
Price & Location
- Seller location:
- Reckholder 1, 9527 Niederhelfenschwil, Switzerland
Technical details
- Overall weight:
- 24,000 kg
- Table width:
- 1,400 mm
- Table length:
- 1,600 mm
- Controller manufacturer:
- SIEMENS
- Controller model:
- S5 95U
- Power:
- 60 kW (81.58 HP)
- Lifting height:
- 1,200 mm
- Pressing force:
- 350 t
- Worktable length:
- 1,600 mm
- Distance table to ram:
- 1,250 mm
- Ram stroke:
- 1,200 mm
Details about the offer
- Listing ID:
- A202-24845
- Reference number:
- 41754
- Update:
- 06.10.2025
Description

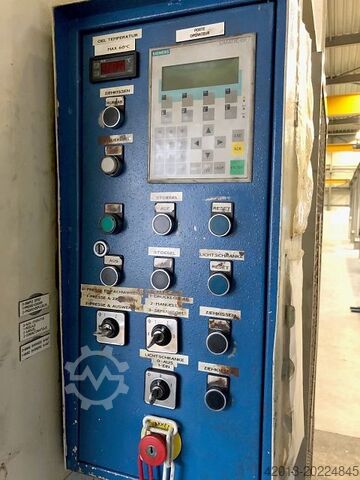

.. PLC SIEMENS S5 95U
PRESS DESIGN
.. drive system: hydraulic
.. openings in uprights: yes
PRESS FORCES
.. total force (nominal): 350 to

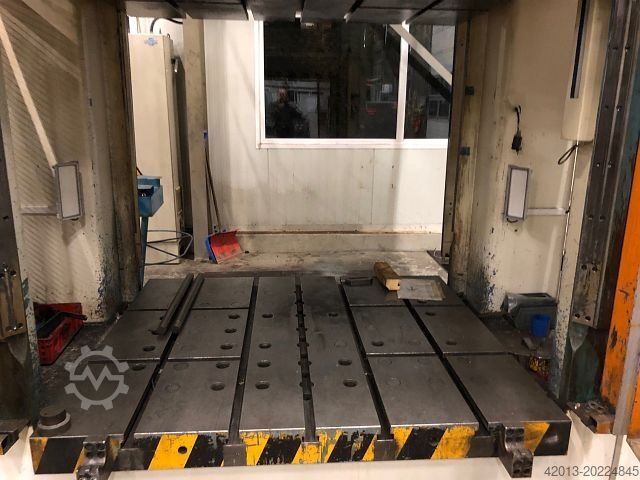

PRESS TABLE
.. table surface (left-right): 1600 mm
.. table surface (front-back): 1400 mm
SLIDE
Chsdpsxlh Iqofx Abwoc
.. stroke: 1200 mm
SLIDE (HYDR. PRESS)
.. approximation velocity max.: 250 mm/s
.. working velocity min.: 14 mm/s
.. working velocity max.: 50 mm/s
TOOL ASSEMBLY DIMENSIONS
.. distance table - slide max.: 1250 mm
.. distance between columns (H-frame): 1650 mm
.. passline opening (free passage in side columns): 630 mm
ELECTRICAL SPECIFICATIONS
.. total power consumption: 60 kW
DIMENSIONS / WEIGHTS
.. height above floor level: 4300 mm
.. height under floor level: 1000 mm
.. total weight approx.: 24000 kg
ATTACHMENTS (PRESSES)
.. European CE standards: yes
