Gear Shaping Machine
LORENZ LS 424

Condition
Used
Location
Malsch Germany

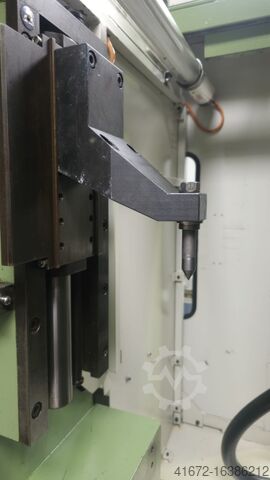

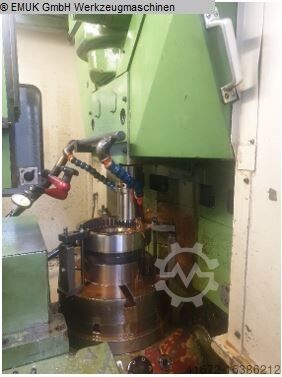

Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
Gear Shaping Machine LORENZ LS 424
more Images
YouTube video
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
LORENZ LS 424
Show map
Show images
Show map

Machine data

Machine type:
Gear Shaping Machine
Manufacturer:
LORENZ
Model:
LS 424
Condition:
like new (used)

Price & Location

Location:
Malsch Germany
Call

Details about the offer

Listing ID:
A163-86212
Reference number:
1058-24136
Update:
23.07.2025

Description

max. wheel diameter 420 mm
gear width 120 mm
max. module 8
min. module 0,5
control BWO CNC
no. of strokes 32-800 Hub/min
total power requirement 50 kW
weight of the machine ca. 9 t
dimensions of the machine ca. 5,3 x 3,9 x 3,4 m
Machines increase 100 mm intermediate plate
automatic Hublageverstellung
automatic Hublängeverstellung
5 axis controlled machine BWO last type C, D, X, Z, L axes are CNC

x-travel 360 mm
z-travel 154 mm
Giodpstycgfjfx Aa Ijl
L-travel 137 mm
max. table load 1000 kg
Control system
Total power requirement 50 kW
Machine weight approx. 8400 tonnes
Space requirement approx. 5.3 x 3.9 x 3.5 m

o Straight guide
o Machine elevation 200 mm
o With automatic workpiece clamping device
o Counter holder

Year of construction: approx. 1989
