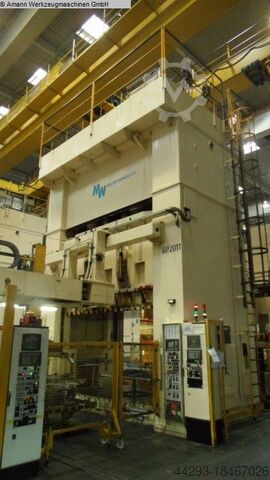

Double Column Drawing Press -Hydr.

MÜLLER BZE 1600-40.7.1

Condition: used, Year of construction: 1973, pressure 1600 t distance between columns 3160 mm ram stroke 1450 mm Njdpfx Asvxwhwoc Howr distance table/blankh.,max. stroke up,adjustm. up 2250 mm table surface area 4000 x 2200 mm ram pressure 1000 t pressure of blank holder 600 t stroke of blankholder at the bottom 1000 mm stroke of blankholder with adjustment 0-100 mm 1450 mm blank holder size 4000 x 2200 mm die-cushion pressure inside the table 360 t stroke of drawing cushion in table 275 / 400 mm ram surface 4000 x 2200 mm column travel -side 1100 mm die-cushion inside the table hydraulic, controlled die-cushion in pusher hydraulic, controlled oil volume 9000 l total power requirement 390 kW weight of the machine ca. 250 t dimensions of the machine ca. 6,0 x 4,3 x 10,5 m Head press (1600 tons) of a press line with five subsequent presses (800 tons)

Condition: new, New hydraulic high speed press from min. 300t up to max. 2500t. We offer new mechanical and hydraulic presses for various applications, individually tailored to your needs. Give us your requirements and we will make an attractive offer with installation and service. ISGEC has delivered to more than 26 countries in recent years, including Thailand, Indonesia, Vietnam, USA, Germany, Spain, France, Brazil, Hungary, Mexico, Bangladesh and over 200 presses to 40 Japanese customers. We are proud to be official sales partner since 2020 and look forward to hearing from you. Njdsf Rt Irjpfx Ac Howr

Year of construction: 1993, condition: used, TYPE : DEA 400/2000 Type YEAR : n.d. Year MAXIMUM SLEDGEHAMMER PRESSURE : TON. 400 Ram capacity SLIDING STROKE : mm. 1,100 Slide strok MAX VERTICAL LIGHT : mm. 1,600 Max shut height TABLE DIMENSIONS : mm. 2,000 x 1,600 Table size RAPID SPEED : mm/sec 650 Fast stroke Nwsdpsihf R Usfx Ac Her TABLE PRESS CAPACITY : TON. 160 Cushion capacity PRE-MILER stroke : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 5,800 Ground up to floor FRONT LIGHT : mm. 3,400 Distance btw uprights LATERAL LIGHT : mm.1,600 Lateral window

Year of construction: 2008, condition: excellent (used), SMG HZPU 8000-3000/2100-S1 Hydraulic Drawing Press Brand SMG Type HZPU 8000-3000/2100-S1 Year 1995 Description Hydraulic Drawing Press H frame hydraulic press Nsdpfjn Awd Rex Ac Hjwr Pressing force 800 ton Clamping area Approx. 3,000 x 2,100 mm Installation height Max. 1,400 mm

Condition: used, pressure 200 t distance between columns 1600 mm max. ram stroke 600 mm dayligth 900 mm table width 1600 mm table depth 1300 mm table height 1060 mm ram surface 1600 x 1300 mm T-slots Din 650 / 22H12 rapid traverse 400 mm/s return speed 325 mm/s Nedsg S R Twepfx Ac Hewr pressing speed 42 mm/s bei 40% mm/sec pressing speed 20 mm/s bei 100% mm/sec die-cushion pressure 800 kN die cushion stroke 150 mm speed of die cushion auf 68/ ab 225 mm/s

Condition: like new (used), Year of construction: 2008, YEAR : 2008 Year MAXIMUM PRESSURE OF THE RAM : Ton. 2.000 Ram capacity SLIDE STROKE : mm. 1500 Slide strok TABLE DIMENSIONS : mm. 5000 x 2380 Table size PRESSION OF THE BLANKHOLDER UPPER : Ton.300 Blankholder STROKE OF THE BLANKHOLDER SLIDE : mm. 200 Cushion stroke ram RAPID SPEED : mm/sec 220 Fast stroke PRESSION OF THE BLANKHOLDER CAPACITY : Ton. 600 Njdpfxjvm Eixo Ac Hswr Cushion capacity STROKE OF THE BLANKHOLDER SLIDE : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 9,145 Ground up to floor FRONT LIGHT: 5000 mm Distance btw uprights TOTAL WEIGHT: KG. n.d

Year of construction: 2005, condition: like new (used), Used Kojima 2200ton hydraulic H frame press for sale Nodpfx Acjlqxg Hs Hjwr Machine Type Hydraulic Press Make Kojima Capacity 2200 tons Stroke 1200 mm Daylight 1800 mm Slide 3200 x 1800 mm Moving Bolster 3200 x 1900 mm Moving Bolster Stroke 2500 mm Moving Bolster Speed 100 mm/sec Die Cushion 100 – 500 ton Cushion Stroke 450 mm Cushion Pad 2000 x 1275 mm Cushion Pin 50 mm dia Slide descending speed 235 mm/sec Hydraulic Tank 3200 litre

Condition: used, Year of construction: 2005, Pressure 800 t distance between columns 2560 mm stroke 1050 mm Distance table/ram, stroke up 1870 mm Table surface area 2500 x 1730 mm pressure of drawing cushion in table 300 t Die cushion stroke in table 395 mm Die cushion area in table 2300 x 1300 mm Ram surface 2500 x 1730 mm Die cushion pressure in ram 63 t Die cushion stroke in ram 150 mm Side window 1000 mm Oil volume 4300 l Power capacity 200,0 kW Dimensions (WxDxH) 4,1 x 2,8 x 10,0 m Height above floor 7,0 m Nedpevuuikofx Ac Howr year of manufacture 1974 overhaul 2005: formerly type BZE 800, converted to ZE 800 by manufacturer with new ram and new cylinder mit ölhydraulischem Antrieb, hydraulischem gesteuertem Ziehkissen im Tisch und Stößel stored in dismantled condition - Video at seller’s site before dismantling available

Condition: new, Year of construction: 2024, pressure 20 t throat 155 mm stroke 6-60 mm no. of strokes 84-210 Hub/min ram - range of adjustment 50 mm 300 mm table surface area 300x450 mm table height 840 mm hole in the table Ø 90 mm ram surface 190x278 mm Nwodpfx Acjvfhqie Hsr tool hole in ram Ø 25 mm total power requirement 1,5 kW weight of the machine ca. 1,0 t dimensions of the machine ca. BxTxH 1100x1100x1900 mm
