Hydraulic Drawing Press

SMG HZPU

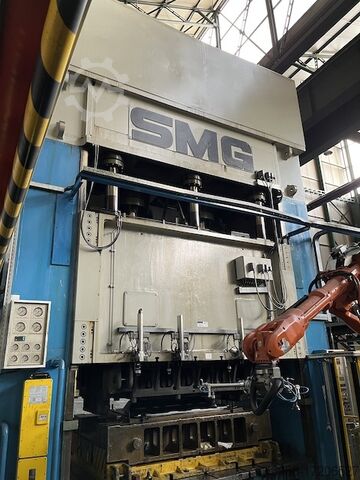

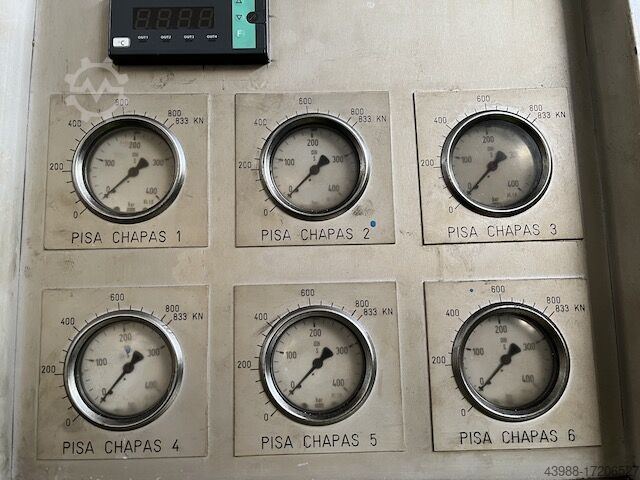

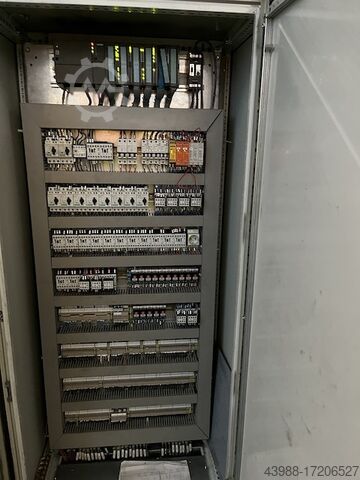

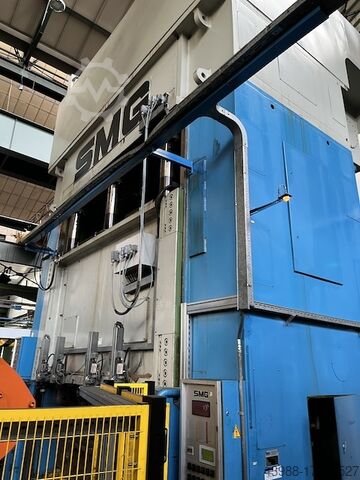

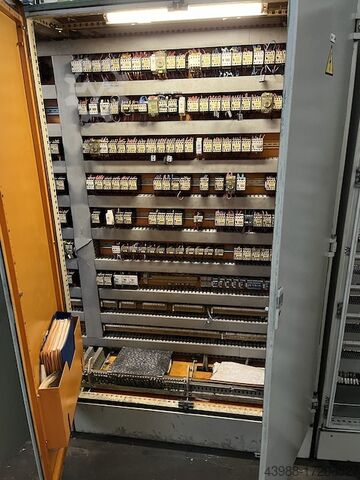

Condition: used, Year of construction: 1989, Pressure total: 1400 ton Stroke: 950 mm Daylight: 2000 mm Table surface area : 3600 x 2500 mm Slide area: 3600 x 2500 mm Die cushion capacity in table: 400 ton Die cushion stroke: 500 mm Die cushion pad area: 3060 x 1860 mm Approach speed: 400 mm / sec Working speed: 40 / 80 mm / sec Return speed: 400 mm / sec Oil volume: 5000 l Required power: 450 kW Weight of machine approx.: 240 ton Phedpfx Acouqdi Uj Hea Standard configuration with hydraulic tool clamps on the ram

Year of construction: 1993, condition: used, TYPE : DEA 400/2000 Type YEAR : n.d. Year MAXIMUM SLEDGEHAMMER PRESSURE : TON. 400 Ram capacity SLIDING STROKE : mm. 1,100 Slide strok MAX VERTICAL LIGHT : mm. 1,600 Pjdpoihf R Uefx Ac Hsha Max shut height TABLE DIMENSIONS : mm. 2,000 x 1,600 Table size RAPID SPEED : mm/sec 650 Fast stroke TABLE PRESS CAPACITY : TON. 160 Cushion capacity PRE-MILER stroke : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 5,800 Ground up to floor FRONT LIGHT : mm. 3,400 Distance btw uprights LATERAL LIGHT : mm.1,600 Lateral window

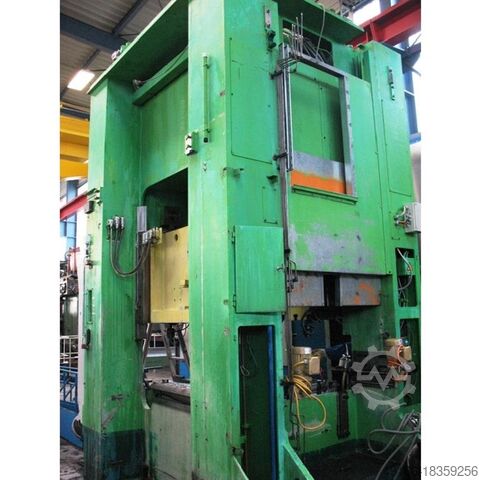

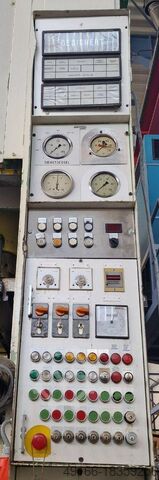

Condition: used, Year of construction: 1997, Pressure 500 t distance between columns 1550 mm stroke 600 mm Podpfx Ajvuk T Eoc Hsha distance table/ram, max. stroke up, adjustment up 900 mm table surface area 1200 x 1300 mm pressure of drawing cushion in table 250 t stroke of drawing cushion in table 150 mm die cushion area 950 x 950 mm table height over floor 1245 mm side window 1250 mm ram surface 1200 x 1300 mm speed down 750 mm/s speed up 780 mm/s working speed 105 mm/s oil volume 4000 l power requirement 263,0 kW weight 45,0 t Dimensions (WxDxH) 3,3 x 3,3 x 6,1 m height over floor 6,1 m YOM 1978 - overhaul 1997 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, pneumatic ejector in ram (0,5 t), cutting impact cushioning with depth stop (motoric adjustable), mechanical ram interlocking in TDC as is where is, WITHOUT putting into operation

Condition: refurbished (used), Year of construction: 1971, functionality: not functional, machine/vehicle number: 7/2118, total height: 4,800 mm, table height: 950 mm, installation height: 800 mm, total width: 2,500 mm, total length: 1,800 mm, pressing force: 100 t, table width: 1,000 mm, table length: 870 mm, operating speed: 400 mm/s, overall weight: 10,800 kg, reverse speed: 300 mm/s, ram plate width: 1,000 mm, ram plate length: 870 mm, distance table to ram: 800 mm, type of input current: three-phase, stroke length: 500 mm, oil tank capacity: 800 l, input voltage: 400 V, pressing speed: 50 mm/s, Equipment: documentation/manual, safety light barrier, The press is currently undergoing a complete overhaul. Cylinder seals have been replaced and the hydraulic pump has been tested for functionality. It is equipped with a hydraulic safety block that complies with the latest safety regulations. A completely new electrical system and PLC control, including a front safety light curtain, ensure the press is almost as good as new. Podpfxjxyxrij Ac Hsha

Condition: used, pressure 200 t distance between columns 1600 mm max. ram stroke 600 mm dayligth 900 mm table width 1600 mm table depth 1300 mm table height 1060 mm ram surface 1600 x 1300 mm T-slots Din 650 / 22H12 rapid traverse 400 mm/s return speed 325 mm/s pressing speed 42 mm/s bei 40% mm/sec pressing speed 20 mm/s bei 100% mm/sec die-cushion pressure 800 kN Phodpfx Aceg S R Tws Hja die cushion stroke 150 mm speed of die cushion auf 68/ ab 225 mm/s

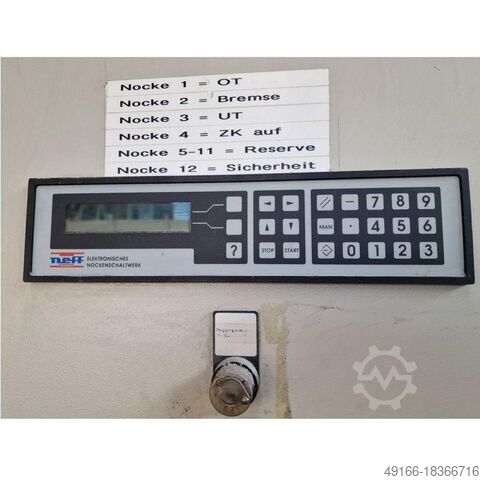

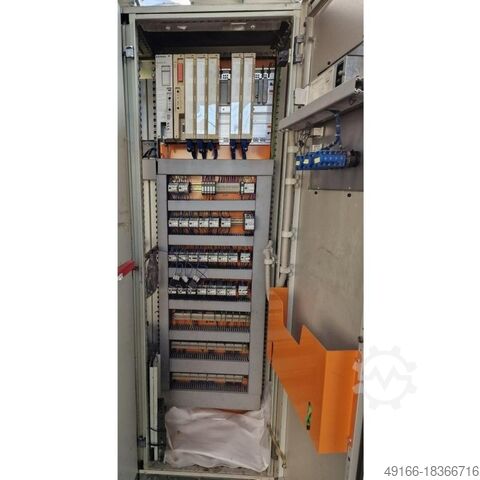

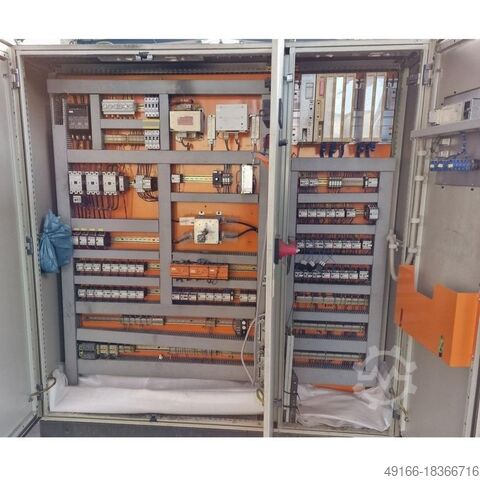

Condition: used, Year of construction: 1992, Pressure 200 t distance between columns 1910 mm stroke 600 mm distance table/ram, max. stroke up, adjustment up 800 mm table surface area 1900 x 1150 mm pressure of drawing cushion in table 80 t stroke of drawing cushion in table 300 mm die cushion area 1500 x 950 mm table height over floor 800 mm Psdpfx Acovuui Rj Hoha side window 1000 mm ram surface 1900 x 1100 mm return capacity 36 t speed down 400 mm/s speed up 170 mm/s working speed 30,5 mm/s oil volume 1500 l height over floor 4,85 m height beneath floor 2,6 m power requirement 45,0 kW weight 38,0 t dimensions (WxDxH) 3,05 x 2,8 x 5,55 m year of manufacture 1975 - modernization 1992 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, ram interlocking can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Condition: like new (used), Year of construction: 2008, YEAR : 2008 Year MAXIMUM PRESSURE OF THE RAM : Ton. 2.000 Podpevm Eixjfx Ac Hoha Ram capacity SLIDE STROKE : mm. 1500 Slide strok TABLE DIMENSIONS : mm. 5000 x 2380 Table size PRESSION OF THE BLANKHOLDER UPPER : Ton.300 Blankholder STROKE OF THE BLANKHOLDER SLIDE : mm. 200 Cushion stroke ram RAPID SPEED : mm/sec 220 Fast stroke PRESSION OF THE BLANKHOLDER CAPACITY : Ton. 600 Cushion capacity STROKE OF THE BLANKHOLDER SLIDE : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 9,145 Ground up to floor FRONT LIGHT: 5000 mm Distance btw uprights TOTAL WEIGHT: KG. n.d

Condition: new, Year of construction: 2024, pressure 20 t Podpjvfhqiefx Ac Hoha throat 155 mm stroke 6-60 mm no. of strokes 84-210 Hub/min ram - range of adjustment 50 mm 300 mm table surface area 300x450 mm table height 840 mm hole in the table Ø 90 mm ram surface 190x278 mm tool hole in ram Ø 25 mm total power requirement 1,5 kW weight of the machine ca. 1,0 t dimensions of the machine ca. BxTxH 1100x1100x1900 mm

Condition: used, Year of construction: 1973, Pressure 1600 t distance between columns 4100 mm slide stroke 1450 mm Distance table/ram, stroke up 2750 mm distance table/blank holder, stroke up 2200 Podpfxevut Ifs Ac Hoha Table surface area 4000 x 2200 mm ram pressure 1000 t Pressure of blank holder 600 t stroke of blankholder 1000 mm blank holder surface 4050 x 2200 mm Ram surface 3200 x 1650 mm pressure of drawing cushion in table 360 t Die cushion stroke in table 300 mm die cushion area 3500 x 1600 mm Side window 1100 mm Oil volume 9000 l Power capacity 390,0 kW Weight 250,0 t Dimensions (WxDxH) 5,95 x 4,3 x 10,5 m Height above floor 8,6 m with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram stored in dismantled condition - Video at seller’s site before dismantling available
