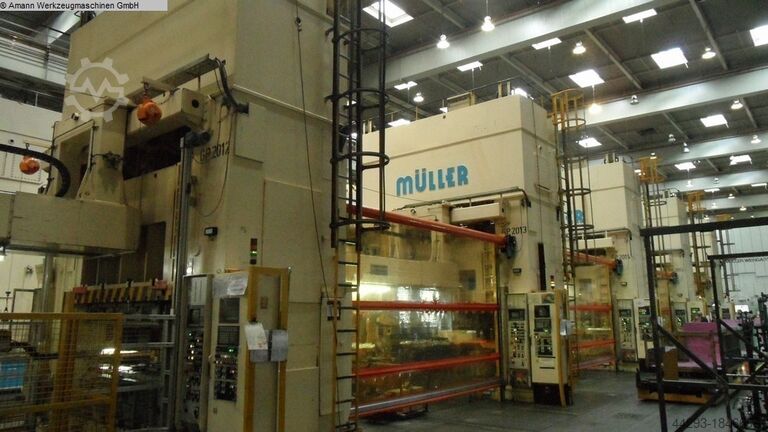

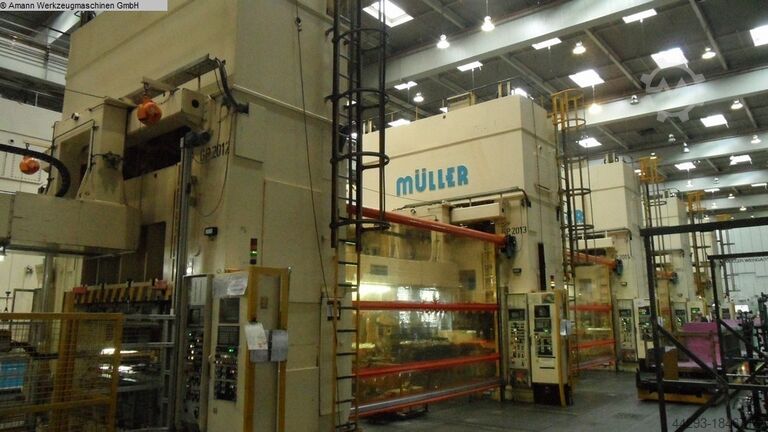

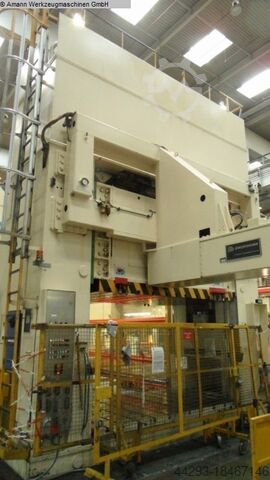

Double Column Drawing Press -Hydr.

MÜLLER ZE 800-31.1.1

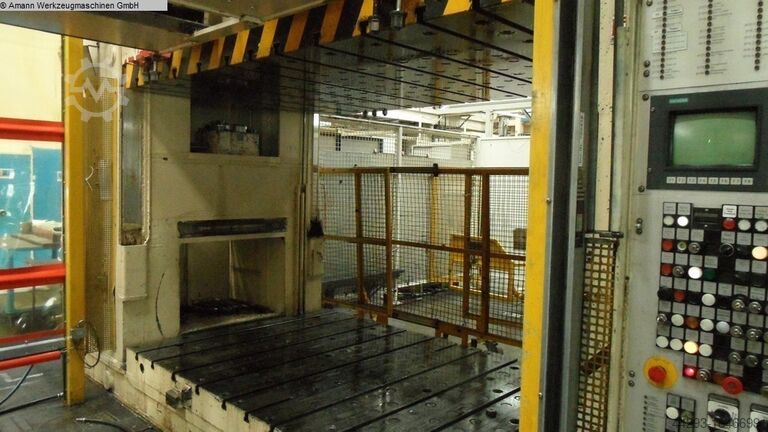

Condition: used, Year of construction: 1972, Pressure 800 t distance between columns 3250 mm stroke 1100 mm Distance table/ram, stroke up 1900 mm Table surface area 3100 x 1900 mm pressure of drawing cushion in table 300 t Die cushion stroke in table 300 mm Die cushion area in table 2500 x 1800 mm Die cushion pressure in ram 80 t Die cushion stroke in ram 200 mm Die cushion area in ram 2200 x 1000 mm Ram surface 3100 x 1900 mm Side window 900 mm Oil volume 4700 l Bsdpfxjvuuhys Abmolp Power capacity 200,0 kW Dimensions (WxDxH) 4,95 x 3,3 x 10,2 m Height above floor 7,05 m with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning stored in dismantled condition - Video at seller’s site before dismantling available

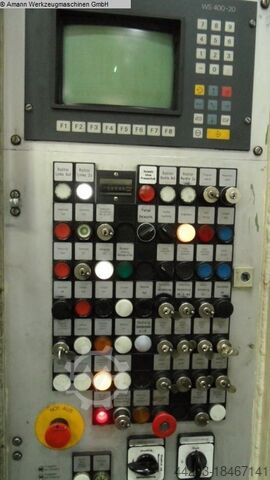

Condition: used, Year of construction: 1972, pressure 800 t distance between columns 3160 mm stroke 1100 mm control Siemens S5 distance table/blankh.,max. stroke up,adjustm. up 1900 mm table surface area 3100 x 1900 mm die-cushion pressure inside the table 300 t stroke of drawing cushion in table 400 mm die-cushion pressure in pusher 80 t stroke of drawing cushion in table 150 mm ram surface 3100 x 1900 mm die-cushion in pusher hydraulic, controlled die-cushion inside the table hydraulic, controlled total power requirement 200 kW weight of the machine ca. 150 t dimensions of the machine ca. 4,95 x 3,3 x 10,2 m Bedpfxovxwm To Abmjlp

Condition: used, Year of construction: 1972, pressure 800 t distance between columns 3160 mm stroke 1100 mm control Siemens S5 distance table/blankh.,max. stroke up,adjustm. up 1900 mm table surface area 3100 x 1900 mm die-cushion pressure inside the table 300 t stroke of drawing cushion in table 400 mm die-cushion pressure in pusher 80 t stroke of drawing cushion in table 150 mm Blsdpfjvxwmmsx Abmep ram surface 3100 x 1900 mm die-cushion in pusher hydraulic, controlled die-cushion inside the table hydraulic, controlled total power requirement 200 kW weight of the machine ca. 150 t dimensions of the machine ca. 4,95 x 3,3 x 10,2 m

Condition: used, Year of construction: 1972, pressure 800 t distance between columns 3160 mm stroke 1100 mm control Siemens S5 distance table/blankh.,max. stroke up,adjustm. up 1900 mm table surface area 3100 x 1900 mm die-cushion pressure inside the table 300 t stroke of drawing cushion in table 400 mm die-cushion pressure in pusher 80 t stroke of drawing cushion in table 150 mm ram surface 3100 x 1900 mm die-cushion in pusher hydraulic, controlled die-cushion inside the table hydraulic, controlled total power requirement 200 kW weight of the machine ca. 150 t Bodpfxjvxwmgj Abmjlp dimensions of the machine ca. 4,95 x 3,3 x 10,2 m

Condition: used, Year of construction: 1972, pressure 800 t distance between columns 3160 mm stroke 1100 mm control Siemens S5 distance table/blankh.,max. stroke up,adjustm. up 1900 mm table surface area 3100 x 1900 mm die-cushion pressure inside the table 300 t stroke of drawing cushion in table 400 mm die-cushion pressure in pusher 80 t stroke of drawing cushion in table 150 mm ram surface 3100 x 1900 mm die-cushion in pusher hydraulic, controlled die-cushion inside the table hydraulic, controlled Bodovxwgtepfx Abmelp total power requirement 200 kW weight of the machine ca. 150 t dimensions of the machine ca. 4,95 x 3,3 x 10,2 m
