Hydraulic press

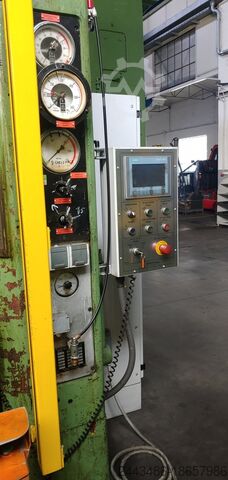

Müller ZE_315_16

Condition: used, Year of construction: 2007, pressure 315 t distance between columns 1750 mm stroke 700 mm distance table/ram, max. stroke up, adjustment up 1200 mm Djdpfx Ahevuukbs Soul table surface area 1600 x 1500 mm pressure of drawing cushion in table 125 t stroke of drawing cushion in table 200 mm die cushion area 1200 x 1400 mm table height over floor 750 mm ram surface 1640 x 1500 mm power requirement 55,0 + 11,0 kW weight 29,5 t dimensions (WxDxH) 3,2 x 4,5 x 5,8 m Height above floor 5,1 m year of manufacture 1983 - 2007: modernization of electrical control (Siemens S 7) permitted for manual put-in according to the CE Regulations with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic cutting impact cushioning can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Condition: used, pressure 160 t passage width / mm stroke / mm Working height 800 mm total power requirement 15 kW weight of the machine ca. 11,8 t - Table size: 1000x1000mm - Distance table/ram, large stroke above, gain. above: 800mm Duodpfx Ajiulkqsh Sel extra information Removable table

Condition: new, Year of construction: 2018, machine/vehicle number: DF0199 - Rev.00, pressure:160 t passage width:1200 mm stroke:600 mm Weight of machine approx.:7 t dimensions:ca. 2400 x 1400 x 3400 mm return capacity:16 t Max Working height:800 mm Return Speed:25 mm/sec pestle plate:1670 x 800 mm table plate:1670 x 800 mm table height over floor:800 mm Oil cooling (electric):1,5 kW (max) Engine Output:18 kW Dujdpfx Ahedxvfho Sol speed of forward flow:10 mm/sec pressure speed:10 mm/sec Travel:600 mm Oil Tank Capacity:300 l

Condition: new, Year of construction: 2019, machine/vehicle number: DF0309, pressure:200 t table length:2500 mm table width:2000 mm stroke max.:2050 mm dimensions:ca. 9200 x 4700 x 5800 mm draw back pressure:25 t Approx. weight (w/o operational materials):50 t column diameter:210 mm table speed:25 mm/sec table extendable:2000 mm table speed:30 mm/sec table load:15 t power capacity:20 kW work speed:1 - 10 mm/sec. pre-running speed:10 mm/sec :25 mm/sec :10 mm/sec. Oil Tank Capacity:400 l Oil cooling (electric):1,5 kW (max) Podestal height:650 mm Table Height:800 mm Ram Height:850 mm Control System by Siemens:S7 1200 Monitor:WEG 12 Zoll :10200 ? Maintenance Balcony:5000 ? :4.000,-- ? :1.000,-- ? :18000 ? :1.500,-- ? :12000 ? Upper Tool Folding:170 Grad Swivel table:75 Grad Table tiltable:75 Grad Ajecters with 60T in the pestle centre:12000 ? Blessed plate folding by 180 degrees:14000 ? Dodpofxyi Dsfx Ah Seul

Condition: excellent (used), Year of construction: 1969, functionality: fully functional, pressing force: 160 t, table width: 1,200 mm, table length: 800 mm, working height: 600 mm, stroke length: 650 mm, Equipment: safety light barrier, Lasco TSP 160S press A press in very good technical condition for sale from a liquidated stamping shop in Poland Djdpfx Ahjv E Rd Es Seul Modernized in 2019. New Simatic S7 control system and new electrical cabinet. Optical barriers installed. Possibility to check the machine in operation - The press is still connected to the power supply. Lasco TSP 160S press A press in very good technical condition for sale from a liquidated stamping shop in Poland Modernized in 2019. New Simatic S7 control system and new electrical cabinet. Optical barriers installed as well. Possibility to check the machine in operation - The press is still connected to the power supply.

Condition: excellent (used), Year of construction: 1989, functionality: fully functional, WE OFFER AN BEAUTIFULL CONDITION DEEP DRAWN PRESS 160 TON WITH BACK FORCE BOTTOM 70 TON MACHINE WAS BUILD ON ORDER MACHINE WAS USED ONLY A COUPLE TIMES PER YEAR FOR SOME SMALL PARTS. CONDITION IS EXCELLENT . NEWER RUN A PRODUCTION. WE CAN ALSO DELIVER MACHINE FOR A CUSTOMER TABLE SIZE: 1030 X 630 Dodpfx Ahovxbn Us Seul OPEN GAP: 740 MM TOTAL WEIGHT APPROX 8000KG DIMENSION 1500 X 1500 X 4000
