Sharkmütek
630 K
Shark
mütek
630 K
Year of construction
2024
Condition
Ex-display machine
Location
Neckartailfingen

Show images
Show map
Price & Location
- Location:
- Grienweg 38, 72666 Neckartailfingen, Deutschland

Call
Details about the offer
- Listing ID:
- A399-4547
- Reference number:
- MGZ
- Update:
- 27.01.2026
Description

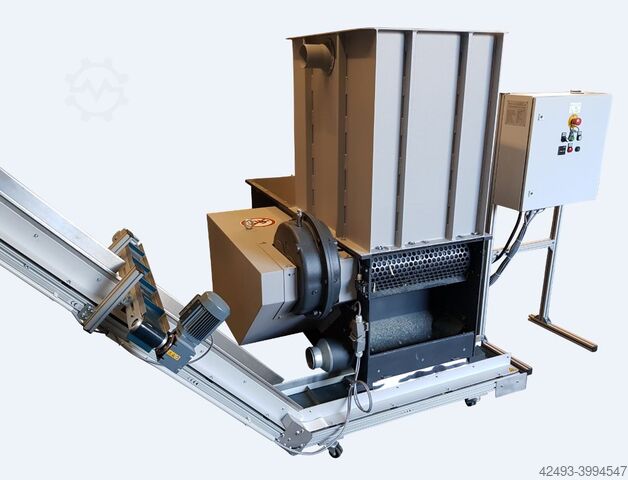

Special-purpose machine for plastics shredding
Base machine from €24,990 net
Ideally suited for shredding:
- Paper, cardboard, pipes, profiles, boxes, canisters, buckets, cans, wooden pallet offcuts, etc.
Hsdpsd H R Sxsfx Afcsi
- Medium-hard thermoplastics such as PVC, PP, PE, PS, PU, PET
Included:
- Special rotor with embedded knives (reduced load uptake)
- Minimal cutting gap between rotor and counter knives
Motor: 18.5 kW; 400 V - 50 Hz - 3 ph
Control: PLC
Cutting chamber opening at the top: 600 x 800 mm
Maximum recommended input material size: approx. 500 x 500 mm (*height less critical)
Hydraulically actuated pusher
Screen perforation options: 25 - 40 mm
For plastics, coarser screens are recommended (30-40 mm)
*For finer granulation, a two-stage shredding process with downstream granulator type MVZ (screens 5-15 mm) is recommended
Exhaust port Ø 160 mm
Weight: approx. 1,300 kg
Dimensions (LxWxH): approx. 1737 x 1167 x 1650 mm
Additional options available at extra charge:
- Raise shredder by approx. 25 cm (preparation for conveyor discharge): + €1,980 net
- Inclined conveyor belt (discharge height approx. 220 cm): + €8,770 net
- Overbelt magnet: + €5,980 net
- Conveyor and overbelt magnet control: + €2,750 net (synchronized start/stop with shredder)
- Alternatively, manual start/stop function at conveyor: + €595 net
Raw material requirements:
- Moisture content (atro) must be below 25%
- Metals and mineral contaminants such as sand, stones, etc. will result in increased wear
We are happy to offer a free test using your material at our facility in Neckartailfingen. Alternatively, you may send your material to us via freight forwarder and we will document the test using photos and videos.
---
* Only for brittle plastics of medium hardness.
* Not suitable for elastic or extremely hard and heavy plastics – this will negatively impact the durability of the system.
---
Optional: Larger machine sizes available
Base machine: Shredder MGZ 830 K-S – 18.5 kW
Cutting chamber opening at the top: 800 x 1,000 mm
Maximum recommended input material size: approx. 720 x 700 mm (*height less critical)
From €39,995 net (*options subject to additional cost)
Base machine: Shredder MGZ 1030 K-S – 22 kW
Cutting chamber opening at the top: 1,000 x 1,000 mm
Maximum recommended input material size: approx. 900 x 700 mm (*height less critical)
From €49,975 net (*options subject to additional cost)
Base machine: Shredder MGZ 1330 K-S – 37 kW
Cutting chamber opening at the top: 1,300 x 1,200 mm
Maximum recommended input material size: approx. 1,200 x 700 mm (*height less critical)
From €79,975 net (*options subject to additional cost)
The listing was translated automatically. Translation errors are possible.
Base machine from €24,990 net
Ideally suited for shredding:
- Paper, cardboard, pipes, profiles, boxes, canisters, buckets, cans, wooden pallet offcuts, etc.
Hsdpsd H R Sxsfx Afcsi
- Medium-hard thermoplastics such as PVC, PP, PE, PS, PU, PET
Included:
- Special rotor with embedded knives (reduced load uptake)
- Minimal cutting gap between rotor and counter knives
Motor: 18.5 kW; 400 V - 50 Hz - 3 ph
Control: PLC
Cutting chamber opening at the top: 600 x 800 mm
Maximum recommended input material size: approx. 500 x 500 mm (*height less critical)
Hydraulically actuated pusher
Screen perforation options: 25 - 40 mm
For plastics, coarser screens are recommended (30-40 mm)
*For finer granulation, a two-stage shredding process with downstream granulator type MVZ (screens 5-15 mm) is recommended
Exhaust port Ø 160 mm
Weight: approx. 1,300 kg
Dimensions (LxWxH): approx. 1737 x 1167 x 1650 mm
Additional options available at extra charge:
- Raise shredder by approx. 25 cm (preparation for conveyor discharge): + €1,980 net
- Inclined conveyor belt (discharge height approx. 220 cm): + €8,770 net
- Overbelt magnet: + €5,980 net
- Conveyor and overbelt magnet control: + €2,750 net (synchronized start/stop with shredder)
- Alternatively, manual start/stop function at conveyor: + €595 net
Raw material requirements:
- Moisture content (atro) must be below 25%
- Metals and mineral contaminants such as sand, stones, etc. will result in increased wear
We are happy to offer a free test using your material at our facility in Neckartailfingen. Alternatively, you may send your material to us via freight forwarder and we will document the test using photos and videos.
---
* Only for brittle plastics of medium hardness.
* Not suitable for elastic or extremely hard and heavy plastics – this will negatively impact the durability of the system.
---
Optional: Larger machine sizes available
Base machine: Shredder MGZ 830 K-S – 18.5 kW
Cutting chamber opening at the top: 800 x 1,000 mm
Maximum recommended input material size: approx. 720 x 700 mm (*height less critical)
From €39,995 net (*options subject to additional cost)
Base machine: Shredder MGZ 1030 K-S – 22 kW
Cutting chamber opening at the top: 1,000 x 1,000 mm
Maximum recommended input material size: approx. 900 x 700 mm (*height less critical)
From €49,975 net (*options subject to additional cost)
Base machine: Shredder MGZ 1330 K-S – 37 kW
Cutting chamber opening at the top: 1,300 x 1,200 mm
Maximum recommended input material size: approx. 1,200 x 700 mm (*height less critical)
From €79,975 net (*options subject to additional cost)
The listing was translated automatically. Translation errors are possible.
