Ballenauflöser

mütek

Overview - of the different variants
*Not every item is required:

Optional:

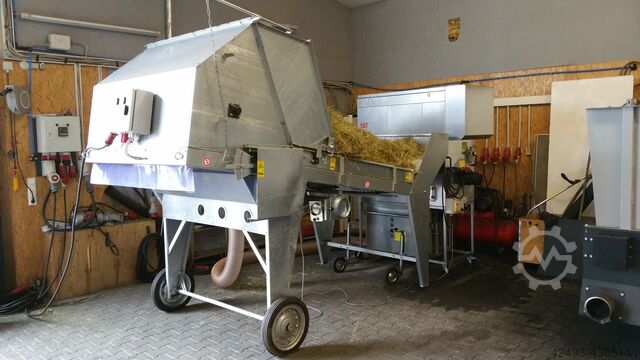

- Bale breaker MHB from €24,990 net
- Straw mill MHZ from €7,980 net
- Special hopper €970 net
- Cyclone from €3,750 net
- Sheet metal silo demonstrator with discharge system (only shown schematically in the picture)
*optional, if you want to feed it with a wheel loader
Individual price net from €14,750 - demonstrator
- Dust extraction screw - length approx. 4 m
4 sieves are mounted on the underside, which are used for suction.
Individual price net from: €9,750
- Suction parts / hoses, lump sum €945 net
- Control system for the entire system
Individual price net: €2,750
- Demonstrator suction unit MMJET 160, with cleaning
Connection 160,
Fan 2.2 kW
Air flow 1850 m³ / 400 V
Automatic compressed air cleaning
Individual price net from: €6,950
- Bale press B 400
Bales approx. 400x400x800 (height adjustable)
Up to 30 bales per hour with approx. 20 kg
from €59,995 net
*A reference system (baler) is located in postal code: 64579 Gernsheim

Technical data:
Bale size (W x D x H): 400 x 400 x 800 (height can be adjusted on request)
Weight of the bale +/- 20 KG (material-dependent)
Capacity: approx. 30 bales per hour
Hopper capacity approx. 0.7 m³
Level sensors for min./max. level in the hopper
Hydraulic pre-compressor
Hydraulic press ram
Hydraulic unit, valve block with oil tank
Kjdpoff Sbiofx Ai Redr
Pump 18.5 kW / 50 liters
Rollers in the press channel for easy bale discharge
Dimensions (L x W x H) 3105x2830x2455 mm
Weight approx. 1500 KG

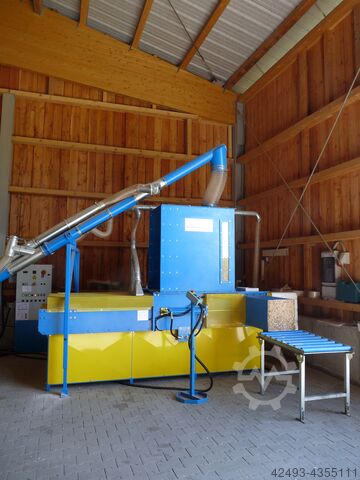

mütek bale presses / packaging machines have been developed for the production of bales from a wide variety of materials, such as shredded miscanthus or elephant grass, wood chips, sawdust and shredded straw. The machine is characterized by a robust design, which guarantees consistent quality in continuous operation.
The bale press compresses the material fed into the hopper without the addition of binders by means of hydraulic pressure and packages the material in plastic bags. The volume of the material can be significantly reduced with the bale press. The volume reduction rate depends on the material. The maximum material moisture content must not exceed 18% dry weight.
The hopper of the mütek bale press can be filled automatically or manually and has a volume of approx. 0.7 m³. Hoppers with larger volumes or with an integrated suction and filter system as a complete disposal unit are also available. In addition to automatic filling via a dust extraction system, mütek also offers filling by means of screw conveyors. In both variants, automatic dust extraction is possible.
mütek bale presses are equipped with a control cabinet.

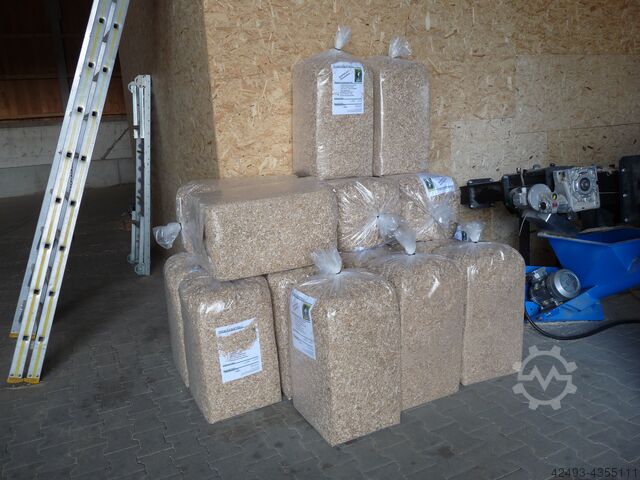

In the standard version, the dimensions of the bales (width x depth x height) are 400 x 400 x 800 mm. However, the height can be adjusted to your requirements on request.

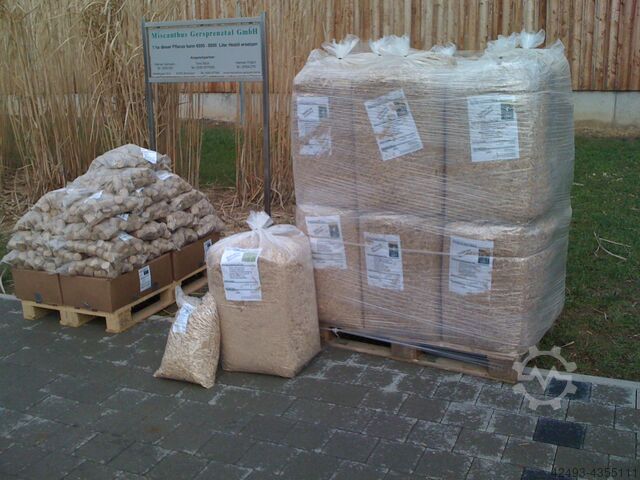

The following advantages result from the production of bales:
- simple and safe storage
- no loose dust
- Minimization of the storage volume
- Low transport volume

*Requirements for the raw material:
- dry (max. 30% dry weight)
- maximum 35 mm long

The listing was translated automatically. Translation errors are possible.
