Shredder

630 / 18,5 kW

Condition: like new (used), Year of construction: 2026, Demonstration machine with approximately 9 operating hours Another machine, available immediately (ex works Neckartailfingen) *Options available at an extra charge - see below Included: + Profile rotor for higher throughput We would be happy to provide a free test with your material. We invite you to visit us in Neckartailfingen for this purpose. Alternatively, you can send us your material via a freight forwarder, and we will document the test with photos and videos. Motor: 18.5 kW; 400 V - 50 Hz - 3-phase Knives: 15 pieces, reversible Option: double knife row + €995 net Rotor diameter: 260 mm Control: Siemens S7-1200 PLC Cutting chamber opening: 630 x 820 mm Hopper volume: approx. 0.6 m³ Hydraulically actuated slide Screen mesh size as desired (10 - 40 mm) Suction nozzle Ø 160 mm Weight: approx. 1,300 kg Dimensions (L x W x H): approx. 1737 x 1167 x 1650 mm Moisture content: < 30% (dry basis) . Standard included: - V-rotor for maximum throughput - Control cabinet with Siemens PLC control - Automatic star/delta start - Fast hydraulics - Auto. OFF when the rotor is idle - Speed 70-90 RPM for high throughput - Cycle control to avoid idle times - Performance-enhancing stepped control of the hydraulic slide - Pertinax guides for hydraulic slide - Vibration-damping machine feet - CE compliant . Optional shredder features at an extra charge: - Raise the shredder by 30 cm (preparation for a conveyor belt) + €2,080 net - Eco-rings: + €1,980 net (recommended for more than 20% hardwood) - Double knife row + €995 net - Special scraper + €990 net (recommended when shredding veneer or paper, or items with a material thickness of less than 3 mm) - Articulating conveyor belt + €8,770 net Angle: adjustable from 0-60 degrees Discharge height: approx. 2000 mm - Automatic overband magnet + €5,980 net Alternatively, a fixed magnet block above the conveyor belt for regular manual removal + €990 net (in case of low metal content) - Control for conveyor belt and overband magnet + €2,750 net Hsdpfx Aob Ny Eyeltsnt (Start and stop synchronized with the shredder) alternatively, manual start and stop of the belts + €595 net . Requirements for the raw material: - The moisture content (dry basis) must be below 30% - Installation temperature: temperature-controlled room at a minimum of +5°C - Metals and mineral contaminants such as sand, stones, etc. lead to increased wear

Condition: new, Bernardo Edge Sander KSM 3000 C with Veneer Sanding Attachment Technical Specifications Work table 960 x 350 mm Table height adjustment 210 mm Belt length 3000 mm Belt width 150 mm Sanding belt backing 1060 x 200 mm Sanding head swivels 90° - 45° Belt speed 20 m/s Additional table 330 x 330 mm Oscillation stroke 20 mm Oscillation motor 0.25 kW (0.34 hp) Dust extraction connection Ø 120 mm Motor output S1 100% 3.0 kW (4.0 hp) Motor input S6 40% 4.5 kW (6.0 hp) Voltage 400 V Machine dimensions (W x D x H) 1910 x 840 x 1020 mm Weight approx. 330 kg Scope of delivery Sanding belt 3000 x 150 mm - K100 Sanding belt oscillation Veneer sanding attachment Additional table Graphite coating Miter fence Hnsdjd N Tdmepfx Altet Sanding platen Dust extraction hose Features • Heavy-duty machine stand in a torsion-resistant and vibration-free design, extremely stable • Serrated infeed fence, ideal for sanding veneer overhangs • Double-sided dust extraction connection 80 / 100 mm for optimal chip extraction • Oscillating sanding belt ensures high material removal and a clean sanding finish • Maintenance-free sanding belt oscillation with separate gear motor, can be switched on as desired • Height-adjustable sanding table for utilizing the entire sanding belt • Standard veneer edge sanding attachment with fine adjustment • Quick changeover from veneer to solid wood sanding possible • Height adjustment of the work table or swiveling of the sanding head is done via handwheels • Spring-loaded belt tension, resulting in automatic compensation for belt length differences • Height-adjustable additional table with dust extraction for sanding radii

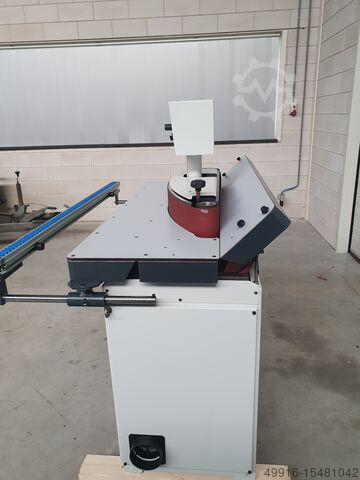

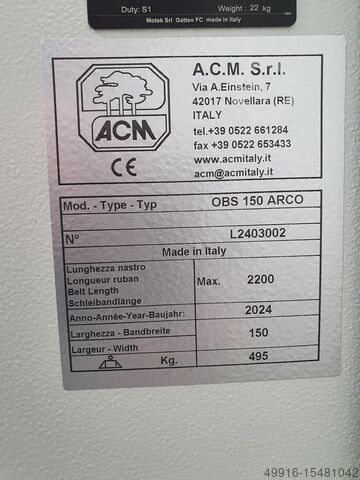

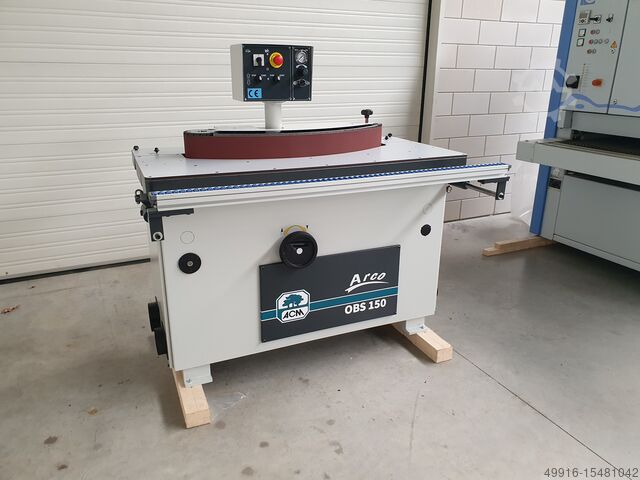

Condition: new, Year of construction: 2024, table length: 1,450 mm, table width: 500 mm, overall weight: 550 kg, input voltage: 400 V, oscillation stroke: 20 mm, input frequency: 50 Hz, OBS 150 ARCO edge sanding machine. NEW. Sanding height 150 Oscillation stroke 20 mm Machine length 1450 mm Front side of the processing side is curved Hodpfjr Erhwex Altjnt Table spread (adjustable) Rear side for straight processing. Table tiltable up to 45 gr. Motor power 2.5 kW, 2 speeds. Sanding speed 11.5 and 8 meters/sec. Central extraction Diam 140 mm. Pneumatic tensioning of sanding belt. The machine is very suitable for staircase manufacturers.

Condition: good (used), Year of construction: 2014, functionality: fully functional, Roll slitter type RGS50 - used Condition: good For slitting and shredding wound paper, cardboard, or plastic rolls onto a cardboard core Hnedpfxjyn Agho Altjt - Motor power: 15 kW / double pump, 32 amps / 5-pole – 50 Hz, 3-phase - Control: PLC-supported, with two-hand safety circuit - Cutting force: 2 x 25 tons - Blade length: 2500 mm - Max. opening: 1600 mm With roll loading stand for increased work height and single-sided roll discharge - roll discharge height approx. 1200 mm Machine has been factory-tested and partially overhauled, ready for immediate use.
