Electromechanical Plate Rolling Machine ESR 1300 × 4.5 mm with Asymmetric Rolls

The ESR 1300 × 4.5 mm electromechanical plate rolling machine with asymmetric rolls is designed for manufacturing cylindrical and conical shells with various diameters. The machine is intended for bending metal sheets with a maximum thickness of 4.5 mm and a working length of up to 1300 mm. The upper roll diameter is 120 mm.

Three-roll bending machines from this series are highly popular due to their relatively simple yet functional construction, offering reliable performance and versatility for a wide range of metalworking applications.
Codsw H Rqyopfx Ac Deha

Machine Features
Asymmetric roll arrangement for easier sheet positioning and efficient bending.
Upper and lower rolls driven by an electric motor through a gear system and chain transmission.
Upper roll rotation in both directions with a tilting and opening mechanism for easy removal of finished workpieces.

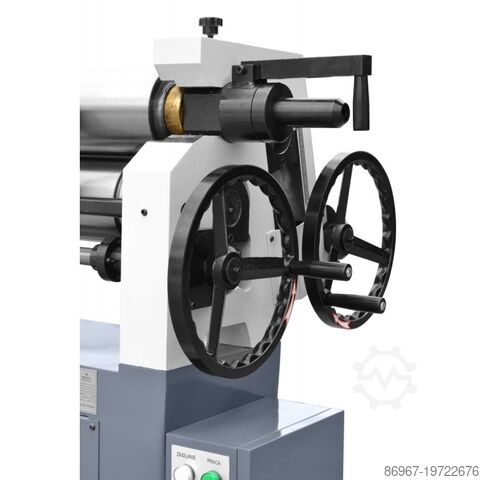

Height-adjustable lower and side rolls with manual adjustment.
Cone bending capability for producing tapered components.
Foot pedal control unit with an emergency stop button for safe and convenient operation.
Construction and Technology

The chain drive transfers rotation from the electric motor to the rolls, ensuring reliable power transmission and smooth operation. The upper roll is equipped with a folding mechanism, which allows quick and easy removal of completed cylindrical and conical parts.

The folding roll is fitted with a locking system that prevents accidental opening during operation, improving safety and stability during the bending process.

Technical Specifications
Parameter Value
Model ESR 1300 × 4.5 mm
Maximum working width 1300 mm
Roll diameter 120 mm
Maximum material thickness 4.5 mm
Motor power 2.2 kW
Dimensions (L × W × H) 1810 × 640 × 1050 mm
Weight Approx. 660 kg (±2%)
Standard Equipment
Foot pedal control unit
User manual
CE Declaration of Conformity

Manufacturer: CORMAK
