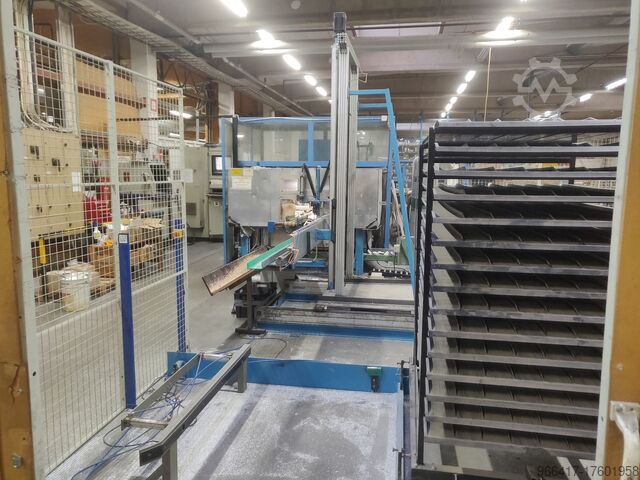

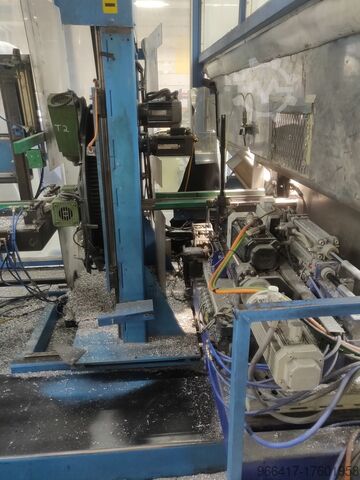

Aluminum profile processing device

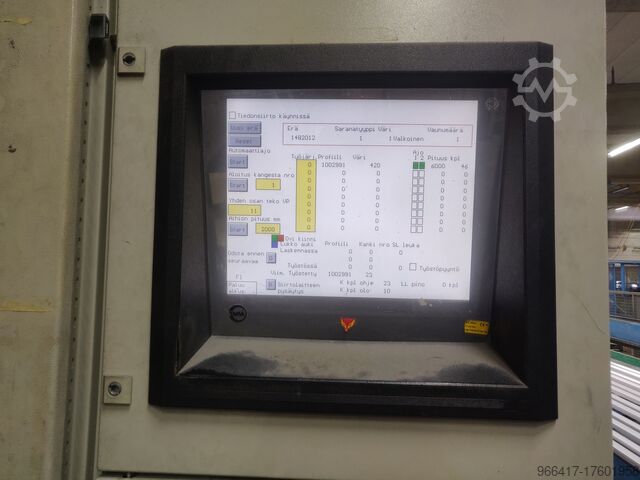

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, working width: 450 mm, Equipment: safety light barrier, TECHNICAL DETAILS Working width: 450 mm (limited processing up to 520 mm possible) EQUIPMENT - Safety light barrier - Saw - Universal milling unit with roller cutter - Dovetail cutter - Finger joint cutter - Drilling units: 1x horizontal + 2x vertical - Slotting device - Marker on stop side - Automatic beam turning station - Wood length is now processed in the feed up to 16m - Control computer with EKP program included Bsdoyfhi Nspfx Agpjlc

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Blodpfsuiy Nyex Agpoc Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. The machine will be overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 89N1160, cutting width (max.): 800 mm, insertion depth: 800 mm, overall weight: 900 kg, reverse speed: 70 mm/s, TECHNICAL DETAILS Cutting width: 800 mm Insertion depth: 800 mm Maximum operating height: 100 mm Pressing force: 180–2,700 daN Minimum cut without cover plate: 15 mm Minimum cut with cover plate: 50 mm Return speed: 70 mm/s MACHINE DETAILS Power consumption: 4.0 kVA Power supply: 400 V, 50 Hz, 2.6 A Control: 18.5" touchscreen Program memory: 1,998 jobs Total cuts: 24,551 Weight: 900 kg Table: Stainless steel with air support EQUIPMENT 1× mounted POLAR 78 1× new POLAR 78 SKH-2, 960×110×11.7 mm Process visualization Hydraulic swinging angled cut LED cutting line indicator Air table Robust machine body Ultra-fast knife change with POLAR OptiKnife Bodpfx Agoycr Ikepslc New spare knife

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: FW907009F, load capacity: 70 kg, arm reach: 2,050 mm, controller model: CR760-70VD1-1-S15, repeat accuracy: 0.07 mm, operating speed: 13,000 mm/s, TECHNICAL DETAILS Payload: 70 kg Maximum reach: 2,050 mm Repeatability: ±0.07 mm Protection class: IP67 Speed: 13,000 mm/s Working ranges J1 (rotational axis): 330° J2 (tilting axis): 215° J3 (arm axis): 261° J4 (wrist rotation axis): 720° J5 (wrist tilting axis): 250° J6 (wrist rotation axis): 900° MACHINE DETAILS Power consumption: 20,000 VA Power supply: 3-phase, 180-253 VAC Blsdpfx Agoycq Hxepjc Controller (CE version): CR760-70VD1-1-S15 Hand controller (Teaching box): R56TB (new) Dimensions & Weight Dimensions (L x W x H): 1,955 x 648 x 1,852 mm Width: 648 mm Height: 1,852 mm Robot weight: 640 kg Controller weight: 200 kg

Year of construction: 2024, condition: new, Trolley for carriage and storage of profiles in vertical position COMALL CARR 300 Q, new Technical specifications: - 10 compartments with working size 128 mm - Contact surfaces coated with non-scratch and shock-proof plastic material - 4 wheels Ø 125 mm, 2 of them with locking device Bledpfx Agof Nk H Hepsc - Arms adjustable in 5 different positions - Rubber-coated supporting table - Loading: 650 Kg

Condition: ready for operation (used), Year of construction: 2007, operating hours: 32,000 h, functionality: fully functional, spindle speed (max.): 8,000 rpm, travel distance Z-axis: 140 mm, counter spindle speed (max.): 8,000 rpm, number of axes: 5, Equipment: bar feeder, TECHNICAL DETAILS Number of axes: 5 Number of spindles: 2 Main spindle Bjdpfx Ageycp Nlopolc Max. bar diameter: 16 mm Z-axis travel: 140 mm Spindle speed: 8,000 rpm Spindle drive power: 2.2 kW Number of tool positions: 13 Sub-spindle Max. bar diameter: 12 mm Spindle speed: 8,000 rpm Number of tool positions: 4 MACHINE DETAILS Control: FANUC 18i-T Operating hours: 32,000 h EQUIPMENT FMB Minimag bar loading magazine Note: Dismantling and loading can be carried out by the seller for €1,500.

Condition: ready for operation (used), Year of construction: 2000, operating hours: 47,000 h, functionality: fully functional, spindle speed (max.): 8,000 rpm, travel distance Z-axis: 140 mm, counter spindle speed (max.): 8,000 rpm, number of axes: 5, Equipment: bar feeder, TECHNICAL DETAILS Number of axes: 5 Number of spindles: 2 Blodpfsycp Ihsx Agpsc MAIN SPINDLE Max. bar diameter: 12 mm Z-axis travel: 140 mm Spindle speed: 8,000 rpm Spindle drive power: 2.2 kW Number of tool positions: 13 SUB SPINDLE Max. bar diameter: 10 mm Spindle speed: 8,000 rpm Number of tool positions: 4 MACHINE DETAILS Operating hours: 47,000 EQUIPMENT FMB Minimag bar feeder Note: Dismantling and loading can be handled by the seller for €1,500.

Condition: excellent (used), Year of construction: 2001, operating hours: 32,000 h, functionality: fully functional, machine/vehicle number: 01-123-01, HF Stretch Ceiling welder A linear welder with a power of 10kW, designed for the production of medium and large-sized PVC products (PVC Stretch ceilings). Machine specifications: - TD-Ceiling travelling HF-welding machine Air-cooled electrode holder 1000 mm Bljdpfxerwyf Ae Agpjc - Welding table 12m, level 2 precision track system for straight machine transportation Phosphor bronze band 125 mm wide, stretched across welding table, for eliminating table joints and/or welding surface of glossy material - Double joystick for variable positioning of machine - 1 cutting edge welding electrodes 1000mm x 3 mm, cutting edge 0,2 mm, with 1 loose tool holder Machine characteris

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, controller model: Mazatrol 640M, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS X-axis: 1,740 mm Y-axis: 760 mm Z-axis: 660 mm Rapid traverse X-axis: 36 m/min Rapid traverse Y-axis: 36 m/min Rapid traverse Z-axis: 36 m/min Table size: 2,000 x 760 mm Table load capacity: 1,400 kg Distance from table surface to spindle nose: 160 mm - 840 mm Spindle speed: 12,000 rpm Main drive power (5 min): 18.5 kW Main drive power (30 min): 11 kW Tool Changer Number of tool stations: 30 Spindle taper: SK 40 Max. tool diameter: 80 mm Max. tool diameter with free adjacent stations: 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg MACHINE DETAILS Control: Mazatrol 640M Interfaces: RS232, LAN, Floppy drive Dimensions & Weight Dimensions (L x W x H): 4,435 x 3,300 x 3,442 mm Machine weight: 11,500 kg Operating Hours as of 23.05.2025 Bledpoya Dh Refx Agpec Operating hours: 6,585 h Cutting hours: 8,300 h Auto cutting hours: 8,374 h EQUIPMENT Documentation/manual Chip conveyor Relocation detector Automatic tool length measurement system Preparation for partition wall for pendulum machining 4th axis Electronic handwheel EIA / ISO programming Synchronous tapping Through-spindle coolant, 5 bar

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, spindle speed (max.): 14,000 rpm, number of slots in tool magazine: 133, TECHNICAL DETAILS Spindle speed: 14,000 rpm Coolant supply through the spindle: 70 bar MACHINE DETAILS Year of manufacture: 2023 EQUIPMENT Direct tapping Tool magazine with 133 storage positions Pallet changer Two pallets with tapped hole grid Eight adjustable rinse nozzles at the spindle Flow monitor for coolant through the spindle Cooling system with chip conveyor BSW880 Interface for mist extraction Visual tool breakage monitoring BTS Toolholder HSK-A63 Coolant temperature control unit Direct measuring systems (glass scales) for X, Y, Z axes Three-axis workpiece probe (Marposs Mida T25G) Double-layer cooling system (BDW 880) Automatic central lubrication Programmable axis mirroring Bledjyarhropfx Agpoc Tool offset storage with 400 memory slots 54 (6+48) freely selectable workpiece coordinate systems Three-color signal lamp

Year of construction: 2024, condition: new, Trolley for handling and storing oversize sashes/frames COMALL CARR 900-93/15 Q, new Technical features: - Contact surfaces coated with non-scratch and shock-proof plastic material Bodpfx Agom H Twgspolc - Max. height sashes/frames 2500 mm - N° 16 couples of posts - 15 compartments with working size 93 mm - 4 wheels Ø 125 mm, 2 of them with locking device - Load capacity: 850 Kg

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: NTX26200912, turning length: 1,530 mm, turning diameter: 670 mm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 675 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 40 mm, rotational speed (max.): 4,000 rpm, number of slots in tool magazine: 76, Simultaneous 5-axis machining with direct drive (DDM) in the B-axis HIGHLIGHTS Milling spindle: compactMASTER with the shortest length of 350 mm Machining option: 6-sided complete machining thanks to powerful counter spindle TECHNICAL DETAILS X1-axis travel: 675 mm (+550 / -125 mm) Y1-axis travel: 300 mm (+/-150 mm) Y2-axis travel: +/-40 mm Machining area Maximum machining area: Ø 670 mm x 1,530 mm Control Control type: FANUC F31iB5 with CELOS Operation: CELOS - ERGOline Touch Spindle Main spindle: standard spindle Ø 91 mm, 4,000 rpm Counter spindle: Standard spindle Ø 91 mm, 4,000 rpm Chuck Main spindle chuck: Hollow chuck 10", Ø 254 mm Chuck for counter spindle: KITAGAWA 10" hollow chuck BB210A821 Protection: Double foot switch with protective cover for main and counter spindle Travel control: Automatic travel control of the clamping cylinder for the main spindle and counter spindle Turning-milling spindle Spindle (B-axis): Standard speed 12,000 rpm (FANUC) Tool holder: Capto C6 Positioning: B-axis with 0.0001° accuracy for 5-axis machining Tool turret Type: Turret 2 with tailstock function Equipment: 10-station turret for tool holders attached with screws Milling performance: 6,000 rpm, 40 Nm (turret 2, FANUC) Bedpfx Aeyap Shogpslc Tool magazine Capacity: 76 tools Tool holder: CAPTO C6 Measuring and monitoring Tool presetting: Manual tool presetting device for main and counter spindle, removable (standard) Distance measuring system: Direct distance measuring system in the X, Y and Z axes of the turning-milling spindle Sensor system: Spindle sensor measuring system with radio signal transmission, Renishaw RMP600 Automation Signal lamp: 4-color (red, yellow, green, blue) Interface: For bar feed device (LNS, IRCO, IEMCA, Edge Technologies, multiple) MACHINE DETAILS Machine dimensions (L x W): 5,825 x 2,830 mm Cooling media and chip disposal Chip conveyor: Ejection on the right, hinged belt + Drum filter Coolant: Use of water-soluble cooling lubricants (emulsion) Pressure: High-pressure coolant system with 70 bar Coolant supply: Through the spindle for the tool spindle and lower turret Filter system: Knoll/Interlit Compressed air system Blow-off system: For chucks on the main and counter spindle Oil mist system Oil mist separator: Extraction opening Ø 200 mm, AFS 1600 Filter and cooling system Filter system: INTERLIT TMF300/980 compact filter system, 70 bar Additional pressure: 15 bar for turret II with lifting pump (FANUC/MITSUBISHI) Cooler: INTERLIT auxiliary cooler, 15 kW

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, number of spindles: 2, spindle speed (max.): 6,500 rpm, travel distance X-axis: 840 mm, travel distance Z-axis: 425 mm, Auction of a production line with robot and two workpiece palletizers! TECHNICAL DETAILS X-axis travel: max. 840 mm Z-axis travel: max. 425 mm Feed diameter: max. 200 mm Spindle speed: 6,500 rpm Workpiece palletizer capacity: 24 workpiece carriers Number of main spindles: 2 Bledoyap Naopfx Agpjc Number of tool turrets: 2 Number of tools per turret: 12 MACHINE DETAILS High-pressure pump: up to 120 bar per line Machine weight: 8,000 kg Cooling: spindle and machine bed cooling EQUIPMENT Robot M6iB Workpiece shuttle system by Heilig Automation with 2 pick-up stations High-pressure pump up to 120 bar per line Chip crusher Workpiece palletizer with a capacity for 24 workpiece carriers

Year of construction: 2024, condition: new, Trolley for carriage of sashes and frame COMALL CARR 600 - 85/9 Q, new Technical specifications: - 9 compartments with working size 84 mm - Contact surfaces coated with non-scratch and shock-proof plastic material - Rollers for sash carriage - 4 wheels Ø 125 mm, 2 of them with locking device - Support: 560 Kg Bodpfx Agslfargepolc - Carton packing

Condition: ready for operation (used), Year of construction: 2017, operating hours: 5,214 h, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, controller model: SINUMERIK 840 D sl/operate, spindle speed (max.): 20,000 rpm, TECHNICAL DETAILS Travel X-axis: 730 mm Travel Y-axis: 730 mm Travel Z-axis: 880 mm Max. main spindle speed: 20,000 rpm Max. torque: 250/104 Nm Tool holder: HSK-A63 Distance spindle center to table: 80 - 810 mm Distance spindle nose to table center: 70 - 950 mm Number of pallets: 2 Pallet size: 500 mm x 500 mm Max. workpiece weight: 500 kg Pallet change time: 9.0 s Max. workpiece diameter: 800 mm Max. workpiece height: 1,000 mm Number of tool stations: 40 Tool change time (tool to tool): 2.5 s Tool change time (chip to chip): 4.4 - 10.0 s Max. tool diameter: 70 mm Max. tool length: 550 mm Max. tool weight: 12 kg Rapid traverse speed: 60,000 mm/min MACHINE DETAILS Control: SINUMERIK 840 D sl/operate High-pressure coolant: 70 bar Dimensions & Weight Floor space required: 6,000 mm x 4,000 mm x 2,700 mm Machine weight: 12.0 t Operating hours: 5,214 h EQUIPMENT Pallet changer Bsdpfoyapvaex Agpolc Coolant tank Tool breakage monitoring
