Automatic powder coating system

Condition: not inspected (used), functionality: unexamined, overall weight: 70 kg, total length: 1,800 mm, total width: 900 mm, total height: 150 mm, drive type: motorgetrieben, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates you to collect the item within the specified timeframe, between June 23, 2026, and June 26, 2026! TECHNICAL DETAILS Operating type: Motor-driven MACHINE DETAILS Rsdpfx Aey D Nkasmgscb Dimensions & Weight Dimensions (L x W x H): 1,800 x 900 x 150 mm Weight: 7 kg External reference: 4

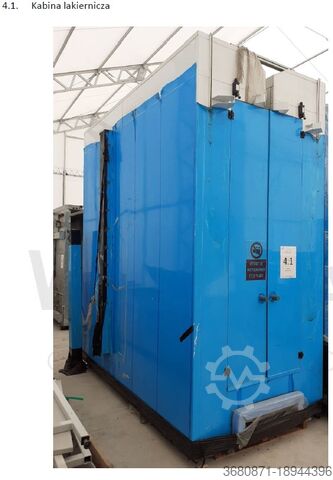

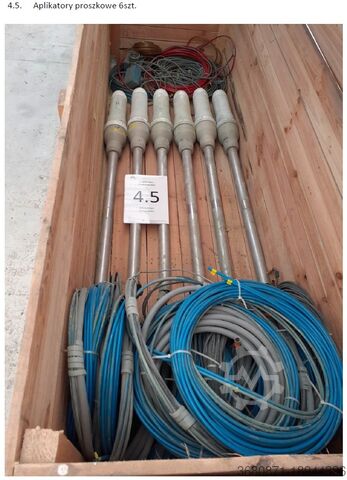

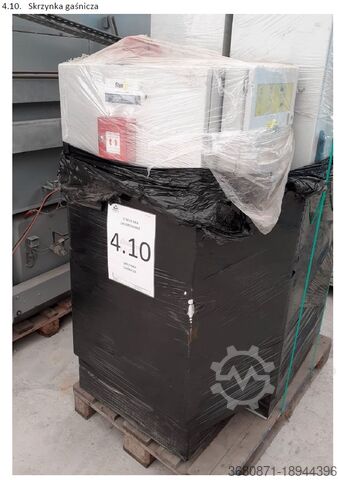

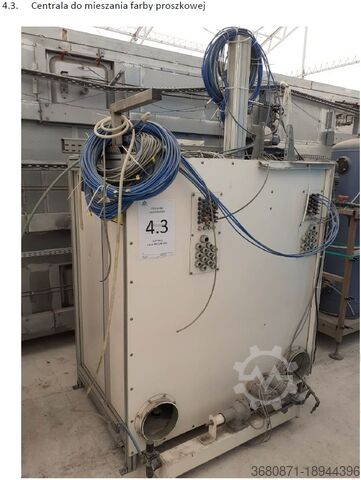

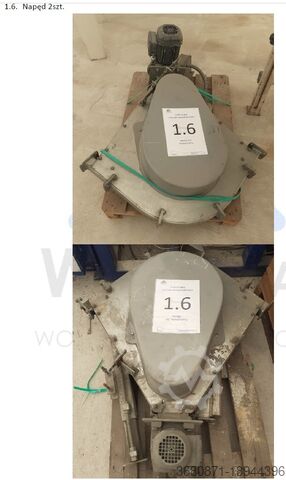

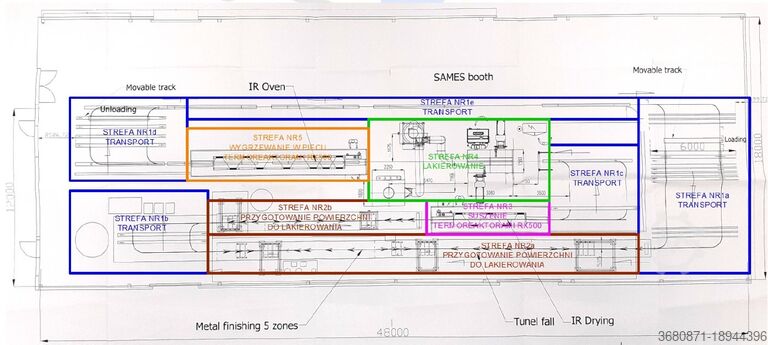

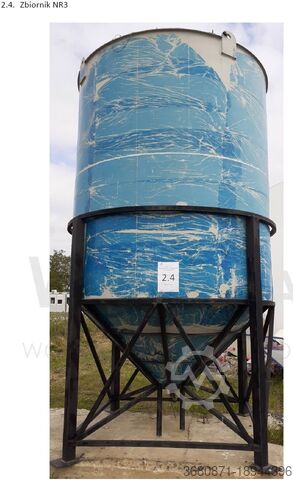

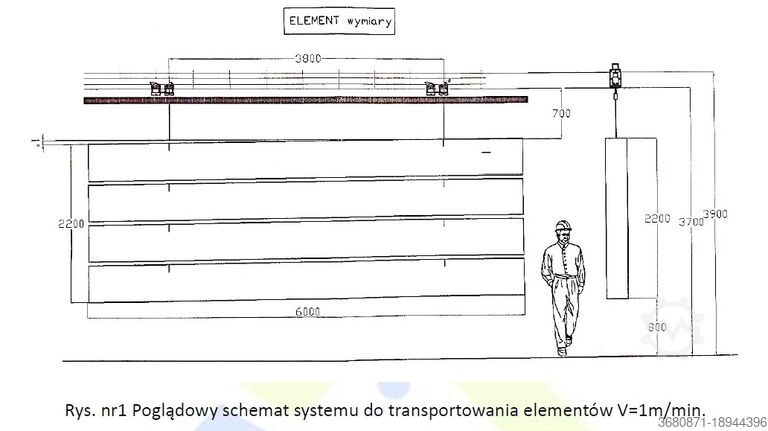

Condition: used, Year of construction: 2014, functionality: fully functional, ⚡️ Top Service ⚡️ Fast Delivery ⚡️ Excellent Support! ✨✨Buy directly from the manufacturer and secure your price and quality advantage!✨✨ Rodpfx Amoiivq Uogscb Benefit from Proton's 40 years of experience in surface coating technologies. ————— ✅System contents ►1 unit - Large, gas-heated powder oven ►1 unit - Automatic powder coating booth ►1 unit - Small, electrically heated powder oven ►2 units - Room-type mono-cyclone manual powder coating booth ►6 units - Automatic powder coating guns ►3 units - Manual powder coating guns ►1 unit - Automatic powder recovery unit ►6 units - Mono-cyclone separators ►1 unit - Automatic control panel ►1 unit - Automatic bar movement system (speed controlled) ►2 units - Mobile platforms (speed controlled) ►8 units - Parking stations ►300 m - Conveyor rail, 1000 kg capacity ►12 units - Suspension bars Our facility is located at Anhaltstr 30, 14943 Luckenwalde. You are welcome to schedule an appointment to view the machines. The plant has been in operation for 10 years. As the direct manufacturer, we can modify the machines according to your requirements by mutual agreement. It doesn’t fit your existing installation site? We can adjust the layout accordingly. Please check the system’s PDF file via the link below.

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: SLM250182820, Year of construction: 2018, total length: 110 mm, total width: 100 mm, laser power: 250 W, laser wavelength: 1,070 nm, type of cooling: air, No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Laser System Laser type: Fiber laser Laser power: 250 W Wavelength: 1,070 nm Spot size: 40 µm Cooling: Air cooling Process Chamber Process atmosphere: Low-oxygen environment Shielding gas: Argon / Nitrogen Max. extraction system flow rate: 190 m³/h Coating System Coater: Precision coater with rotary guide Coating blade: Steel, rubber, or brush system Micrometer screws: For optical alignment of the coater MACHINE DETAILS Printing Process: SLM (Selective Laser Melting) process Rsdpfx Amsy Sm D Hogscb Operation Control model: 12" Microsoft Surface Pro 3 tablet Control type: Tablet-based control and monitoring Build Volume and Powder Reservoir Build volume: 100 mm x 110 mm Reservoir volume: 110 mm x 200 mm EQUIPMENT Integrated extraction system Cartridge system for quick and safe metal powder replacement Monitoring and adjustment of process parameters Cloud manufacturing technology Accessories as shown in the images

Condition: ready for operation (used), functionality: fully functional, travel distance Z-axis: 203 mm, working length: 3,200 mm, working width: 1,575 mm, The technical data is based on manufacturer specifications. The seller assumes no liability for this information! TECHNICAL DETAILS Working area X-axis: 3,200 mm Working area Y-axis: 1,575 mm Z-axis travel: 203 mm Table size: 3,658 x 1,956 mm Maximum material load: 1,950 kg/m² Speed: 4,572 mm/min Redpfxoy Slqxe Amgecb MACHINE DETAILS Electrical connection: 3-phase, 380–480 V AC ±10% Frequency: 50–60 Hz Linear positioning accuracy: ±0.025 mm Repeatability: ±0.025 mm Ballbar circularity accuracy: ±0.064 mm Dimensions and Weight Installation area with control unit: 5,715 x 2,794 mm Weight, tank empty: 2,812 kg Height with scissors high-pressure piping: 2,921 mm Operating weight: 10,545 kg

Condition: ready for operation (used), Year of construction: 2006, operating hours: 13,006 h, functionality: fully functional, machine/vehicle number: 190433, turning length: 1,050 mm, turning diameter: 660 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 1,050 mm, controller model: Mazatrol Matrix, The technical data is based on manufacturer specifications. The seller cannot guarantee its accuracy! Rodpfx Amoy Slqfsgocb Operating times according to control system: Total: 5,025 h Automatic machining: 1,866 h Pure machining RV1: 1,037 h Pure machining RV2: 298 h Operating time: 13,006 h Tool type: Capto C6 Tool changer: 72 positions Turret: 9 positions TECHNICAL DETAILS Max. turning diameter: 660 mm Diameter over bed: 760 mm Turning length: 1,050 mm X-axis: 580 mm Y-axis: 150 mm Z-axis: 1,050 mm Main spindle speed: 5,000 rpm Counter spindle speed: 5,000 rpm Milling spindle: 12,000 rpm MACHINE DETAILS Control system: Mazatrol Matrix Main circuit: 3AC Main circuit voltage: 400 V Frequency: 50/60 Hz Control circuit AC: 100 V Control circuit DC: 24 V Main motor current draw: max. 84 A Main motor voltage: 400 V Rated power: 91.8 kVA Weight: 11,800 kg

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 178979, turning length: 309 mm, turning diameter: 280 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 330 mm, controller model: Mazatrol 640T Nexus, No reserve price – guaranteed sale to the highest bidder! The technical data is sourced from the manufacturer's information. The seller assumes no liability for its accuracy! TECHNICAL DETAILS Max. turning diameter: 280 mm Max. machining length: 309 mm Swing diameter: 550 mm X-axis travel: 190 mm Z-axis travel: 330 mm Spindle bore: 61 mm Rapid traverses X/Z: 30/33 m/min MACHINE DETAILS Control: Mazatrol 640T Nexus Main power circuit: 3AC Main circuit voltage: 400 V Frequency: 50/60 Hz Control circuit AC: 100 V Rcsdpjy Sln Rsfx Amgjb Control circuit DC: 24 V Main motor current: 31 A Main motor voltage: 400 V Rated power: 24 kVA Weight: 3,500 kg Note: The bar feeder is not included in the offer.

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 265771, turning diameter: 350 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 195 mm, travel distance Y-axis: 560 mm, workpiece weight (max.): 20 kg, The technical data is based on manufacturer specifications. The seller cannot guarantee its accuracy! TECHNICAL DETAILS Travel X-axis: 195 mm Travel Z-axis: 560 mm Maximum spindle speed: 5,000 rpm Rapid traverse X-axis: 30 mm/s Rapid traverse Z-axis: 33 mm/s Maximum turning diameter: 350 mm MACHINE DETAILS Control: Mazatrol Smart Main power circuit: 3-phase AC Main power circuit voltage: 400 V Frequency: 50/60 Hz Control circuit AC: 100 V Control circuit DC: 24 V Main motor current consumption: max. 53 A Main motor voltage: 400 V Rated power: 29.1 kVA Dimensions & Weight Redpfx Amjy Saiijgscb Machine dimensions (L x W x H): 2,650 x 1,700 x 1,700 mm Machine weight: 4,500 kg

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, bar diameter (max.): 51 mm, turning length: 102 mm, drilling depth: 102 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Maximum turning length: 102 mm Maximum drilling depth: 102 mm Maximum round bar diameter: 51 mm Maximum square bar diameter: 36 mm Maximum hexagon bar diameter: 44 mm Maximum octagon bar diameter: 47 mm Spindle drum diameter: 340 mm Standard bar feed: 125 mm Special bar feed: 290 mm Standard longitudinal slide travel, total: 125 mm Standard longitudinal slide travel, working stroke: 100 mm Special longitudinal slide travel, total: 160 mm Special longitudinal slide travel, working stroke: 125 mm Upper cross slide travel, total: 60 mm Upper cross slide travel, working stroke: 36 mm Middle cross slide travel, total: 60 mm Middle cross slide travel, working stroke: 36 mm Lower cross slide travel, total: 70 mm Lower cross slide travel, working stroke: 44 mm Maximum material pass-through: 51 mm Maximum material feed: 125 mm MACHINE DETAILS Coolant capacity: 660 l Pump capacity: 170 l/min EQUIPMENT Rcsdpfx Amsy R R Nwjgeb Thread cutting device Right-hand threading via undercut Electric submersible pump Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, spindle speed (max.): 3,150 rpm, bar diameter (max.): 32 mm, turning length: 80 mm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold with collets, fixtures, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Max. turning length: 80 mm Max. drilling depth: 80 mm Maximum material passage: 32 mm Maximum material feed: 125 mm Turning speed: 200–3,150 rpm Thread cutting speed (right-hand): 11.2–1,575 rpm MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & weight: Space required: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Current type: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulation oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides Rcedpfx Aey R R Igjmgeb 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Fixtures Additional accessories

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Rcedpfxey R Rutj Amgeb Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides Redpfey R Rqbsx Amgecb 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories
