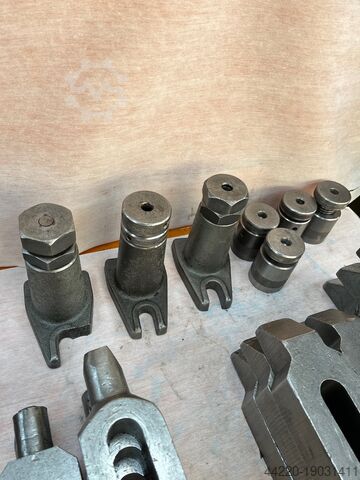

Clamping fork

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 351.10.001.16, functionality: fully functional, workpiece length (max.): 3,000 mm, workpiece width (max.): 920 mm, workpiece height (max.): 50 mm, drilling depth: 55 mm, TECHNICAL DETAILS Maximum horizontal drilling depth: 30 mm Maximum vertical drilling depth: 55 mm Horizontal spindles: 6 Vertical spindles: 9 Spacing between horizontal spindles: 32 mm Spacing between vertical spindles: 32 mm Maximum diameter of horizontal spindles: 15 mm Maximum diameter of vertical spindles: 8 x 15 mm, 1 x 35 mm Ncedpfx Acjzcdkwo Tju Workpiece dimensions, X-axis: 280 - 3,000 mm Workpiece dimensions, Y-axis: 180 - 920 mm Workpiece dimensions, Z-axis: 10 - 50 mm Speed, X-axis: 25 m/min Speed, Y-axis: 25 m/min Speed, Z-axis: 15 m/min Motor power, drilling head: 1.5 kW Speed, drilling head: 3,600 rpm Speed, circular saw unit: 9,000 rpm Speed, milling spindle: 24,000 rpm Diameter of circular saw blade: max. 100 mm MACHINE DETAILS Operating/ambient temperature: 15–40 °C Humidity: max. 90 % at 20 °C Operating pressure: 6–8 bar Nominal compressed air consumption: 60 l/min Air consumption: 1,650 m³/h Diameter of compressed air supply: 5/8" Inner diameter: 16 mm Dimensions & Weight Dimensions (L x W x H): 2,100 x 1,605 x 1,950 mm Weight: 850 kg Operating hours (estimated): approx. 800 h EQUIPMENT Additional support roller tables

Condition: ready for operation (used), Year of construction: 1998, operating hours: 26,000 h, functionality: fully functional, machine/vehicle number: J0124, travel distance X-axis: 1,800 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 750 mm, controller model: Heidenhain iTNC 426, rotational speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,800 mm Travel range Y-axis: 850 mm Travel range Z-axis: 750 mm Spindle nose to table distance range: 200 mm - 950 mm Spindle center to column distance: 920 mm Table dimensions X: 2,000 mm Nsdpfx Aozdpqwjc Tjcu Table dimensions Y: 800 mm Max. table load: 2,200 kg Tool interface: SK50 Magazine capacity: 30 Spindle speed: 6,000 rpm Feed rate: 5 m/min Rapid traverse: 12 m/min MACHINE DETAILS Control system: Heidenhain iTNC 426 Dimensions & Weight Dimensions (L x W x H): approx. 5,700 x 3,850 x 3,350 mm Weight: approx. 16,500 kg Operating Hours Total operating hours: approx. 51,000 h Spindle operating hours: approx. 26,000 h EQUIPMENT 4th axis installed as a rotary table Documentation/Manual Spindle speed infinitely adjustable Chip conveyor Coolant system Vices

Condition: ready for operation (used), Year of construction: 2007, pressing force: 28 t, stroke length: 200 mm, throat depth: 200 mm, installation height: 325 mm, working length: 835 mm, TECHNICAL DETAILS Pressing force: 28 t Ncedpfxezdd Rgs Ac Tou Bending length: 835 mm Travel range of the back gauge: 0 - 370 mm Stroke: 200 mm Distance between frames: 890 mm Support table: 200 x 275 mm Overhang: 200 mm Installation height: 325 mm Number of cylinders: 1 Working speed Pressing speed: 8-10 mm/s Retraction: max. 35 mm/s Positioning accuracy: +/- 0.05 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 1,600 x 1,500 x 2,200 mm Total weight: 3,500 kg EQUIPMENT Operating manual Safety device Mechanical tool clamping system (top)

Condition: ready for operation (used), Year of construction: 2012, controller model: NR4000.2.1 IPC, Equipment: documentation/manual, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Engraving area, X-axis: 100 mm Engraving area, Y-axis: 150 mm CNC engraving and embossing machine – TSM series Type: TSM 15-10-UG Year of manufacture: 2012 Control system type: NR4000.2.1 IPC EQUIPMENT Operating manual available Documentation and software available Ncjdozddzropfx Ac Teu

Condition: defective spare-parts repository (used), Year of construction: 2020, spindle speed (max.): 18,000 rpm, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 150 mm, table load: 20 kg, No minimum price – guaranteed sale to the highest bidder! The new price of the machine was 39,875 EUR! TECHNICAL DETAILS Travel range, X-axis: 500 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 150 mm Dimensions of the T-slot table (L x W): 700 x 570 mm Maximum table load: 20 kg HFS spindle power: 80 W HFS spindle speed: 60,000 rpm Motion Rapid traverse: 100 mm/s Ncedpfxjzddwme Ac Tju Repeatability: 0.01 mm Tool holder: 6 mm MACHINE DETAILS Electrical connection: 240 V Software: Signumeric EQUIPMENT Bellows covers Energy guide chains Jäger engraving spindle 42-2 W27 FS incl. frequency converter Reinforced base frame Heat dissipation via spindle carrier 2 m cable outlet Quick-change system for on-site electric engraver Documentation and software available Note: without monitor and without PCA control module (engraving computer)

Year of construction: 2018, condition: ready for operation (used), operating temperature: 950 °C, ambient temperature (max.): 70 °C, nominal flow rate: 40 m³/h, overpressure (max.): 0.2 bar, machine/vehicle number: 220173941, TECHNICAL DETAILS Maximum overpressure in the pipes: 0.2 bar Maximum operating temperature in the pipes: 950°C Maximum ambient temperature: 70°C Pipe volume: 40 l EQUIPMENT Dew point or cp control Nedpfx Aezddb Ejc Tecu Soot filter in duplex version Fully automatic power control in the range of 50-100%

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 665100, overall weight: 4,700 kg, center height: 125 mm, Round grinding machine with robot! TECHNICAL DETAILS Center height: 125 mm MACHINE DETAILS Control: Fanuc 18i-T Total weight: 4,700 kg Operating hours Automatic cycle time (according to diagram): 41,411 h Feed time (according to diagram): 14,251 h EQUIPMENT Universal Robots UR5 robot Standard accessories 1 grinding wheel set, right-hand, 500 x 110 x 203.2 mm Njdpfxezcwfue Ac Tjcu 1 manual swivel chuck for turning parts with manual indexing every 2.5 degrees Automatic balancing device MARPOSS type E 82 Hydraulic quill retraction for the tailstock Stroke monitoring for the tailstock Standard workpiece spindle MK 5 DIN 55026 size 5”

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, machine/vehicle number: 32.469.3143, center height: 125 mm, grinding length: 1,000 mm, The machine underwent a partial overhaul in 2009. Nedpezcwfnefx Ac Tecu TECHNICAL DETAILS Maximum height: 125 mm Maximum width: 1,000 mm EQUIPMENT Automatic working cycle Intermediate plates 50 mm for a maximum height of 175 mm Vibration-damping pads Machine light Internal grinding device for a maximum diameter of 70 mm Internal grinding spindle UJ7P Coolant supply through the workpiece spindle, including protective cover Side and angled dressing device Swiveling dressing device for internal grinding Dressing stop for internal grinding Collet chuck Set of collets Dial indicator stop for table swiveling with a 1/100 mm dial indicator Sine bar Table fixed stop Strip-type filter system SONY digital measuring system, 2 axes Documentation

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 2,134 mm, travel distance Y-axis: 813 mm, travel distance Z-axis: 762 mm, table load: 1,814 kg, spindle speed (max.): 8,100 rpm, The machine can be inspected while powered on during production! TECHNICAL DETAILS Travel range, X-axis: 2,134 mm Travel range, Y-axis: 813 mm Travel range, Z-axis: 762 mm Max. spindle speed: 8,100 rpm Spindle motor power: 22.4 kW Max. torque: 122.0 Nm at 2,000 rpm Table dimensions: 2,134 x 711 mm Nodpfxezg Drzs Ac Tscu Max. load capacity on table: 1,814 kg Number of tool magazine slots: 31 Distance from spindle nose to machine table (max.): 864 mm Distance from spindle nose to table (min.): 102 mm MACHINE DETAILS Control system: HAAS Table dimensions: 2,134 x 711 mm Max. load capacity on table: 1,814 kg EQUIPMENT Documentation/Manual Chip conveyor

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 2,700 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,050 mm, spindle speed (max.): 3,000 rpm, controller model: HEIDENHAIN iTNC530, The machine can be inspected while powered on during production! TECHNICAL DETAILS Travel range X-axis: 2,700 mm Travel range Y-axis: 1,000 mm Travel range Z-axis: 1,050 mm Max. feed rate X/Y/Z: 10,000 mm/min Table dimensions: 3,300 x 1,000 mm T-slots: 7 x 22 2-axis diagonal milling head: 1 x 2.5 Spindle speed: 60 - 3,000 rpm Motor power: 22/30 kW Tool holder: ISO 50 (DIN69872-B) MACHINE DETAILS Control system: HEIDENHAIN iTNC530 Coolant pressure through the spindle: 19 bar EQUIPMENT Ncedezg Dq Djpfx Ac Tsu Adjustable control panel in front of the machine Enclosure with front-facing doors Machine documentation Cooling and chip disposal Chain conveyor in the longitudinal direction
